Designed to excel in corporate, retail, hospitality and education environments, AHM matrix processors enable integrators to quickly create systems ranging from a single meeting room to an entire campus.

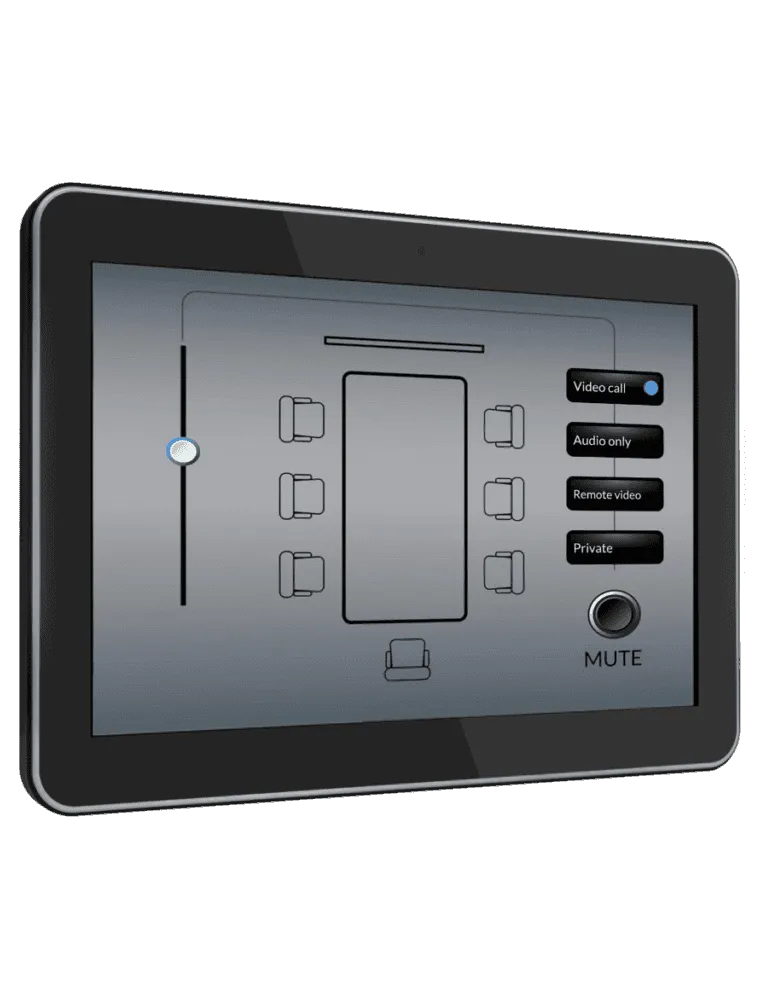

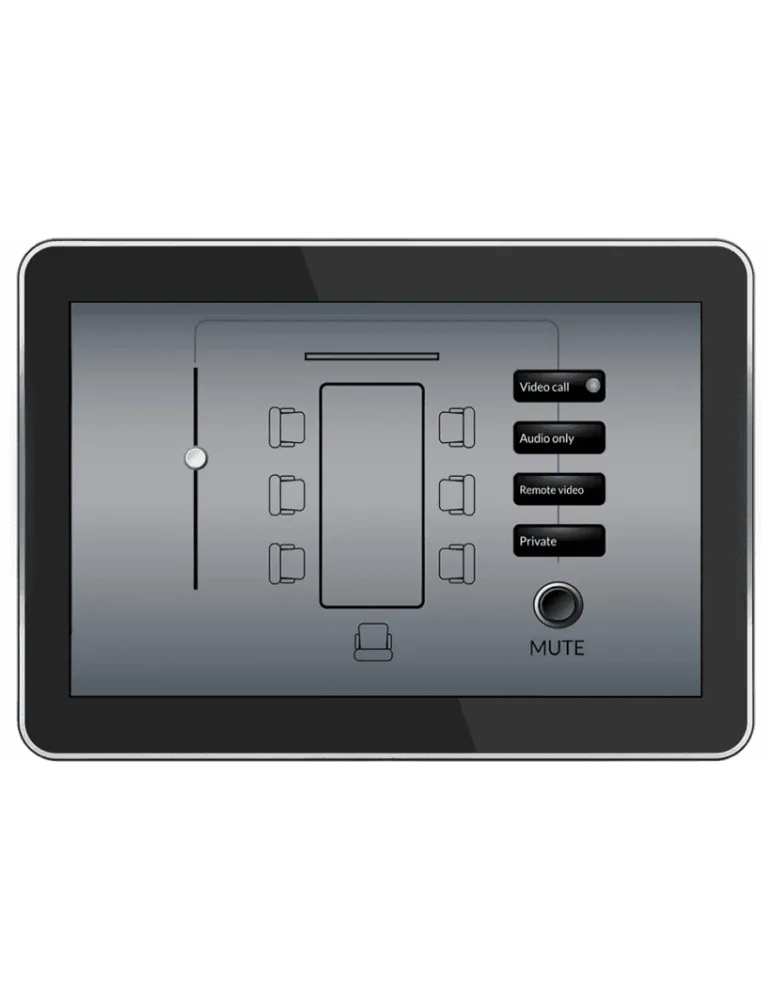

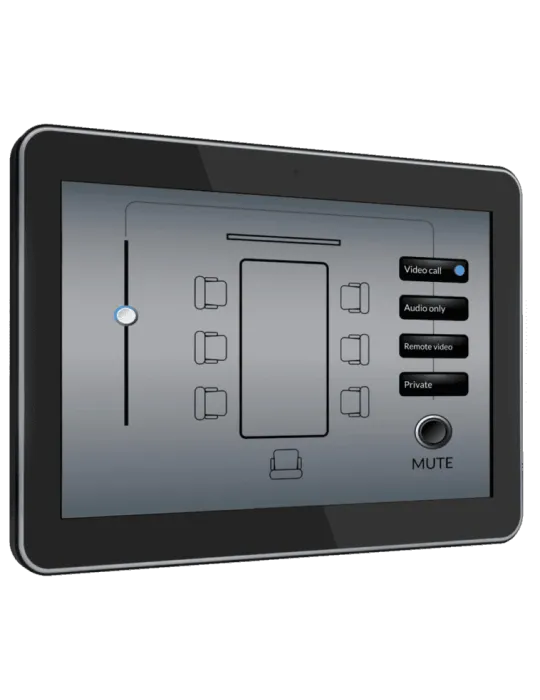

Perfect companions to AHM matrix processors, dLive or Avantis systems in facilities, the CC-7 and CC-10 are touchscreen control panels for use on a desktop or wall mount. Powered by Allen & Heath's Custom Control application, they can function as fixed control devices or complement a BYOD solution. From simple music source selection to level control, preset recall or paging, they offer an alternative to the IP remote control lineup for applications where a touch interface is preferred.
- Touchscreen 10.1 for custom control
- PoE or DC 12V power supply
- Gigabit Ethernet port
- USB-A port for Custom Control

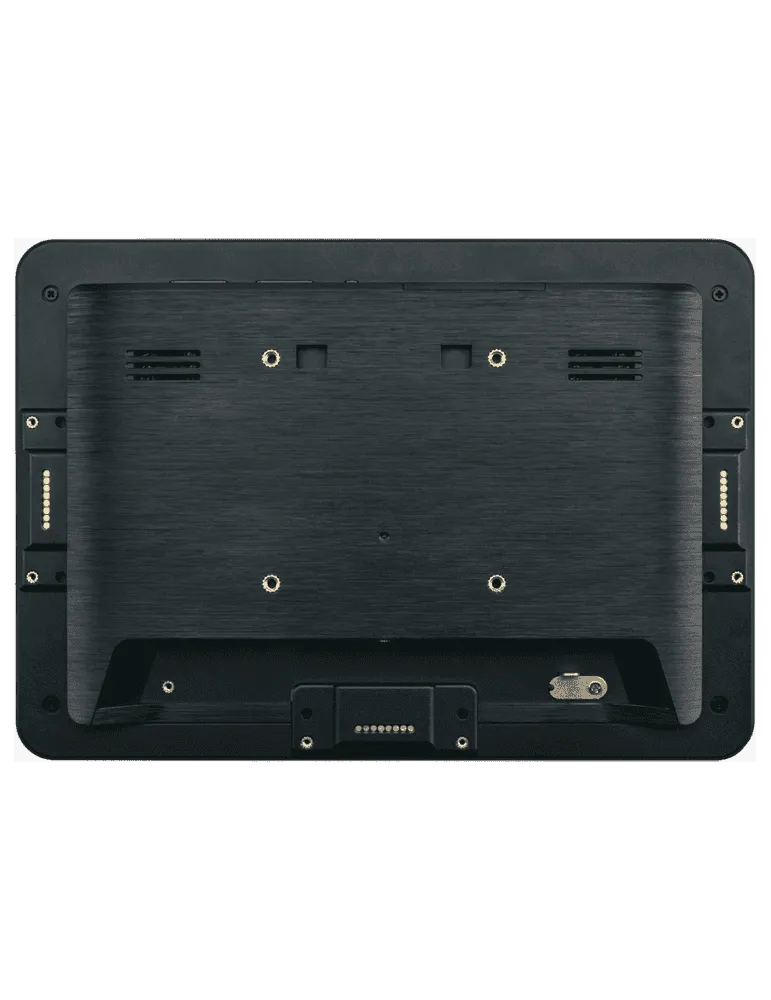

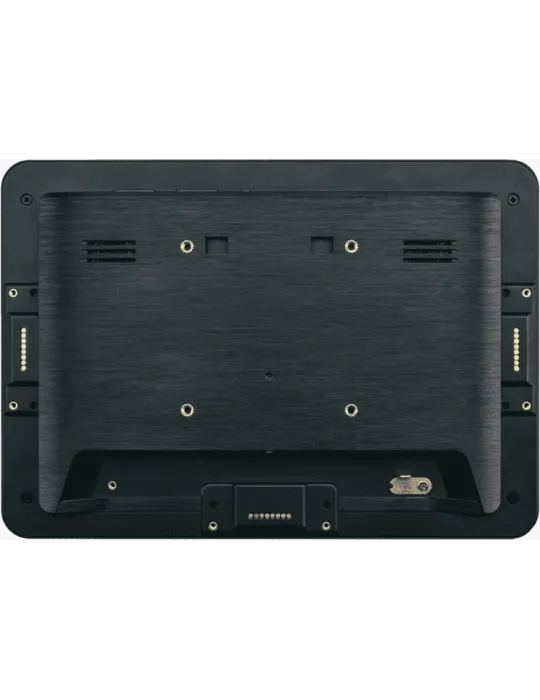

- VESA 75x75 mounting
- Optional tabletop mount (CC-STN) available
- Optional wall mount (CC-BRK) available
Custom Control is a customizable cross-platform control application, offering elegant, custom control of Allen & Heath AHM-64, dLive and Avantis installed audio systems.
- Multiple user interfaces (per user, per device type)
- Custom graphics and backgrounds
- BYOD compatible
- Optional password protection
- Platform compatible: iOS / Android / Windows / Mac
- Additional Specs:
DC input: +12V DC 2A
Operating temperature: 0°C to 40°C (32°F to 104°F)
PoE requirements: 802.3af 15W
Capacitive display, projected 5-point touch
Resolution: 1280x800
Brightness: 500 cd/m2
Viewing angle: H 160° / V 160°
Contrast ratio: 800:1
Aspect ratio: 16:10
