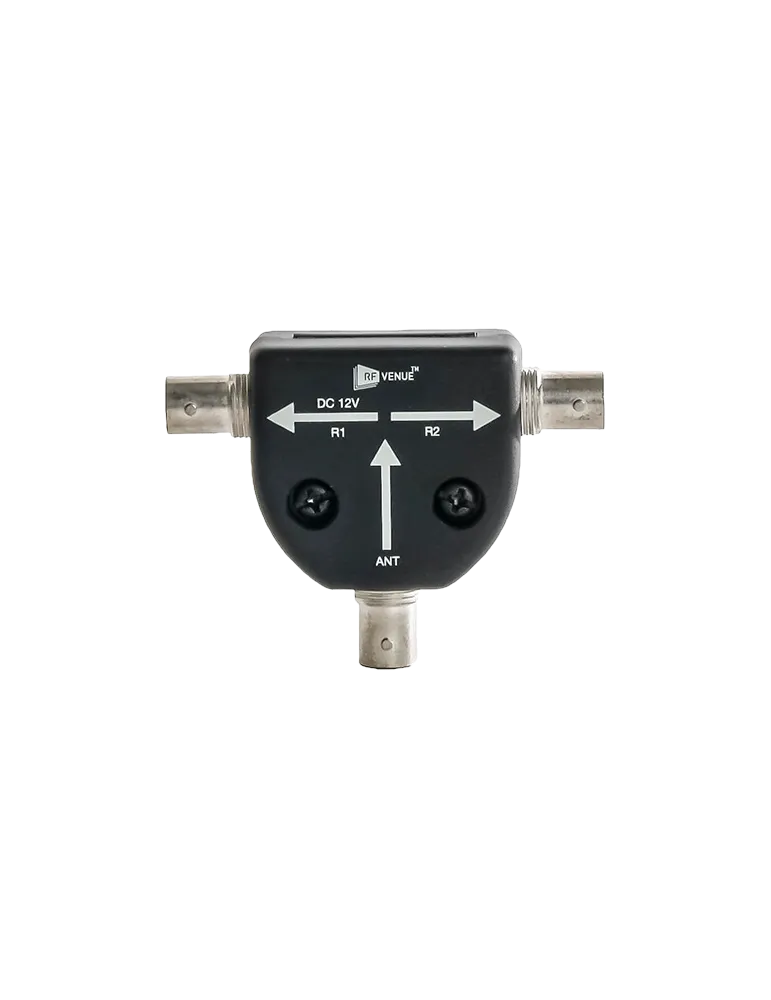

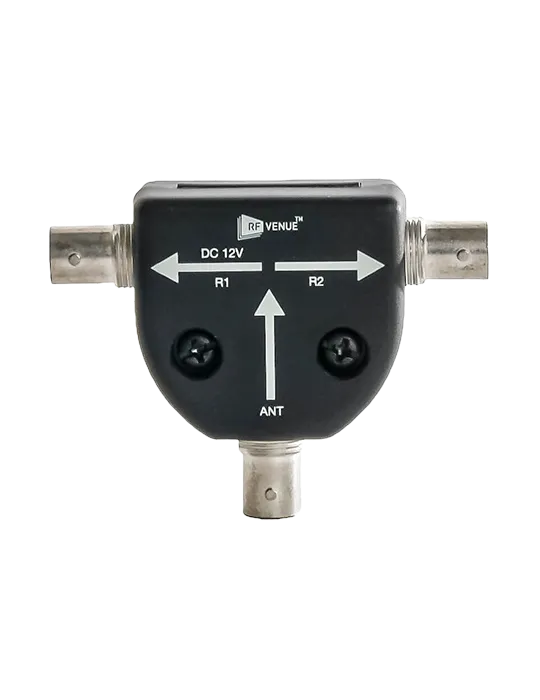

RF VENUE 2X1SPLIT Passive 10-1000 MHz Splitter/Combiner

Passive splitter/combiner 10–1000 MHz

The 2x1SPLIT is designed for use with wireless audio systems and is compatible with all major brands of wireless microphones and in-ear monitors.

Features: One BNC antenna input and two BNC outputs, or two BNC antenna inputs and one BNC output. The R1 channel passes 12 V DC if DC is supplied on the coaxial cable.

23 people are viewing this right now
RF VENUE
SRF 2X1SPLIT
€114.00
VAT included Delivery within 3 to 4 days
Quantity
Add to Wishlist
Add to Compare
In stock

Accessories for Wireless Systems,  RF VENUE,  ACCESSOIRES HF,  Combineur d'antennes
  Security policy Your personal data is 100% protected
  Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
  Return policy 30 days in case of issues
Description

- Category: receiver accessory

- Connector: BNC

- Weight: 0.062 kg

- Additional specifications:

- RF carrier frequency range: 10-1,000 MHz

- VSWR: 1:2

- Impedance: 50 Ω

- Isolation: 20 dB

- Insertion loss: 2 dB

- Maximum power at ANT input: 30 dBm

- Maximum power at each R1 & R2: 26 dBm

- Power supply: 12 V DC, 100 mA

- Physical dimensions: 72.2 x 54.9 x 23.6 mm

- Weight: 62.6 g

Product Details
RF VENUE
SRF 2X1SPLIT

Specific References

  • SRF 2X1SPLIT
  • 0718122340712
