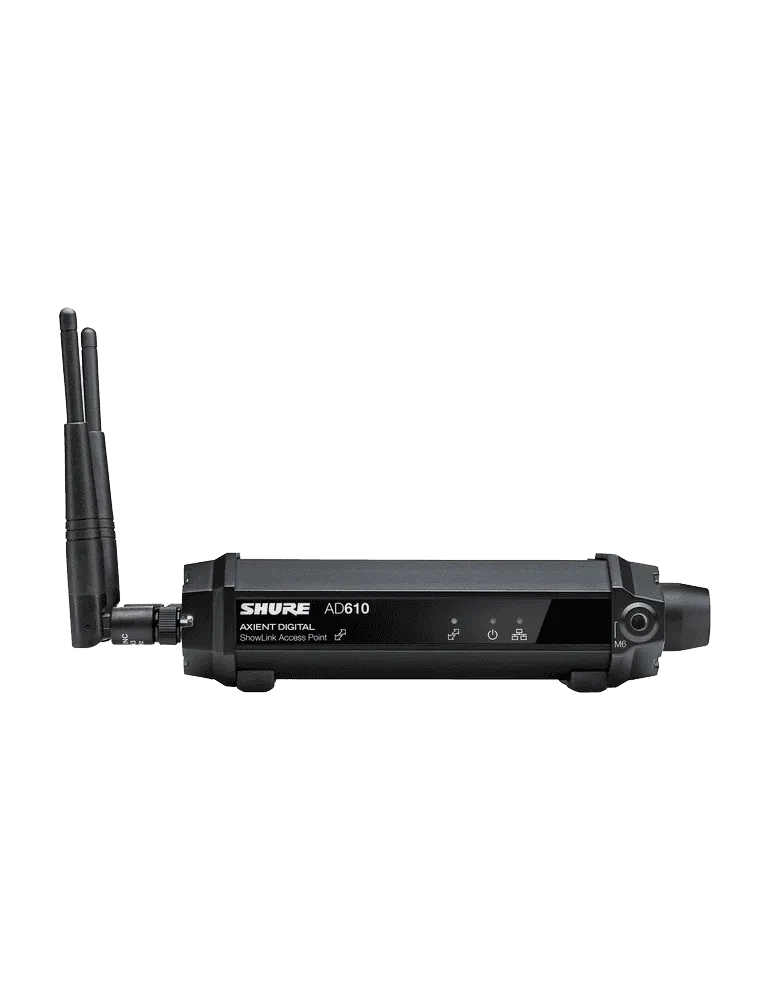

SHURE AD610 Network - Showlink Diversity Access Point
Network - Showlink Diversity Access Point
Capturing the best of the UHF-R, ULX-D, and Axient series, the Axient Digital, Shure's new flagship wireless system, has been designed to address the drastic reduction in usable spectrum and to meet the demands of current and future productions.
3 people are viewing this right now
SSR AD610
€1,063.20
€886.00
Save 16.67%
VAT included
Delivery within 3 to 4 days
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
Description
Thanks to its revolutionary digital transmission mode, the spectral efficiency of the Axient Digital system allows for 23 channels per 8 MHz TV channel or up to 63 channels in high-density mode, satisfying ever-increasing frequency requirements.
Articulated around a common platform comprising an AD4D two-channel receiver and an AD4Q four-channel receiver, Axient Digital is offered with two transmitter families; the AD series naturally replacing the UHF-Rs and the ADX series incorporating all of the innovative technology and features of the Axient analog system.
With its very wide switching band, identical for both transmitters and receivers, Axient Digital facilitates fleet management and frequency coordination on tour.
The Axient Digital system is compatible with the Axient AXT600 Spectrum Manager, and with most existing Shure accessories.
Because of its scalable nature, the Axient Digital series provides a true answer to today's constraints and tomorrow's requirements.
High Performance RF
Innovative digital modulation process ensures robust transmission and long signal range.
Measurement and display of transmitted digital signal quality for added safety
Performance comparable to an analog system in noisy environments and at range limits
Combined digital True Diversity ensuring stronger resistance to stalls and other anomalies
Quadversity function allowing four receiving antennas to be assigned to a channel to increase coverage or cover two areas (AD4Q only)
High density mode drastically increasing the number of compatible channels
Audio Quality
Fully transparent and musical sound: uniform frequency response - dynamic range > 120 dB ensuring excellent transient response
Very low 2 ms delay between capsule and analog output (standard mode)
Dante digital audio network (AES67 compatible)
AES3: 96 kHz or 48 kHz
AES-encryption.256 for secure transmission
Management and Control
Wireless Workbench 6 frequency coordination and network management software
ShurePlus Channel iOS app for mobile control and monitoring
AXT600 spectrum manager providing real-time spectrum monitoring and backup frequency distribution to various systems
Dante Browse function allowing listening to any channel Dante in the network
Dante Cue function for monitoring all channels from a single AD4D or AD4Q receiver
Power management through different networked chargers
Equipment and Scalability
Single platform of two receivers compatible with both AD and ADX series transmitter families
Extra wide RF bandwidth up to 184 MHz for all transmitters and receivers
Shure system using existing accessories: Antennas, Antenna Distributor, Access Point, Spectrum Manager, Chargers
General Specifications
- RF Bandwidth: 166 MHz (Transmitters and Receivers)
- Number of Compatible Channels per 8 MHz TV Channel:
- 23 in standard mode
- 63 in high density mode
- Group and channel frequency scanning
- Interference detection with alerts
- AES-256 format encryption
- Transmitter sync via IR link
- Frequency response: 20 Hz to 20 kHz
- A/D and D/A conversion: 24 bits - 48 kHz
- Analog output audio dynamic range: > 120 dB A-weighted
- Dante/AES output audio dynamic range: > 130 dB A-weighted
- Latency: 2 ms (standard mode) - 2.9 ms (high density mode)
The AD610 allows real-time remote control of all transmitter parameters from the receiver or the WWB6 software. It is compatible with ADX and Axient analog transmitters.
Using the ZigBee protocol, the AD610 can support up to 24 transmitters. With true diversity reception, it provides robust HF transmission and has a range equivalent to HF audio link. Multiple AD610s can be connected to the network to handle more transmitters, without any setup. The access point is powered by PoE or an optional external power supply. Comes with WA371 micro clamp and 7.50m Ethernet cable.
General Specifications
- RF bandwidth: 166 MHz (transmitters and receivers)
- Number of compatible channels per 8 MHz TV channel:
- 23 in standard mode
- 63 in high density mode
- Group and channel frequency scanning
- Interference detection with alerts
- AES-256 format encryption
- Transmitter sync via IR link
- Frequency response: 20 Hz to 20 kHz
- A/D and D/A conversion: 24 bits - 48 kHz
- Analog output audio dynamic range: > 120 dB A-weighted
- Dante/AES output audio dynamic range: > 130 dB A-weighted
- Latency: 2 ms (standard mode) - 2.9 ms (high-density mode)
Technical features:
- Protocol: IEEE 802.15.4 ZigBee
- RF bandwidth: 2400 to 2485.3 MHz
- RF power: 10 dBm / 20 dBm EIRP
- Capacity: 24 transmitters
- Network interface: 10/100 Mb/s
- Addressing: DHCP or manual IP
- Power supply: PoE class 1 or external PS43E power supply
- Dimensions: 102 mm x 190 mm x 47 mm (WxHxD)
- Weight: 464 g without antennas
Product Details
Specific References
- SSR AD610
- 0042406501316
