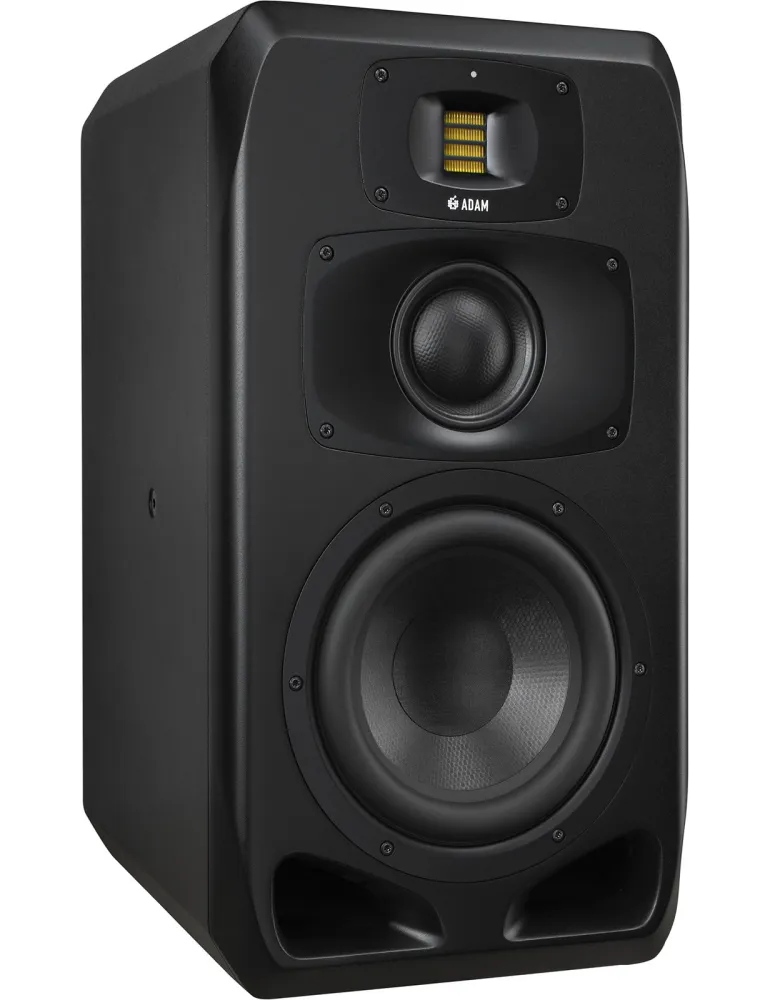

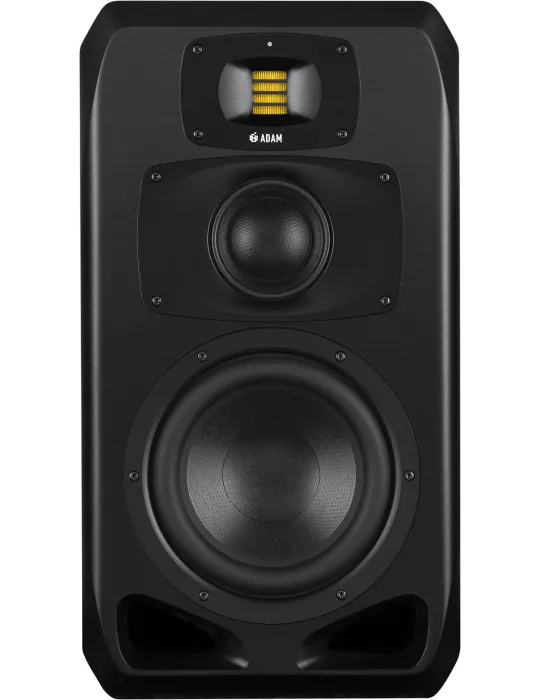

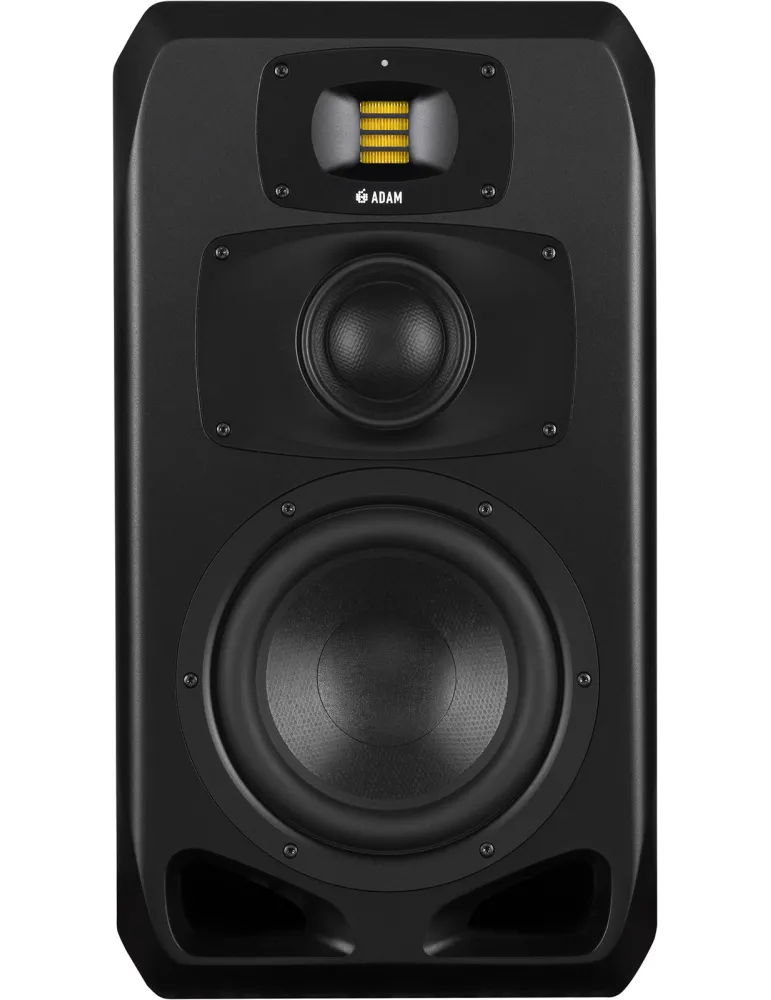

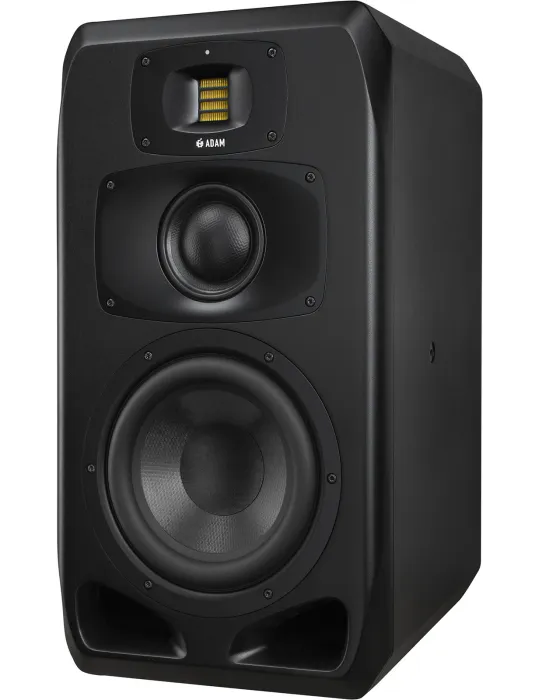

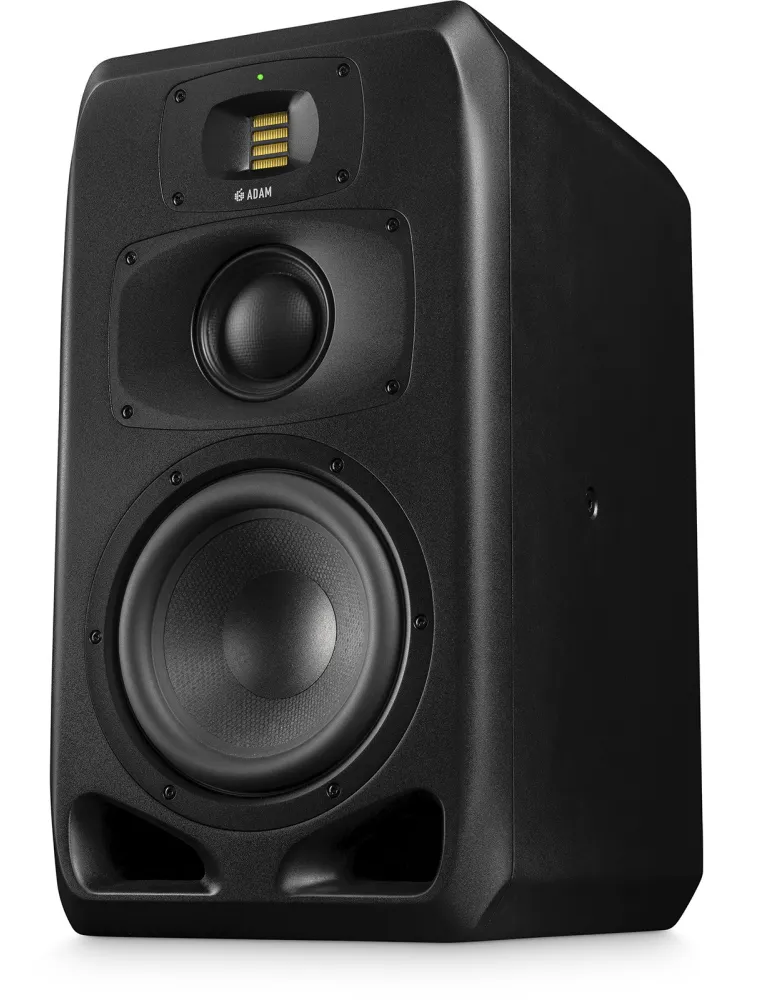

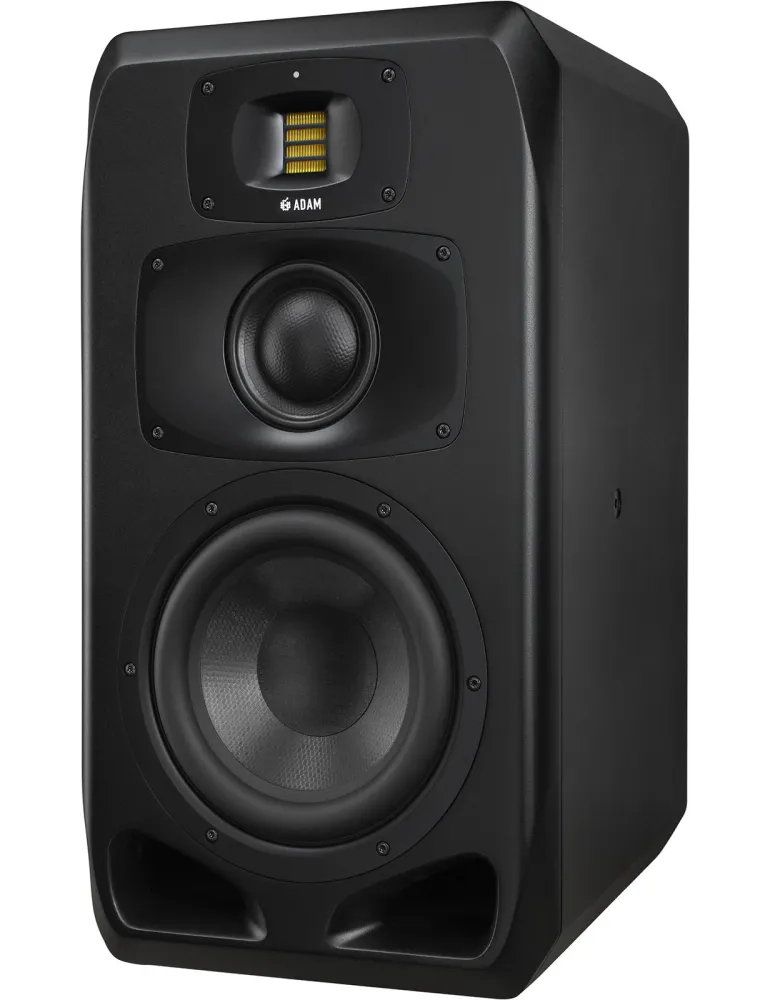

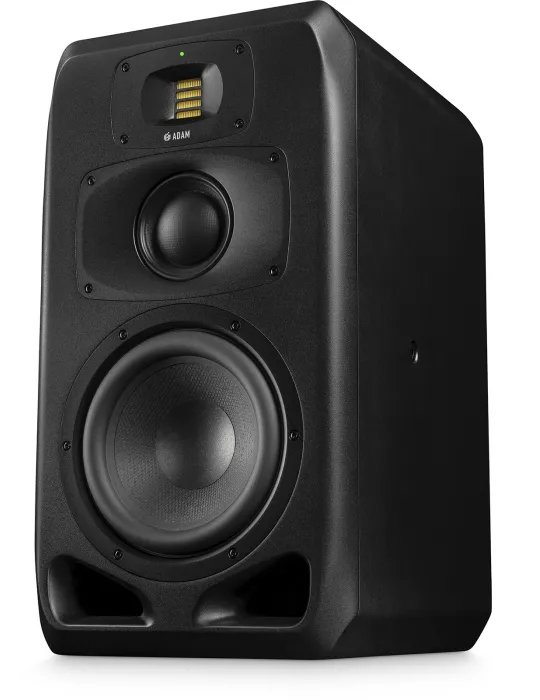

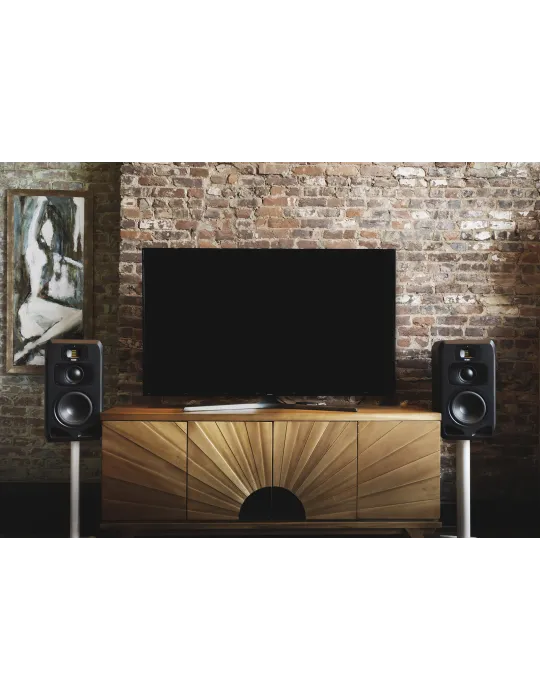

Active midfield speaker / 3-way / 9" driver

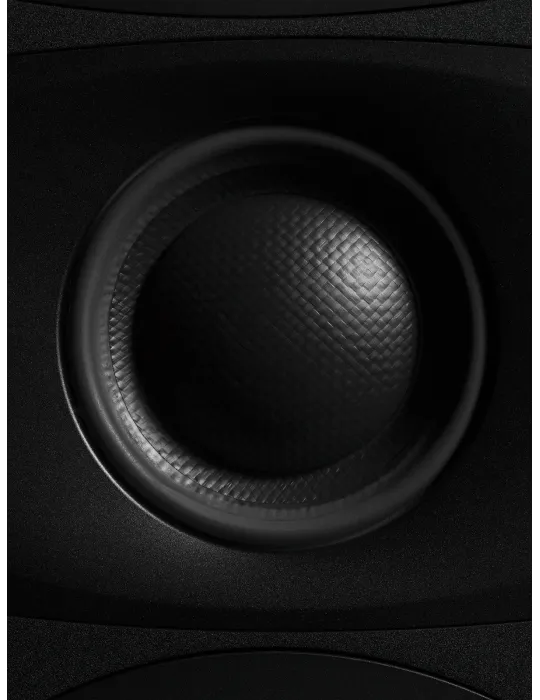

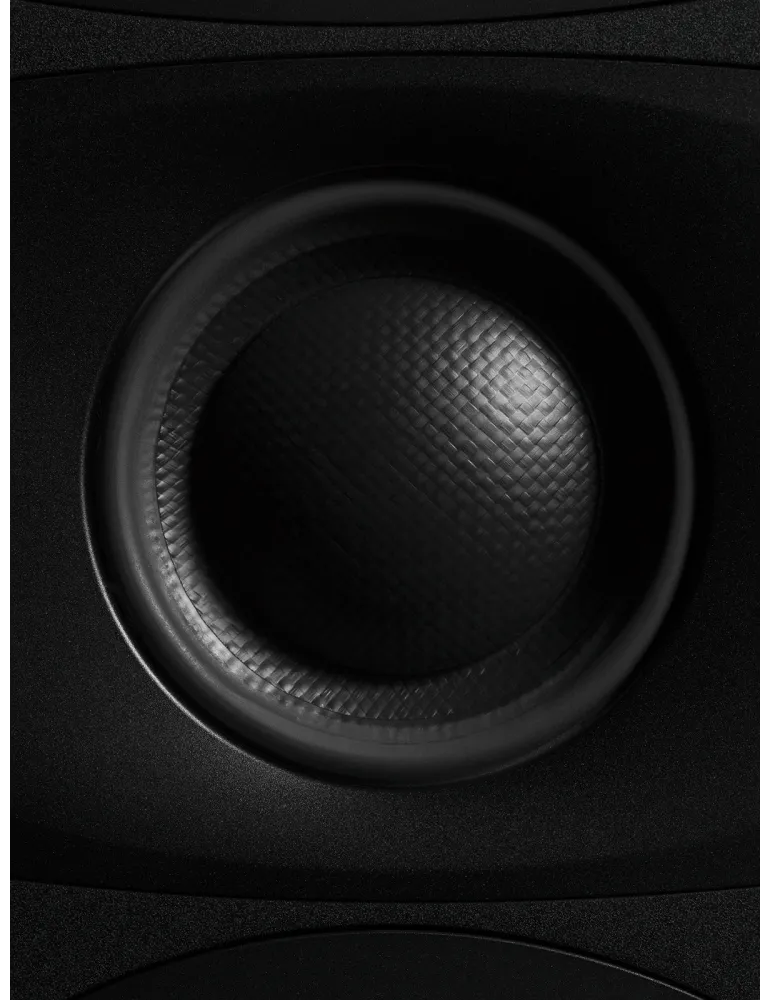

Low frequencies from 32 Hz to 250 Hz are handled by ADAM Audio's all-new 9-inch ELE (Extended Linear Excursion) bass driver, which also incorporates the innovative SMA (Symmetrical Magnet Assembly) system. This technological duo delivers powerful, extremely precise low end that extends into the sub-bass.
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues

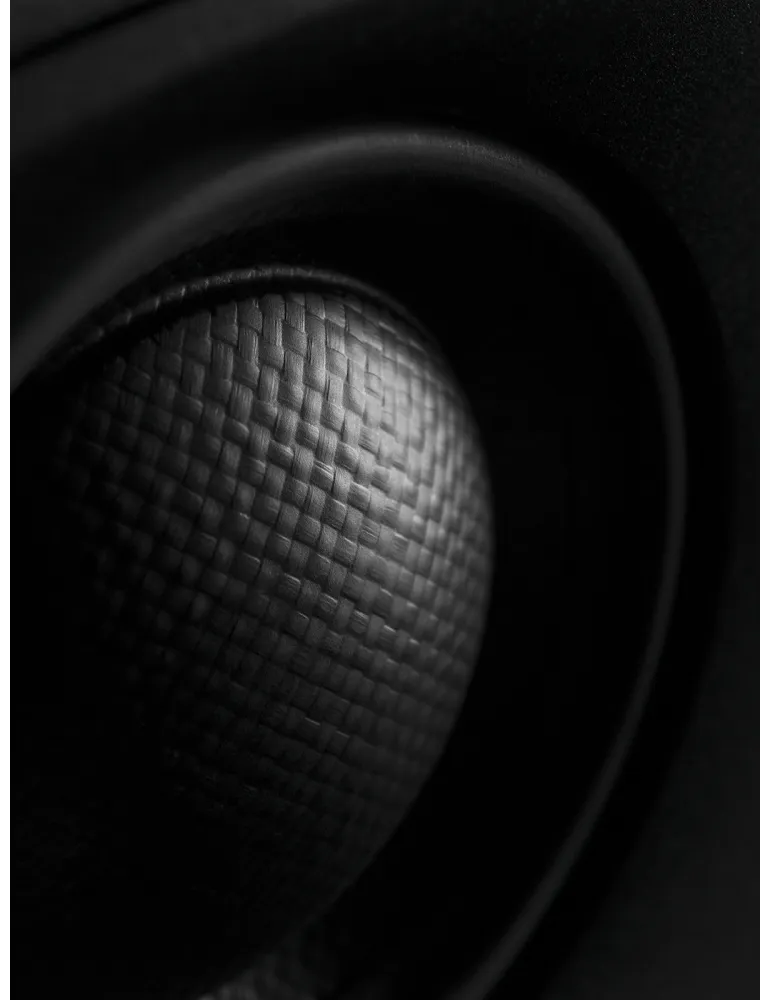

Mid and high-frequency information is reproduced with the same analytical precision, thanks to the combination of the brand-new 4-inch DCH midrange driver and the highly refined S-ART folded ribbon tweeter. Paired with the all-new HPS waveguide, the latter ensures high-frequency reproduction with a very wide sweet spot, a fine, detailed soundstage, and a natural sense of depth.

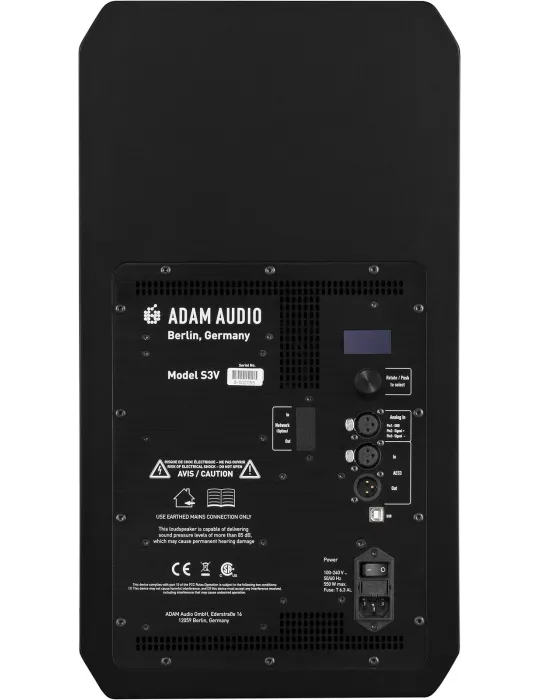

The custom-developed DSP for the S Series optimizes the crossover filters to ensure a linear response across the entire frequency range. It also offers user EQ and acoustic calibration functions. The DSP additionally manages tweeter protection via a limiter, processing of AES3 digital signals, and will eventually be compatible with various expansion options. Software updates can be performed easily via the integrated USB port, which also allows you to connect a computer to control DSP functions via a dedicated software interface.
The S3V’s built-in amplification is generously specified: Class D modules power the bass (500 W RMS) and midrange (300 W RMS) drivers, while a 50 W Class A/B amplifier is dedicated to the S-ART tweeter.
Offering impeccable reproduction from 32 Hz to 50 kHz, the S3V stands out as a benchmark for anyone seeking ultra-precise imaging and perfectly controlled spatial localization in their reference monitors.
- Amplification: Active (powered)
- Auto-standby: No
- Bluetooth: No
- Category: Monitoring

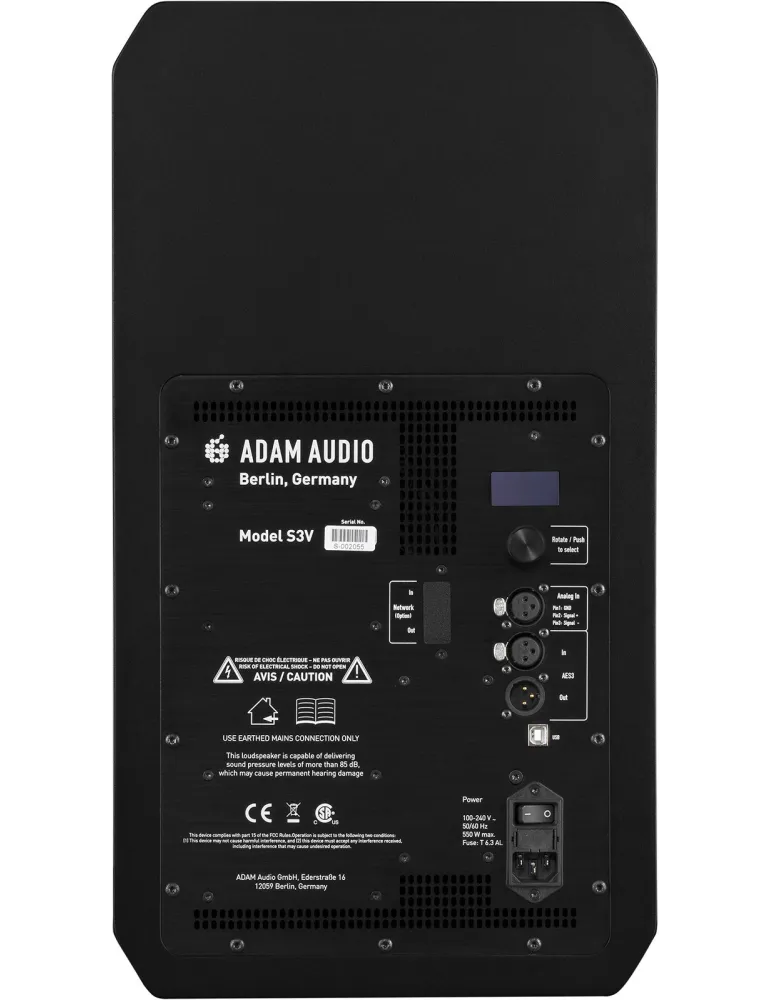

- Connectivity: AES3, XLR
- Color: Black
- DSP: Yes
- Speaker diameter: 9"
- Dimensions (mm): 536 x 293 x 380
- EQ: Yes
- Inputs: XLR, USB
- Mixer: No
- Number of ways: 3-way
- Beveled edges: Yes
- Weight: 25 kg
- Max/peak SPL: 124 dB
- Power (W): 850 W
- Power/type: RMS
- Peak power/type: RMS
- Peak power (W): 850 W
- Frequency response: 32 Hz - 50 kHz
- Max SPL: 124 dB
- Type: Active speaker
