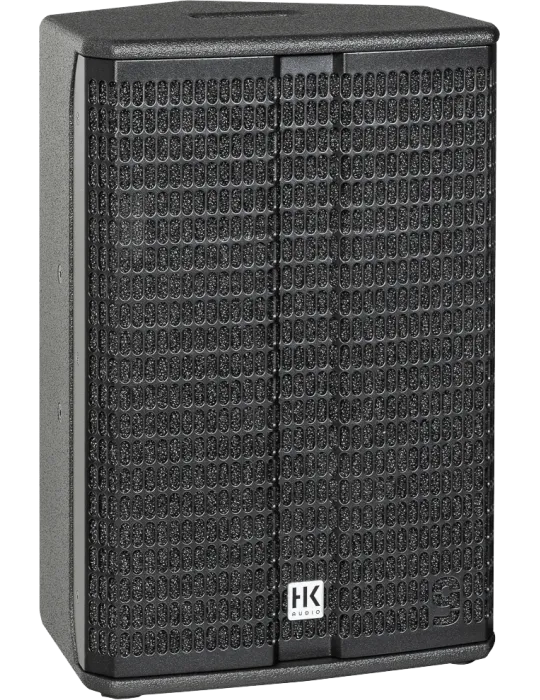

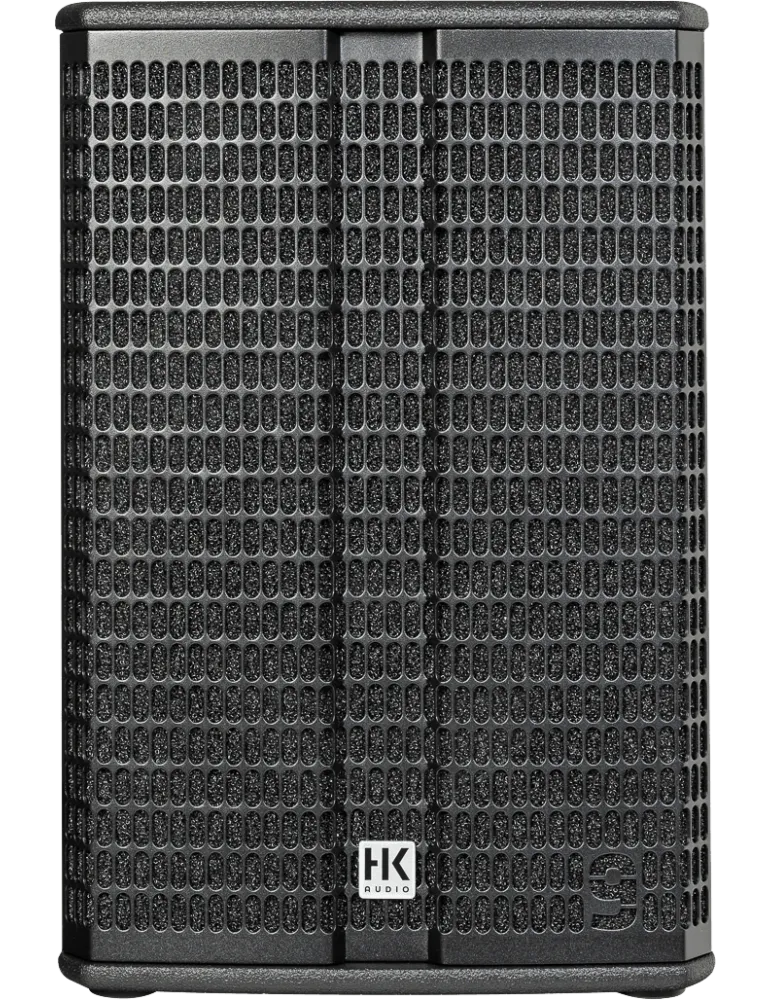

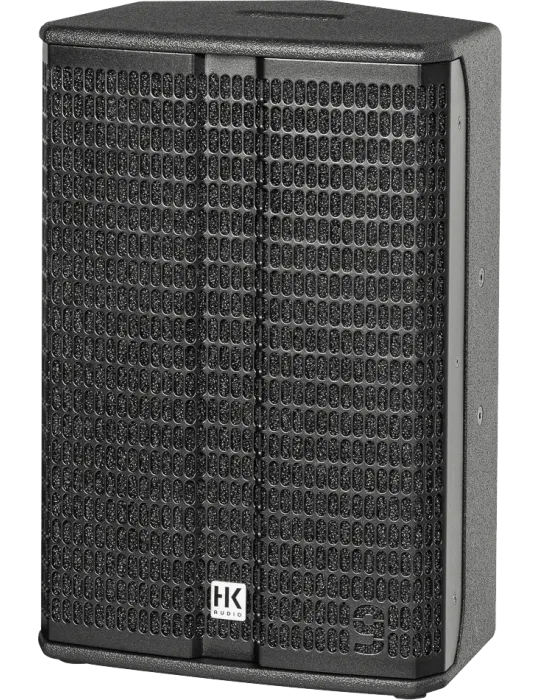

Powered Speakers - 10"/1" 700W Versatile
LINEAR 9 represents the most advanced series in HK Audio's extensive LINEAR family. It is a complete solution setting new standards in sound pressure, projection and modularity.
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
This new series of point source loudspeakers was developed and designed in Germany with the needs and requirements of rental companies and event organizers in mind, requiring a versatile, durable, and cost-effective sound solution.
These requirements are met in every detail of the LINEAR 9 models: uncompromising selection of components, precise waveguides specifically developed for the series, multi-ply birch cabinets with polyurethane coating, generously dimensioned Class D power amplifiers of the latest generation, professional PowerCon power outlets.
To ensure fast and accurate speaker configuration, the speakers can be networked and controlled remotely via an easy-to-use dedicated software application (Mac and PC compatible). This application allows access to the various DSP parameters of the speakers, but also to control and integrate into the LINEAR 9 network speakers not originally equipped with a network connection.

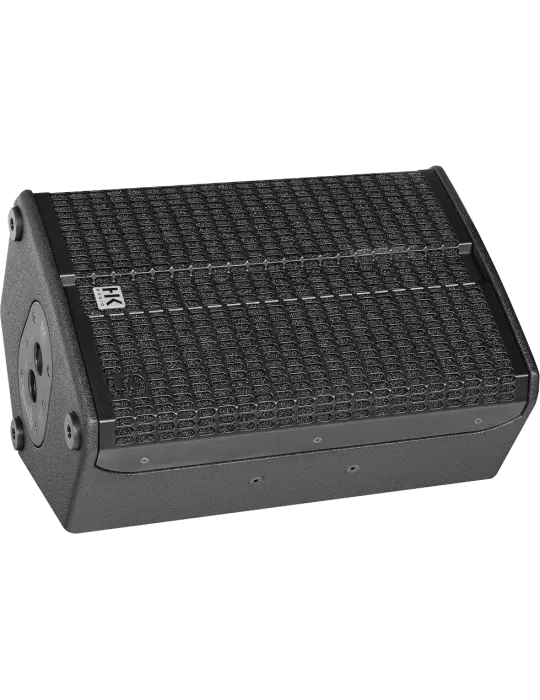

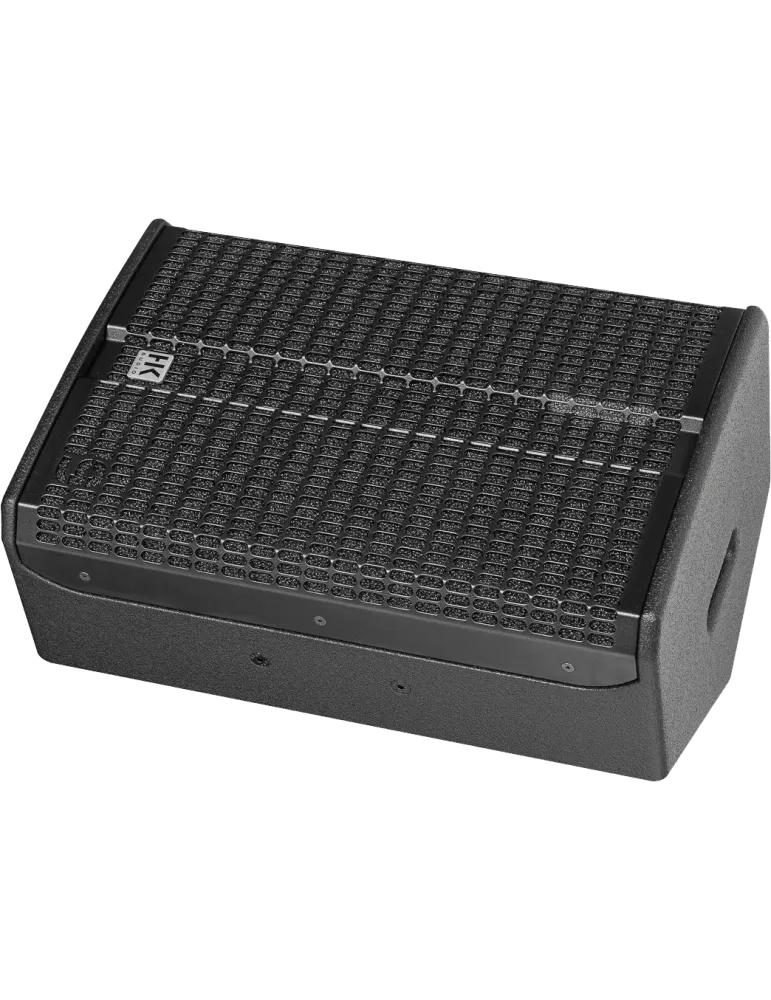

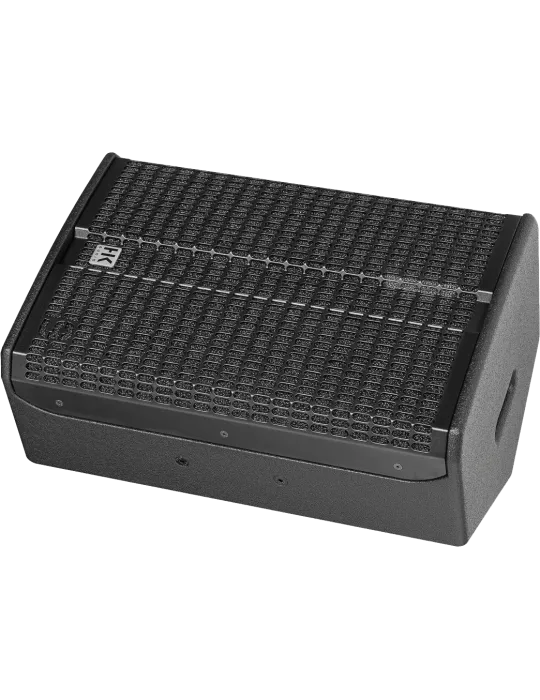

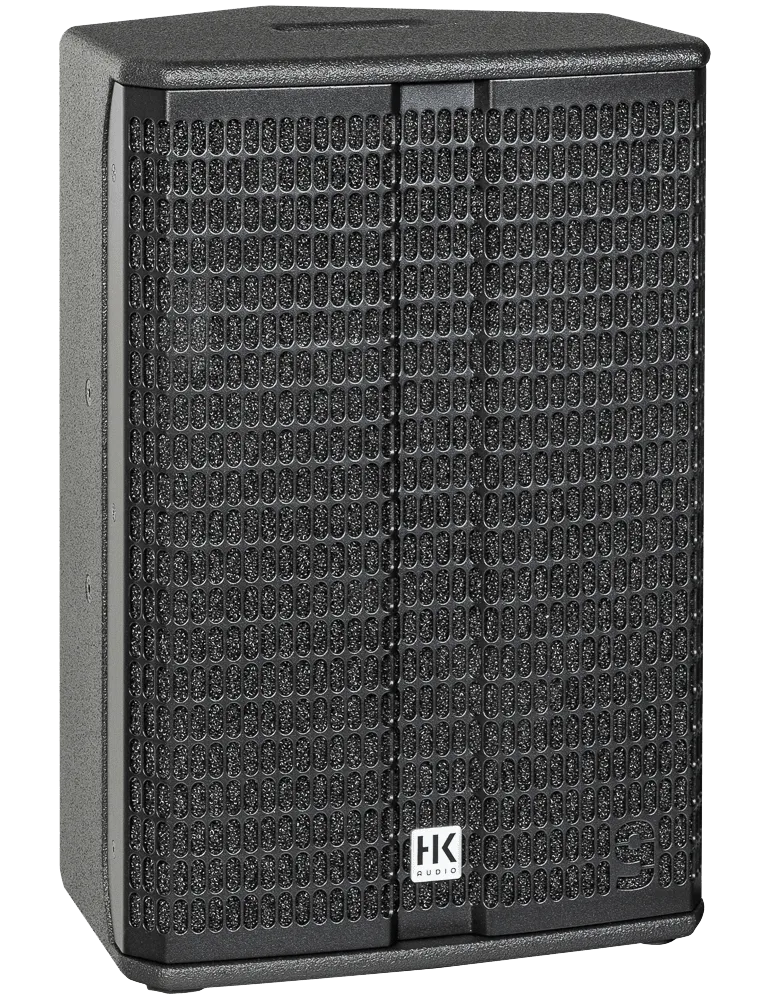

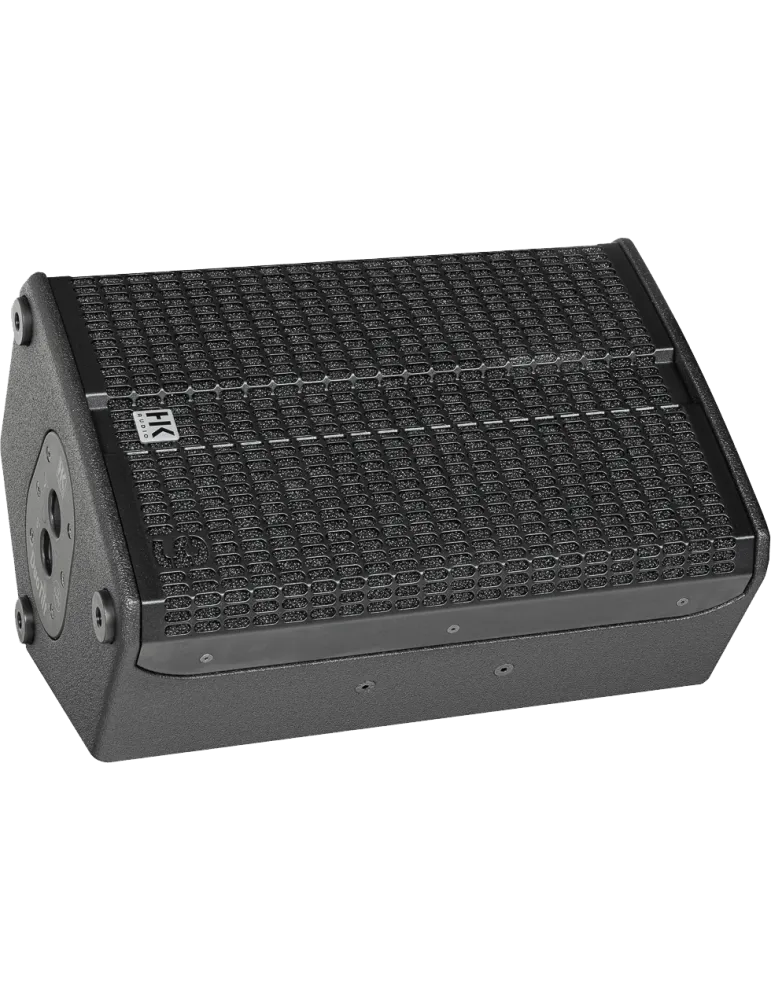

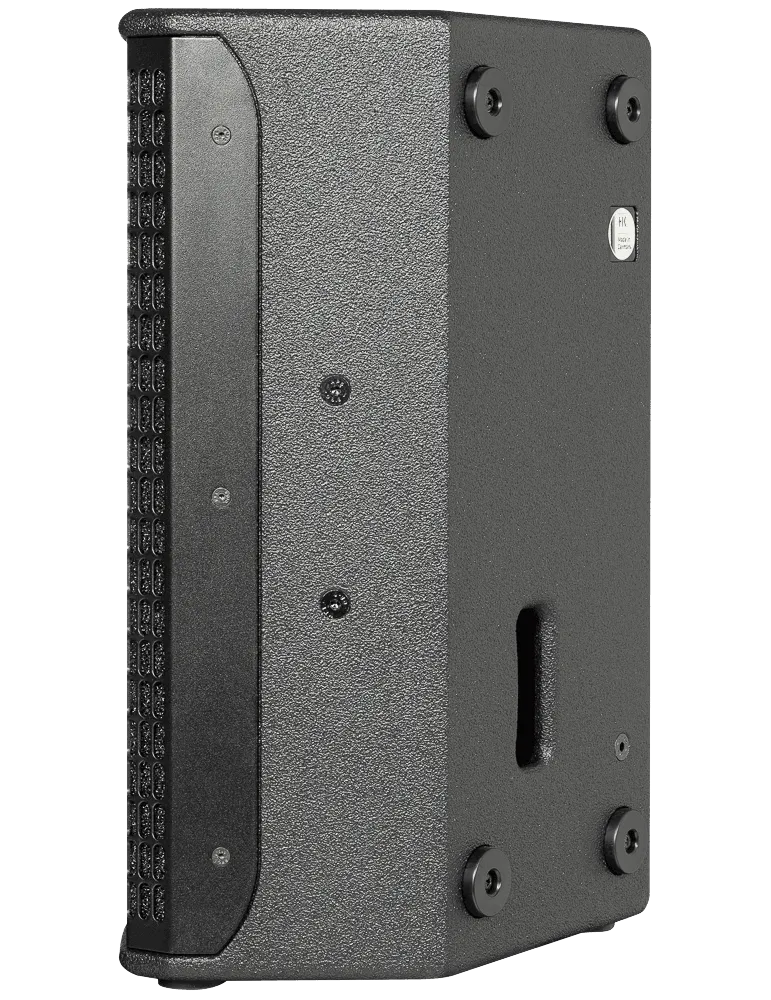

The LINEAR 9 110 XA features a cutaway design for flexible use in front of or in return.
- Application: front of house, return
- Bluetooth: No
- Category: sound system
- Controls: volume, limiter, high-pass filter switch, mute switch, low-pass filter control, delay, EQ
- DSP: Yes
- Diameter h-p: 10"
- Dimensions (mm): 36 x 54 x 31 cm
- Dispersion (H x V): 80° x 60°

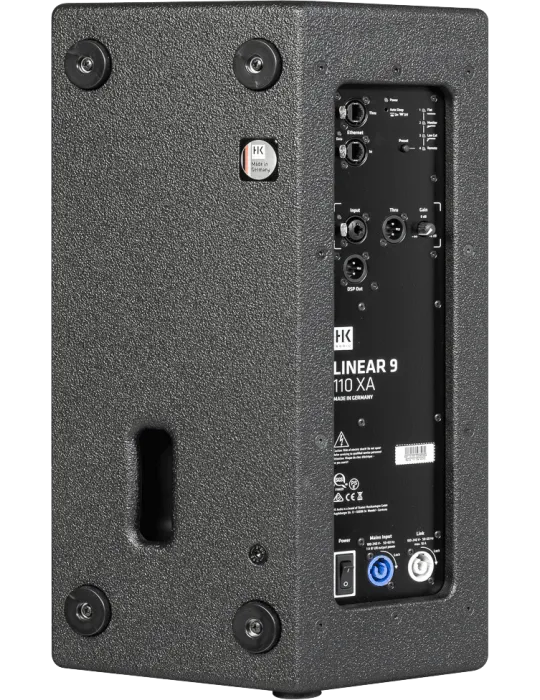

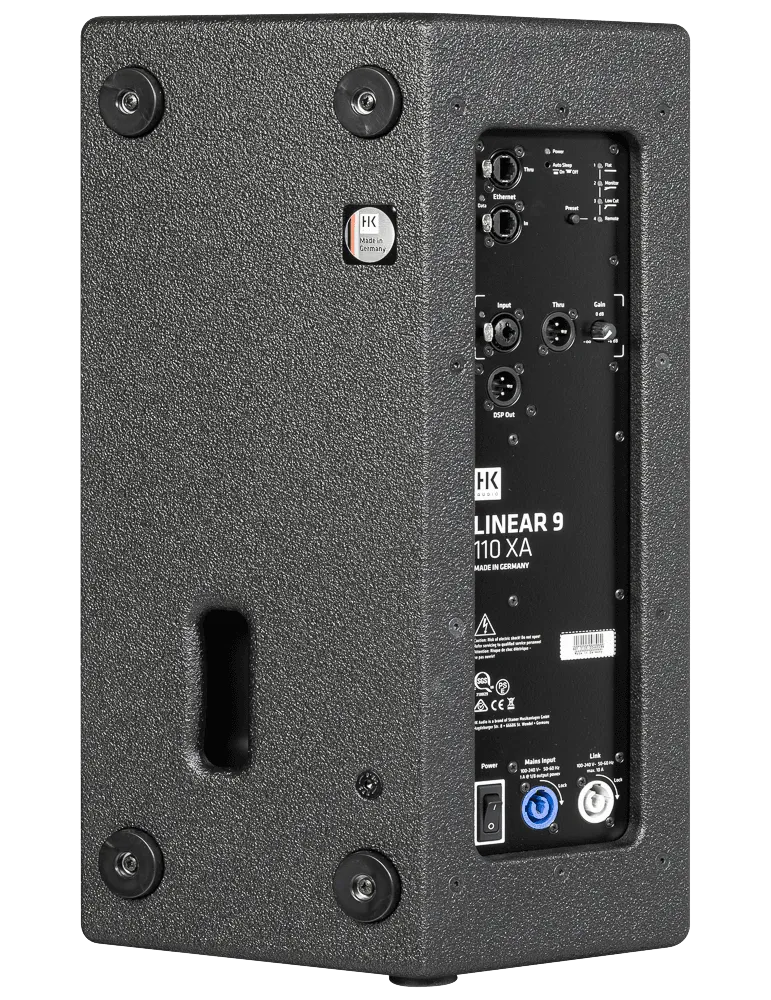

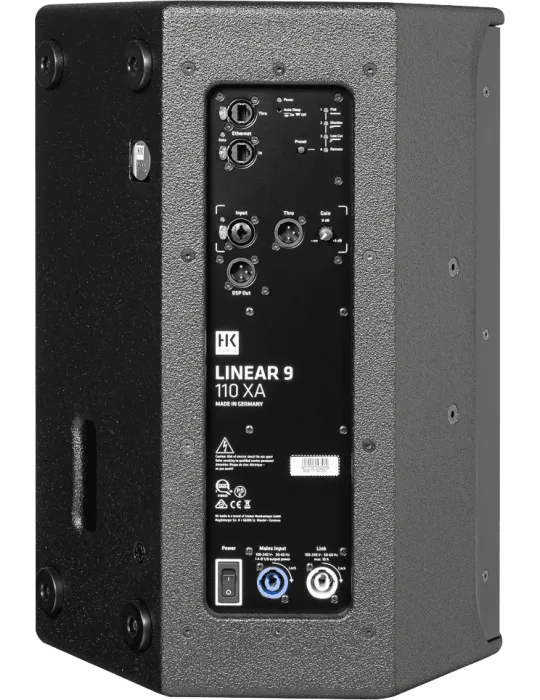

- Inputs: XLR, RJ45
- Finish: Black polyurethane coating
- Crossover frequency: 2.0 kHz
- Base width: 35 mm

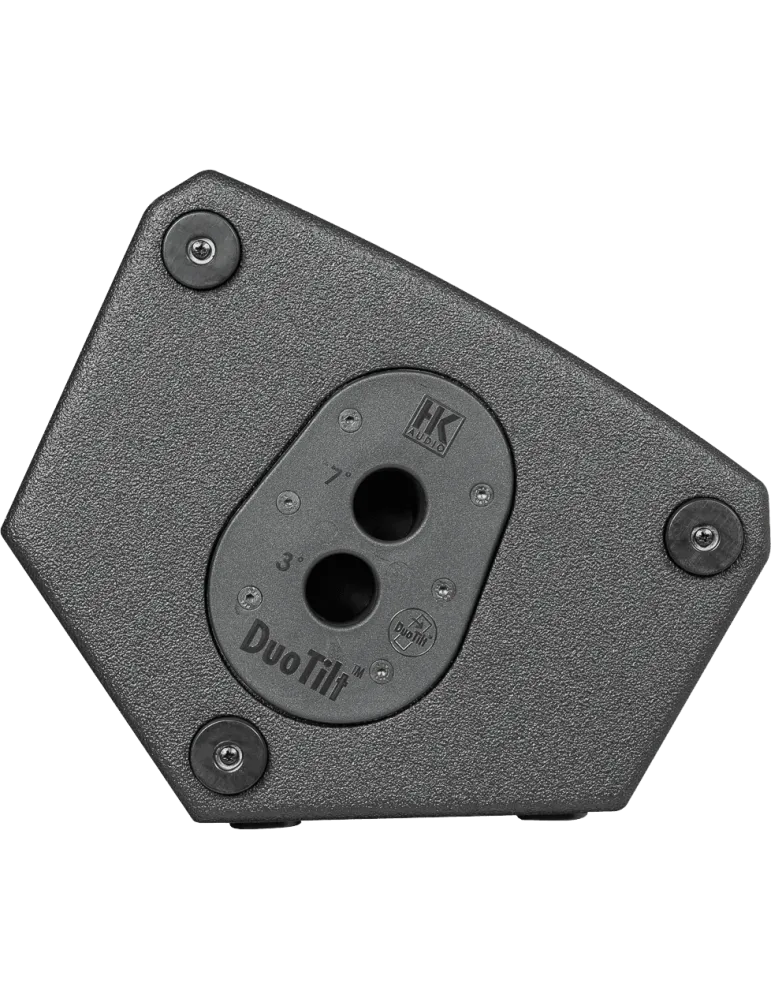

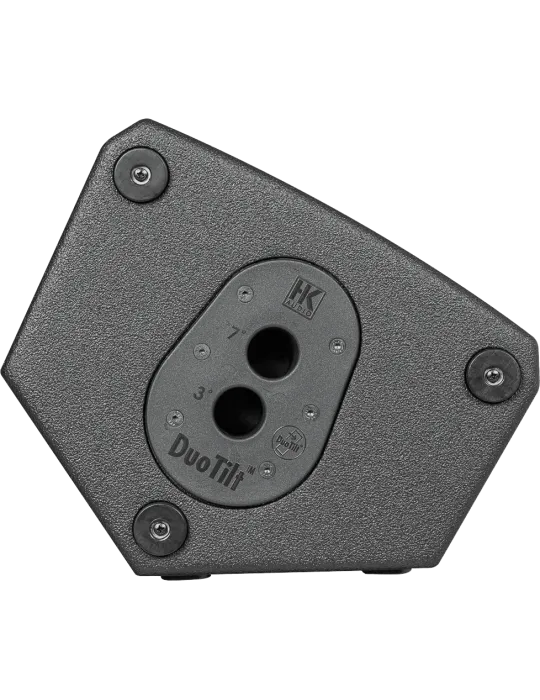

- Mounting: On 35 mm stand
- No. of channels: 2 channels
- Panel cut: Yes
- Weight (kg): 16,50 kg
- Power: 700 W
- Frequency response: 70 Hz - 19 kHz
- SPL max: 126 dB
- Outputs: link XLR, RJ45, XLR DSP
- Speaker structure: birch multiply

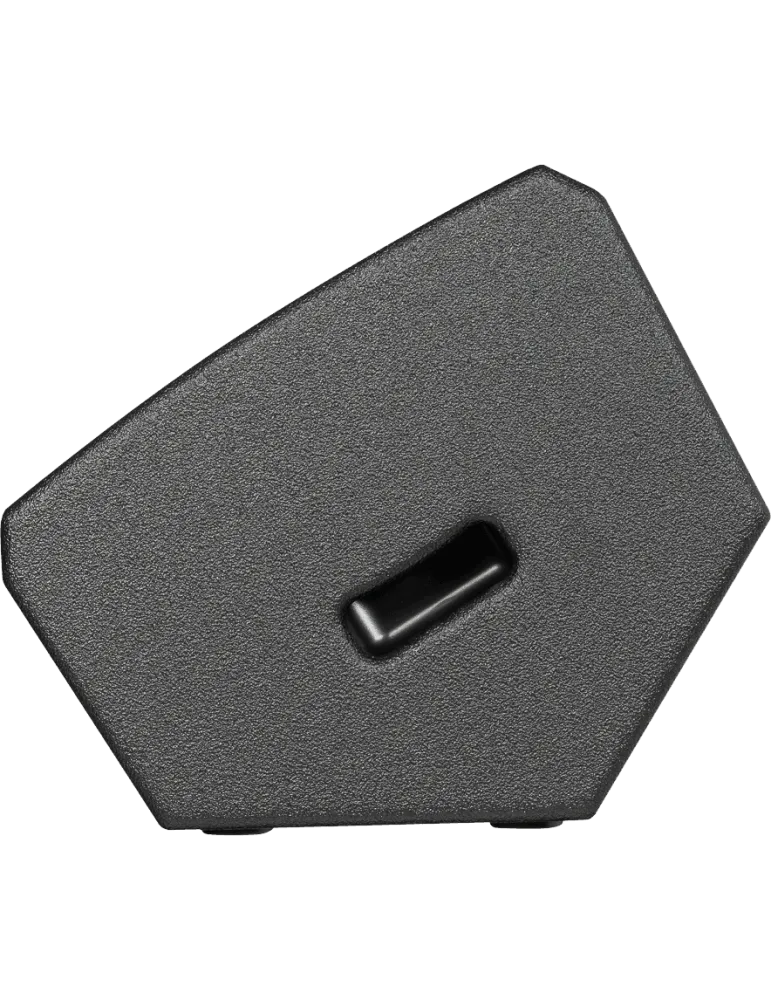

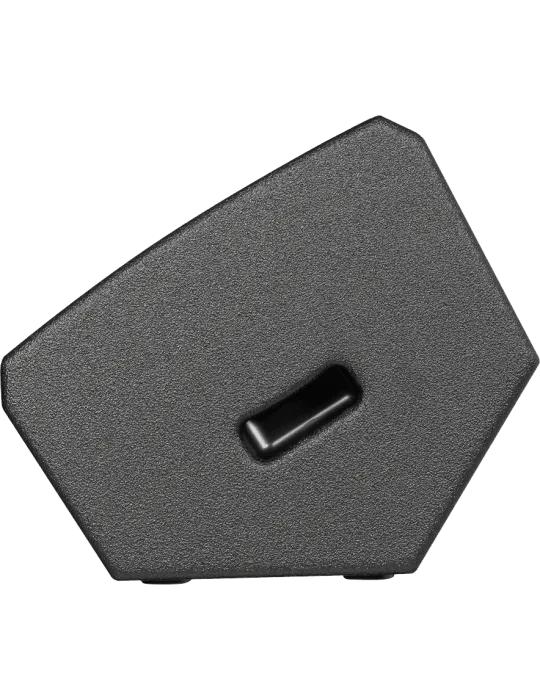

- Carrying capacity: 2 handles
- Tweeter: 1,4"
- Type: Active speaker
- Insert type: M8
- Complementary specs:
- Amplification: bi-amp class D
- Horn: swivel
- Monitoring angle: 30°
- Inserts: 5 x M8
- Power supply: 1 A / 100 - 240 V

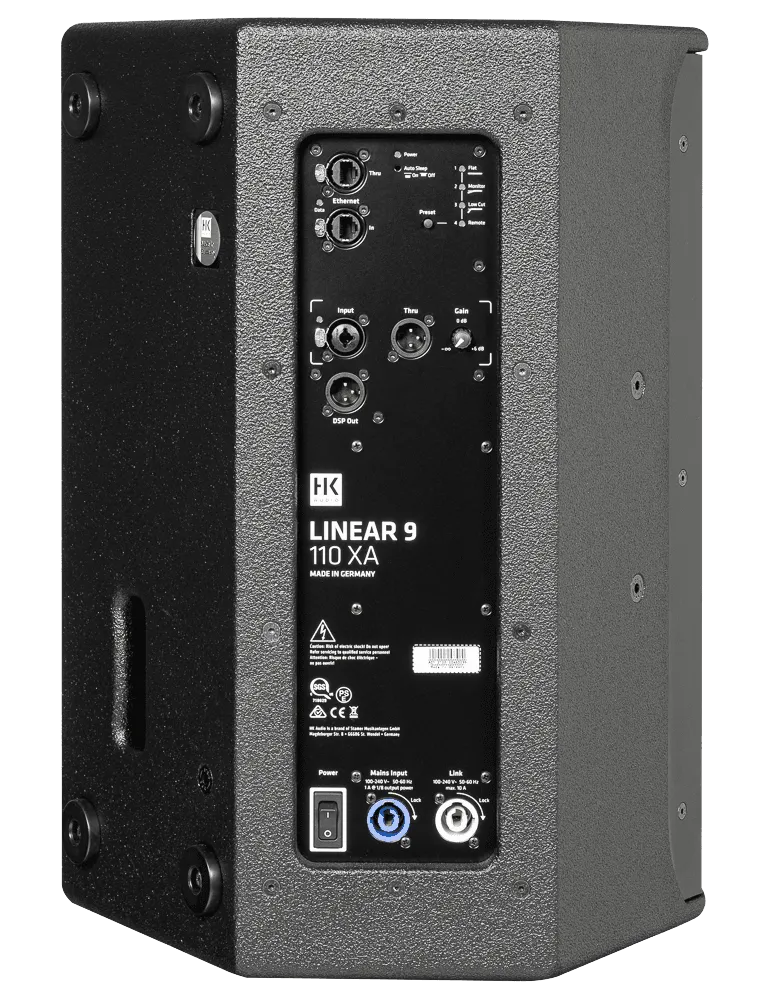

- Power connectors: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru
