This new series of point source loudspeakers was developed and designed in Germany with the needs and requirements of rental companies and event organizers in mind, requiring a versatile, durable, and cost-effective sound solution.
These requirements are met in every detail of the LINEAR 9 models: uncompromising selection of components, precise waveguides specifically developed for the series, multi-ply birch cabinets with polyurethane coating, generously dimensioned Class D power amplifiers of the latest generation, professional PowerCon power outlets.
To ensure fast and accurate speaker configuration, the speakers can be networked and controlled remotely via an easy-to-use dedicated software application (Mac and PC compatible). This application allows access to the various DSP parameters of the speakers, but also to control and integrate into the LINEAR 9 network speakers not originally equipped with a network connection.

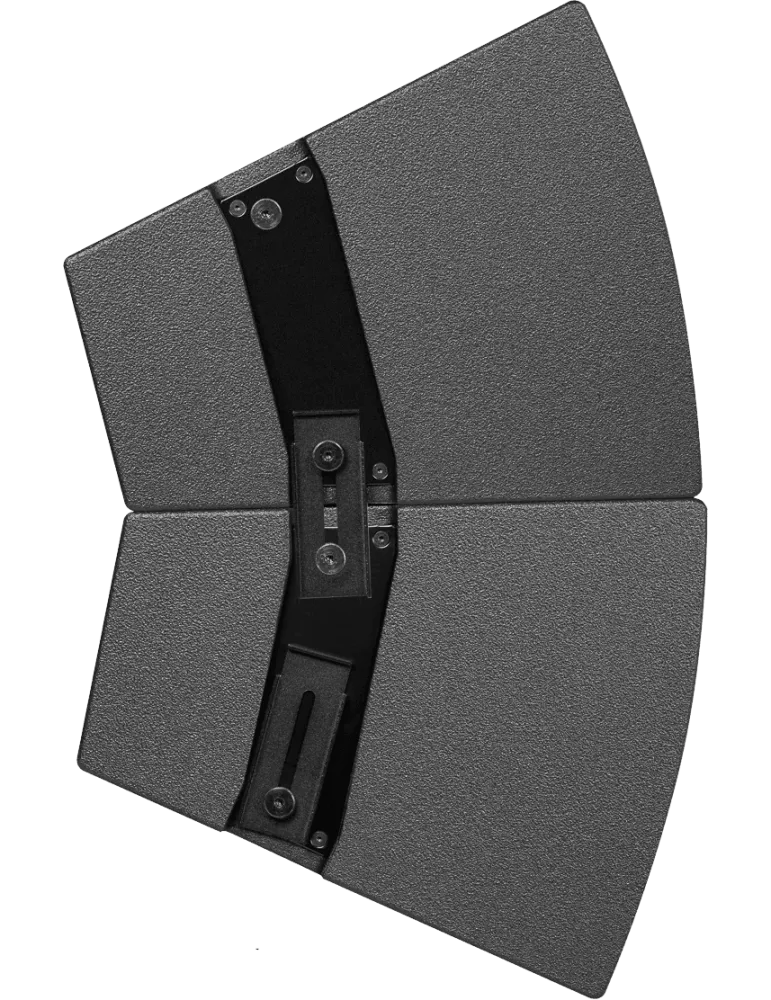

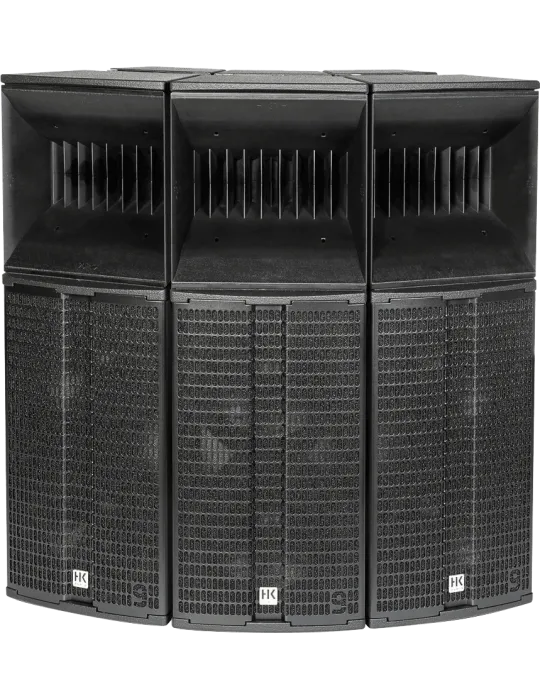

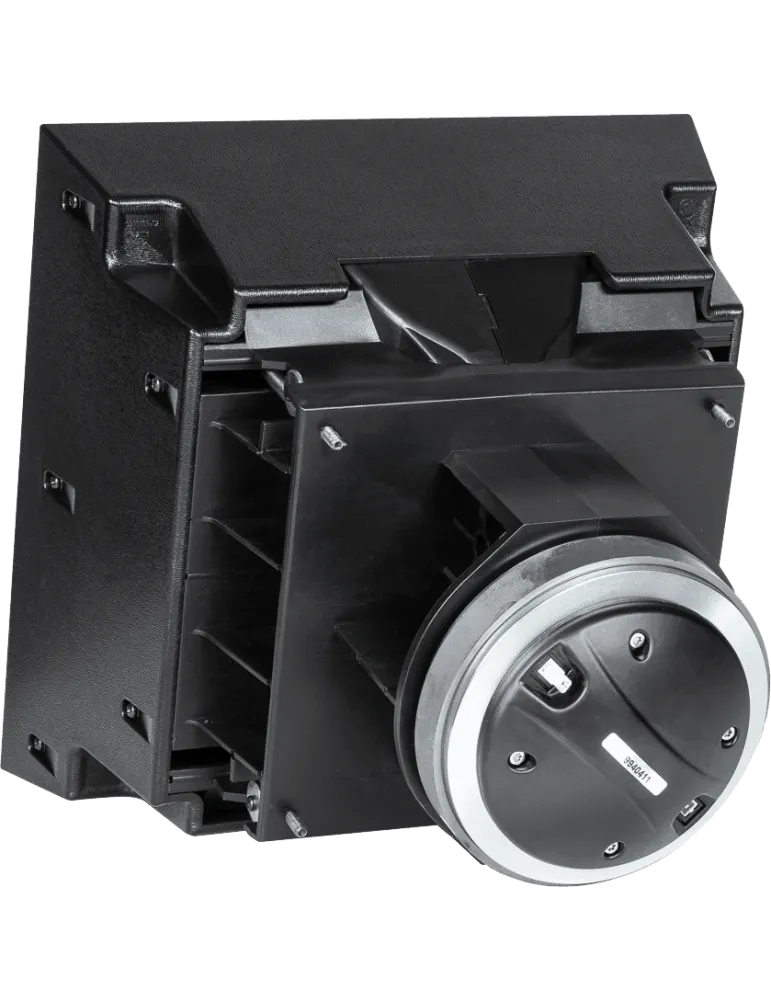

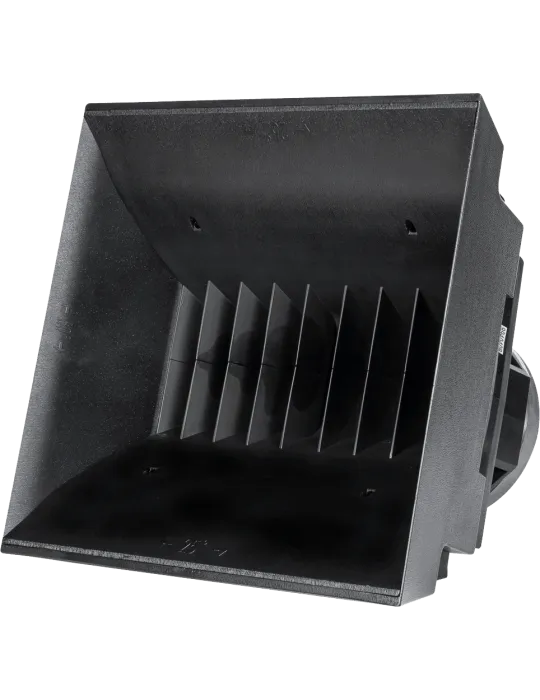

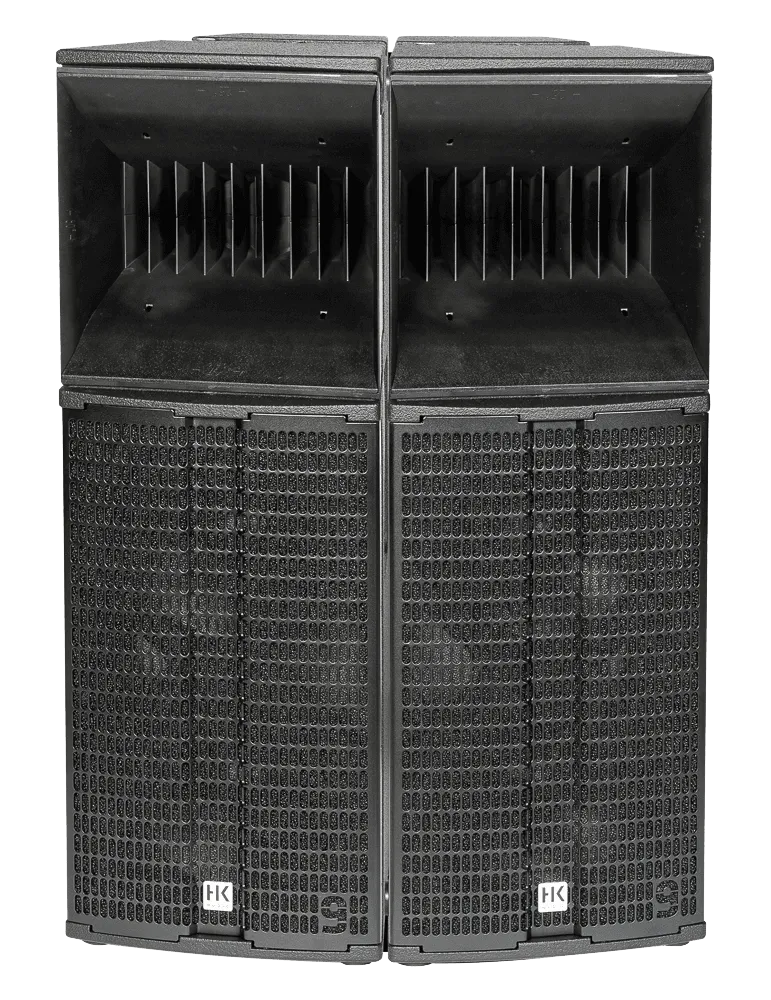

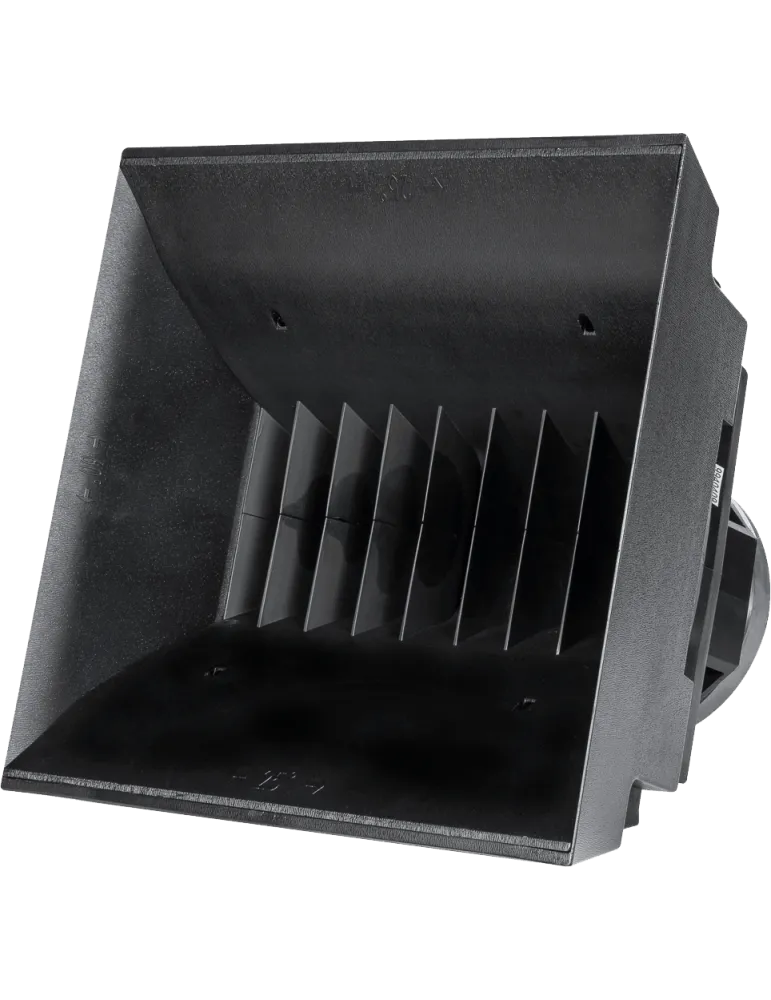

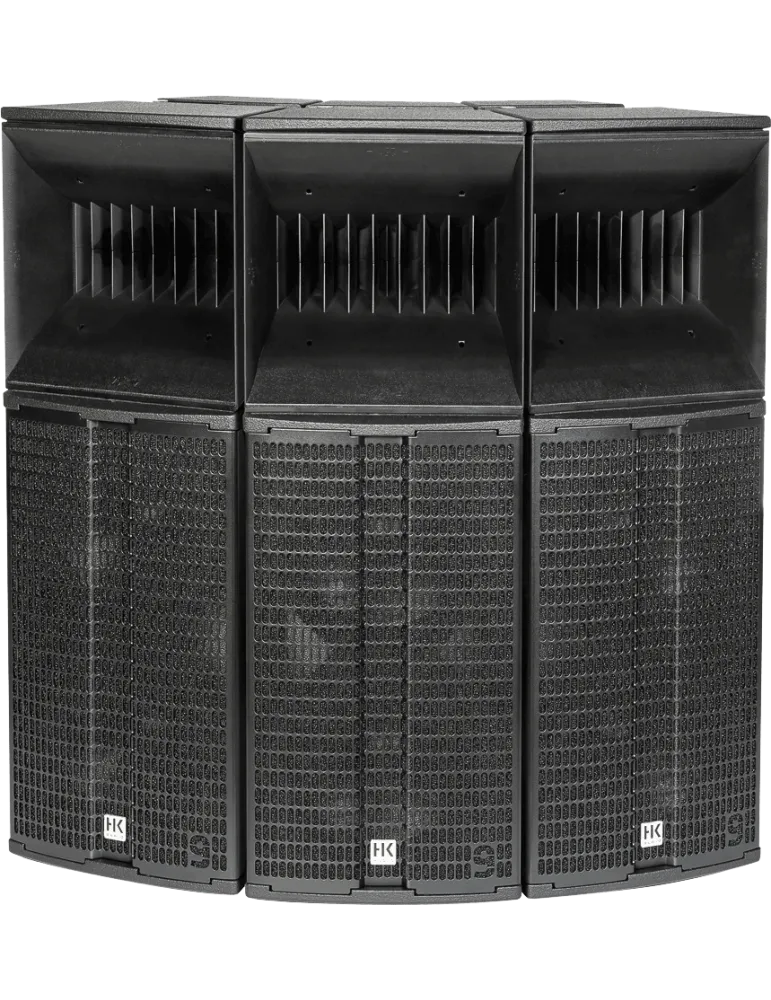

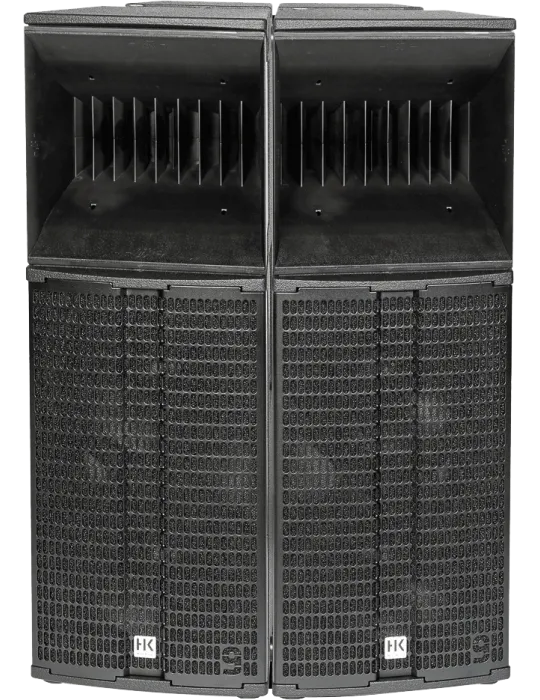

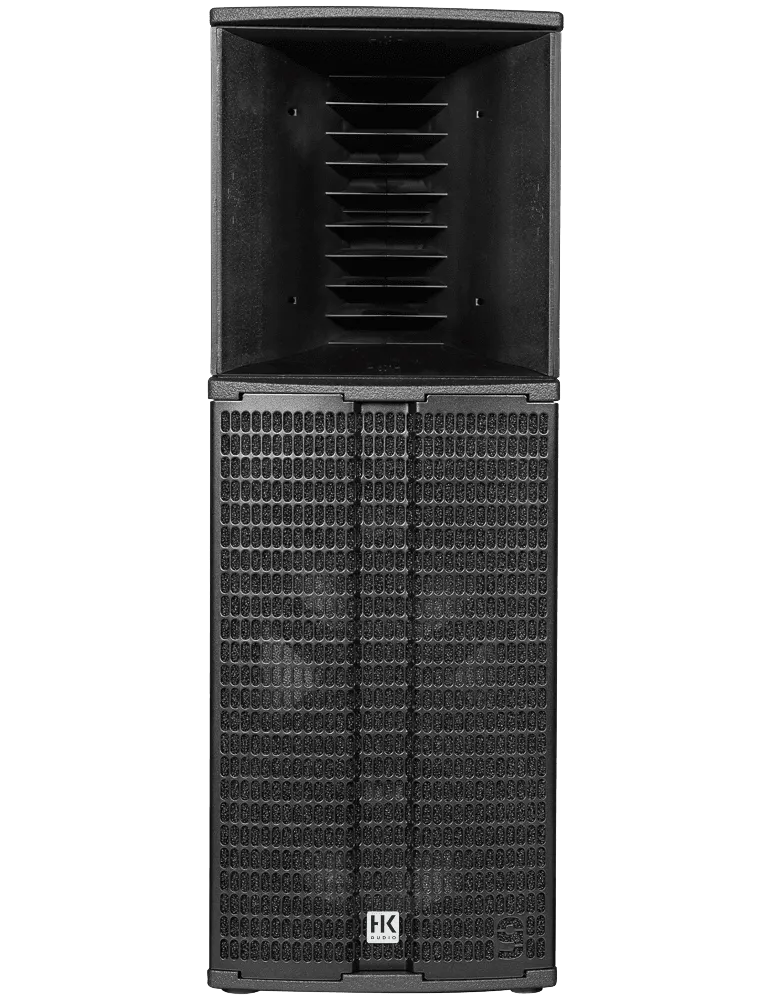

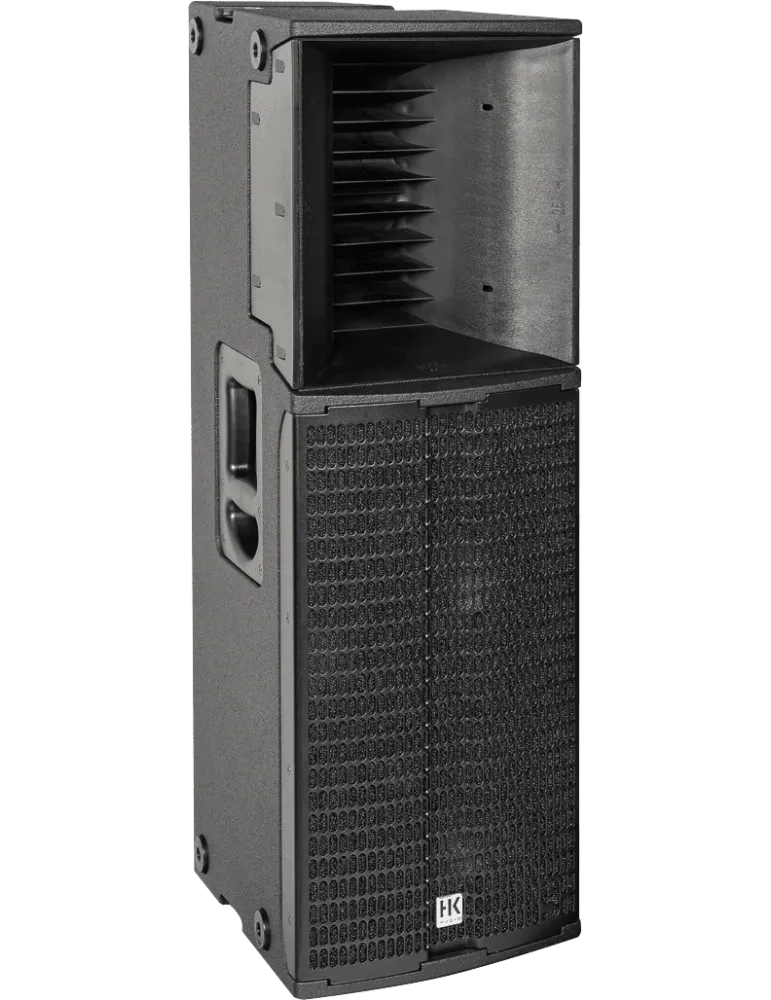

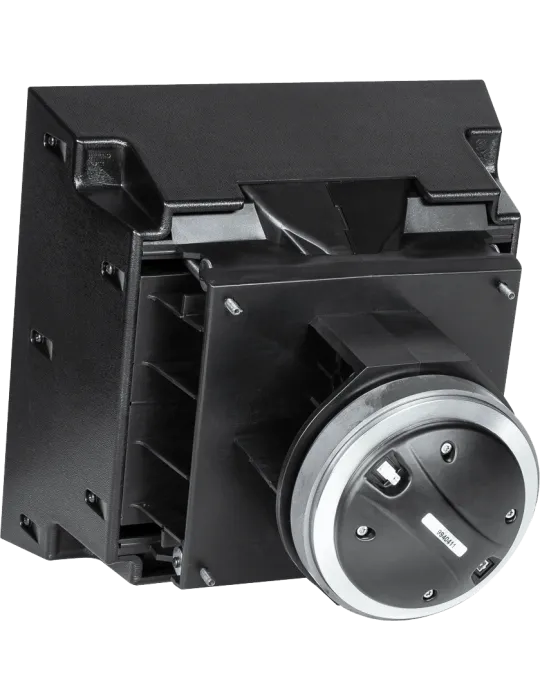

The LINEAR 9 210 LTA is a unique model within the series. It features an oversized MCT (Multicell Transformer) waveguide. Its acoustic equipment combined with the waveguide allows it to produce a long distance projection. Its sophisticated design allows for quick and easy horizontal clustering.
- Amplified: Yes
- Application: front of house
- Category: sound reinforcement
- Controls: volume, limiter, high-pass filter switch, mute switch, low-pass filter control, delay, EQ
- DSP: Yes
- H-p diameter: 2 x 10"
- Dimensions (mm): 34 cm x 96 cm x 39 cm
- Dispersion (H x V): 60° x 25°

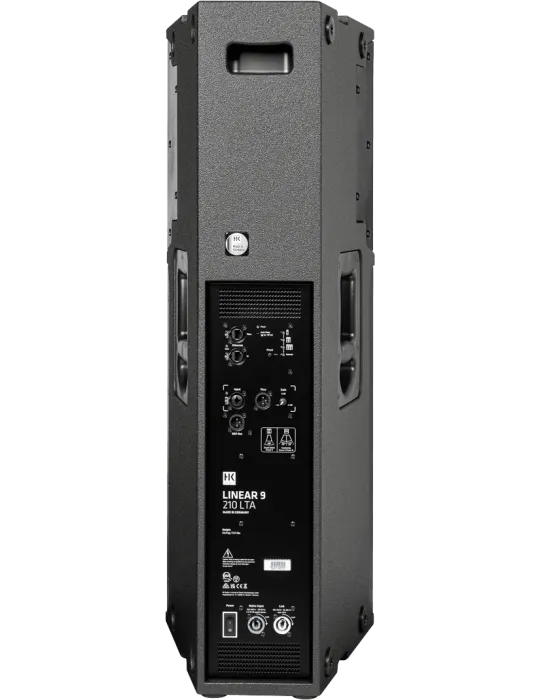

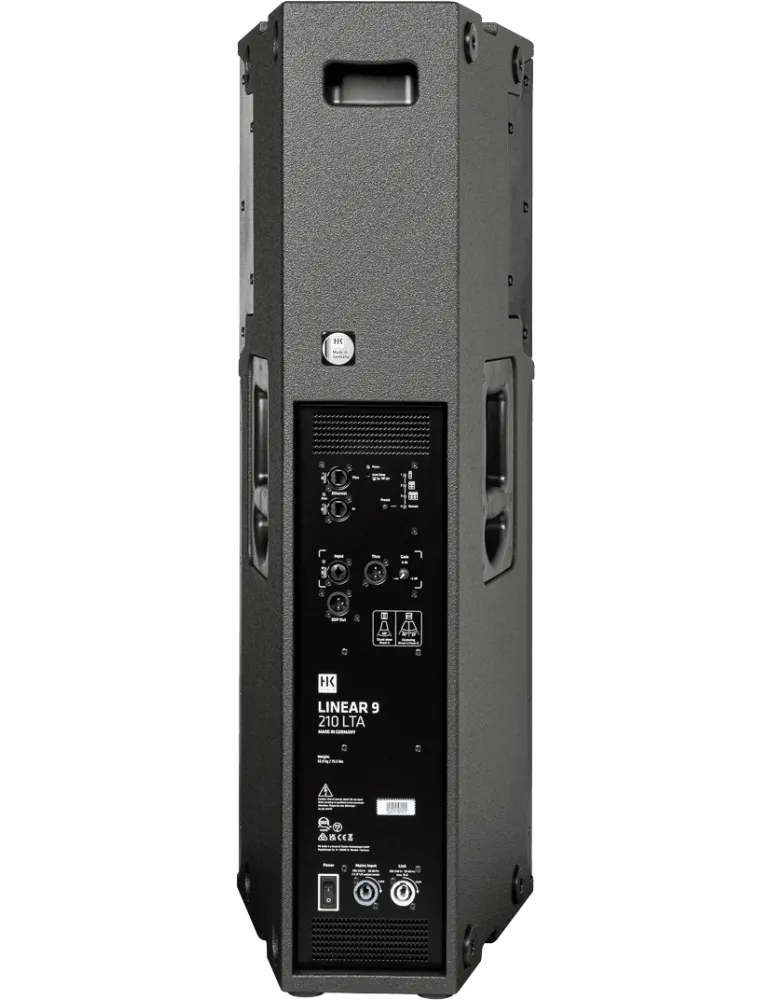

- Inputs: XLR, RJ45
- Finish: Black polyurethane coating
- Crossover frequency: 1.35 kHz
- Subbase width: 35 mm

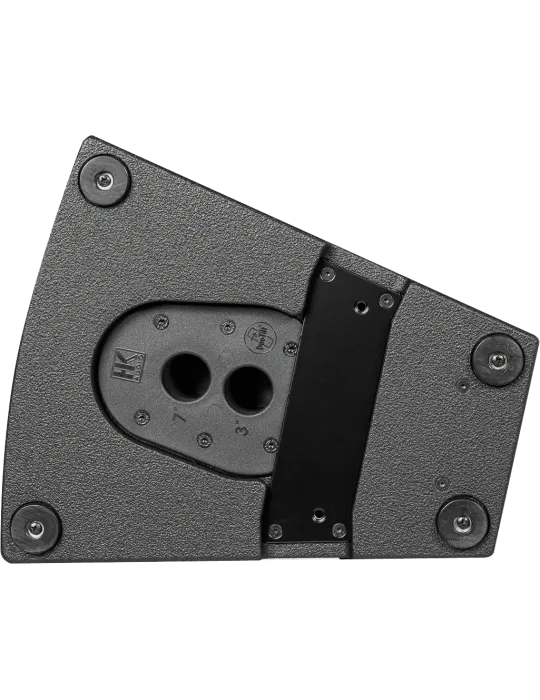

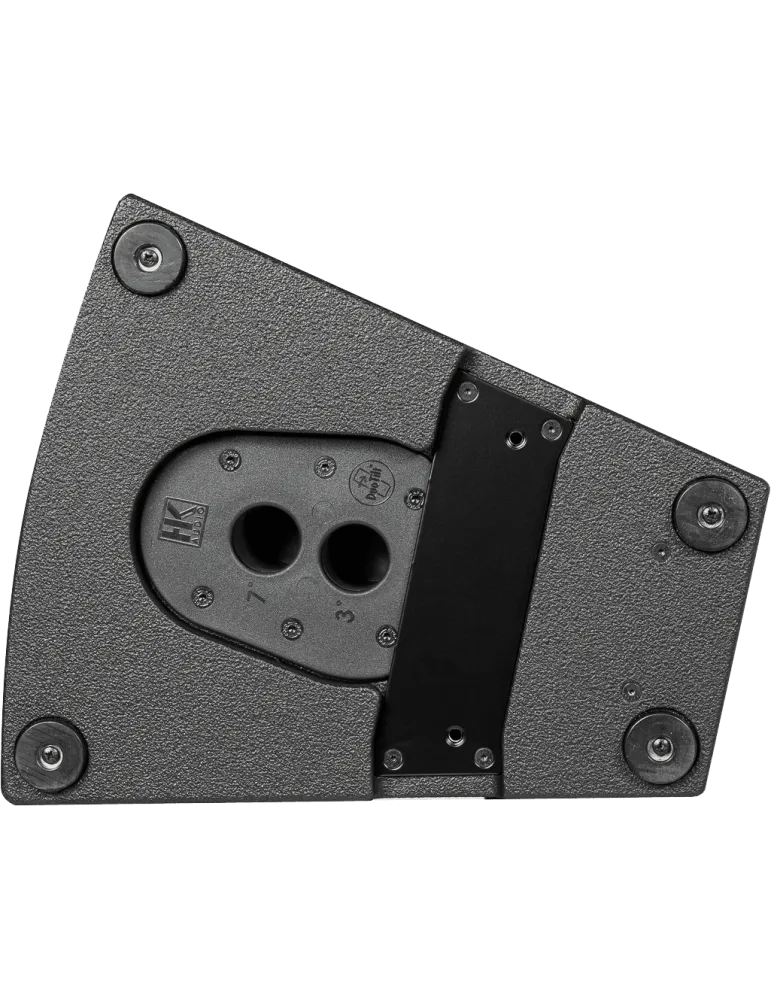

- Mounting: On 35 mm stand
- No. of channels: 2 channels
- Weight (kg): 33 kg
- Power: 1,000 W
- Frequency response: 89 Hz - 19 kHz
- SPL max: 133 dB
- Outputs: link XLR, RJ45, XLR DSP
- Speaker structure: birch multiply

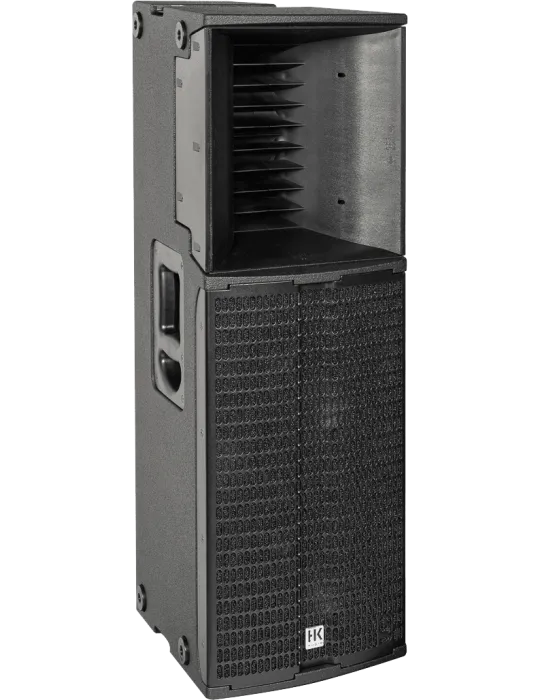

- Carrying: 2 handles
- Tweeter: 1.4"
- Type: active speaker
- Complementary specs:
- Amplification: bi-amp class D
- Horn: swivel

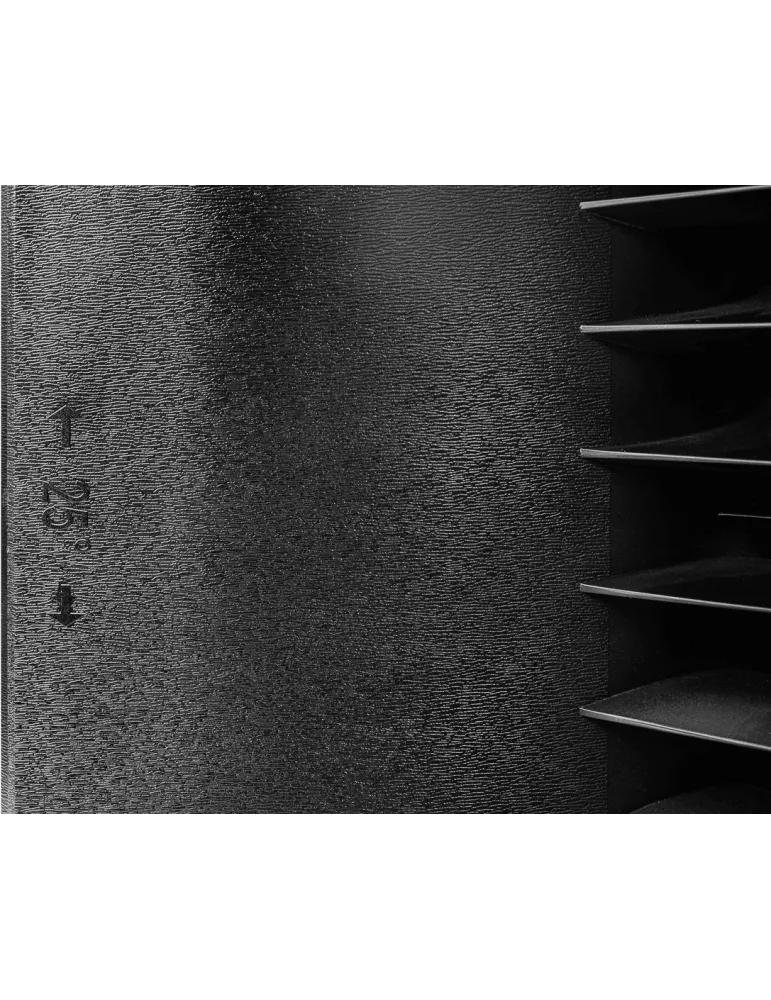

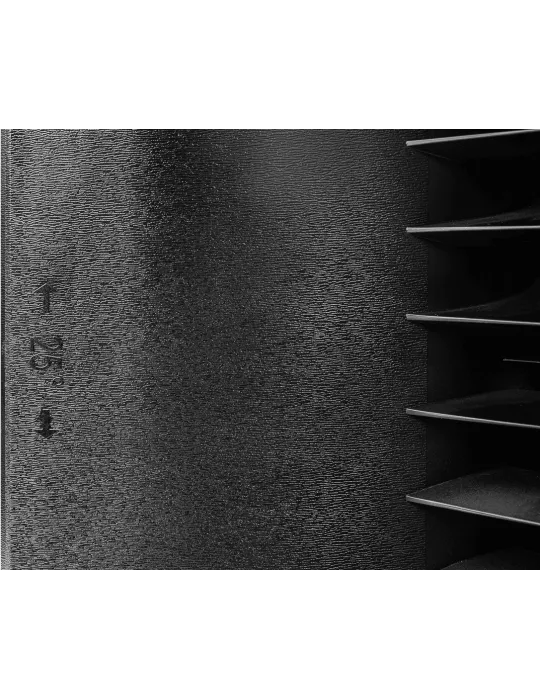

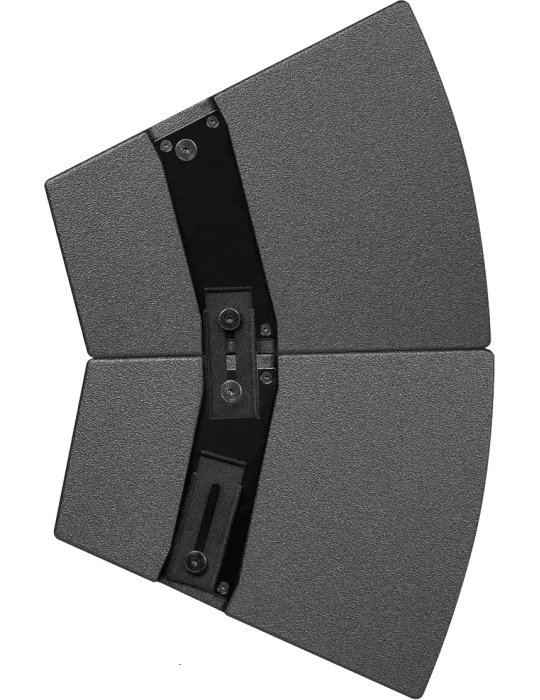

- Cluster angle: 25°
- Power supply: 2.5 A / 100 - 240 V
- Power connectors: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru
