AUDAC TRM012-B VEXO accessories - Transfo 100V-VEXO108-208 - 120W-60W black

VEXO accessories - Transfo 100V-VEXO108-208 - 120W-60W black

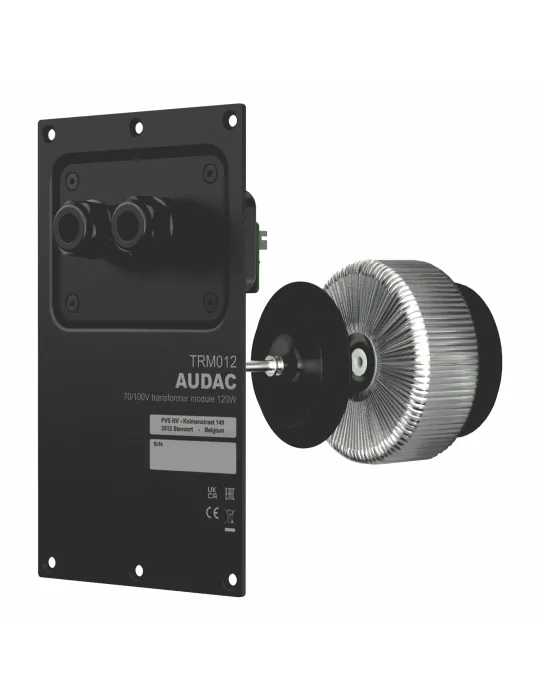

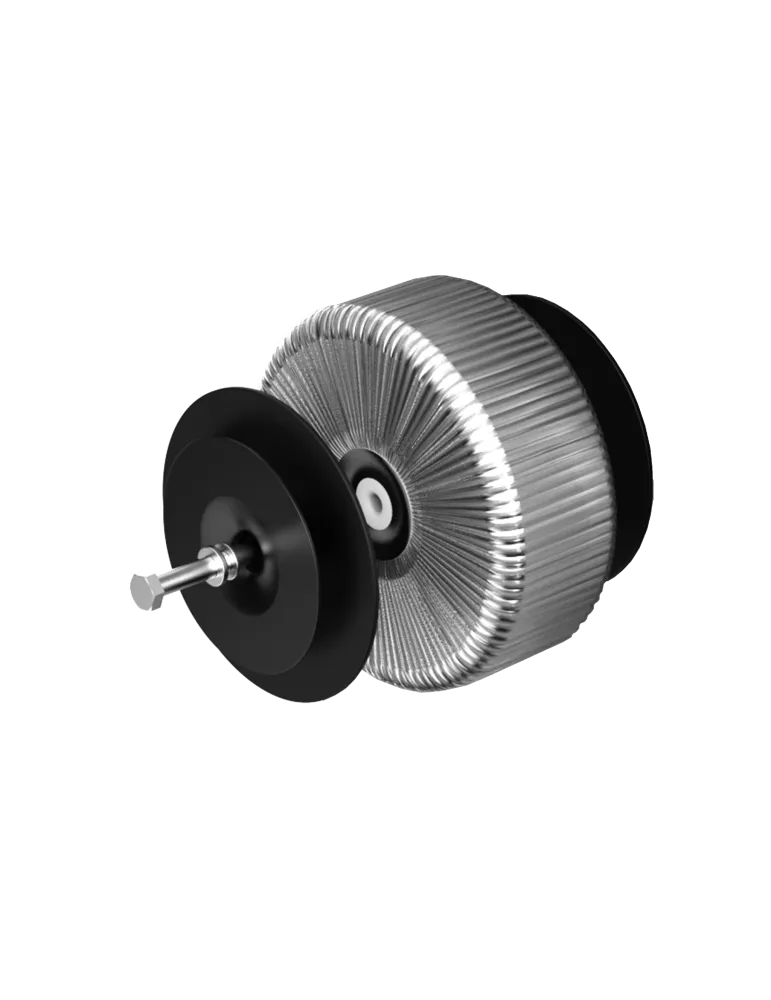

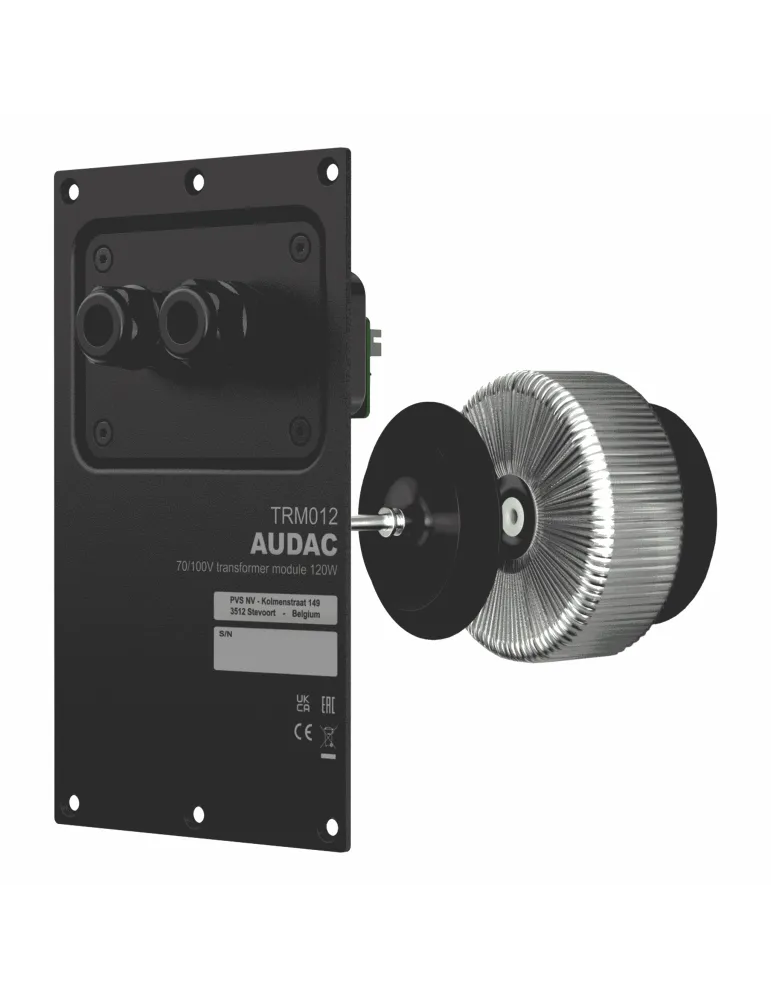

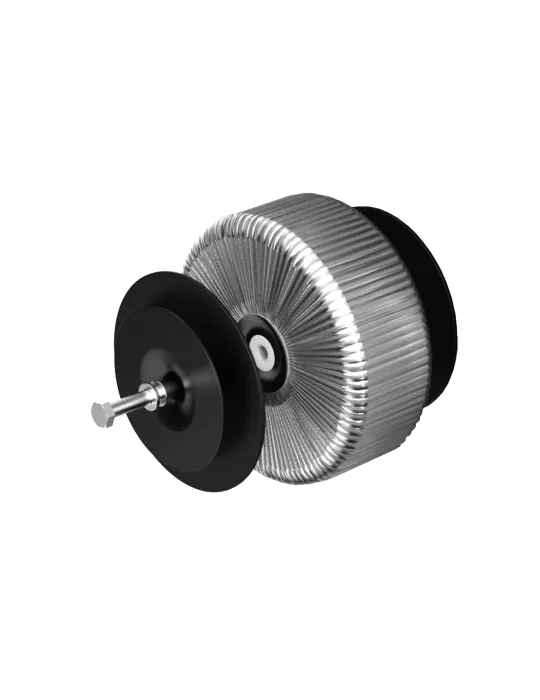

The TRM series consists of 70/100V line transformers that can be optionally integrated into the passive variants of the VEXO series. Installation is performed by removing the VEXO series backplate (passive variants only) and replacing it with a 70/100V backplate on which the module is integrated.

10 people are viewing this right now
AUDAC
SAU TRM012-B
€234.00
€195.00 Save 16.67%
VAT included Delivery within 3 to 4 days
Quantity
Add to Wishlist
Add to Compare
In stock

Amplifiers for Installations,  AUDAC,  Enceintes,  Forte puissance
  Security policy Your personal data is 100% protected
  Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
  Return policy 30 days in case of issues
Description

In this way, the high-performance loudspeaker can be installed in 70/100V systems.



- Additional Specs:

System Specifications

Line Transformer Connections

-1 41.67 Ω - 100 V / Not used - 70 V / 120 W

-2 83.33 Ω - 100 V / 120 W - 70 V / 60 W

-3 166,67 Ω - 100 V / 60 W - 70 V / 30 W

Impedance

-8 Ω (secondary)

-4 Ω (secondary)

Connection

-External (to amplifier) - 8-pin terminal block

-Internal (to speaker) - 3-pin connector

Frequency response

-(± 3 dB) 50 Hz - 20 kHz

Product Details
AUDAC
SAU TRM012-B

Specific References

  • SAU TRM012-B
  • 5414795049949
