AUDAC DPA616 Class D - 16 x 60W / 4 Ohms
Class D - 16 x 60W / 4 Ohms
The EPA series adds to this efficiency, full Energy Star compliance allowing these amplifiers to deliver high efficiency in a small footprint and an automatic sleep mode when no audio signal is present at the input terminals.
The DPA616 professional amplifier delivers 60 watts of power over sixteen channels under a 4 ohm load. When used in bridge mode, it can deliver 120 watts of power under 8 ohms. In this way, the DPA616 is the ideal solution for multi-zone audio distribution system installations with between 8 and 16 zones.

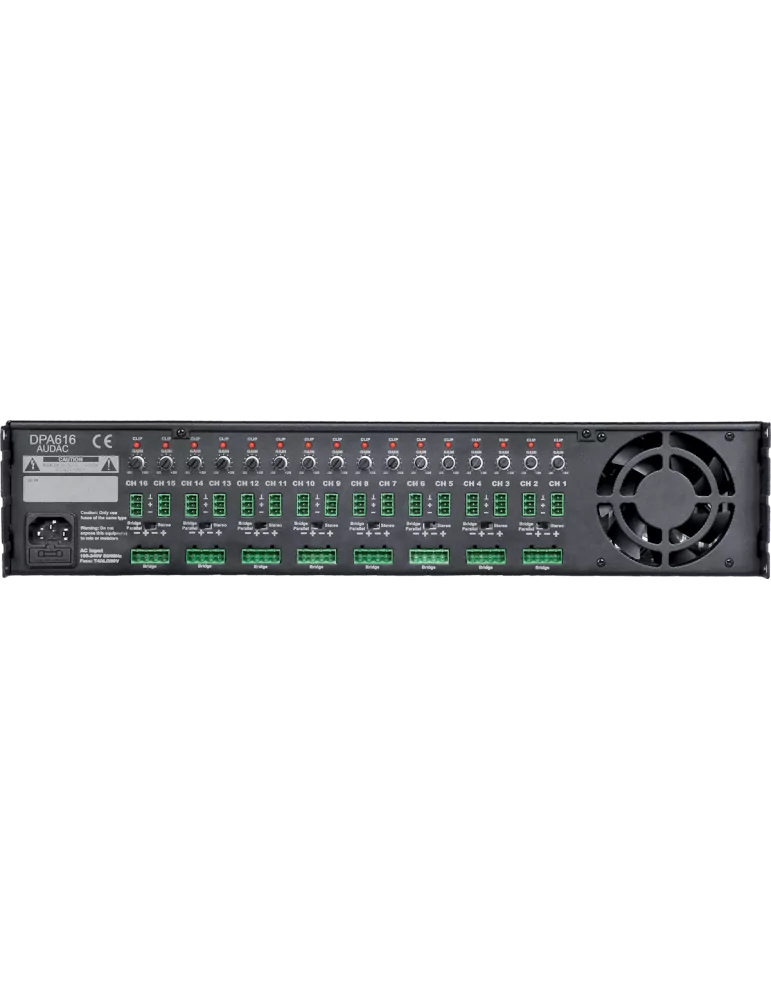

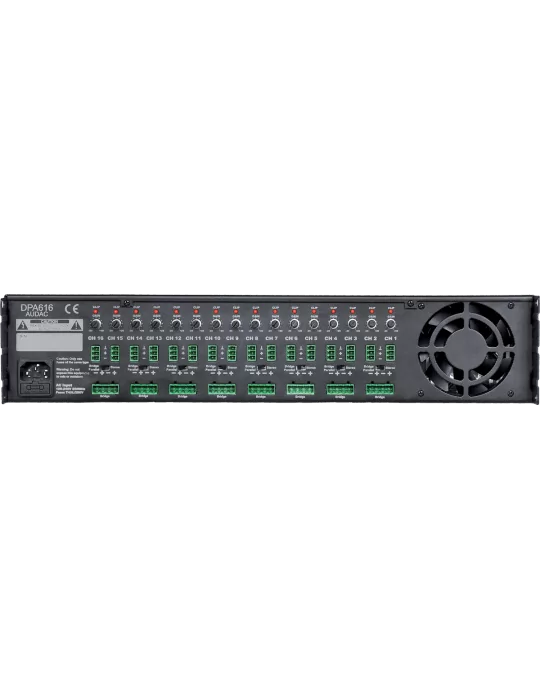

This amplifier is designed with only the necessary controls and connections to ensure ease of use and installation. The input connections are all made on 3-pin terminal blocks, allowing the connection of balanced input signals. Each channel is equipped with a separate gain adjustment potentiometer and for each pair of input connectors, a stereo / bridge and parallel switch allows to change the operating mode of the loudspeaker outputs, thus avoiding cable clutter when several channels have to be supplied with the same input signal. The output connections are made on 4-pin terminal blocks. An integrated multi-purpose protection circuit protects against overvoltage, short circuit, overtemperature and overload and limits the signal if necessary. All this is housed in a 19" dual unit chassis.
- Integrated effects: No
- Energy Star compliant: No
- Fan: No
Specific References
- SAU DPA616
- 5414795029927
