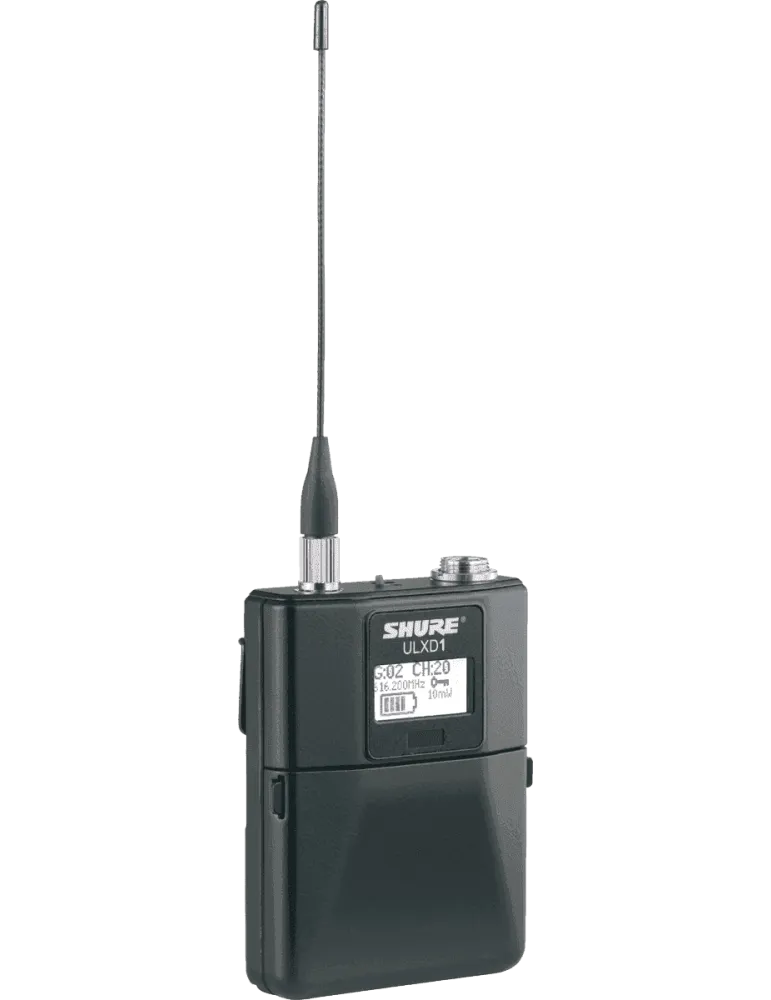

SHURE ULXD1LEMO3-G56 Beltpack transmitter - ULX-D LEMO beltpack transmitter - 470 to 636 MHz
Bodypack transmitter - ULX-D LEMO bodypack transmitter - 470 to 636 MHz
Featuring highly robust digital wireless transmission technology, the Shure ULX-D series delivers exceptional audio and RF performance along with an array of innovative features. ULX-D systems are available with single, dual, or quad receivers.
20 people are viewing this right now
SSR ULXD1LEMO3-G56
€1,022.40
€852.00
Save 16.67%
VAT included
Delivery within 3 to 4 days
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
Description
The range also includes a boundary microphone transmitter with omnidirectional or cardioid polar patterns, and a table stand transmitter compatible with Microflex modular goosenecks.
The ULX-D digital wireless system range is designed for the most demanding live productions and fixed installations.
ULX-D system highlights
Digital audio
24-bit/48 kHz digital audio processing, with a 20 Hz–20 kHz frequency response and over 120 dB of dynamic range, ensures incredibly faithful and accurate reproduction of sound sources.
RF performance
The ULX-D range’s RF signal stability and exceptional spectral efficiency allow up to 560 compatible frequencies per band in High Density mode.
Signal encryption
256-bit signal encryption ensures privacy—ideal for installations where confidentiality is essential.
Network control
Ethernet networking of multiple receivers enables the use of Wireless Workbench 6 software, frequency coordination via Axient Spectrum Manager, third-party control, and Dante™ digital audio networking (except single-channel receiver). Remote monitoring and control from an iOS or Android device are available via the ShurePlus™ Channel app.
Power
ULX-D transmitters can be powered by two AA (LR6) batteries or by a Shure SB900B rechargeable lithium-ion battery, which displays remaining runtime in hours and minutes with ±15-minute accuracy.
The ULX-D series is available in VHF and UHF in the V51 (174–216 MHz), G51 (470–534 MHz), H51 (534–598 MHz), K51 (606–670 MHz), and now wideband G56 (470–636 MHz) frequency ranges.

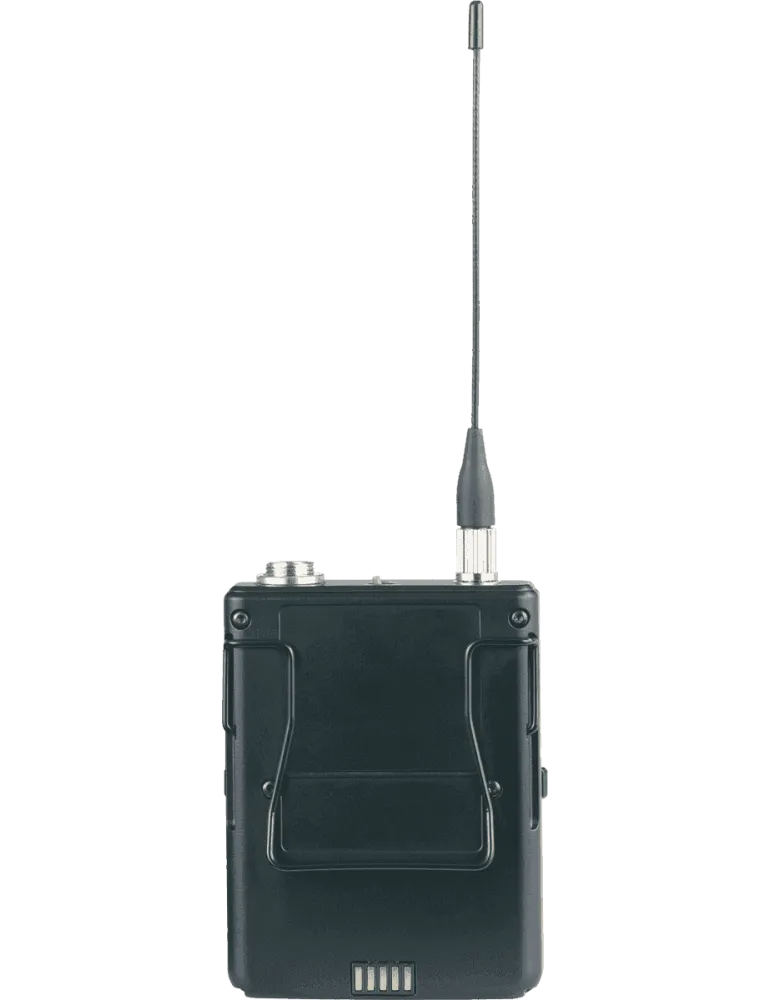

Bodypack transmitter with 3-pin female LEMO connector. Detachable 1/4-wave antenna. Powered by two AA (LR6) batteries or an optional SB900B lithium-ion rechargeable battery.
- Battery life: 11 h
- Category: lavalier
- Color: Black
- Polar pattern: N/A
- Frequency response: 20 Hz – 20 kHz
- Transmission: digital
- Additional specs:
General features
- Up to 166 MHz RF bandwidth
- Up to 70 simultaneous systems per band in standard mode
- Up to 560 simultaneous systems per band in High Density mode
- Fast frequency scanner
- Interference detection and alerts
- Transmitter synchronization via IR link
- Audio frequency response: 20 Hz to 20 kHz
- 24-bit / 48 kHz A/D and D/A converters
- Latency: 2.9 ms
- Control via PC or Mac with Wireless Workbench 6 software
- Remote monitoring with the ShurePlus™ Channel iOS app
- Compatible with DTT and 4G
ULXD1 and ULXD2 transmitter features
- Switchable RF output power of 1, 10, and 20 mW
- Powered by two AA (LR6) batteries or SB900B lithium-ion battery
- Battery life of 11 hours with two AA (LR6) batteries
- More than 11 hours with an SB900B battery (10 mW)
Product Details
Specific References
- SSR ULXD1LEMO3-G56
- 0042406909723
