The VWPOP65-L is a professional pop-out stand for creating video walls. It offers 8 adjustment positions for precise alignment and a spring mechanism for adjusting screen weights. Easy to access for maintenance, it can be secured with a locking screw. Its modular design allows a variety of configurations. It is compatible with screens from 42" to 65" and supports a maximum load of 60 kg. 5-year limited warranty.
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues

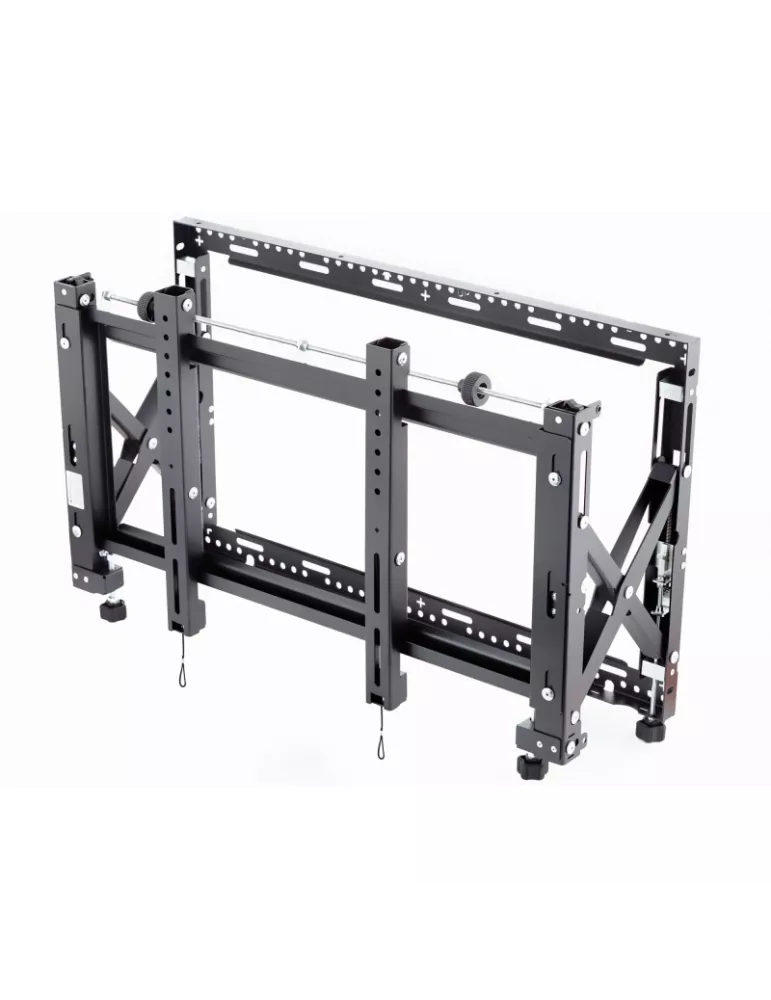

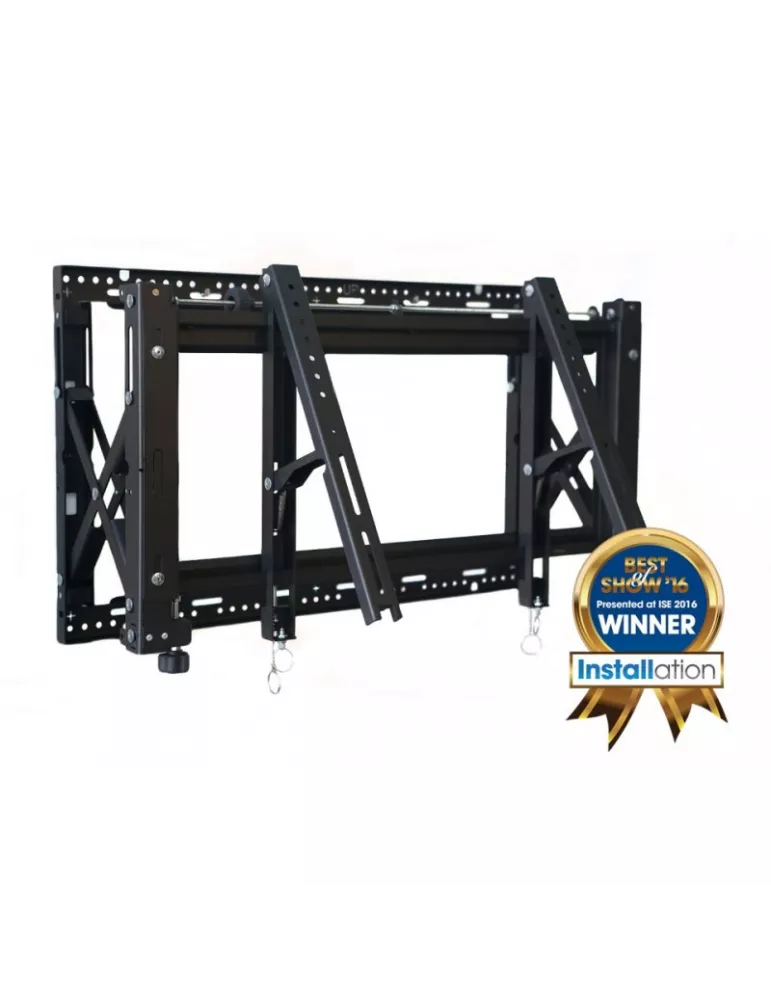

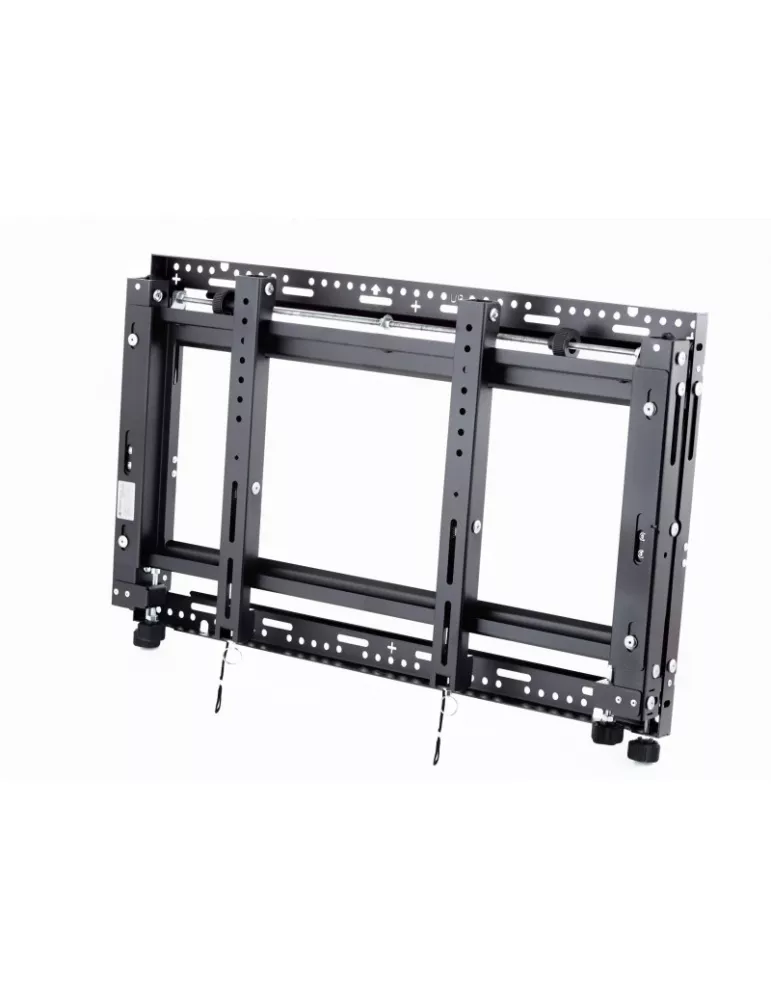

Discover Edbak's VWPOP65-L, a professional pop-out bracket that lets you create a multi-screen video wall in a harmonious and aesthetically pleasing way. Featuring eight screen adjustment points, a spring mechanism for adjusting individual screen weights and easy access for maintenance, it offers a multitude of construction options. The VWPOP65-L is the preferred choice of users who value intuitiveness and ease of use. It ensures maximum comfort when setting up a modular AV wall.
Ø It features independent 8-position adjustment for precise screen alignment without the need for tools.
Ø Its retractable mechanism offers easy access for servicing screens installed in nooks and crannies and hard-to-reach areas.

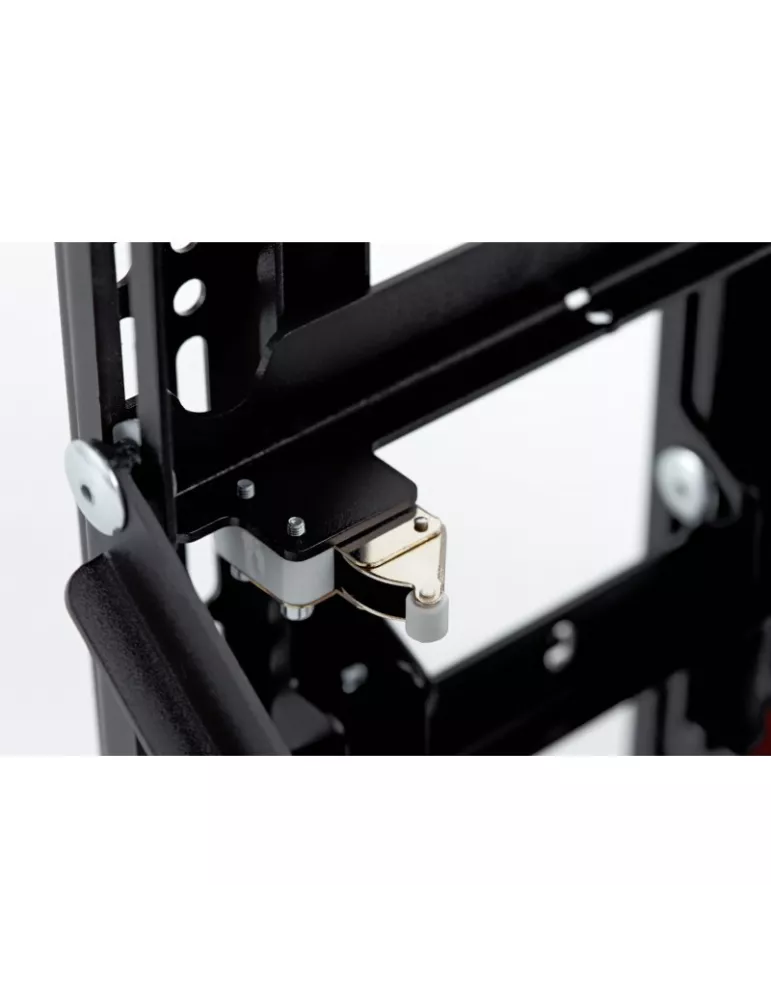

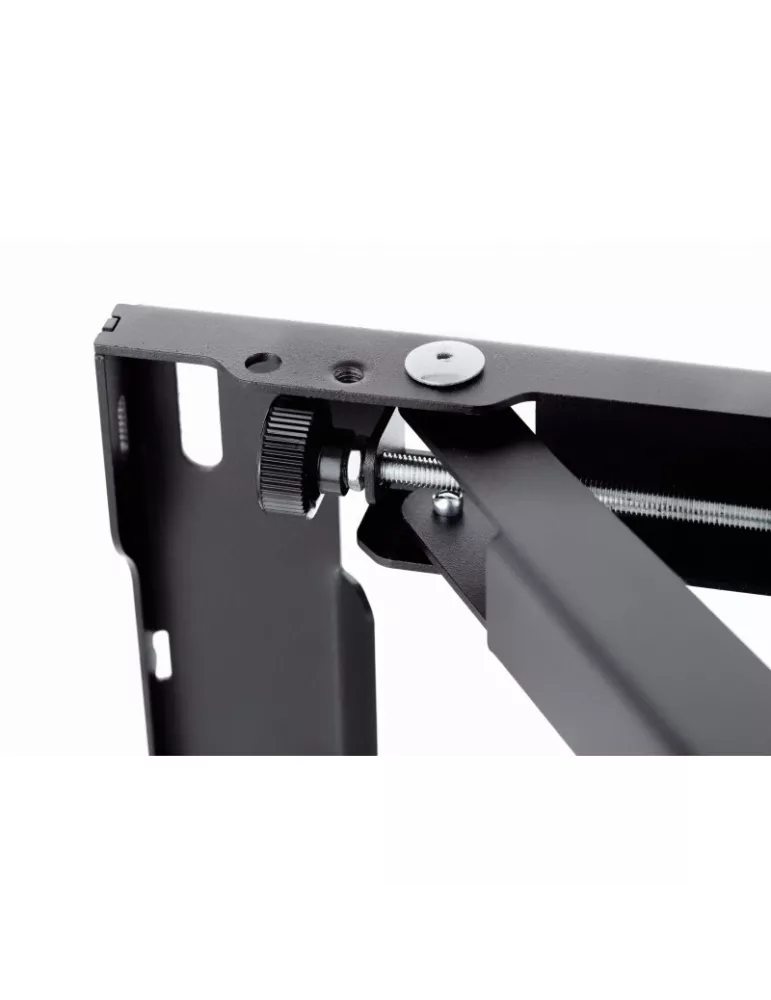

Ø The retractable mechanism can be locked with a locking screw to prevent accidental detachment of the screen.

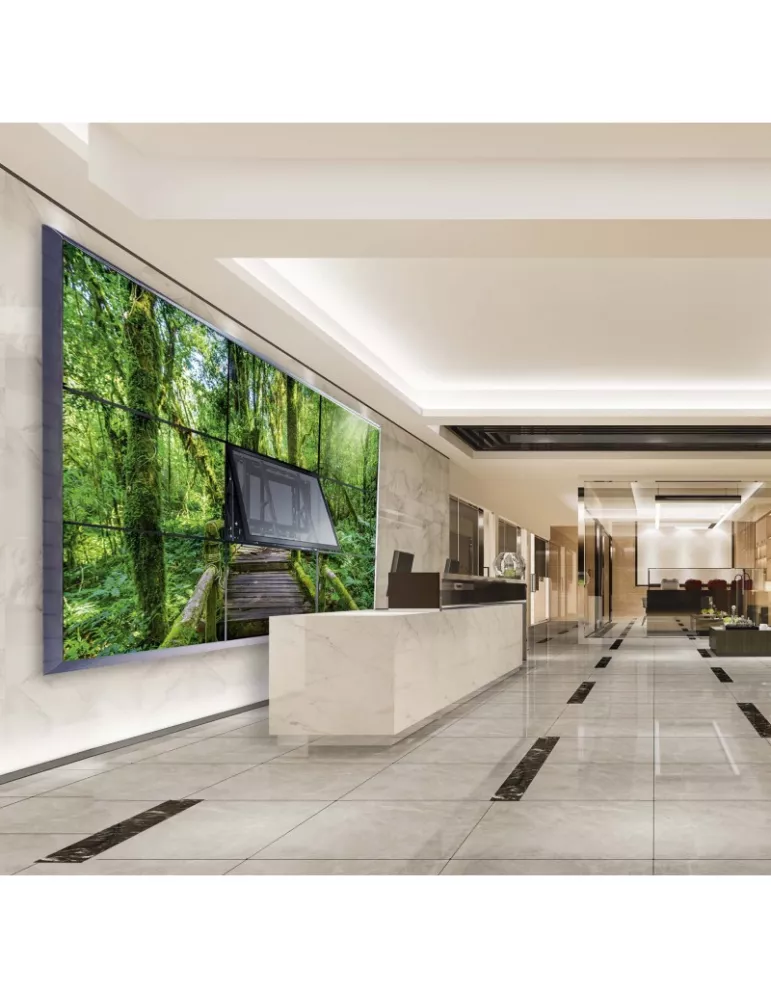

Ø Its modular design allows video walls to be built in a variety of configurations using multiple VWPOP65-L brackets and spacers between modules.
Ø The product's overall design offers full access to cabling.
Ø Carefully selected mounting holes and spacers eliminate the need for on-site calculations.

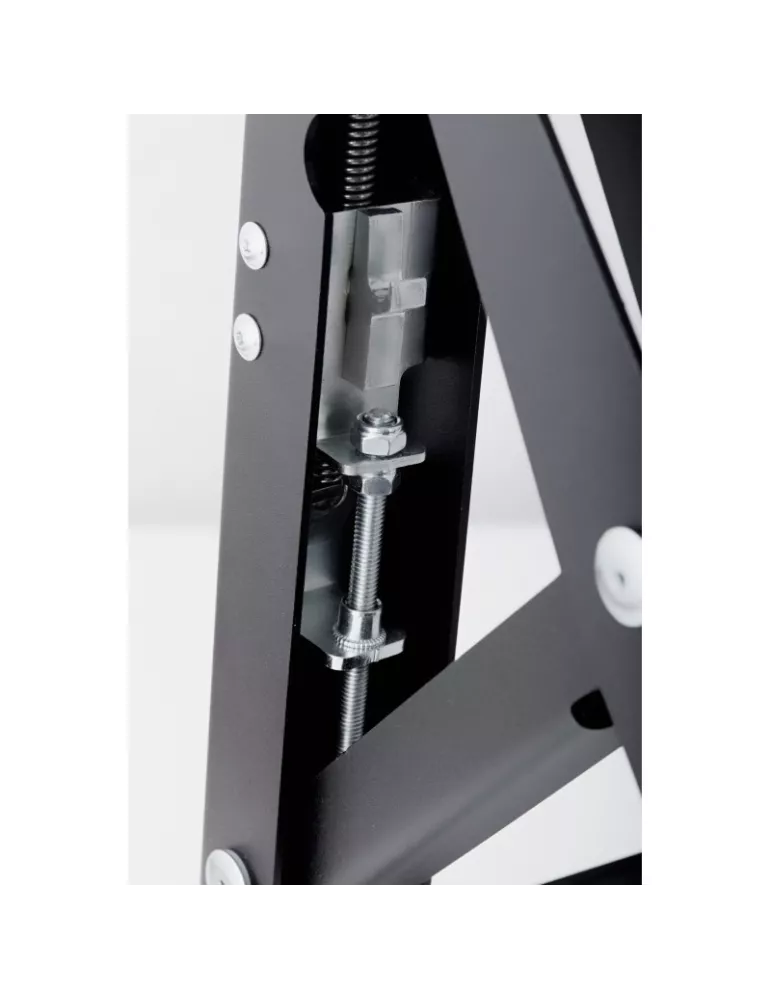

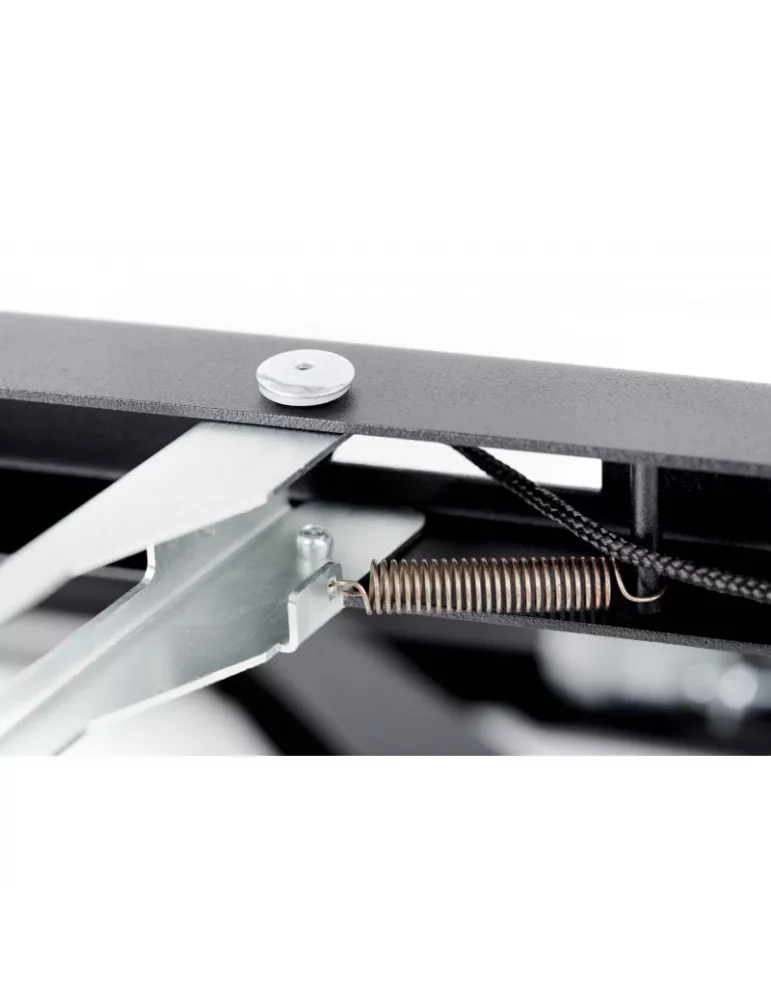

Ø Spring adjustment of the retractable mechanism allows screens of different masses to be correctly adjusted for safe, controlled extension.
Ø It has been TUV tested.
Product information:
Ø Index: VWPOP65-L
Ø Category: Video wall mounts
Ø Product group: Display mounts
Ø Color: Black
Ø Warranty: Limited to 5 years
Ø Number of screens: 1
Ø Minimum screen size: 42″
Ø Maximum screen size: 65″
Ø Maximum load: 60 kg
Ø Forward tilt: +28°
Ø Screen orientation: Landscape
Ø Height adjustment: Yes
Ø VESA mounting compatibility: 100×100 to 600×400
Technical specifications:
Ø Product dimensions: W: 832 mm D: 85 mm H: 530 mm (W: 32.76″ D: 3.35″ H: 20.87″)
Ø Product weight: 15 kg (33 lb)
Ø Maximum mounting surface distance: 270 mm (10.63″)
Ø Minimum mounting surface distance: 85 mm (3.35″)
Ø Maximum mounting pattern: 630 mm x 405 mm
Ø Minimum mounting pattern: 45 mm x 85 mm
