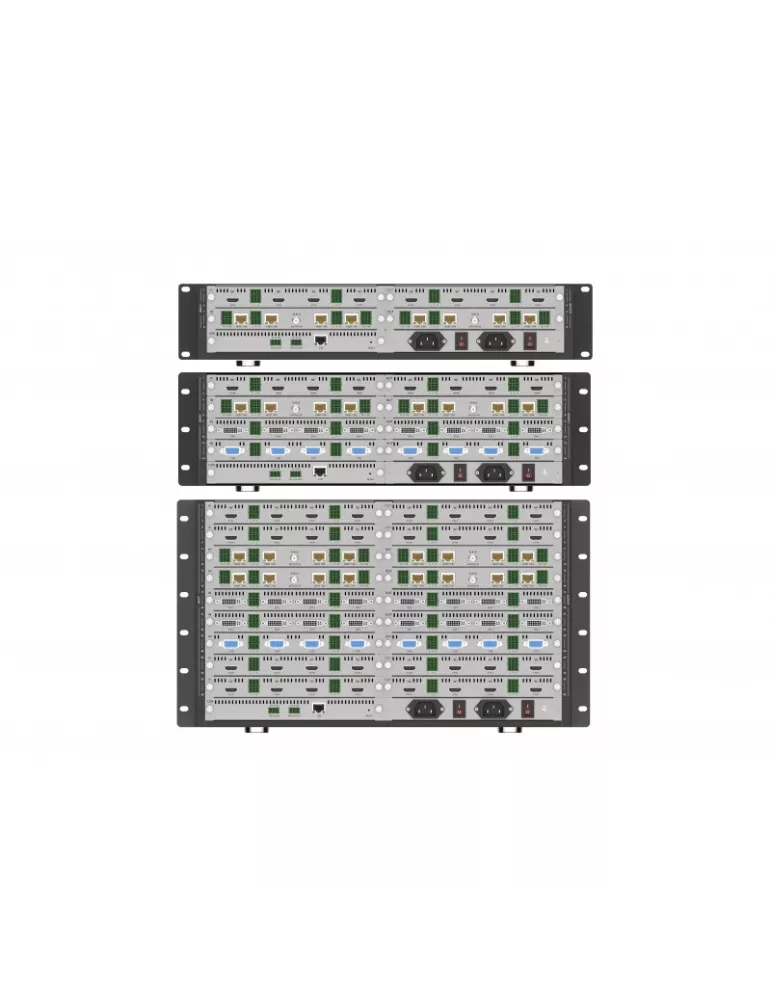

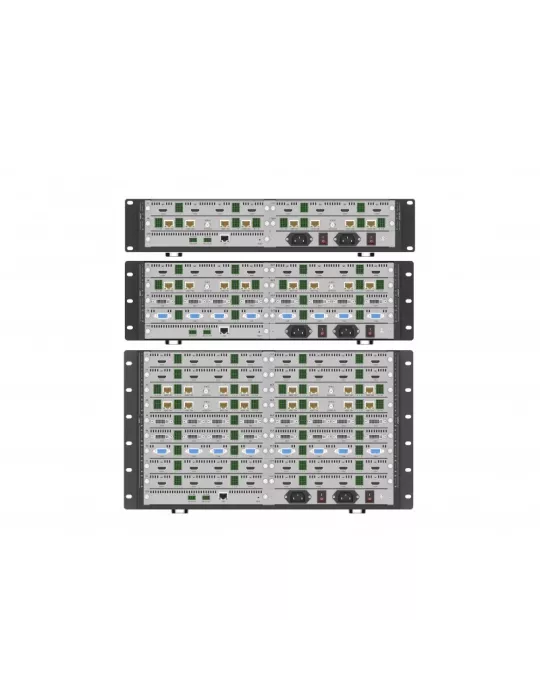

INFOBIT IMATRIXM3636 Chassis Modular matrix 36x36 iMatrix M3636 dual-powered video wall

Infobit iMatrix M 4K matrix HDMI 2.0b and HDCP 2.2 compatibleØ HDMI 18 Gbit/s video bandwidth, up to 4K60 YCbCr 4:4:4 24-bitØ Purely hardware and modular design, 4 ports per card.Ø Supports 8x8/ 16x16/ 36x36 inputs and outputs Input and output support HDMI, DVI-U (DVI/VGA/YPbPr/CVBS), VGA, 3G/HD/SD-SDI, HDBaseT and fiber optics Resolutions: 1920 × 1200p60hz (2K card), 3840x2160p60hz (4K card)Ø Transparent switching without image tearing, black screen or flickeringØ Gen-Lock video wall technology, latency between any output channel is less than 0.1 msØ All video wall layout modes within the permitted range of 8x8 ~ 36x36, particularly suitable for LCD/LED video wallsØ Integrated HDCP processing technologyØ Input cards support audio integration, output cards support audio decayØ Up to 64x scene presets can be recalledØ Advanced EDID managementØ Control via front panel buttons, IR, RS-232 , TCP/IP, Web GUI or PC softwareØ Quiet fan design, stable and quiet performanceØ Dual redundant power supply design
