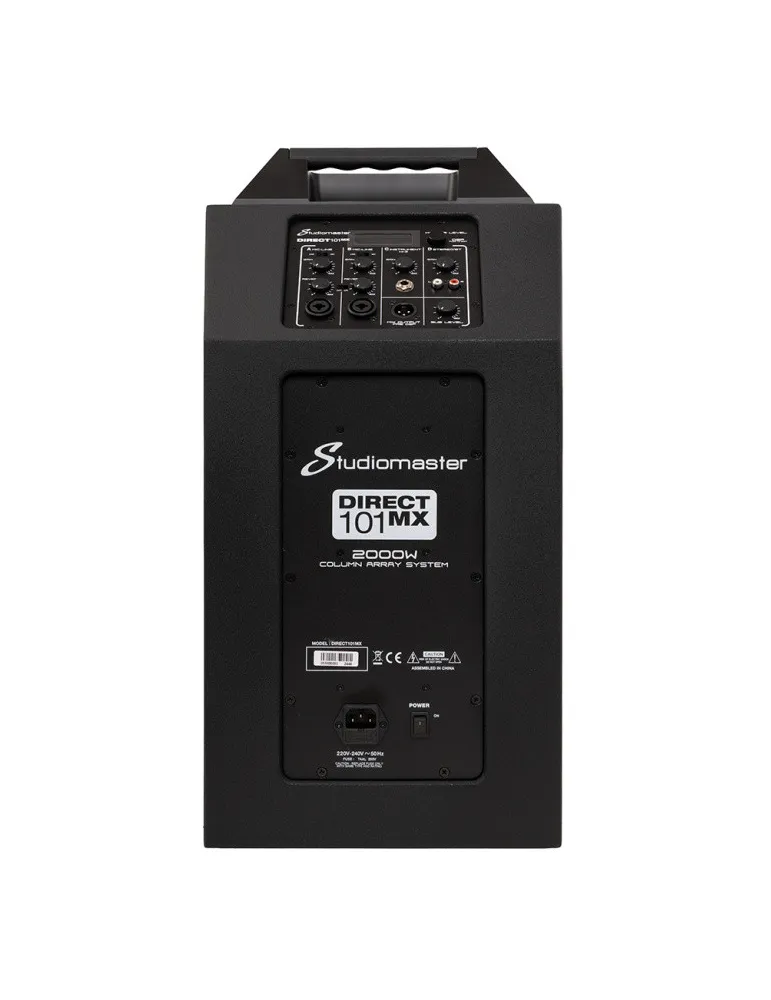

STUDIOMASTER DIRECT101 WMX Direct 101, Ultra-compact 10", 600W (2400W Peak) Vertical array system with 4ch. mixer and DSP
DIRECT 101 SUB SPECIFICATIONS
- Speaker: 1 x 10" low frequency driver
- Rated power (SUB): 250 W (rms)
- Amplifier power: 2 x 300 W (rms)
- Mixer: Built-in 4 channel mixer, with DSP control and Bluetooth® connectivity.
- Inputs: 4 channels (2 x Mic/Line, 1 x RCA, 1 x Hi-Z), 2 x XLR/6,35mm jack combo, 1 x 6,35mm jack unbalanced TRS, 2 x RCA jack connectors
- Outputs: 2 x XLR Line Link, 1 x Mix out XLR
- Max SPL: 126db
- Dimensions: 358 x 616 x 447mm (14.1 x 24.3 x 17.6")
- Net weight: 21 Kg (46,3 lbs)
DIRECT 101 VERTICAL ARRAY SPECIFICATIONS
- Speaker MF: 6 x 3" Neodymium full range driver
- Speaker HF: 1 x 1" Compression driver
- Rated power: 180 W (rms)
- Coverage: 120° (h) x 30° (v)
- Dimensions: 108 x 835 x 98 mm, (4.3 x 32.9 x 3.9")
- Net weight: 3,9 Kg (8,6 lbs)
- Included: Slip cover

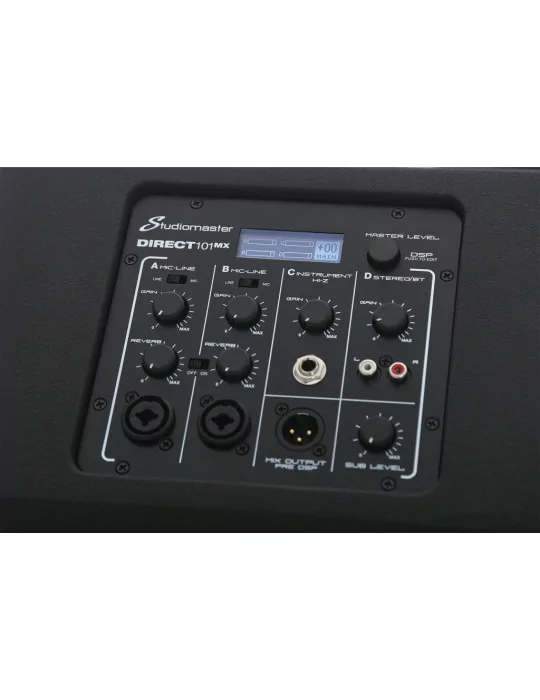

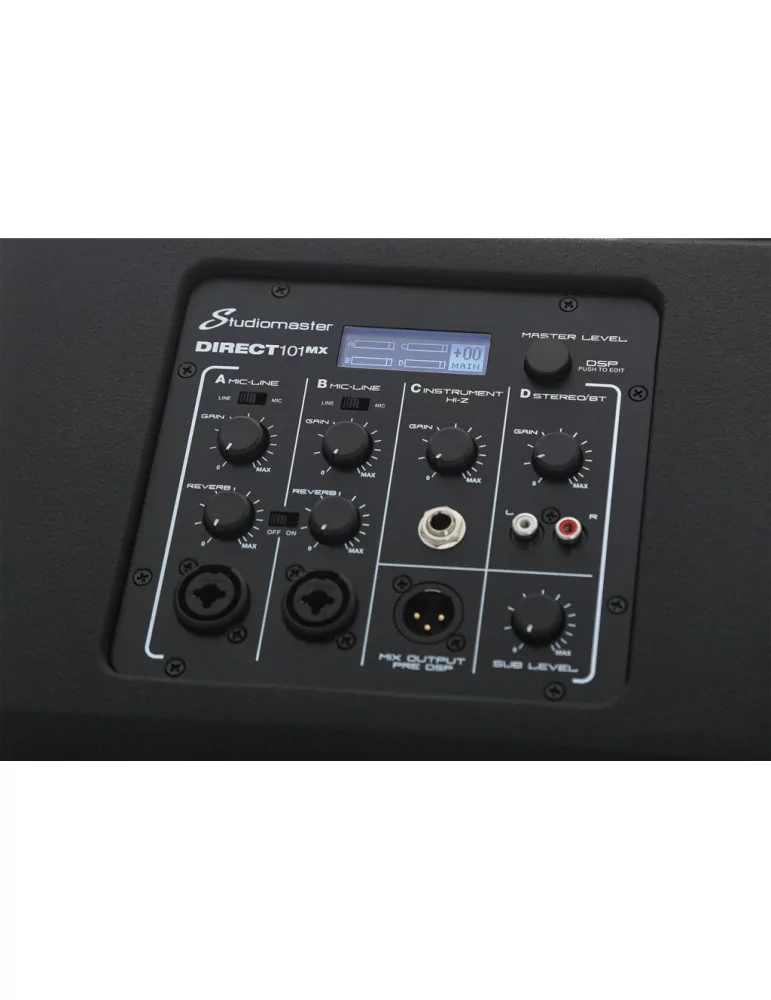

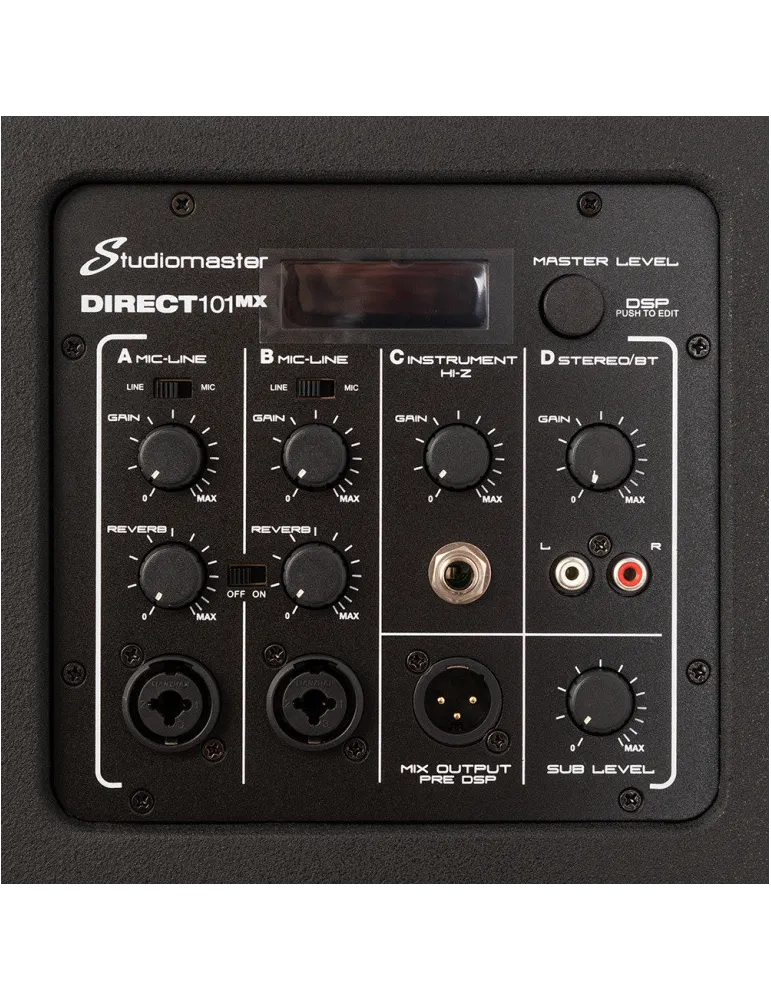

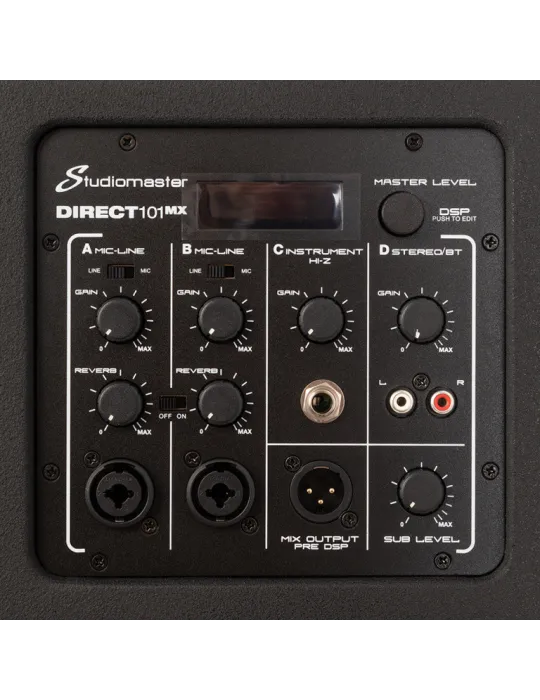

Built-in 4 channel mixer, with DSP control and Bluetooth® connectivity.
Specific References
- DIRECT101 WMX
- 0506025534537
