The new LINEAR 5 MKII series is a completely revisited version of the famous LINEAR 5 series. Made in Germany and featuring the latest innovations in technology, it is aimed at professional groups and service providers seeking sophisticated, versatile, flexible and economical tools for their day-to-day activities.
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
One of the major evolutions of the MKII version is the addition of a powerful DSP that can be remotely controlled by dedicated software via an Ethernet connection. The LINEAR 5 MKII can thus be managed over a network. What's more, HK has provided for the possibility of integrating into the network loudspeakers that don't have their own DSP.

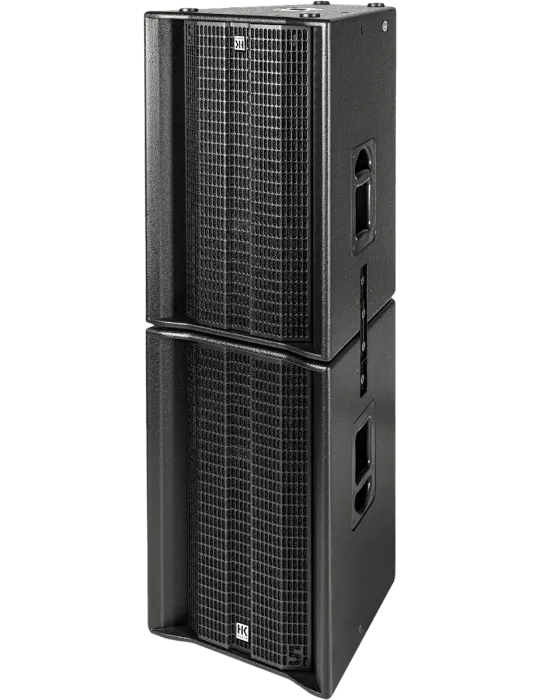

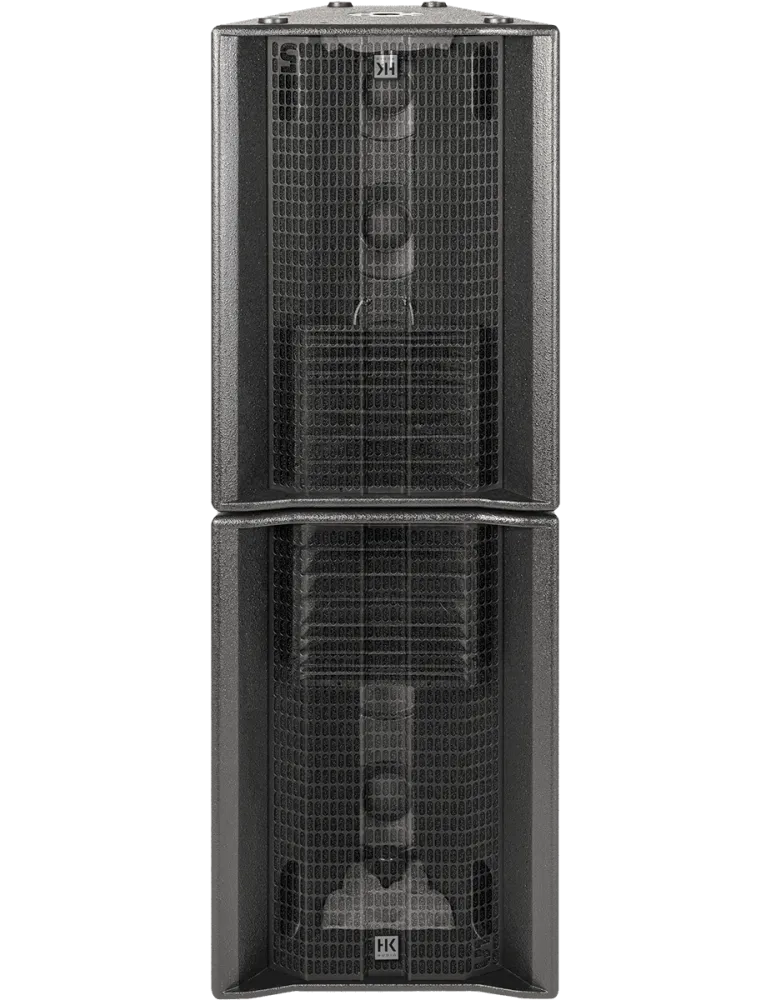

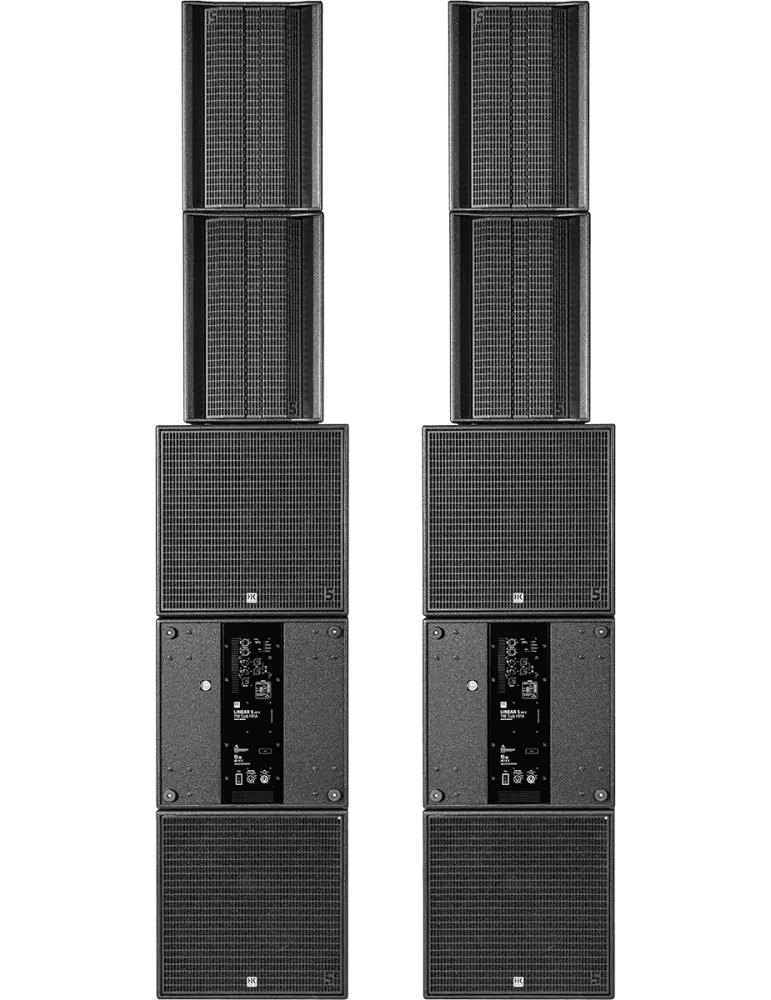

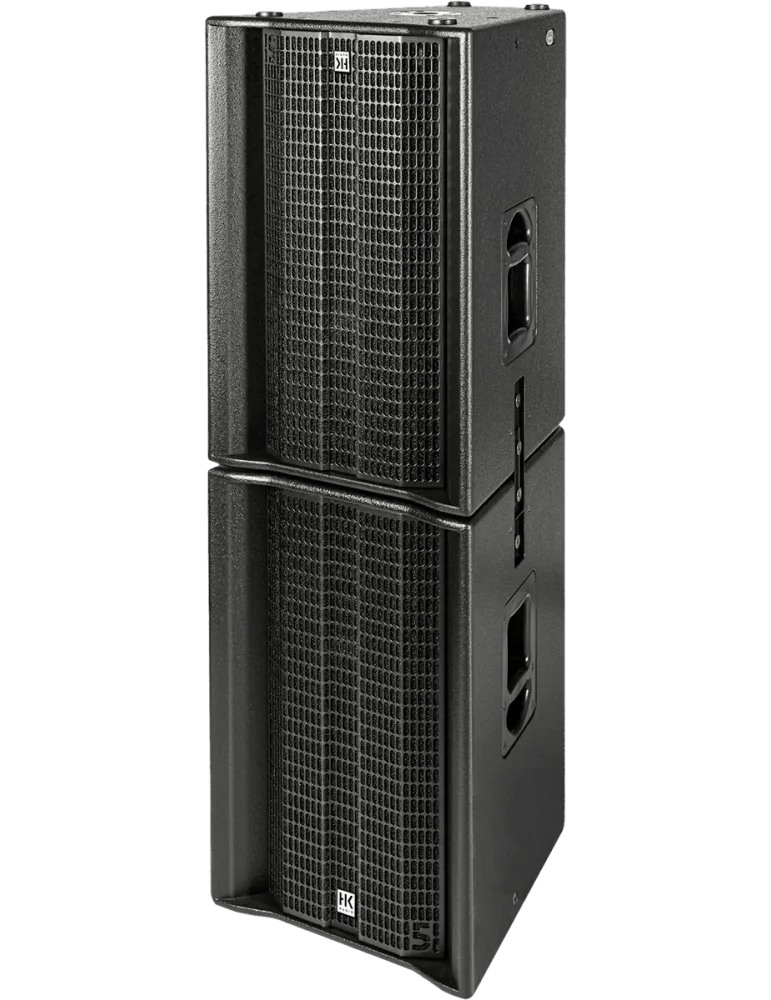

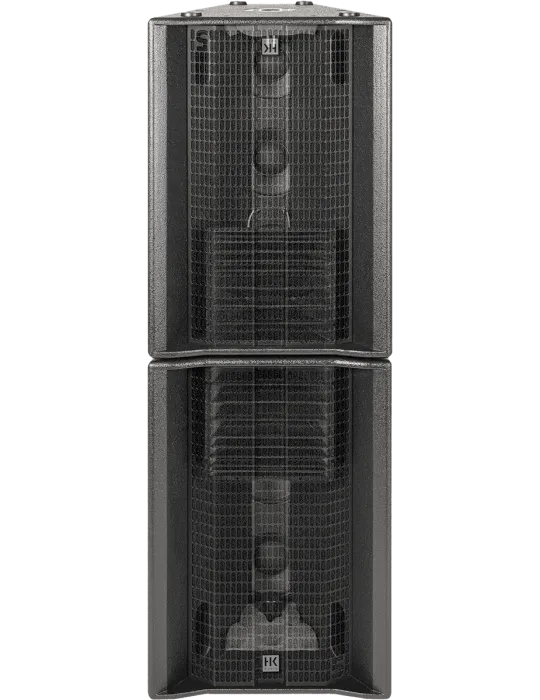

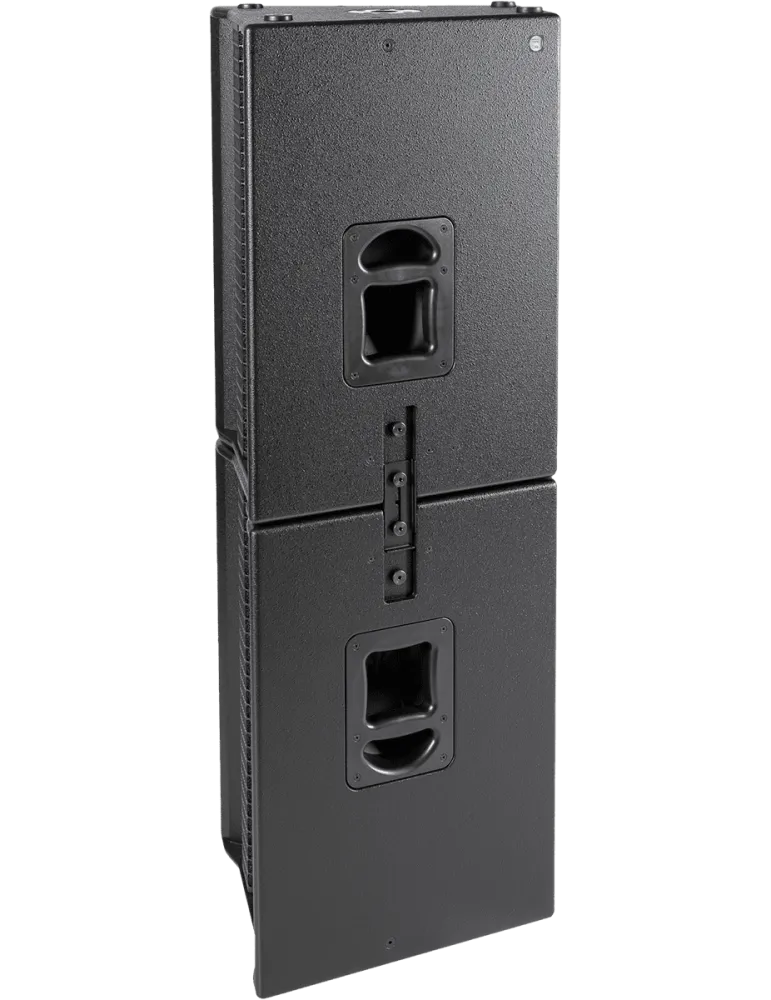

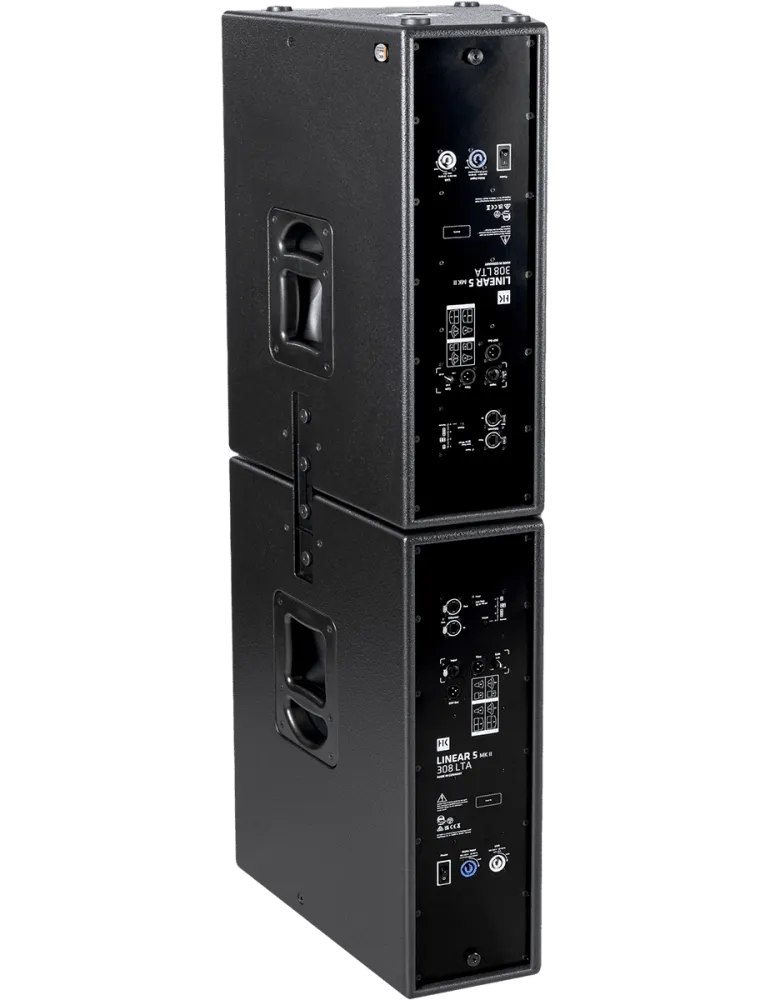

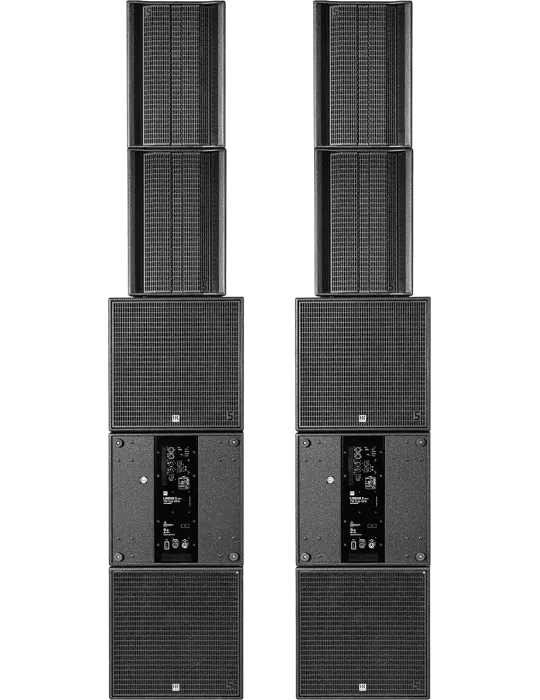

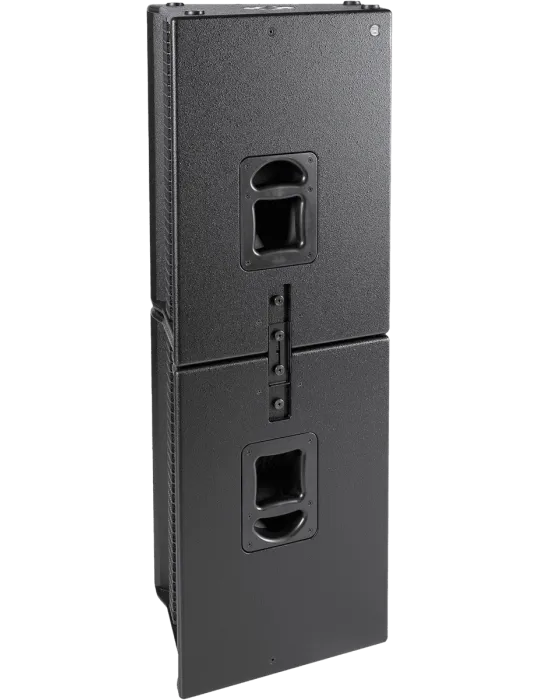

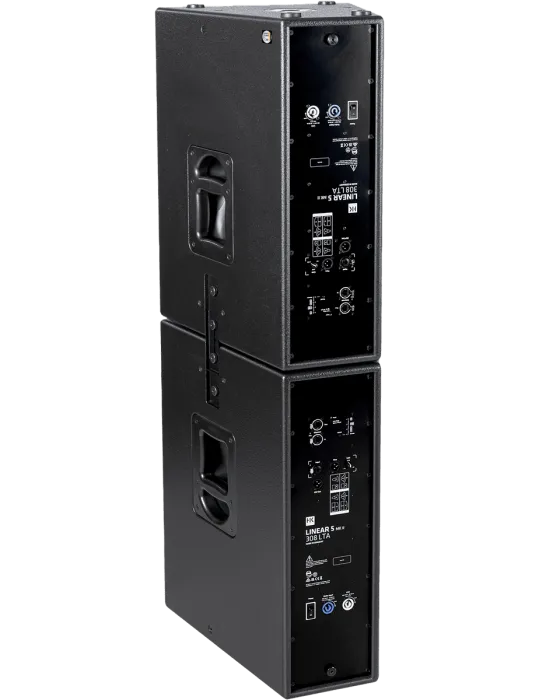

Amplified kit with a capacity of 1500, including 4 L5 MK II 308 LTA loudspeakers, 6 L5 MK II 118 Sub HPA subwoofers, and protective covers
Recommended for concert stage, festival, multi-purpose hall, club, DJ.
This configuration guarantees high, directional sound projection over a long distance, with no loss of speech intelligibility and no treble drop.
The LINEAR 5 MK II 118 Sub HPA offer a rich base in the low-frequency range. Depending on application requirements, the subwoofers can also be installed in a 1:1 cardioid configuration to avoid low-frequency interference at the rear of the installation.

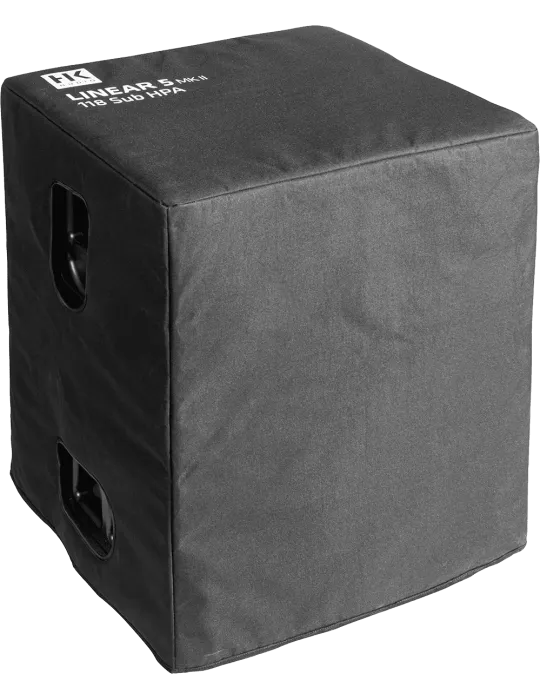

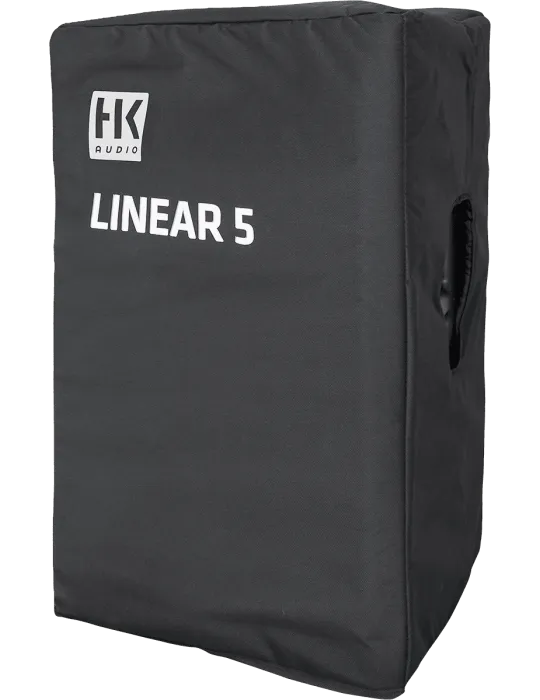

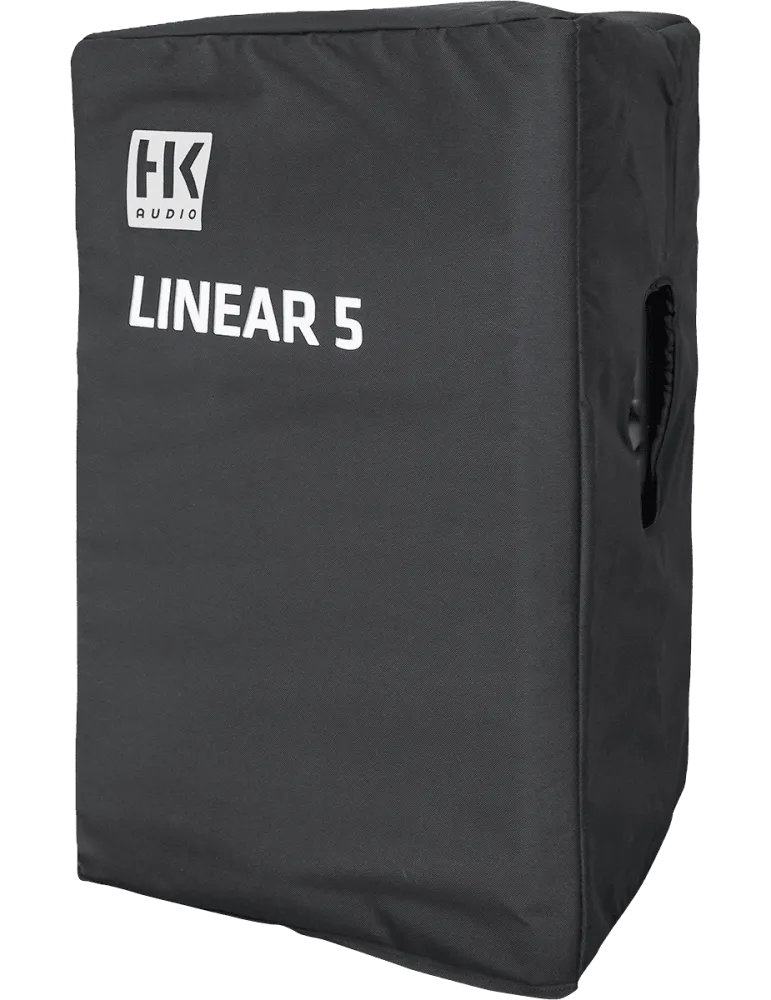

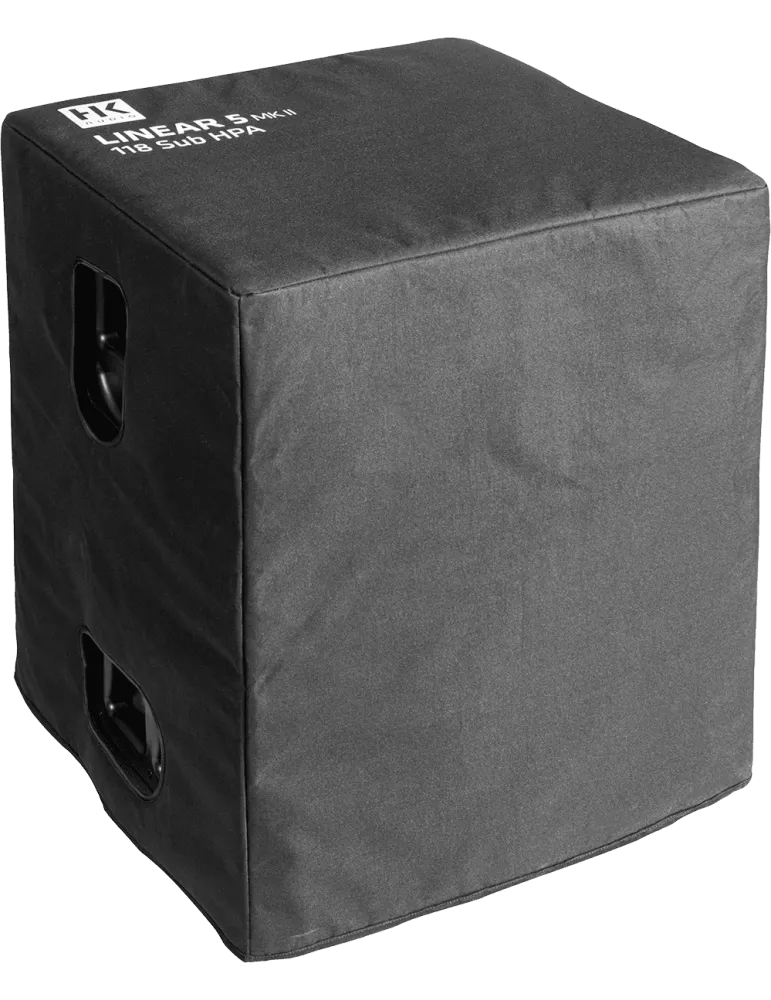

- Accessories included: Protective cover
- Power supply: 100 - 240 V AC - 50/60 Hz
- Category: Stacked system
- Color: Black
- Inputs: XLR/jack, Ethercon
- Total RMS power: 11,400 W
- Sat - Dimensions (mm): 440 x 680 x 460

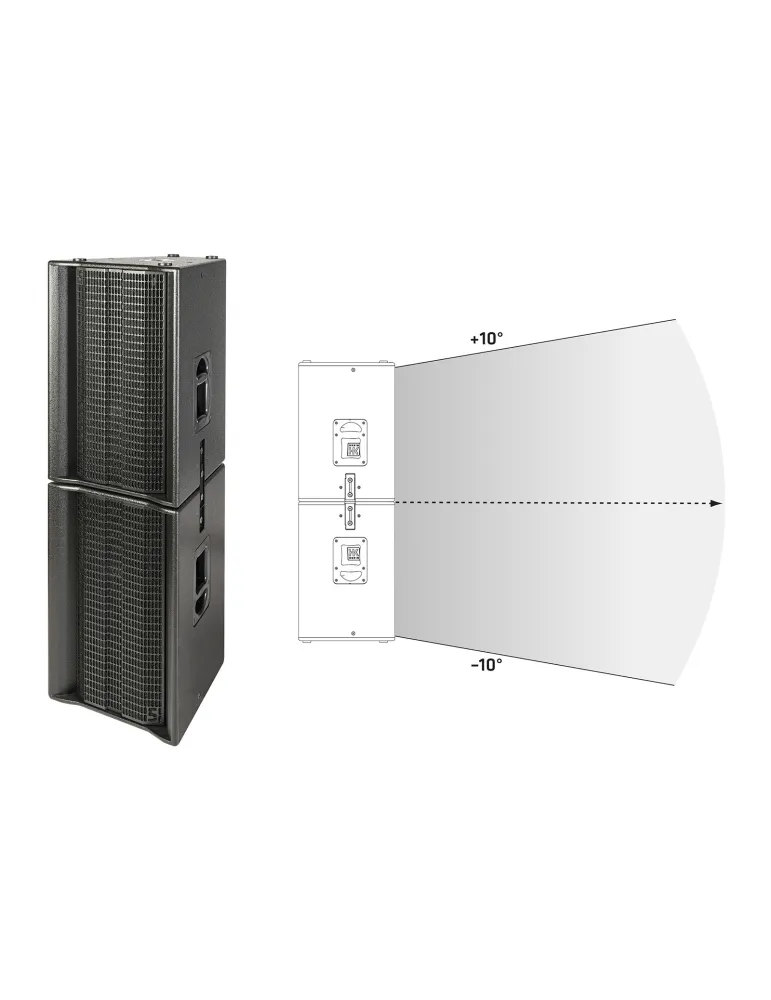

- Sat - Dispersion (H x V): 60° x +5°/-25°
- Sat - Speakers: 3 x 8"
- Sat - Weight: 25 kg
- Sat - SPL max: 133 dB
- Outputs: Link XLR
- Sub - Dimensions (mm): 600 x 608 x 790
- Sub - Speakers: 18"
- Sub - Weight: 56.80 kg
- Sub - SPL max: 130 dB
- Tweeter: 1"
- Type: Amplified
- Complementary specs:
SATELLITE:
- SPL Max. SPL Peak @ 10% THD : 138 dB half space
- Freq. response (+/-3 dB) : 105 Hz - 17 kHz
- Integrated DSP
- Network port : Ethercon RJ45, 1x In, 1x Thru
- Mast socket : diameter 35 mm
- Construction : birch multi-ply
SUBWOOFER :
- SPL Max. SPL Peak @ 10% THD : 131 dB half space
- SUB frequency response (+/-3 dB) : 36 Hz - X-over
- Integrated DSP
- Network port : Ethercon RJ45, 1x In, 1x Thru
- Construction : multi-ply birch
- Mast insert : M20 format
Specific References
check_circle
check_circle
HK AUDIO L5MKIIPACK1.5-LTA Systems - "Headstack" kit for 1500 pers. with protective covers
