Reduced price! HK AUDIO L5MKIIPACK3-LTA Systems - "Headstack Cluster" kit for 3,000 people + accessories

View larger

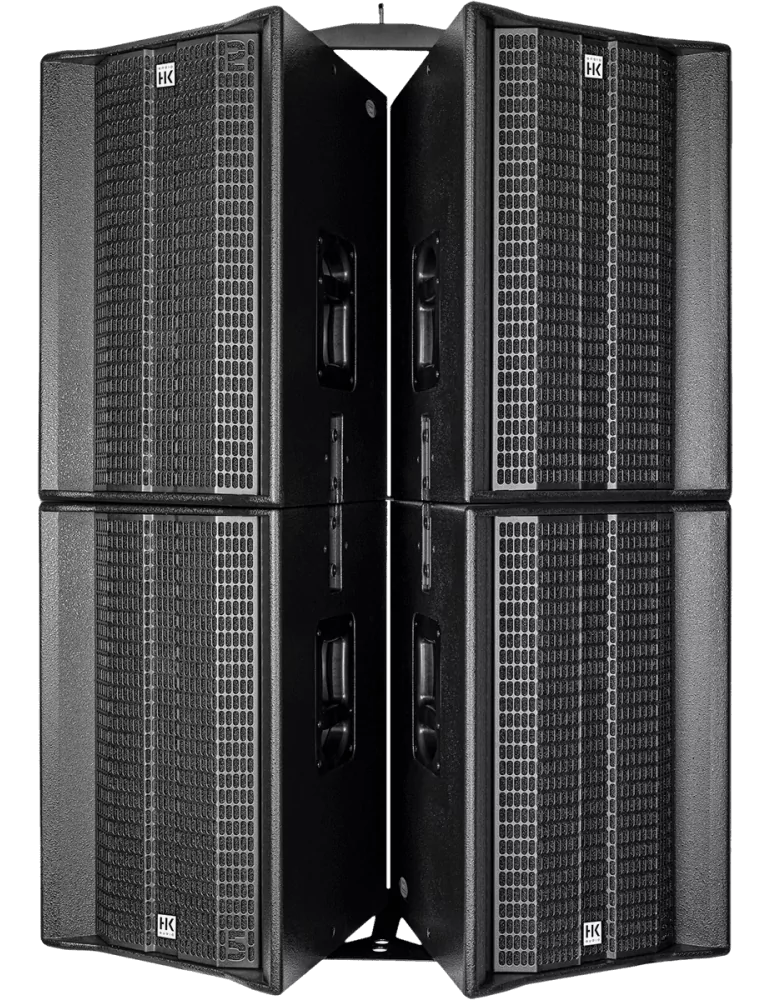

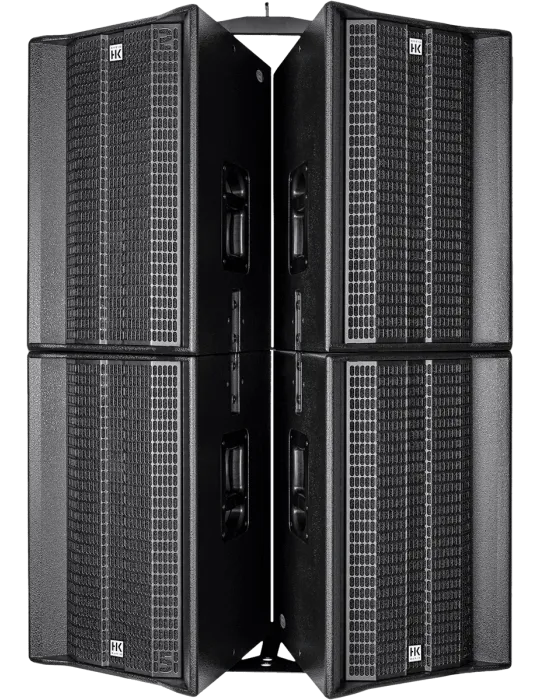

HK AUDIO L5MKIIPACK3-LTA Systems - "Headstack Cluster" kit for 3,000 people + accessories

Code: SHK L5MKIIPACK3-LTA

Systems - "Headstack Cluster" kit for 3000 pers. + accessories

The new LINEAR 5 MKII series is a completely revamped version of the famous LINEAR 5 series. Made in Germany and featuring the latest innovations in technology, it is aimed at professional groups and service providers looking for sophisticated, versatile, flexible and economical tools for their day-to-day activities.

More details

On order only In stock

More info

One of the major evolutions of the MKII version is the addition of a powerful DSP that can be remotely controlled by dedicated software via an Ethernet connection. The LINEAR 5 MKII can thus be managed over a network. What's more, HK has provided for the possibility of integrating loudspeakers that don't have their own DSP into the network.

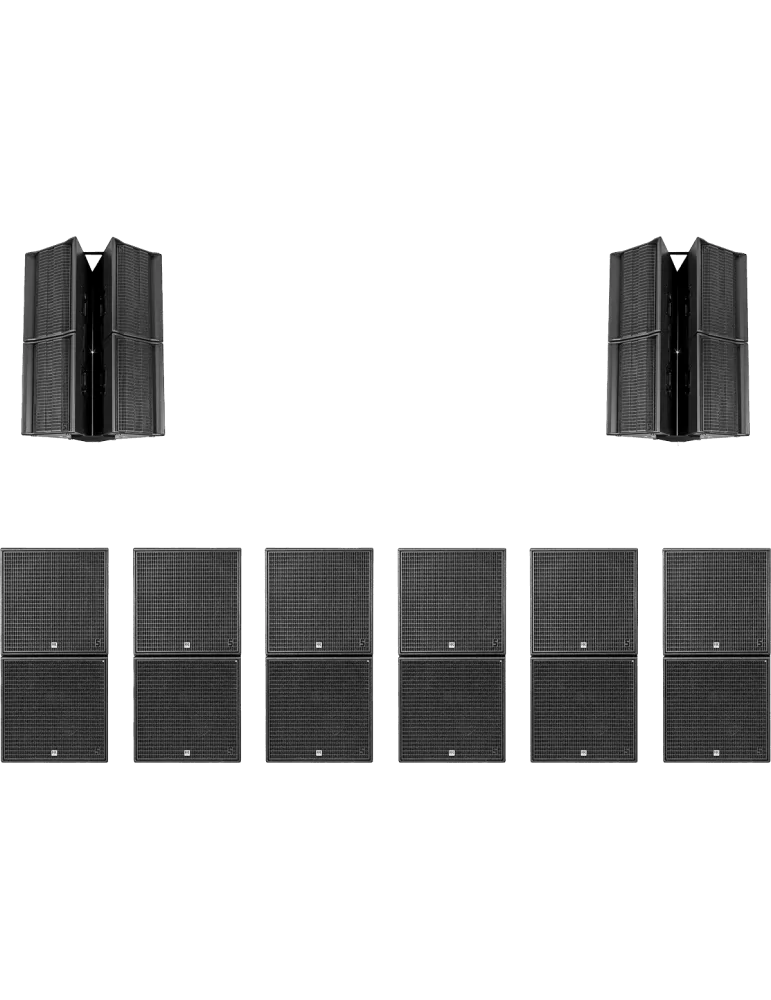

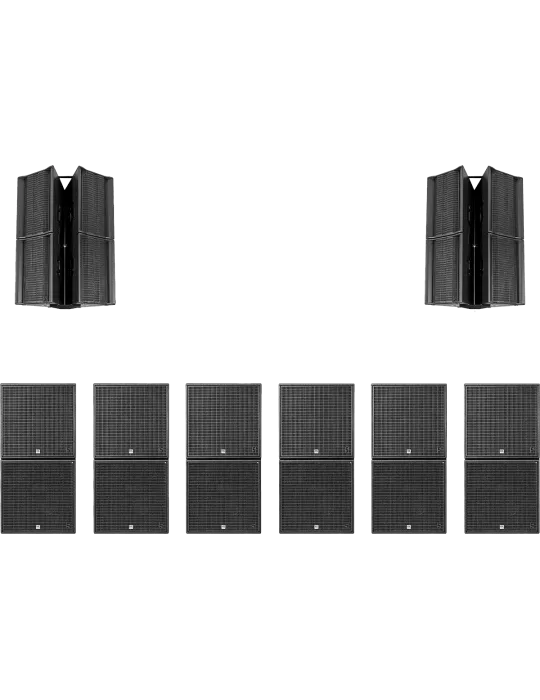

Amplified kit comprising 8 L5 MK II 308 LTA loudspeakers, 12 L5 MK II 118 Sub HPA subwoofers, hanging accessories (PP-CP) and protective covers.

Recommended for concert halls, event spaces, urban stages, festivals.

With a horizontal dispersion of 140° per cluster, a sound coverage depth of over 40 meters with precise directivity and distortion-free sound pressure levels, this configuration is recommended for medium-sized festivals and events with up to 3,000 people.

Local loudspeakers recommended.

- Accessories included: Protective cover

- Power supply: 100 - 240 V AC - 50/60 Hz

- Category: Stacked system

- Color: Black

- Inputs: XLR/jack, Ethercon

- Total RMS power: 22,800 W

- Sat - Dimensions (mm): 440 x 680 x 460

- Sat - Dispersion (H x V): 60° x +5°/-25°

- Sat - Speakers: 3 x 8"

- Sat - Weight: 25 kg

- Sat - SPL max: 133 dB

- Outputs: Link XLR

- Sub - Dimensions (mm): 600 x 608 x 790

- Sub - Speakers: 18"

- Sub - Weight: 56.80 kg

- Sub - SPL max: 130 dB

- Tweeter: 1"

- Type: Amplified

- Complementary specs:

SATELLITE:

- SPL Max. SPL Peak @ 10% THD : 138 dB half space

- Frequency response. (+/-3 dB): 105 Hz - 17 kHz

- Integrated DSP

- Network port: Ethercon RJ45, 1x In, 1x Thru

- Mast base: diameter 35 mm

- Construction: multi-ply birch

- Power supply: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru

SUBWOOFER:

- SPL Max. SPL Peak @ 10% THD : 131 dB half space

- Frequency response. (+/-3 dB) SUB: 36 Hz - X-over

- Integrated DSP

- Network port: Ethercon RJ45, 1x In, 1x Thru

- Construction: birch multi-ply

- Mast insert: M20 format

- Power supply: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru
