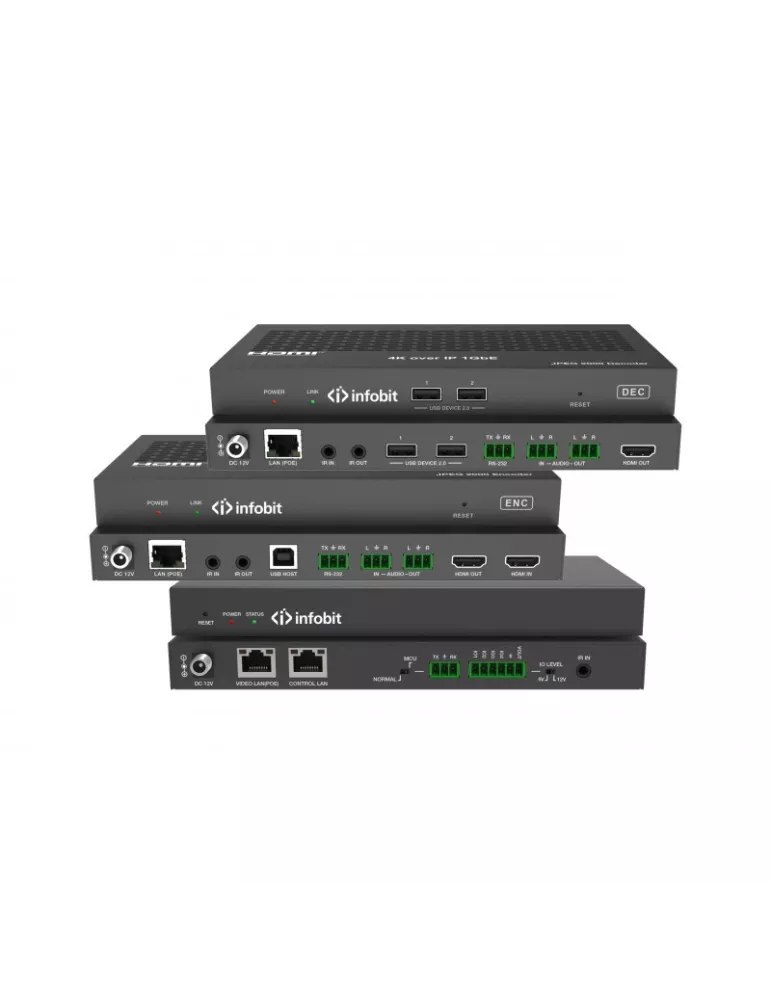

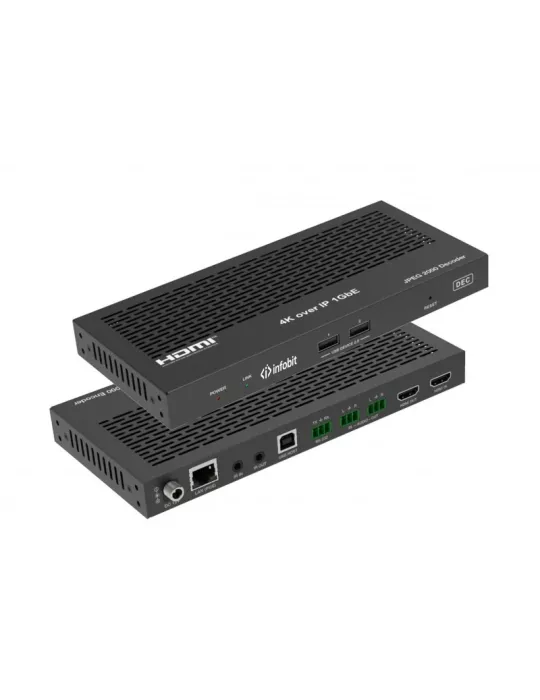

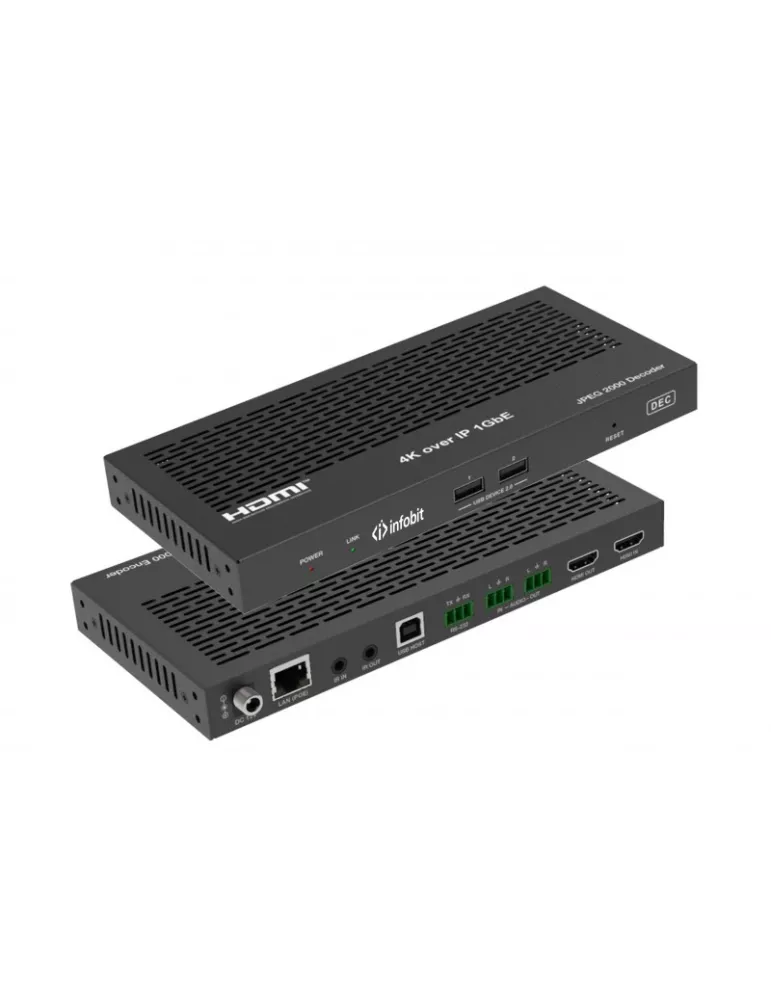

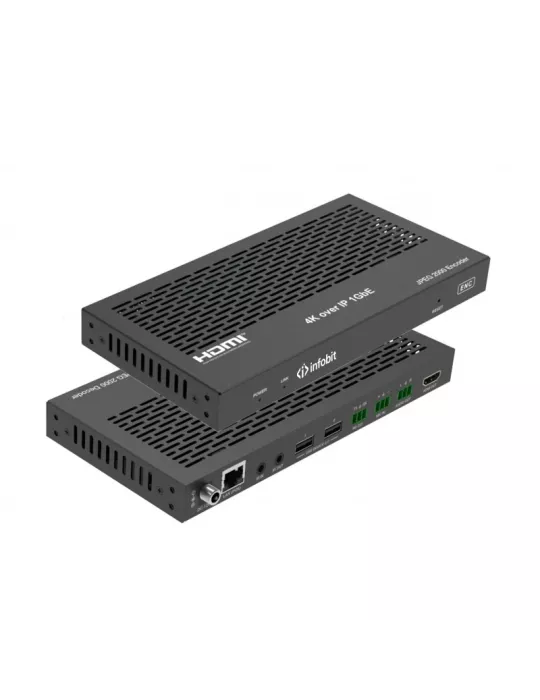

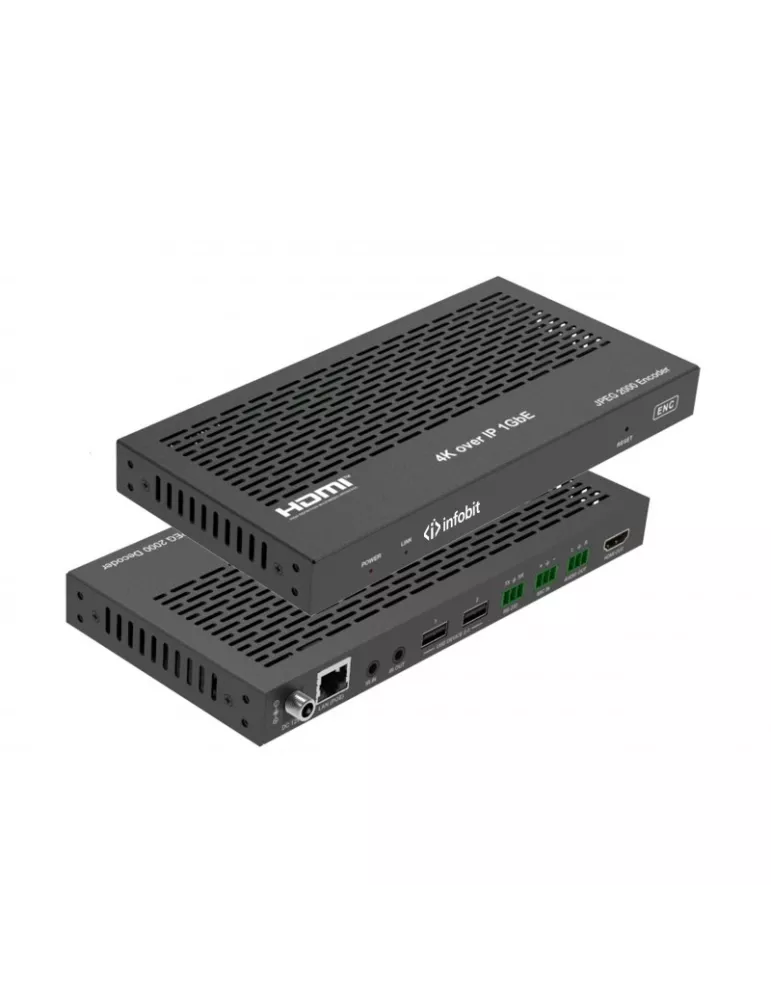

INFOBIT ISWITCH2000TX iSwitch 2000Tx - HDMI 4K JPEG 2000 AV Encoder Tx KVM over IP 4K30
INFISWITCH2000TX
In stock
Data sheet
| Brand | Infobit |
| I/O connectors | Encoder: 1x HDMI type A In, 1x Audio L/R In, 1x Audio Jack 3.5mm In, 1x HDMI type A Out, 1x Audio L/R Out, 1x Audio Jack 3.5mm Out. Control: RS232, LAN, USB type B |
| Dimensions | 204 x 100 x 21.5 mm |
| Weight | Transmitter: 509g and Receiver: 496g |
More info
Ø iSwitch 2000: 4K60 JPEG 2000 AV over IPØ HDMI 2.0b, HDCP 2.2 compliant, 18Gbps video bandwidth. Input up to 4K60 4:4:4, output up to 4K30 4:4:4Ø Transmission of video, audio, IR, RS-232, CEC and USB signals via Ethernet.Ø Supports unicast and multicast functions.Ø Supports point-to-point, video matrix and video wall functions (video wall up to 9x9).Ø Screen group managementØ JPEG2000 main stream and H.265 standard codec secondary stream (SS)Ø Support for secondary stream VLAN tagging and parameter configuration.Ø 1G Ethernet switch supportØ POE supportØ Flexible control via Web GUI, TCP/RS-232/IR protocol and third-party controller.Ø Intelligent network design for easy, flexible installation.
