DL Series digital consoles are controlled over Wi‑Fi from a smartphone, tablet, or computer via the Master Fader app. Simply connect directly over Wi‑Fi using the built‑in router. Use the graphical interface of your choice, and all signal processing is handled entirely by the mixer’s onboard DSP.
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues

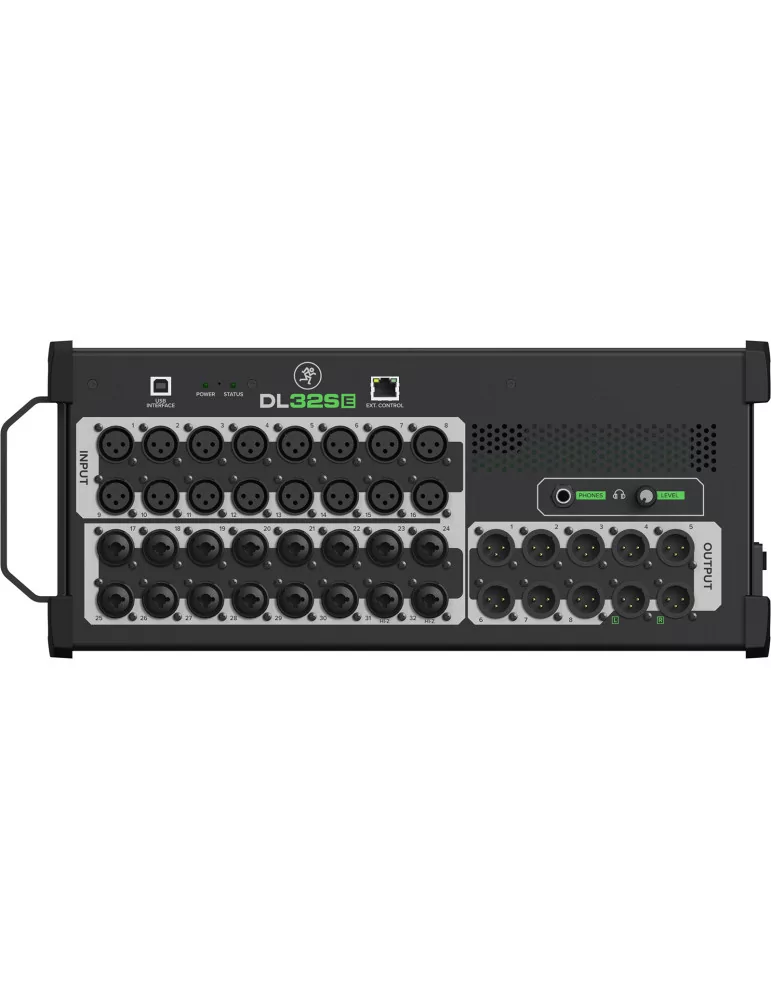

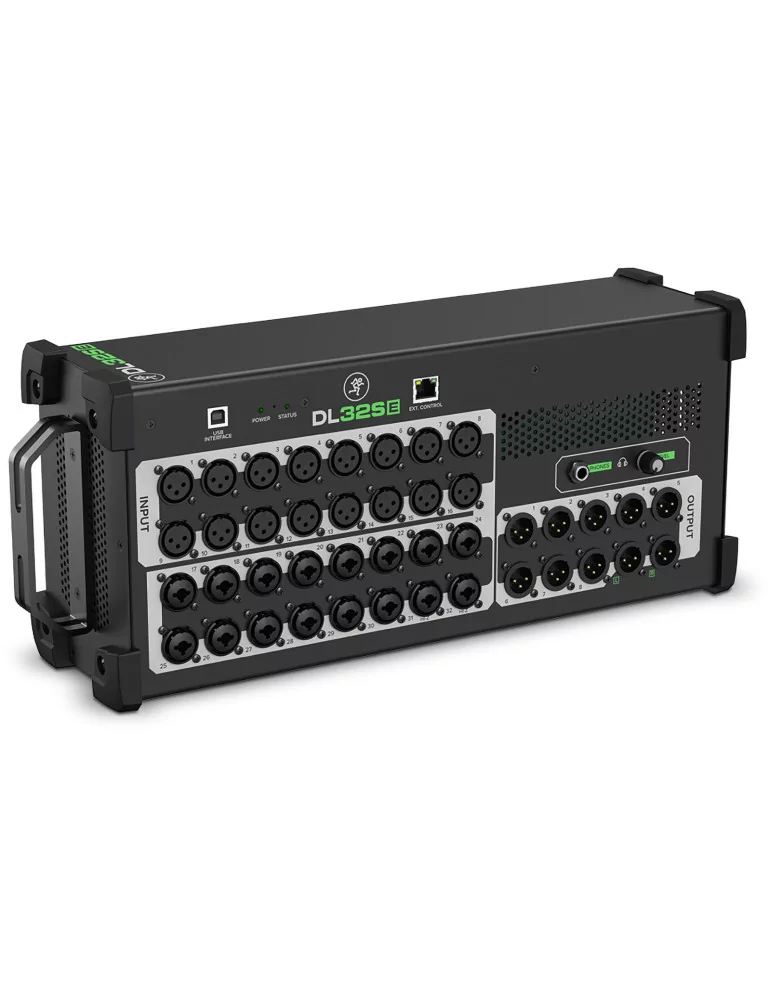

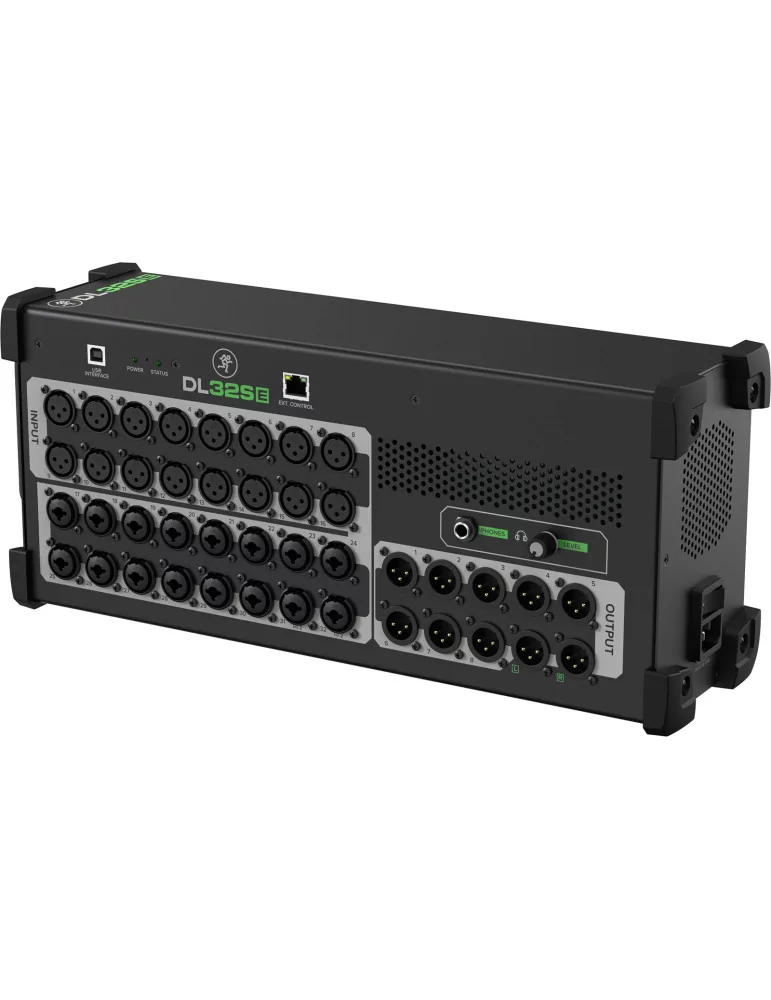

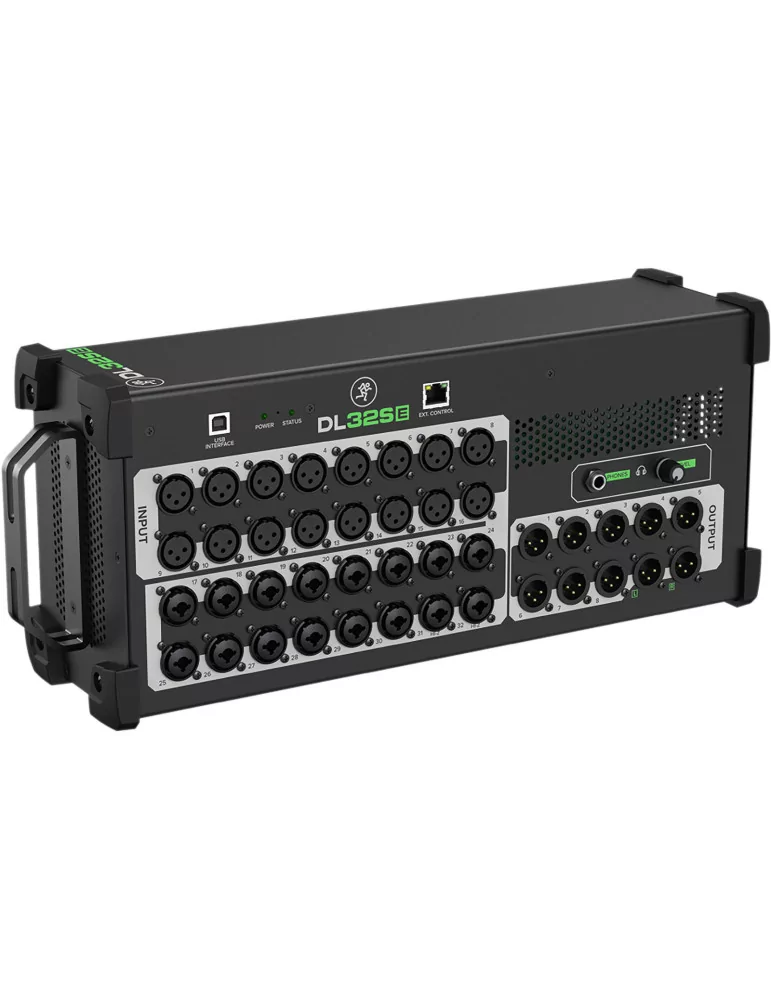

Rugged stage box design
Musicians, sound engineers, and venues need to get up and running quickly and achieve great sound while staying mindful of footprint and cable clutter. The DL32SE can be placed anywhere on stage, or in a 4U space thanks to the included rack ears. A steel construction, large rubber corners, and a handle that wasn’t an afterthought mean you can count on the DL32SE to withstand less-than-delicate nightly load-ins, both at shows and in transit.

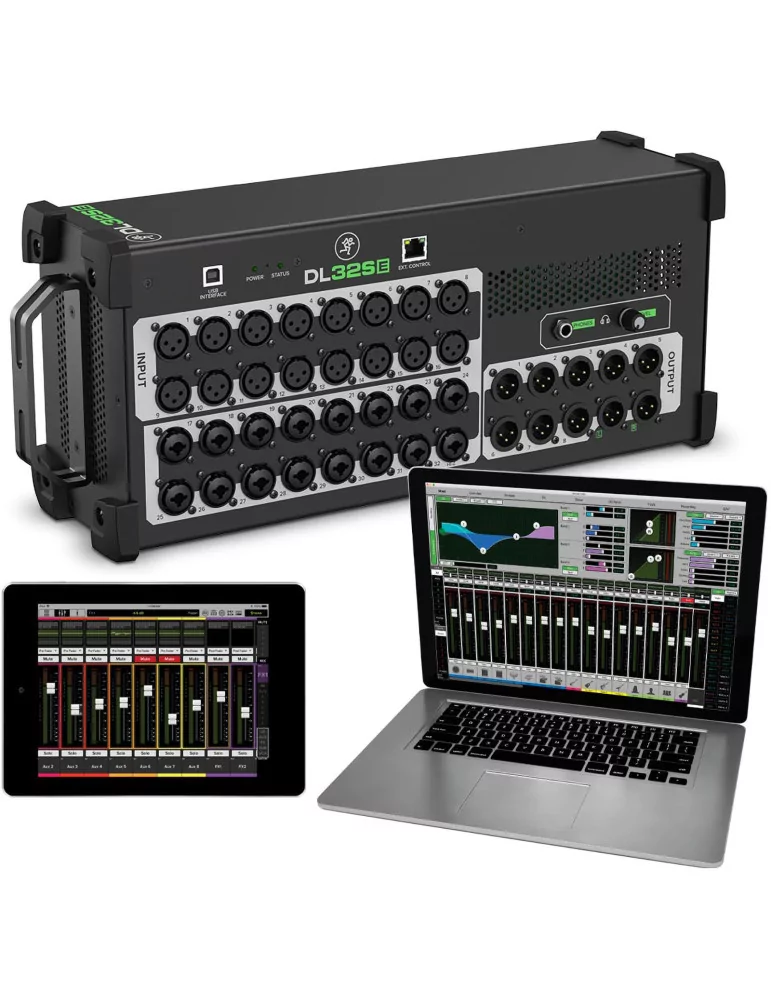

Mix anywhere
Connect the DL32SE to the wireless router of your choice, then control the mixer wirelessly with the Master Fader SE app. Wireless control lets you check the mix from anywhere and adjust every parameter on the fly from your phone, tablet, or laptop. During the show, you can mix with confidence, knowing it sounds great everywhere.
Powerful processing
With the Mackie DL32SE digital mixer, you get powerful processing that replaces racks upon racks of outboard gear with a single box that takes up far less space and is much more affordable.
- Phantom power: Yes
- Category: digital stage box
- Compressor/gate: on all inputs and outputs
- Remote control: Ethernet port
- Software control: Yes
- Dimensions (mm): 147 x 441 x 185
- Built-in effects: Yes
- Graphic EQ: 31-band
- Recording: USB
- Line inputs: 16 x XLR/TRS combo
- Mic inputs: 16 x XLR, 16 x XLR/TRS combo
- Included software: Mackie Master Fader
- PFL/AFL mode: Yes
- Number of channels: 32
- Number of aux sends: 8
- Number of mic preamps: 32
- Number of aux returns: 8
- Weight: 4 kg
- Rackmountable: Yes
- Scene memory recall: Yes
- Main outputs: 2 x XLR
- Rack units: 3
- Additional specs:
- 16 balanced XLR inputs
- 16 balanced XLR/TRS combo inputs
A total of 15 buses each featuring
- Onyx+ preamps (recallable gain with no zipper noise when recalling presets)
- 48 V phantom power
- 4-band parametric EQ
- 1 HPF
- 31-band graphic EQ
- Real-time analyzer or spectrograph
- 8 stereo auxes, 8 stereo subgroups, and main L/R
- 6 VCAs and 6 mute groups
- 4 independent effects processors including reverb, delay, chorus, flanger, etc.
- 10 XLR outputs
- 4U rack format
- Wi‑Fi interface, Ethernet and USB 2.0 ports (32 x 32 audio interface)
- Master Fader app compatible with Mac 10.2 (minimum), PC, Android OS 6 (minimum) and iOS 10 (minimum)
