DL Series digital mixers are controlled via Wi‑Fi by smartphone, tablet, or computer using the Master Fader app. Simply connect directly via Wi‑Fi with the built‑in router. Enjoy the graphical interface of your choice, while all signal processing is handled entirely by the mixer’s onboard DSP.
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues

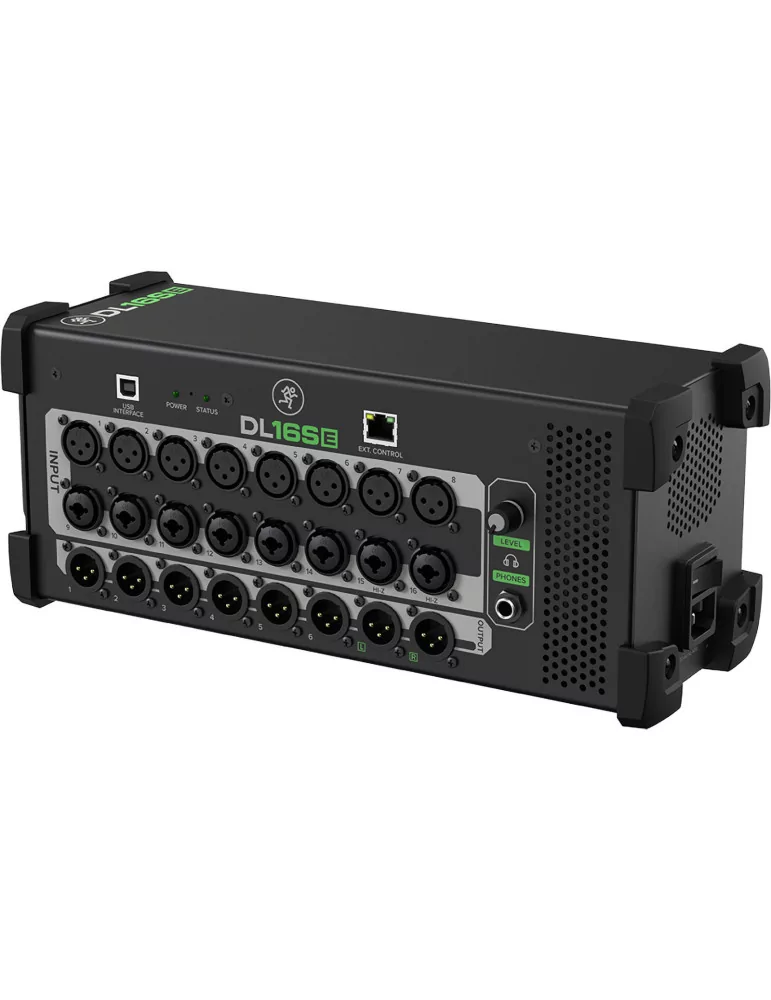

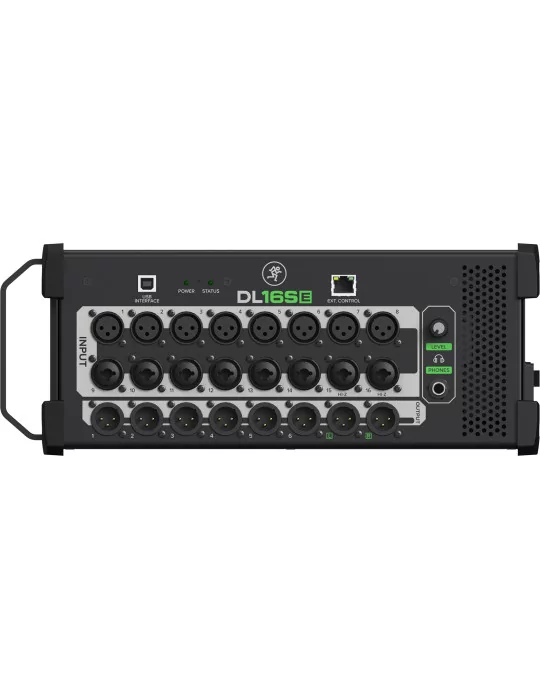

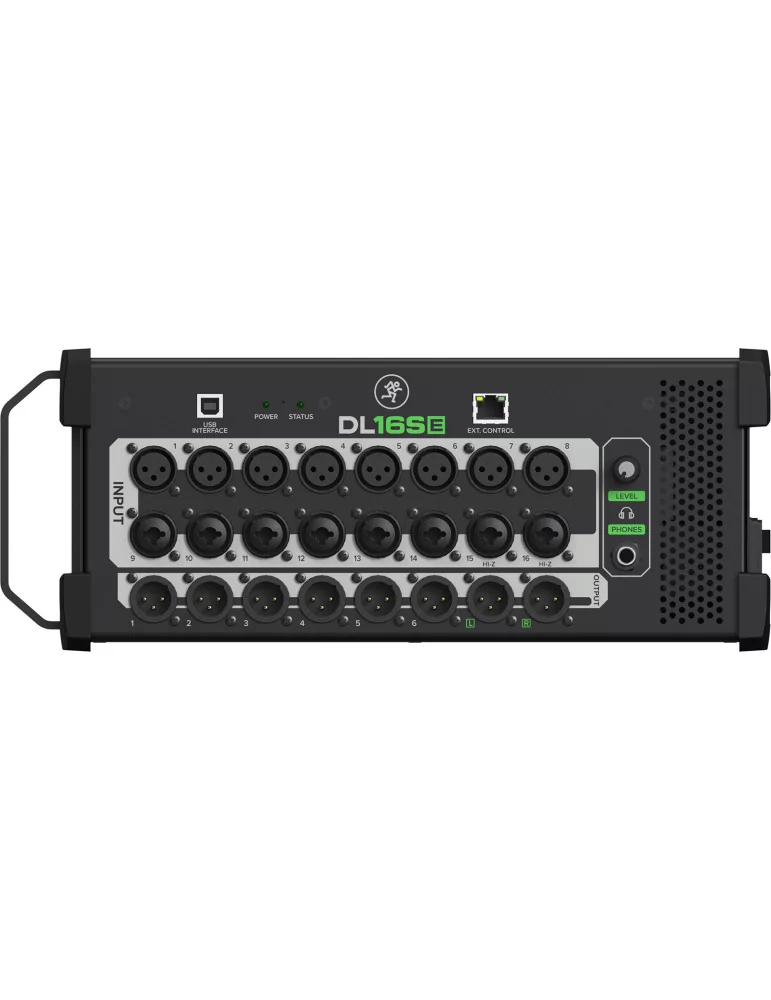

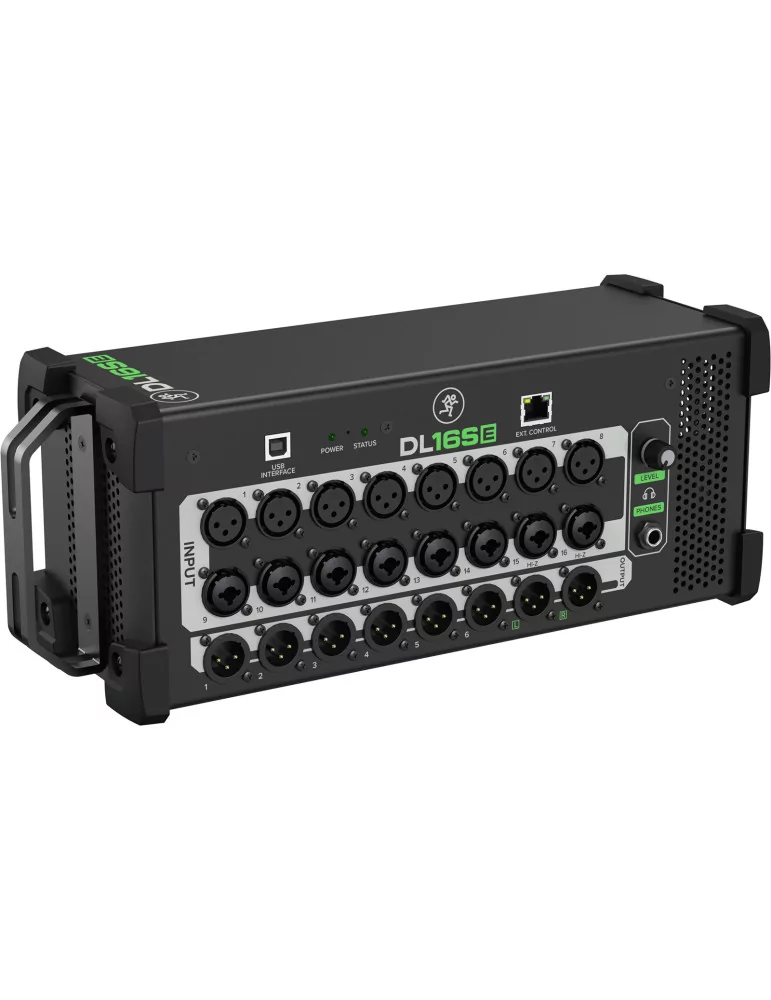

Rugged stagebox design

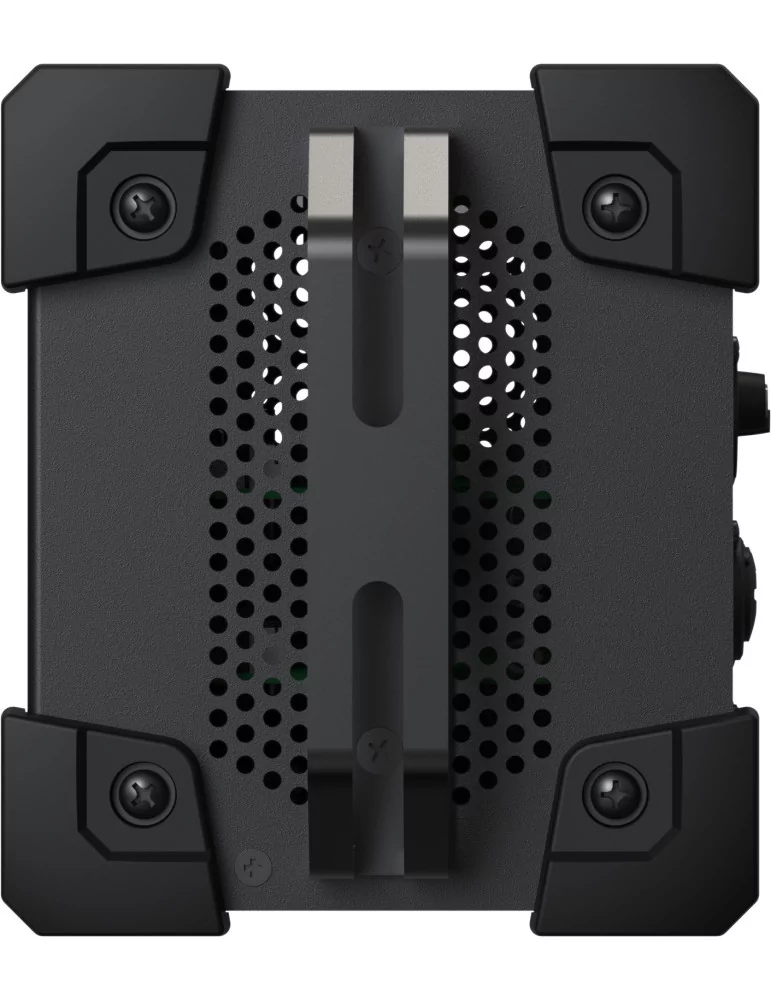

Musicians, sound engineers, and venues need to get up and running quickly and achieve great sound while staying mindful of footprint and cable clutter. The DL16SE can be placed anywhere on stage, or in a 3U space thanks to the included rack ears. A steel chassis, large rubber corners, and a handle that isn’t an afterthought mean you can count on the DL16SE to handle less-than-gentle load-ins night after night, both at shows and in transit.

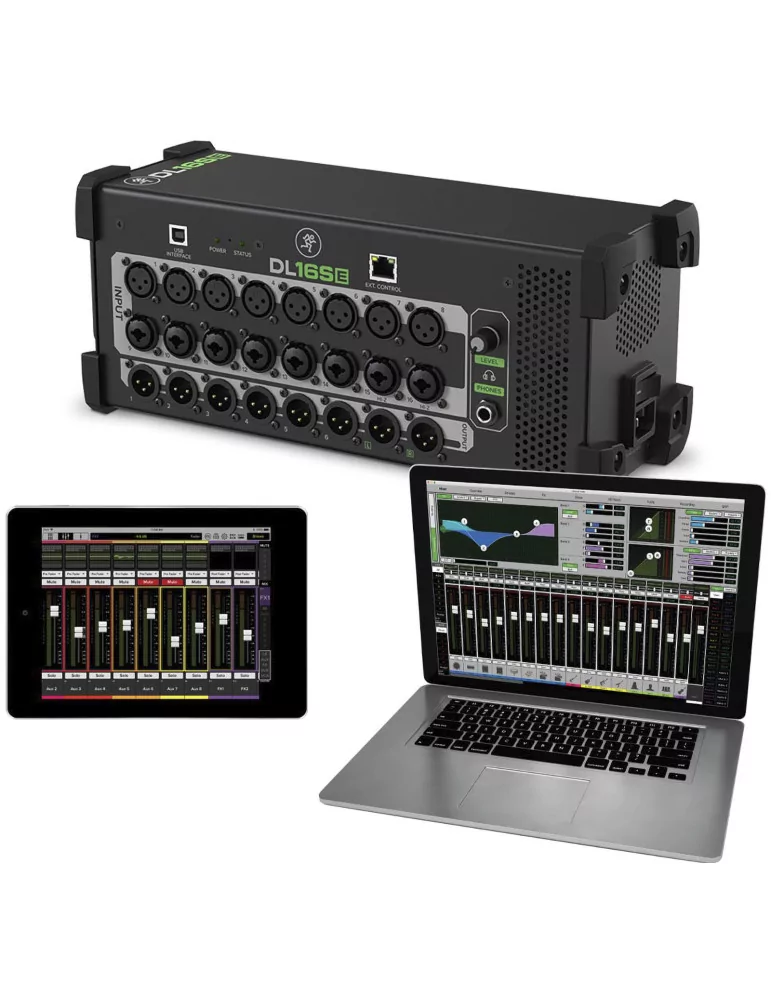

Mix anywhere
Connect the DL16SE to the wireless router of your choice, then control the mixer wirelessly with the Master Fader SE app. Wireless control lets you check the mix from anywhere and adjust every parameter on the fly from your phone, tablet, or laptop. During the show, you can mix with confidence, knowing it sounds great everywhere.
Powerful processing
With the Mackie DL16SE digital mixer, you get powerful processing that replaces racks and racks of outboard gear with a single box that takes up far less space and is much more affordable.
- Phantom power: Yes
- Category: digital stagebox
- Compressor/gate: on all inputs and outputs
- Remote control: Ethernet port
- Software control: Yes
- Dimensions (mm): 148 x 358 x 142
- Built-in effects: Yes
- Graphic EQ: 31-band
- Recording: USB
- Line inputs: 8 x XLR/TRS combo
- Mic inputs: 8 x XLR/TRS combo, 8 x XLR
- Included software: Mackie Master Fader
- PFL/AFL mode: Yes
- Number of channels: 16
- Number of aux sends: 6
- Number of mic preamps: 16
- Number of aux returns: 6
- Weight: 2.80 kg
- Rack-mountable: Accessories included
- Outputs (other): headphones
- Main outputs: 2 x jack
- Rack units: 3
- Additional specs:
- 8 balanced XLR inputs
- 8 balanced XLR/TRS combo inputs
A total of 13 buses each featuring
- Onyx+ preamps (recallable gain with no added noise when recalling presets)
- 48 V phantom power
- 4-band parametric EQ
- 1 HPF/LF
- RTA/spectrograph
- 6 stereo auxes, 6 stereo subgroups, and main L/R
- 4 independent effects processors including reverb, delay, chorus, flanger, etc.
- 8 XLR outputs
- Wi-Fi interface, Ethernet port, and USB 2.0 port (16 x 16 audio interface)
- Master Fader app compatible with Mac 10.2 (minimum), PC, Android OS 6 (minimum) and iOS 10 (minimum)
Specific References
check_circle
check_circle
MACKIE DL16SE DL - 16 channels
DL - 16 channelsDL Series digital mixers are controlled via Wi‑Fi by smartphone, tablet, or computer using the Master Fader app. Simply connect directly via Wi‑Fi with the built‑in router. Enjoy the graphical interface of your choice, while all signal processing is handled entirely by the mixer’s onboard DSP.
