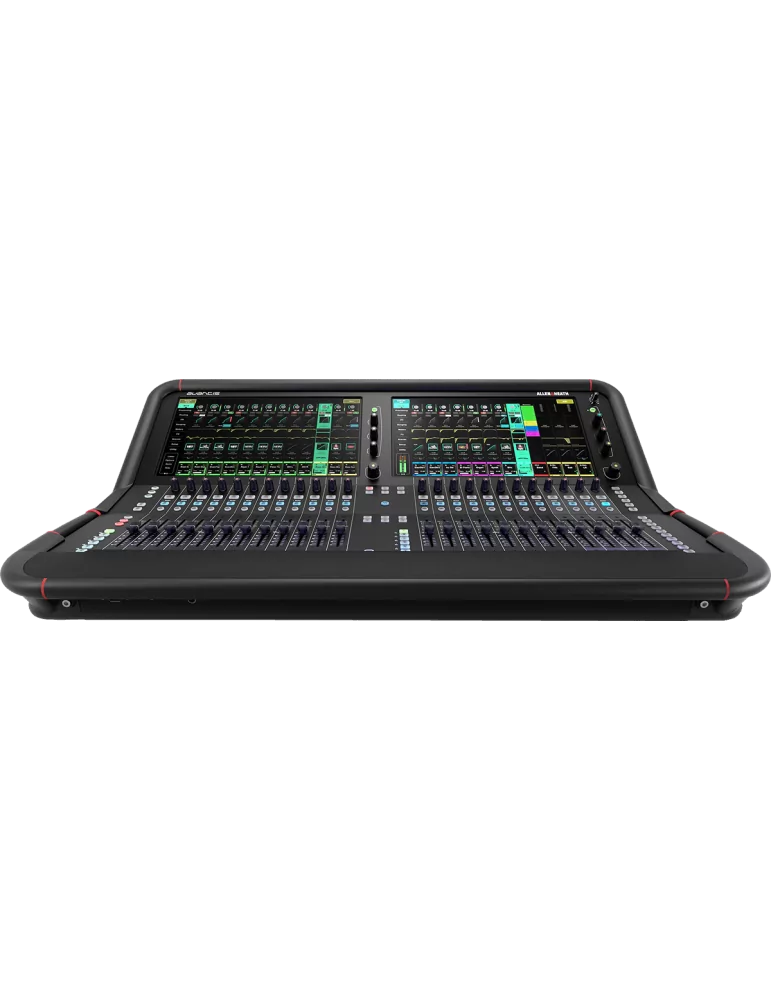

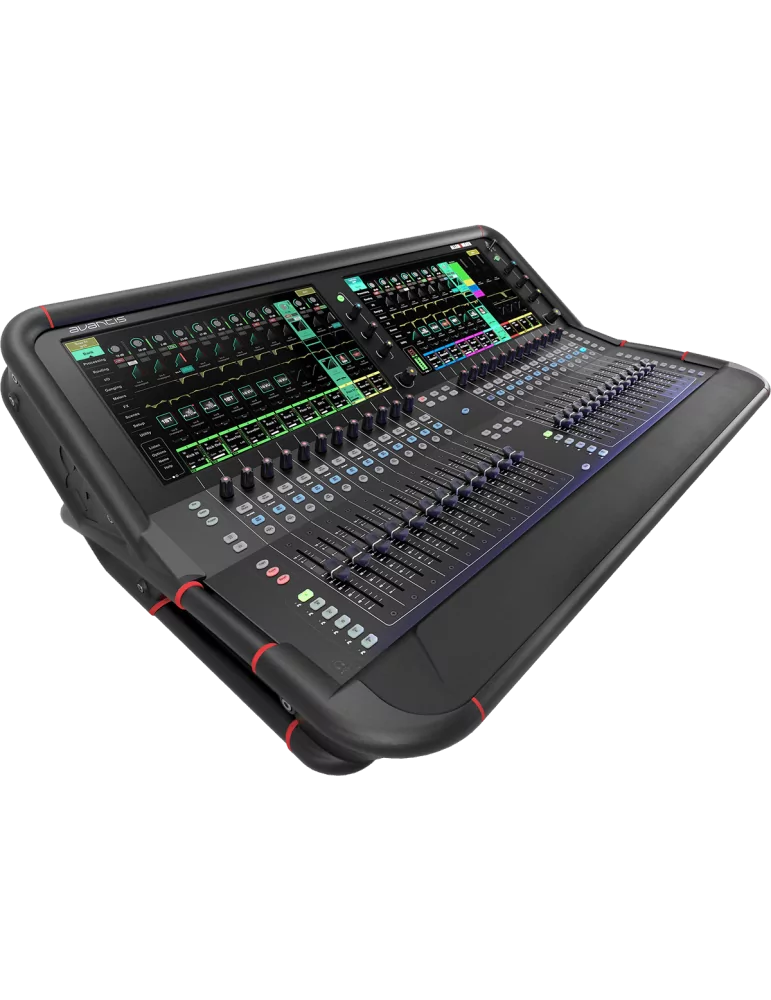

ALLEN & HEATH AVANTIS-PACK Consoles - Pack A&H Avantis + dPack + Cover

The Audio XCVI core provides phase coherence on all the console's output buses, regardless of the routing chosen. For example, parallel compression adds up in phase with the direct routing of the same sources without any special manipulation. Furthermore, this elitist audio engine performs summations at a fixed 96bit, which means that nothing is lost in the resolution and therefore the dynamics of each source in the final mix. The other particularly interesting point is the ultra-short latency of 0.7ms, especially as this is fixed regardless of the routing used and the processing engaged or not.

- Slice name display : Yes

- Sound engineering application on tablet : iOS

- Dimensions (mm) : 917 x 627 x 269

- USB stereo recording/playback : Yes

- Mic/line inputs : 12 XLR

- Assignable faders : All assignable layers

- Motorized faders : Yes

- Sample rate : 96 kHz

- Number of touch screen(s) : 2

- Number of DCAs : 16

- Number of fader layers : 6

- Number of faders : 24

- Number of mute groups: 8

- Number of scene memories : 500

- Number of mixes: 42 configurable GROUP / AUX / FX / MATRIX mono or stereo buses

- Number of effects processors: 12

- Number of assignable rotary controls: 6

- Number of expansion slots: 2

- Number of assignable keys: 24

- Number of mixable channels: 64

- Plugins : Included

- Weight (kg) : 26 kg

- Headphone output : Mini jack, 6.35" jack

- Line Outputs: 12 XLR

- Screen size : 15,60 in

- Talkback : Yes

- Complementary Specs :

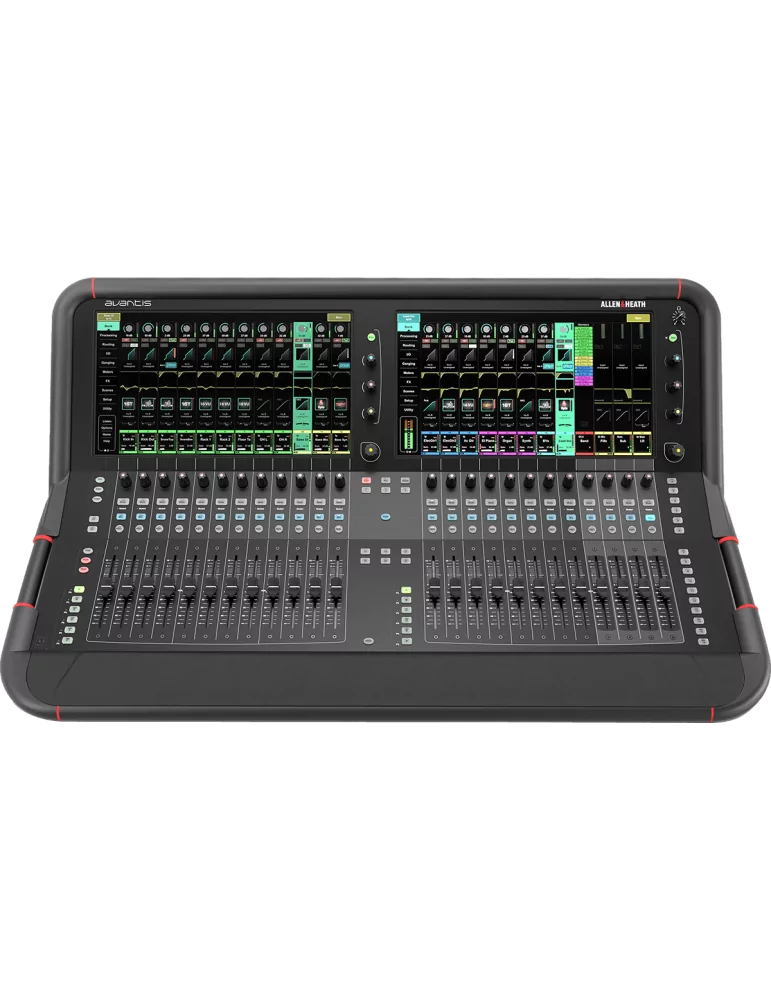

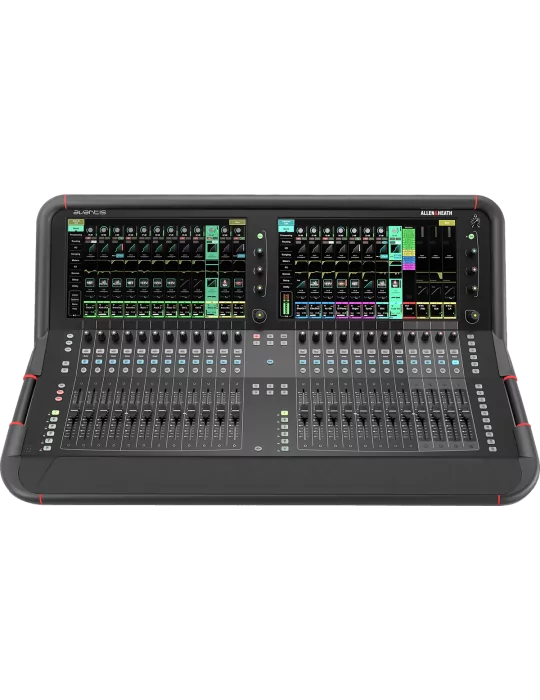

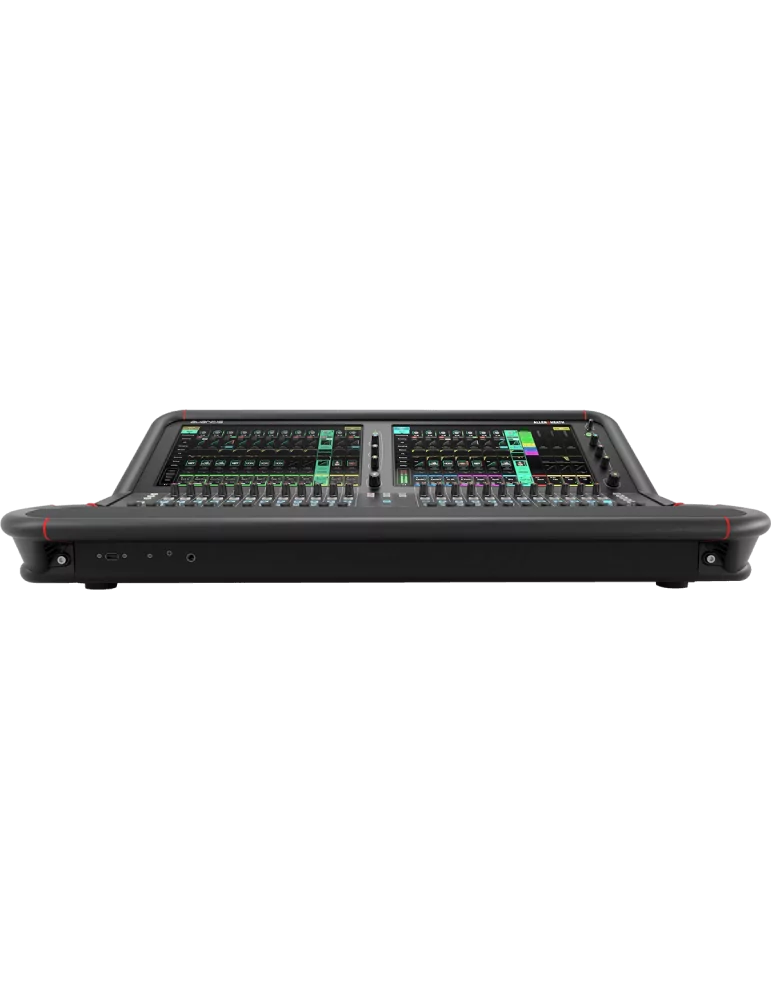

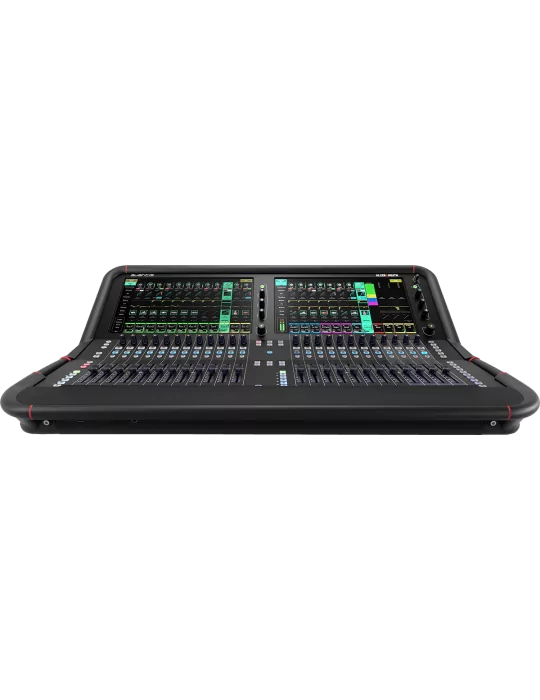

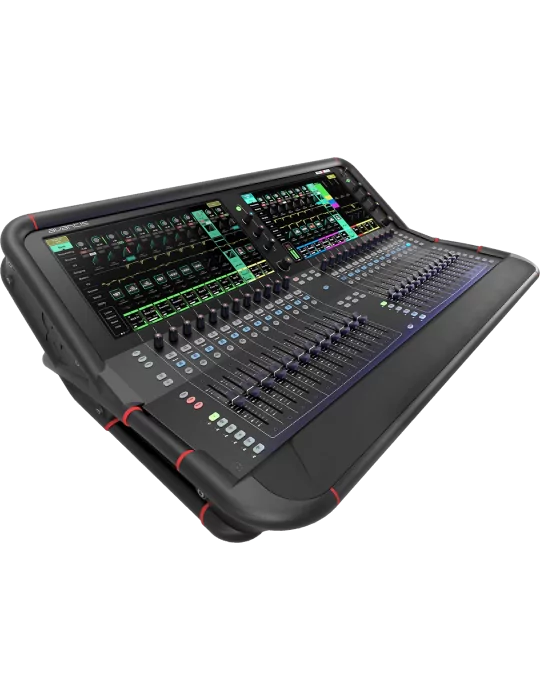

Avantis - Digital console 64 channels - 42 buses

- 64 channels mixable to 42 buses

- 96kHz XCVI FPGA audio core with ultra low latency of 0.7ms

- Fully configurable bus architecture.

- Easily transportable, lightweight but very robust metal exoskeleton chassis

- Intuitive and instantaneous handling thanks to the user interface that provides a very fluid continuity between the 2 touch screens and the physical controls.

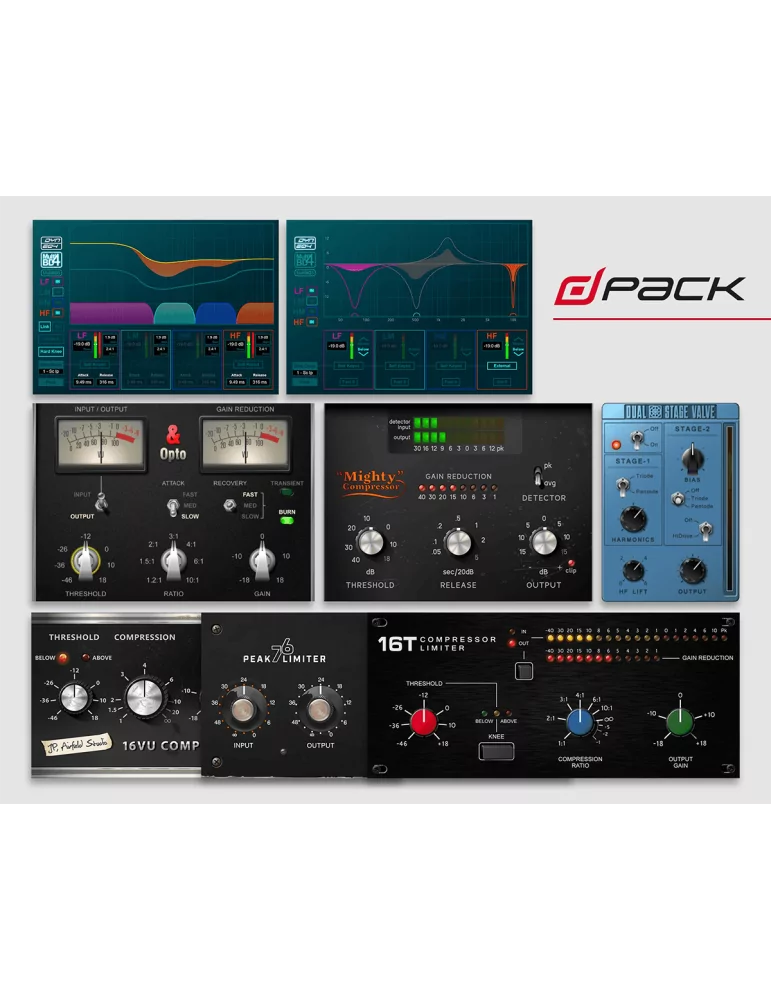

- Optional dPack plug-in bundle provides some of the dLive's processing: 16 Dyn8 dynamics processors, a library of latency-free per-channel DEEP compressors and Dual-Stage Valve tube preamp emulations

- 12 RackExtraFX effects slots and 12 dedicated effects returns (does not consume input channels)

- 2 x 15.6" full HD capacitive touchscreens.

- Automatic AMM mic mixing for up to 64 channels in 1 to 4 mixes.

- Dynamically assignable controls

- 144 assignable faders (6 layers of 24 faders) with optional master section

- SLink port for connection of AR/AB/DX/GX/ME input/output expanders

- 12 local XLR mic/line inputs, 12 local XLR line outputs

- 1 local AES stereo input and 2 local AES stereo outputs

- 2 expansion slots with 128 input/output channels for optional Dante, MADI, WAVES, GigaAce cards

- Assignable rotary controllers

- 24 assignable SoftKeys

- Bar graphs with overdrive detection and various signal metering points

- WAV stereo recording/playback over USB

- BNC Wordclock

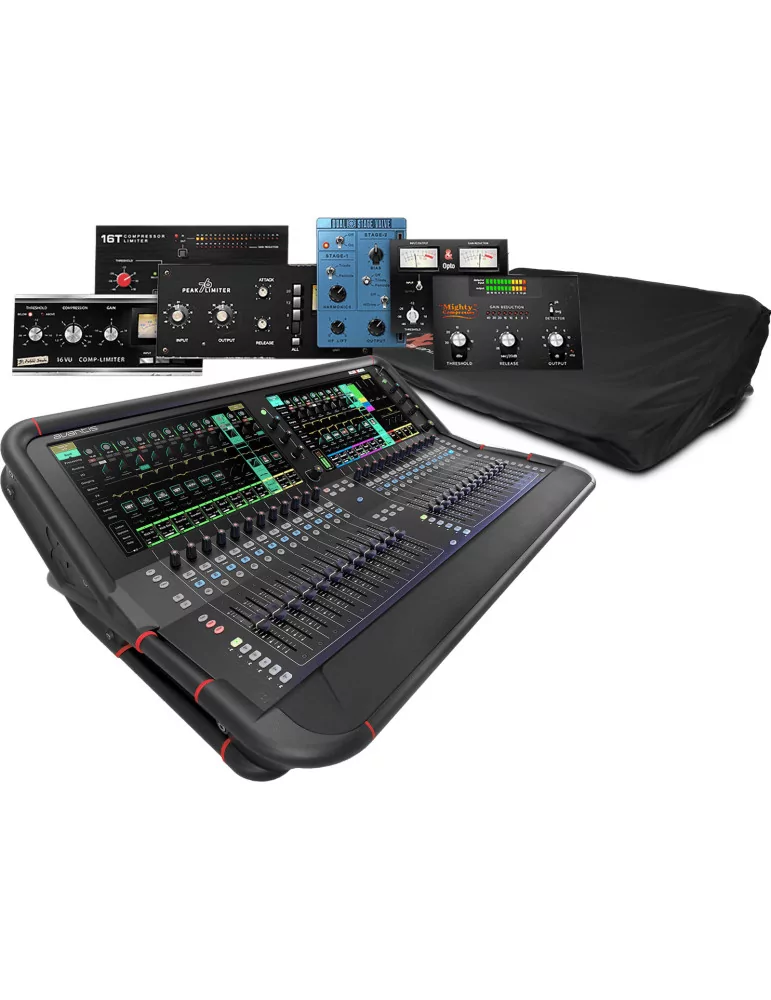

The AVANTIS-PACK bundle consists of :

- 1x Avantis console (SAH AVANTIS)

- 1x dPack plug-in pack (SAH AVANTIS-DPACK)

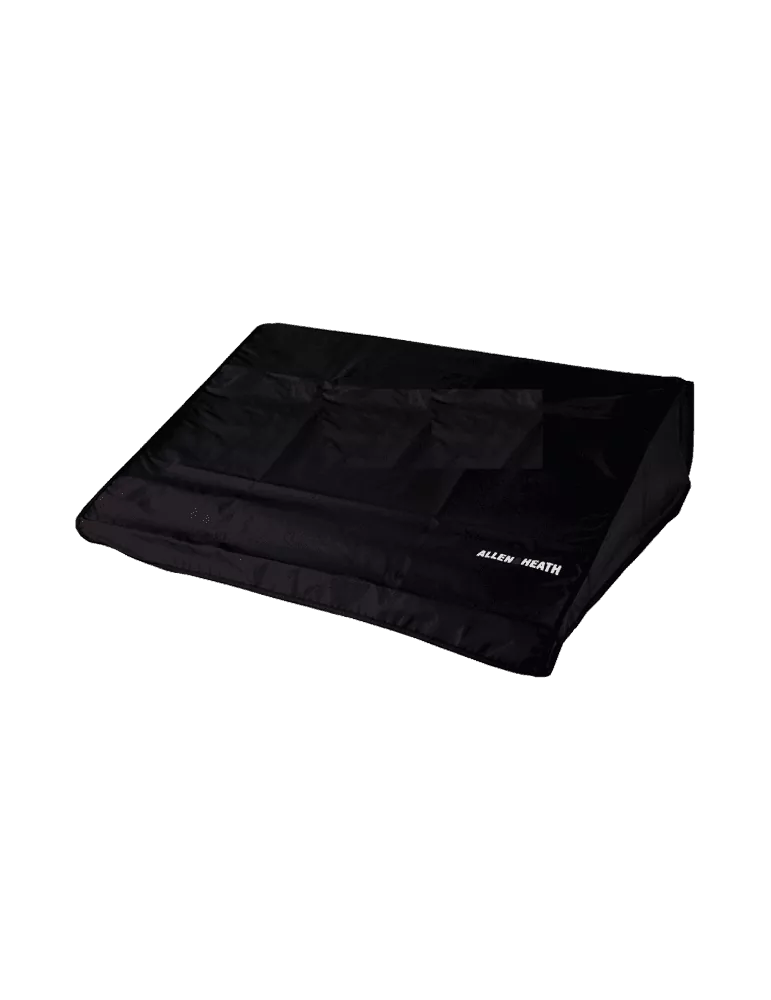

- 1x Case for Avantis (AP12151)
