The PZ-Deluxe is the little sister of the PZ PRE. It is a studio quality instrument preamp, but in a more compact pedal for live use
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
The PZ-Deluxe is the little sister of the PZ PRE. Like all RADIAL preamps, this pedal features high-end components for uncompromising low-noise sound and is capable of exceptional dynamics and is suitable for all instruments, but its main focus is on acoustic guitar. For piezoelectric transducers, a special PZB gain circuit can be engaged, which increases the input impedance to 10 M Ohms to eliminate plops and other noise. Although the controls are not as extensive as on its big sister, it still has an input gain, a semi-parametric 3-band EQ with variable midrange, a 3-position low-frequency crossover and a phase reversal switch. The PZ-Deluxe's low impedance, balanced output allows for long cable runs (over 100 meters) with minimal interference, and a separate tuner output allows for silent on-stage tuning by pressing the 'Mute' button. And for solos, another variable gain circuit, with level control, allows you to go 'ahead' in the mix when necessary.
- Category: electric preamp
- Dimensions (mm): 155 x 96.5 x 53
- EQ: 3-band with mid semi-param
- Inputs : jack
- Number of channels : 1
- Weight (kg) : 800 g
- Outputs : XLR DI, Jack, Tuner jack
- Technology : Hybrid
- Complementary specs :
- Circuit: Class A FET, Hybrid input stage
- Frequency Response: 20 Hz ~ 18 kHz (0/-3 dB)
- Dynamic range : 105 dB
- THD: 0.03% @ -20 dB output
- Noise figure: -108 dBu
- Intermodulation distortion: 0.07%.
- Input impedance PZB off : 6,8 kohms
- Input impedance PZB on : 10 Mohms
- Gain jack input to amp out : +16 dB
- Gain jack input to XLR out : +21 dB
- Gain PZB piezo booster circuit : +10 dB
- Gain Boost on : +13 dB
- XLR output impedance : 4 kohms
Specific References
check_circle
check_circle

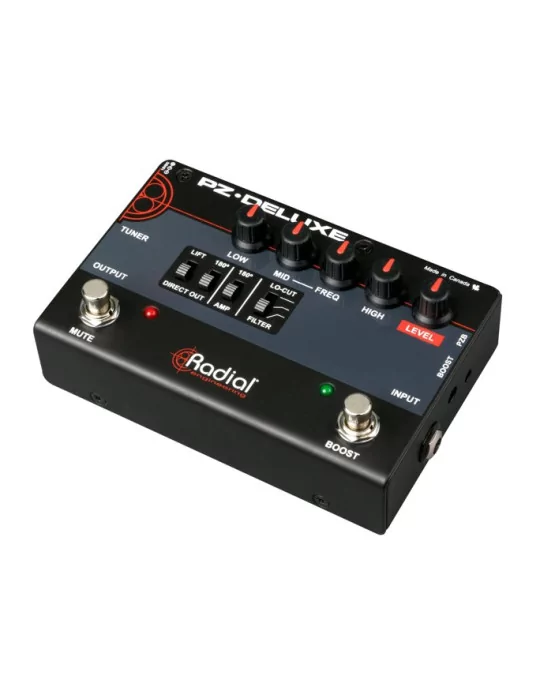

TONEBONE PZ-DELUXE Compact Acoustic Instrument Preamp
The PZ-Deluxe is the little sister of the PZ PRE. It is a studio quality instrument preamp, but in a more compact pedal for live use
