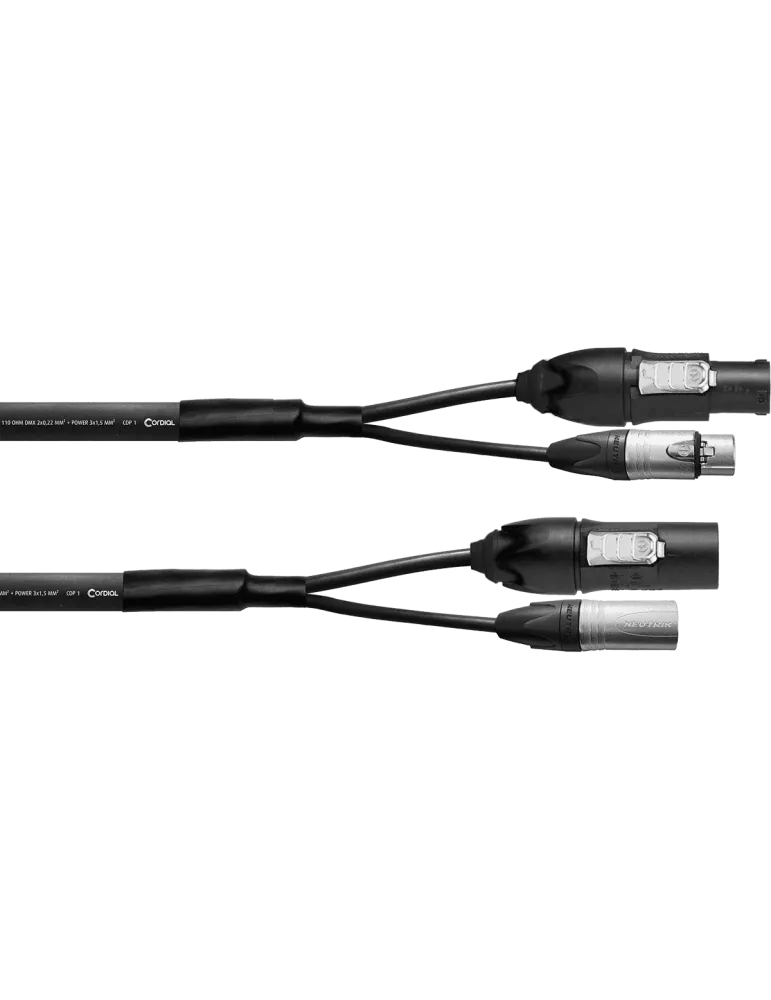

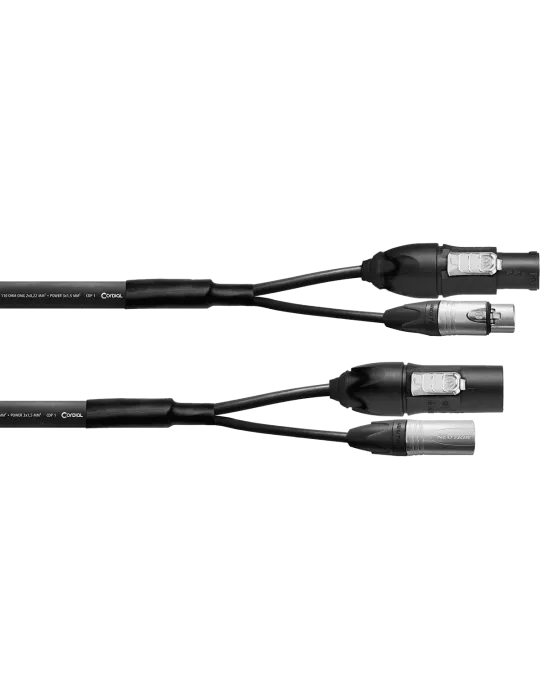

CORDIAL CPH3-DMX15PWR125-T1

Name: CORDIAL CPH3-DMX15PWR125-T1
Brand: CORDIAL
SKU: ELC CPH3-DMX15PWR125-T1
Price: 134 EUR
Availability: InStock

5 points - 2.5 mm² - XLR + Powercon - 3m

7 people are viewing this right now

€160.80

€134.00 Save 16.67%

VAT included Delivery within 3 to 4 days

Categories: CABLES and CONNECTORS, DMX Cables, DMX and Control Cables

Security policy Your personal data is 100% protected

Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe

Return policy 30 days in case of issues

- Format: straight

- Connector brand: Neutrik

- Shielding type: tinned copper braid and rolled aluminium foil

- Category: DMX/PowerCON hybrid cable

- Sheath material : PVC

- Colour: Black

- Connectors: PowerCON True1 / XLR 5-pin female, PowerCON True1 / XLR 5-pin male

- Oxygen-free copper: Yes

- Switch: No

- Solderless: No

- Molded connectors : No

- Length: 3 m

- Cable cross-section (mm²): 2.50 mm²

- Additional specs: - Conductors: 2 x 0.22 mm² (AWG 24, DMX) / 3 x 2.5 mm (AWG 14, power)

- Conductor structure : 7 x 0.20 mm tinned copper / 50 x 0.245 mm bare copper (power)

- Weight: 266 grams / meter

- Conductor resistance: 95 ohms / km

- Conductor capacitance: 60 pF / meter

- Characteristic impedance: 110 ohms

Brand CORDIAL

Reference ELC CPH3-DMX15PWR125-T1

Specific References

Reviews

No customer reviews for the moment.
