A USB port has also been grafted onto it, turning it into a formidable audio interface with its Onyx preamps and 24-bit /192 kHz resolution.
Like its predecessor the Big Knob Studio+ is ready to become a reference, the new nerve center of all professional studios.
- Max resolution: 24-bit
- Category: monitoring controller
- Digital input type: USB
- Format: desktop
- Digital output type: USB
- Software provided: Tracktion
- Interfacing: USB 2.0
- Power supply: 100 - 240 V AC - 50/60 Hz
- Compatibility: Mac OS 10.8 or higher, Microsoft Windows 7 SP1 or higher
- Dimensions (mm): 170 x 298 x 80
- MIDI interface: No
- Wordclock: No
- Phantom power: Yes
- Weight (kg): 2.30 kg
- Sampling frequency: 192 kHz
- No. of inputs: 10
- No. of outputs: 14
- No. of mic inputs: 3
- No. of instrument inputs: 8
- No. of digital inputs: 2
- No. of digital outputs: 2
- No. of analogue inputs: 10

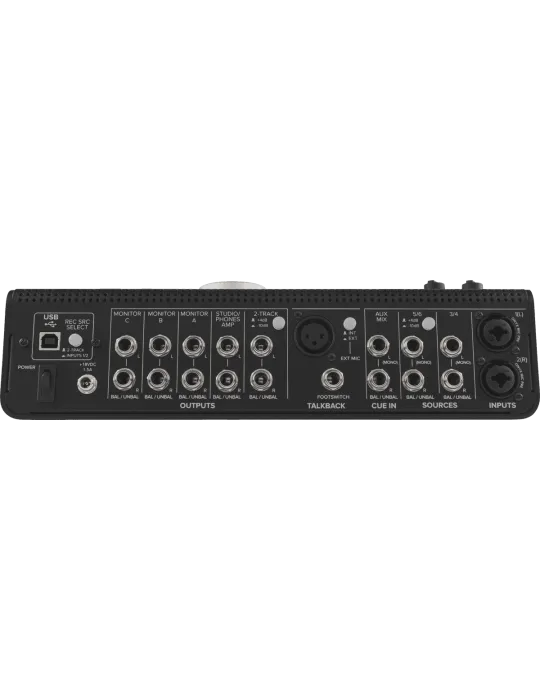

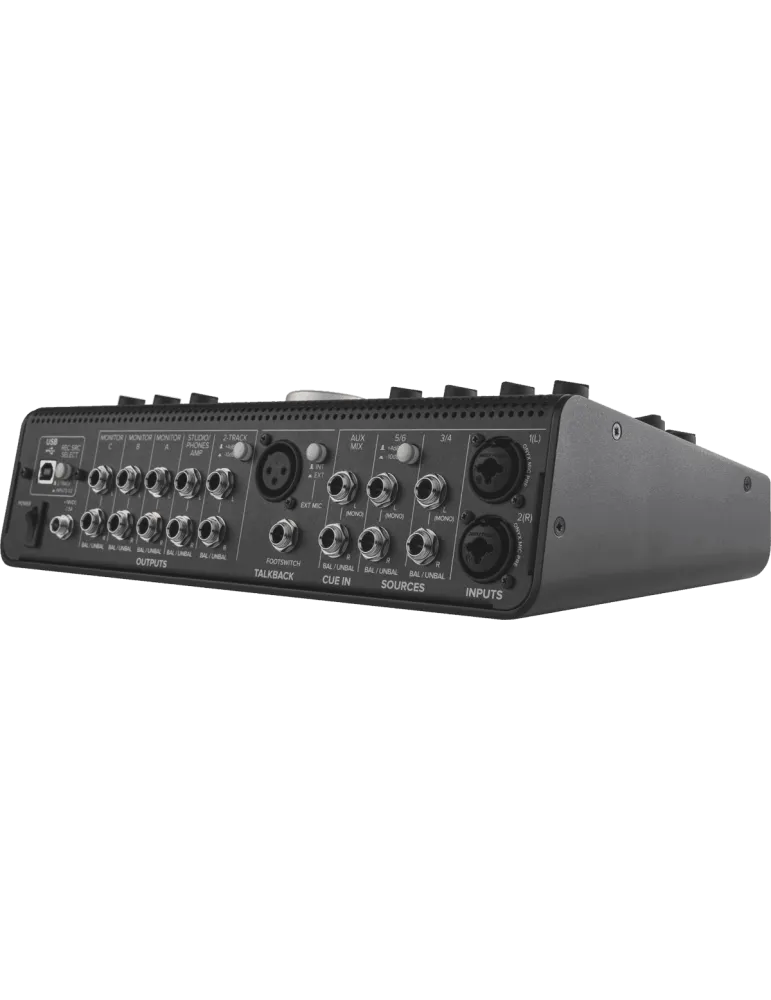

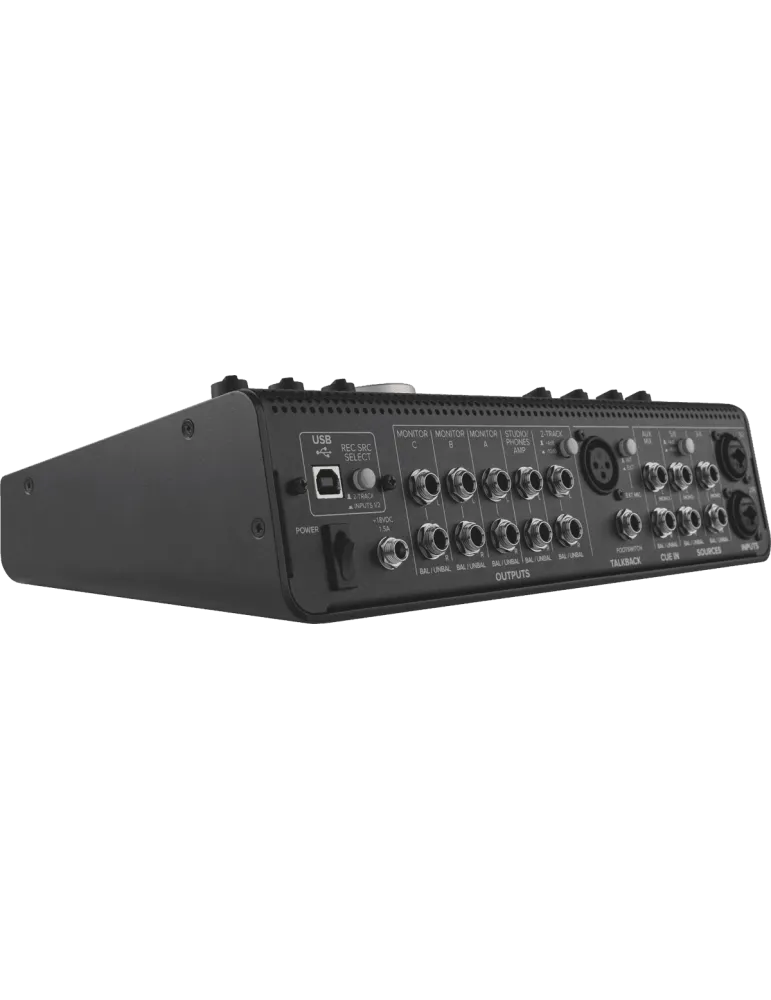

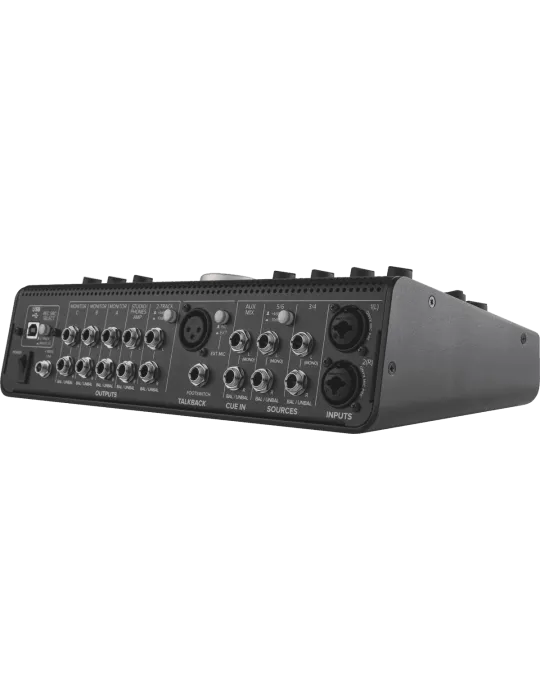

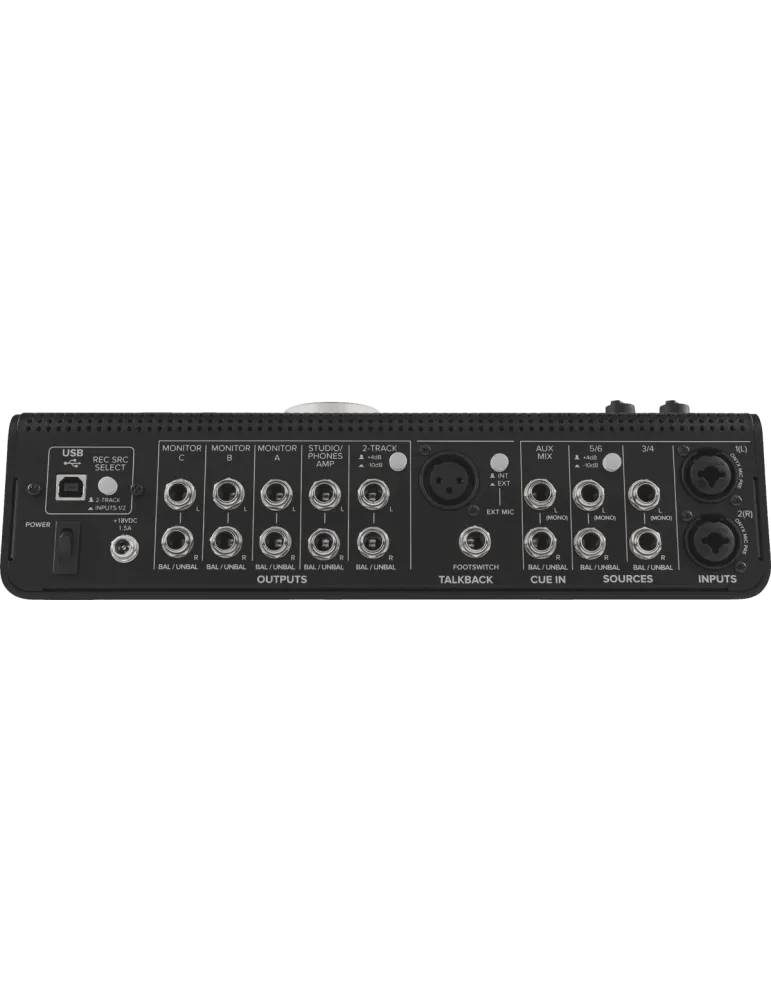

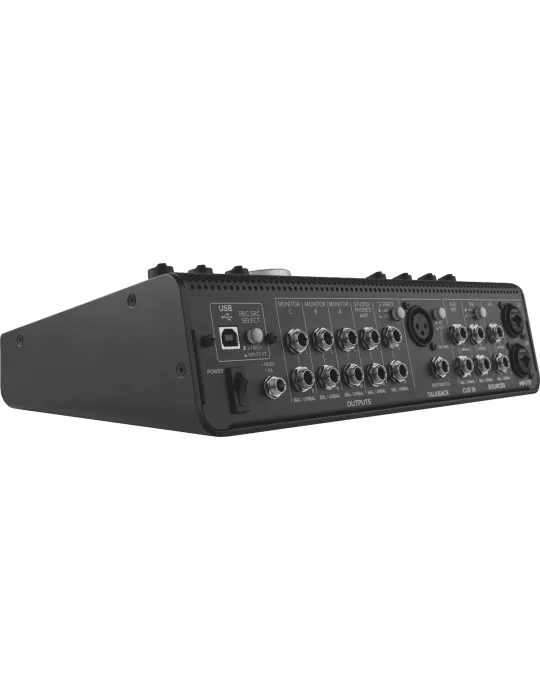

- Complementary specs: - 2 x XLR/ 6.35mm TRS combo inputs with Onyx preamp, independent gain controls, common phantom power and stereo monitor switch
- 3 stereo inputs (Aux mix, 3/4 & 5/6) 2 x 6.35mm TRS jacks (balanced & unbalanced) with +4/-10dB switch (5/6) and front panel trim control (3/4 & 5/6)
- 3 stereo monitor outputs (A, B & C) 2 x 6.35 mm TRS jacks (balanced & unbalanced) with front panel trim control
- 2-Track output (+4/-10 dB) 2 x 6.35 mm TRS jacks (balanced & unbalanced)
- Studio/headphone distributor output 2 x 6,35 mm TRS jacks (balanced & unbalanced) with dedicated volume control

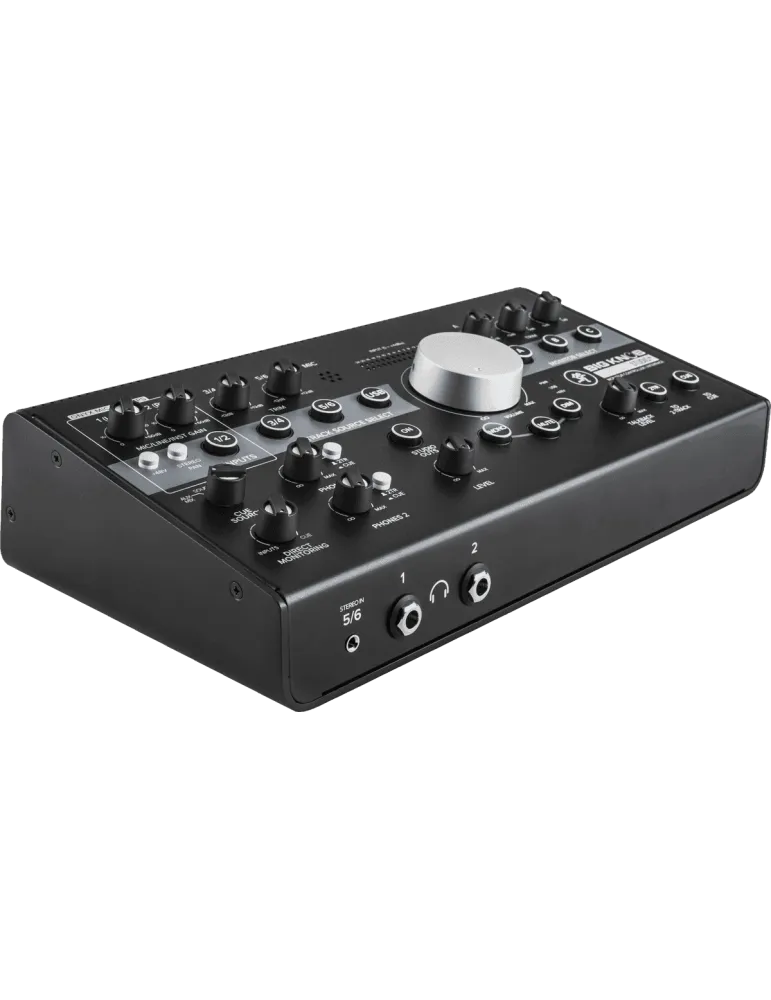

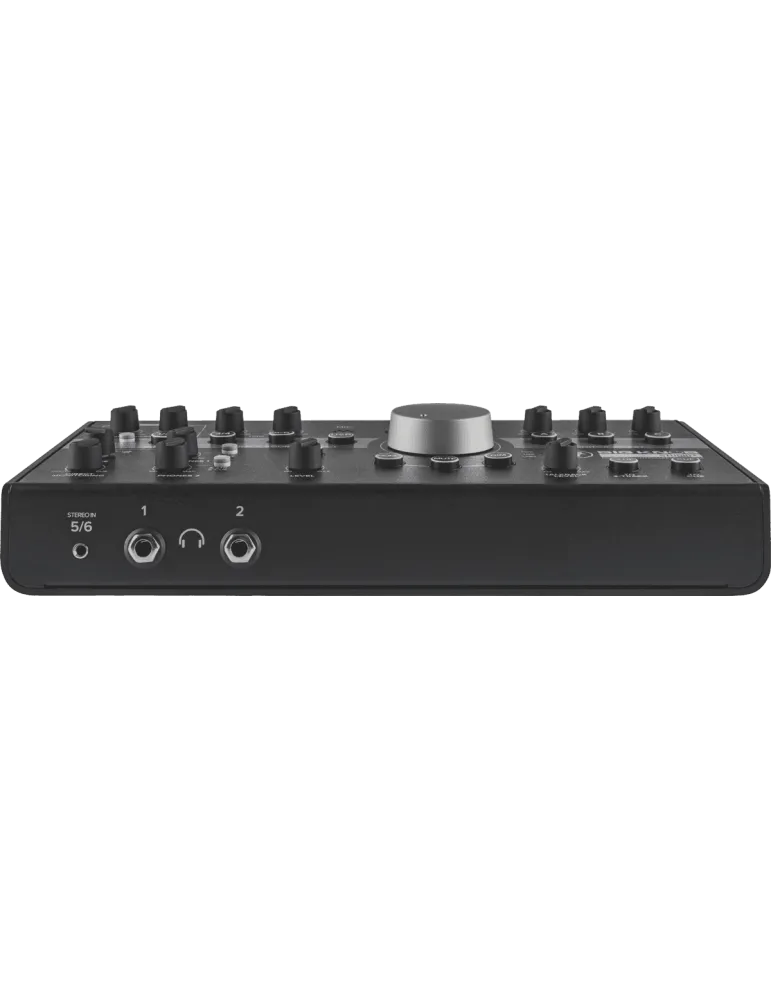

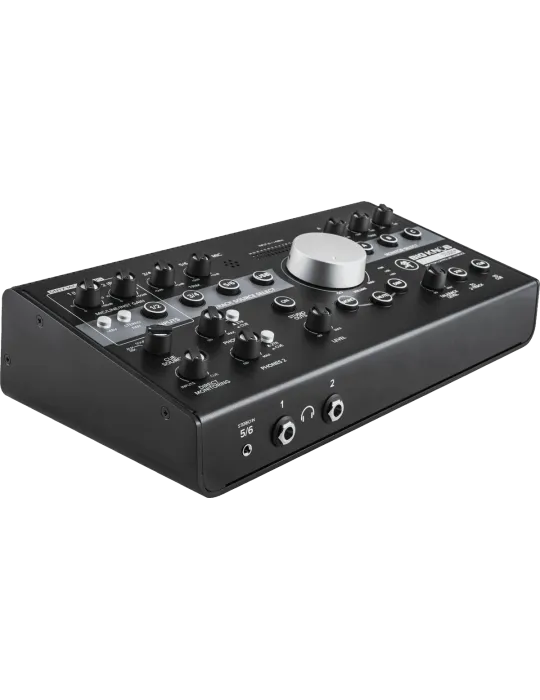

- 2 headphone outputs located on the front panel with volume control and independent cue/2-track switches
- USB port with source selector for recording (2 track / input 1/2) making this Big Knob Studio+ a true 24-bit / 192 kHz audio interface

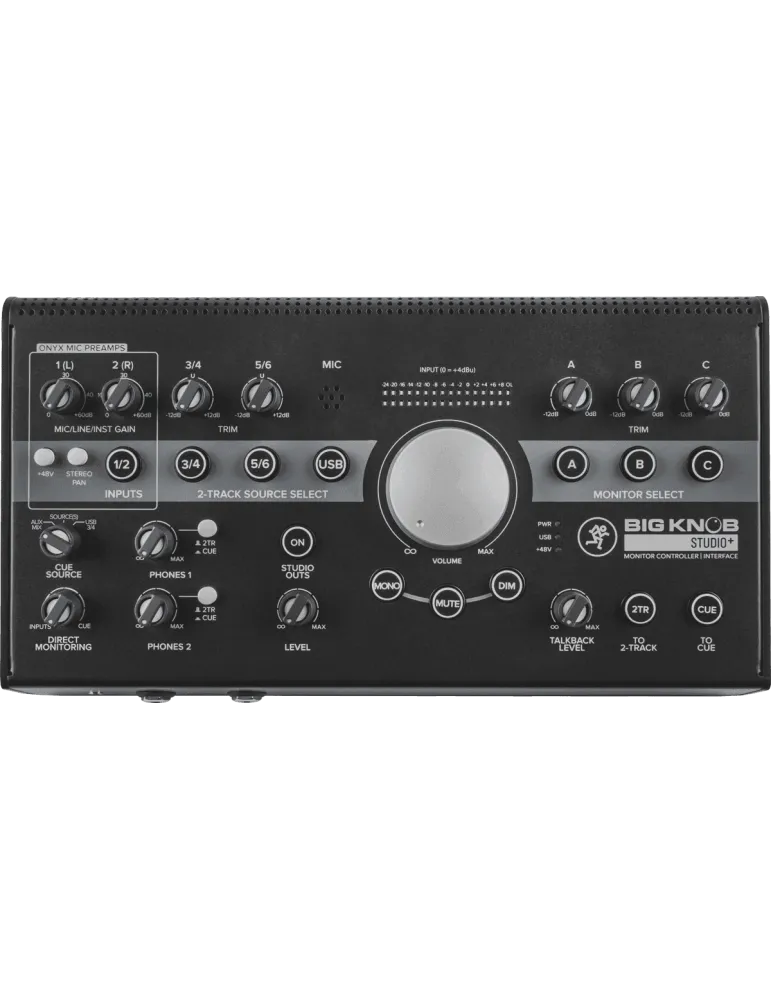

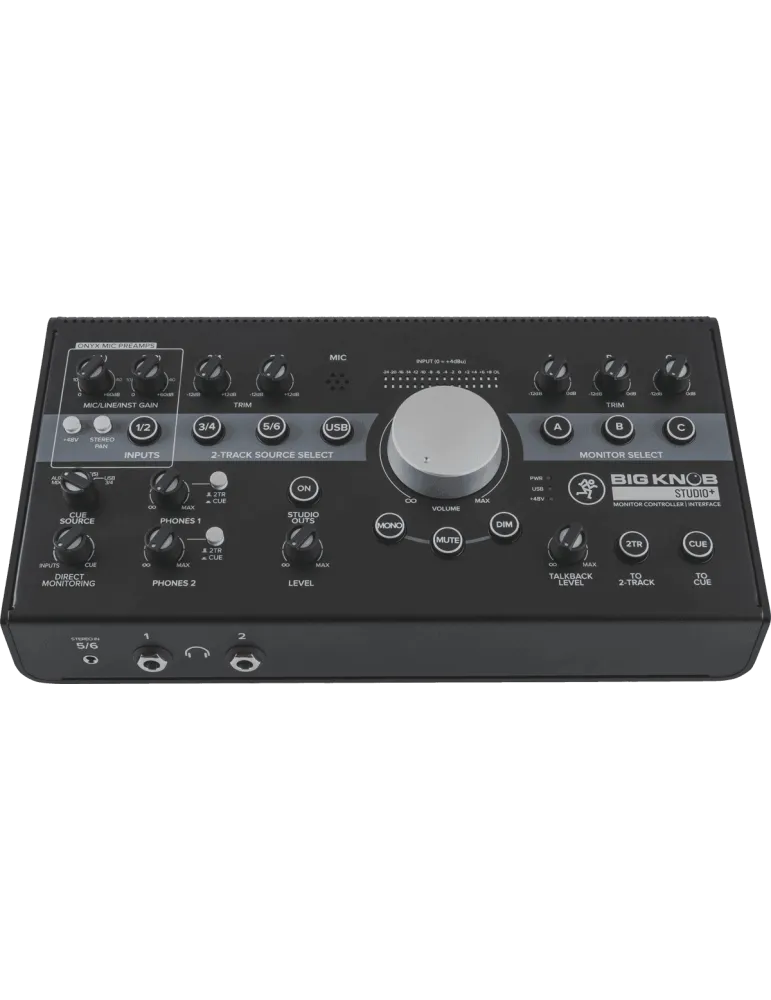

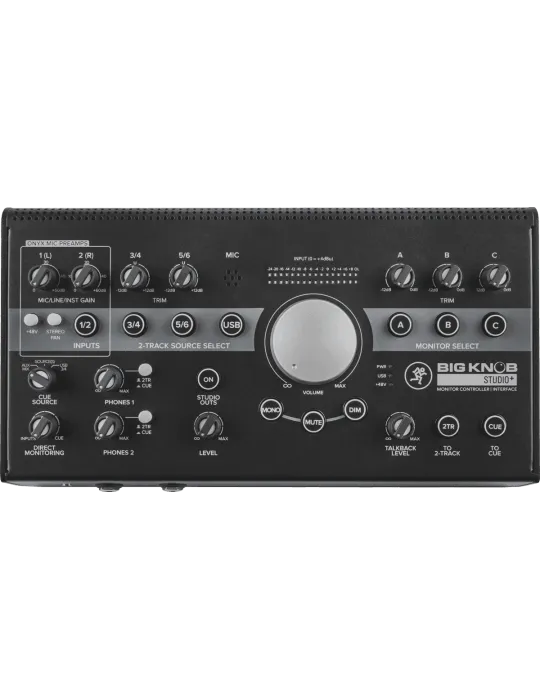

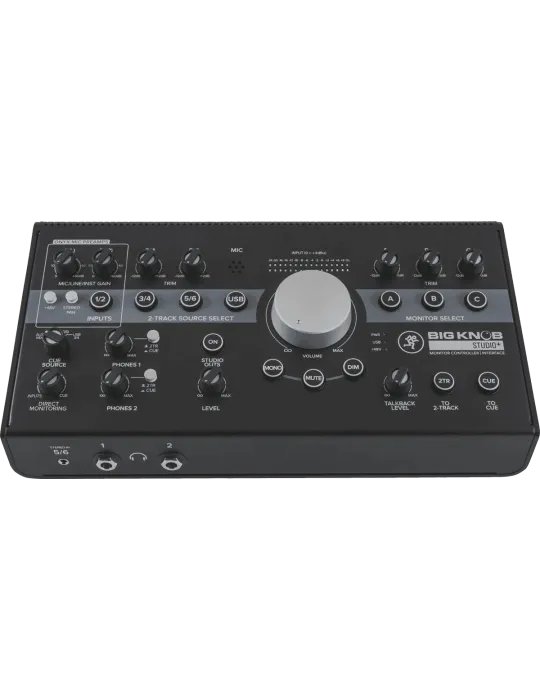

- Large volume control knob (Big Knob)
- Source selector knob 1/2, 3/4, 5/6 & USB
- Output selector knob A/B/C
- XLR input for command mic and built-in command mic with volume control (can be activated with optional footswitch)
- Mono, mute & dim buttons
- Cue source selection (aux, 3/4 sources)
- Dimensions: 170 x 298 x 80 mm
- Weight: 2.3 kg.
- Comes with: Pro Tools First, 23 Pro Tools plug-ins, Waveform OEM and the DAW Essentials collection of 16 plug-in effects for use with any S.T.A.N.
