Splitter - Switch 4 guitars 2 amps
Reamping has been the secret weapon of many renowned recordings in the music business and is often used on guitars, bass, keyboards, percussion and even vocals.
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
This process allows you to take a pre-recorded track, send it back to a guitar or bass amplifier and re-record the take in a more conventional way using mics.The benefits are huge: instead of worrying about the sound of the track, you can focus your attention on getting the best musical performance. Once you've captured the magic, you can feed the signal back into the guitar amp.So you can move the mics around to your heart's content so that the pickup is optimized, try out different amplifiers or apply effects.

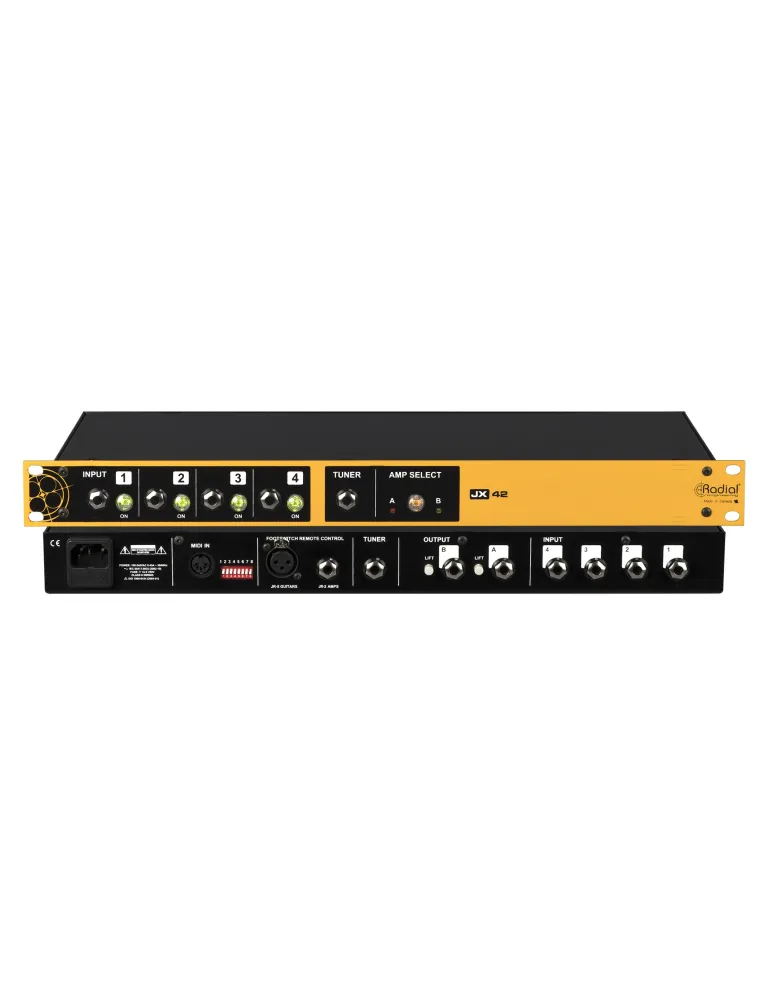

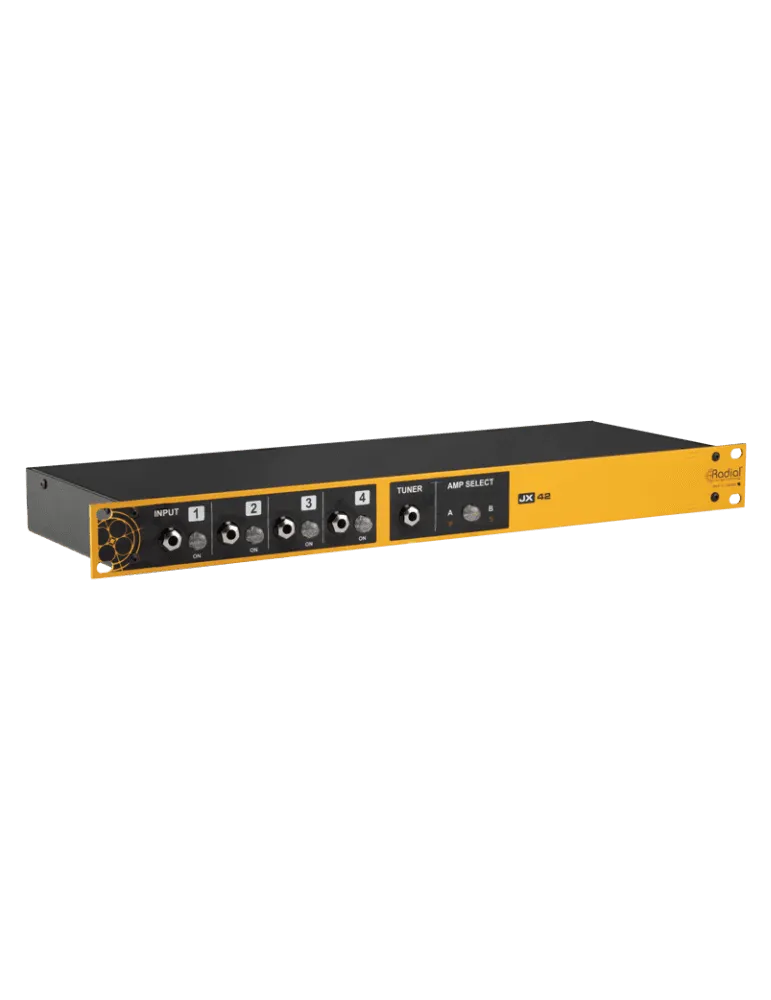

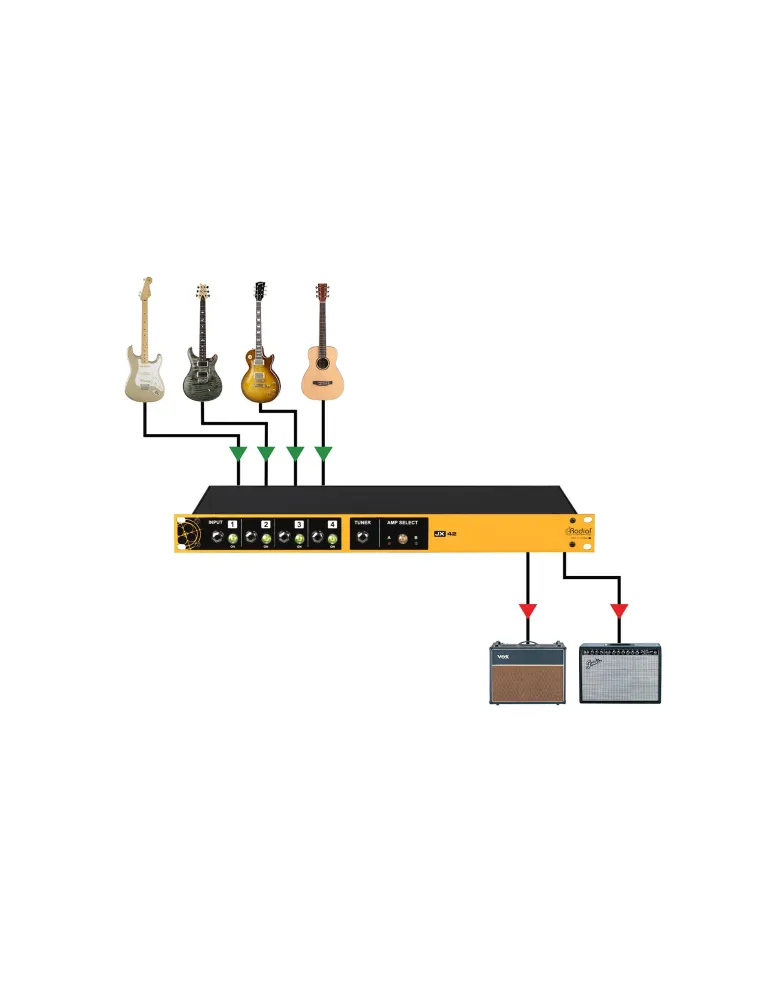

The JX42-V2 is a more compact version of the JX44-V2, which offers the ability
to switch between four guitars and two amps on stage and in the studio.
Using a very discrete Class A buffer circuit, this iteration
includes two main outputs, including a transformer-isolated
B output. A front-panel switch allows selection of the desired output
and can be remoted to the foot via the optional JR2 footswitch.
- THD: 0.02% @1 kH
- Category: direct box
- Digital conversion: no
- Inputs: 4 x jack
- Outputs: 2 x jack, 4 x jack, tuner
- Settings: Impedance correction activation, impedance correction, input selector, output selector
- Power supply: DC 15 V
- Frequency response: 20 Hz - 20 kHz
- Dimensions (mm): 149 x 114 x 47
- Weight (kg): 1.05 kg
- Max input level (dBu): 11
- Rack unit: 1
- No. of channels: 4
- Additional specs: - Technology: Active
- Circuit: BiFET class A amplifier
- Transformer: Jensen
- Dynamic range: 112 dB
- Inputs: jack and thru-out for each channel
- Outputs: A/B to amp
- Input impedance: variable from 22 k to 500 kΩ
- Output impedance: 1000 Ω
- Very robust construction: 1.55 mm steel chassis
