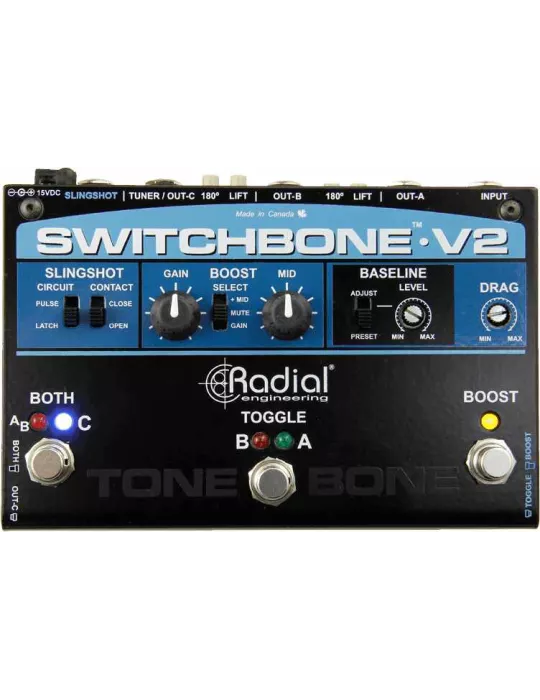

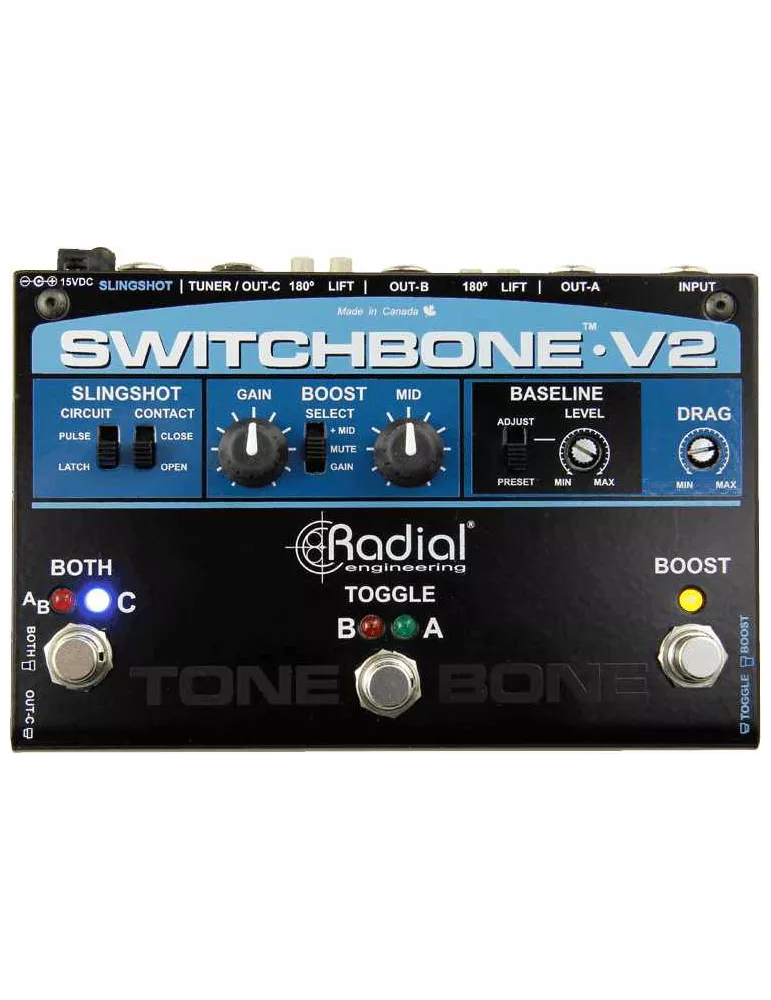

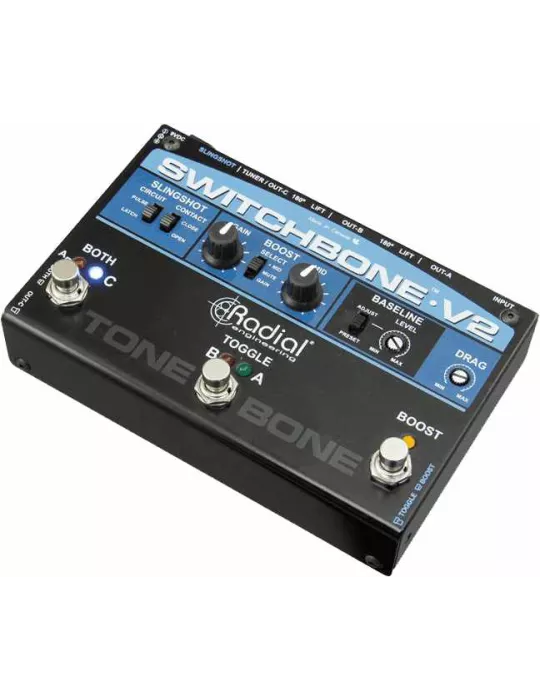

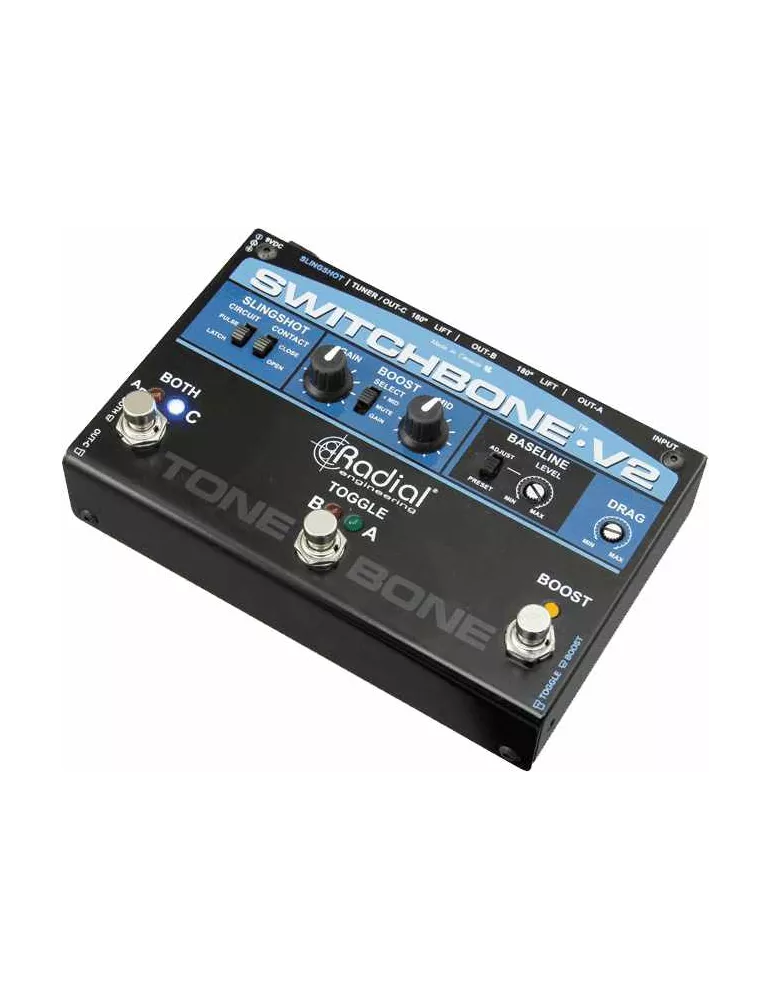

Unlike passive AB-Y boxes that introduce unwanted noise and "split" the guitar signal in half, the Switchbone uses a noiseless optical switch and the same highly complimented Class A circuitry found in the Radial JD7 Injector with 100% discrete components (no op amp). Our unique Drag Control impedance correction circuitry allows you to perfectly match the guitar to the amp.Our unique Drag Control impedance correction circuitry allows you to perfectly match the guitar to the amp. To eliminate noise introduced by ground loops, the output of the B amp is transformer isolated, and a boost circuit is built in for the worst solos. It can be set to GAIN for an overall increase in volume, MID ONLY for a boost in the mids, or both at the same time. It can also be muted to tune your guitar silently using the tuner out output of the Switchbone.
- Category: Selector
- Technology: Analog
- Format: Pedal
- Inputs : Jack

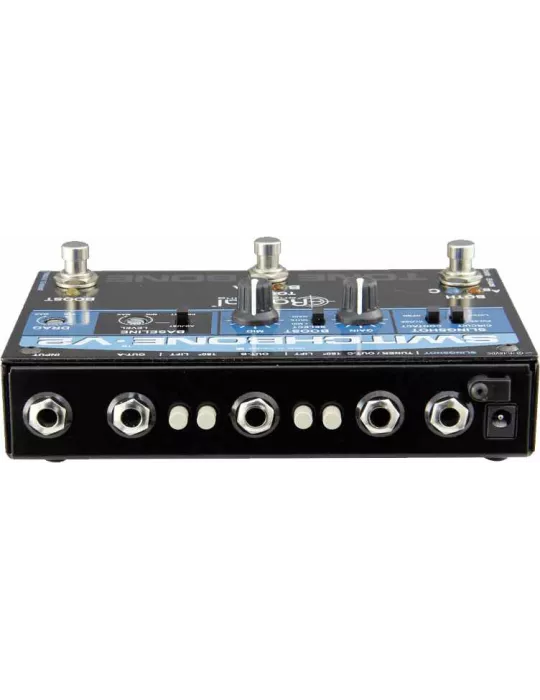

- Outputs: 3 x jack, Jack Slingshot
- Settings: gain, mid, impedance correction, Boost switch mode selector: mid, mute, gain
- Display: Led
- Power supply: DC 15 V
- Switch : Boost, Active Channel Selector (A/B), Outputs A+B or/and C (depending on Out-C/Both switch position)
- Dimensions (mm): 171 x 118 x 44
- Weight (kg): 1.10 kg
- True bypass: No
- Expression pedal: No
- Power supply included: No
- Additional specs : - 100% discrete class A circuit, with silent optical switches

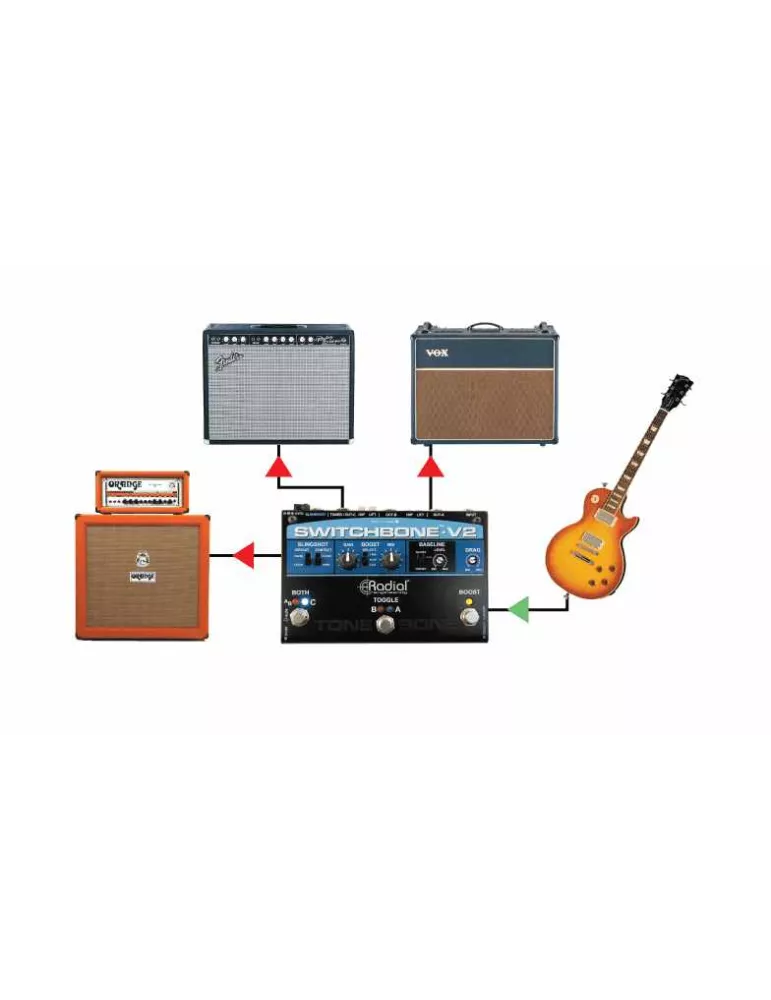

- Amplifier selector 3 outputs

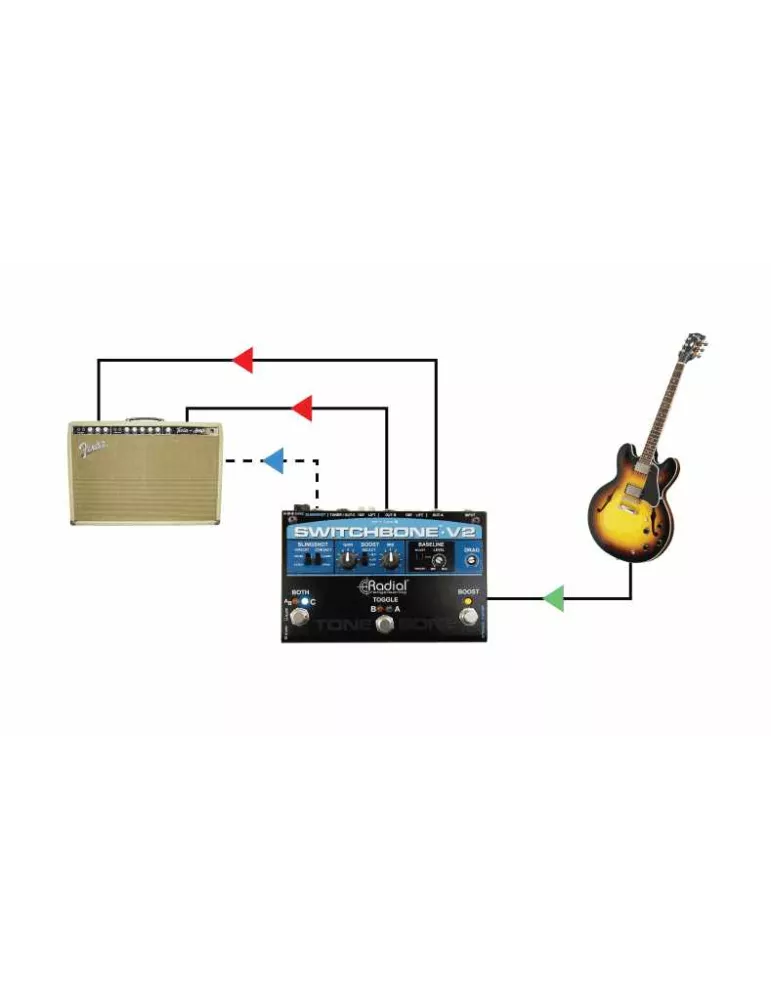

- Up to 2 amps in simultaneous use
- 2 jack amp outputs with dedicated phase inverter and ground switch

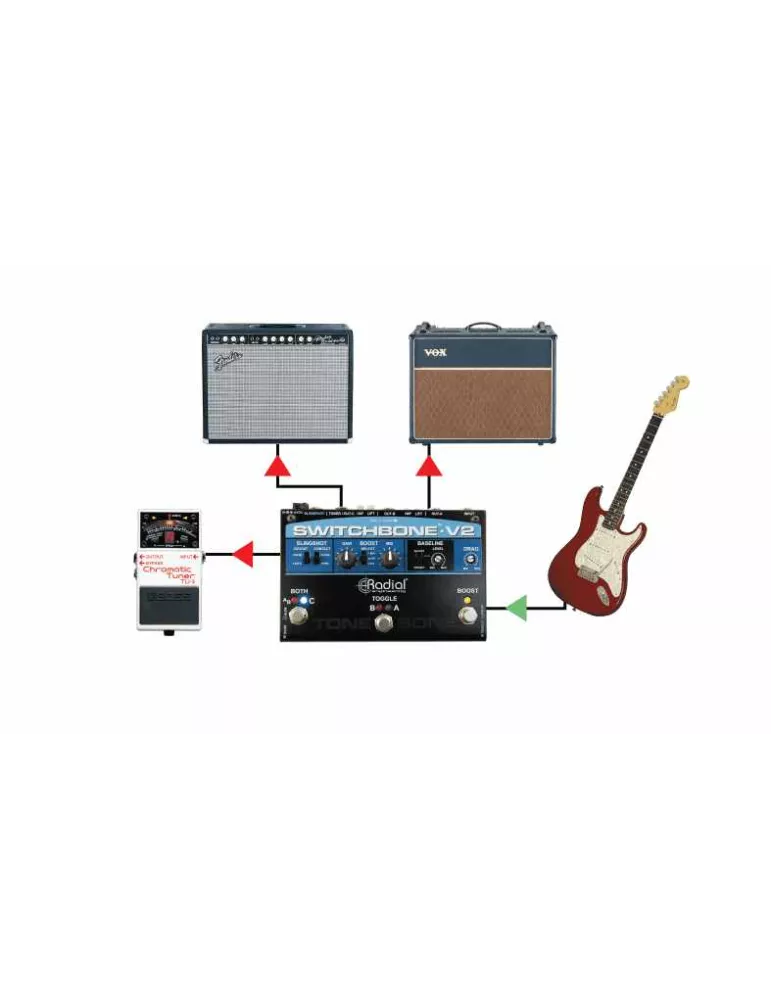

- Tuner output that can be used as 3rd amp output
- Slingshot output with Circuit and Contact switches
- Mid boost circuit and gain
- Mid boost : +9 dB @ 800 Hz, +5 dB @ 1 kHz
- Buffer power control
Specific References
check_circle
check_circle

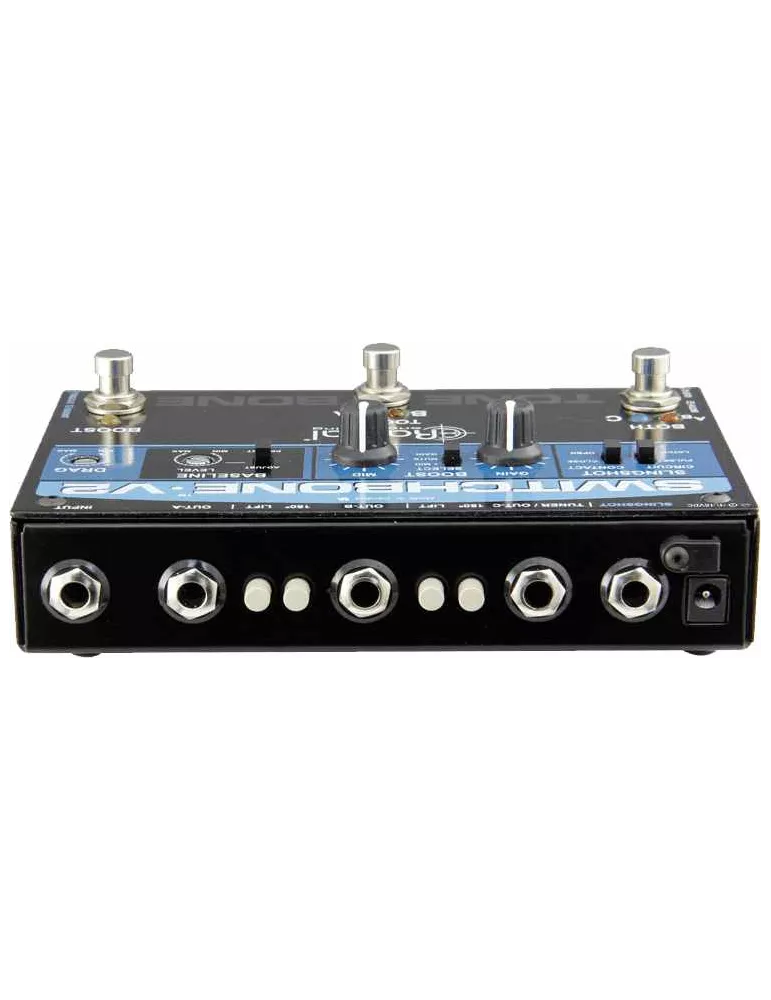

TONEBONE SWITCHBONE-V2 Instruments - ABY/C with optical switch
