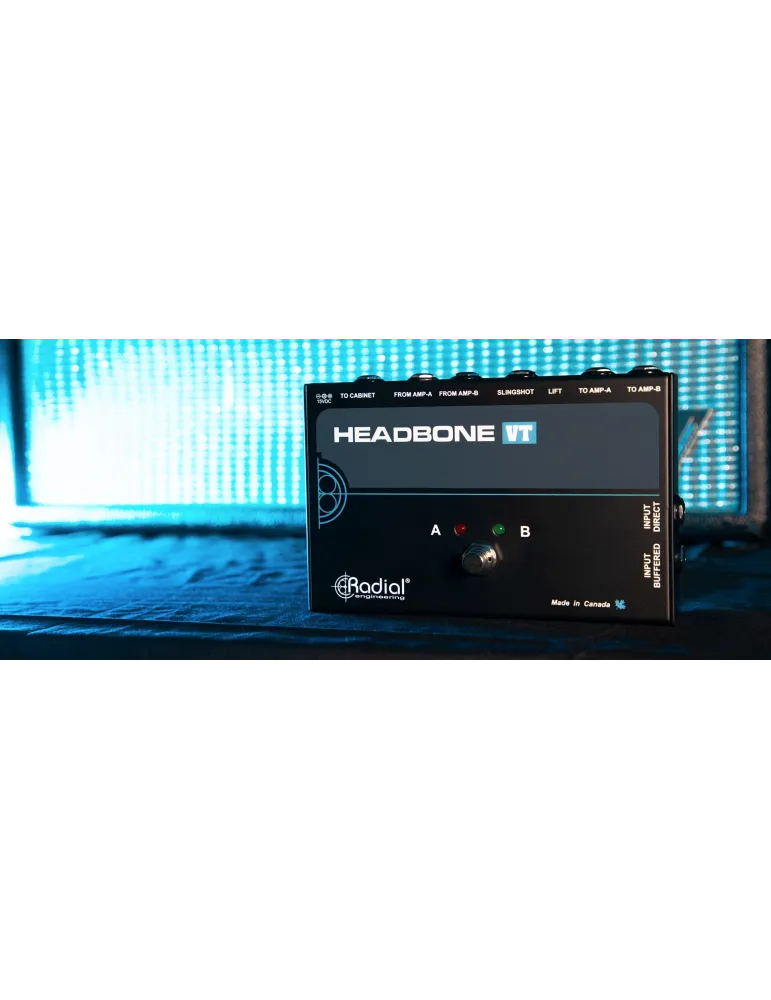

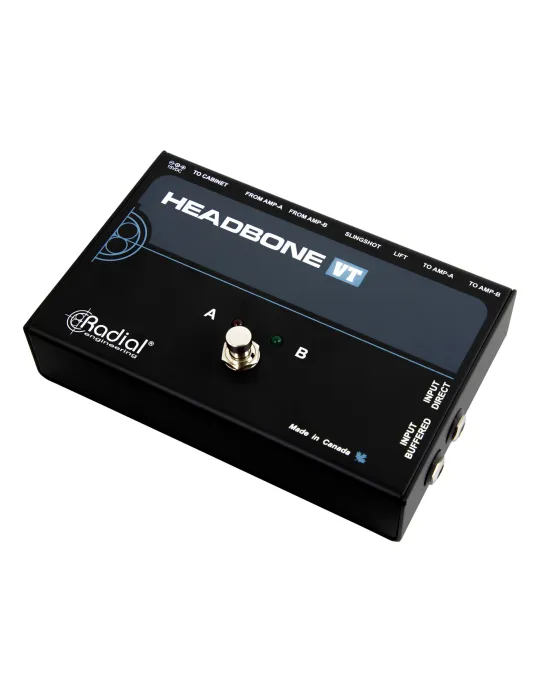

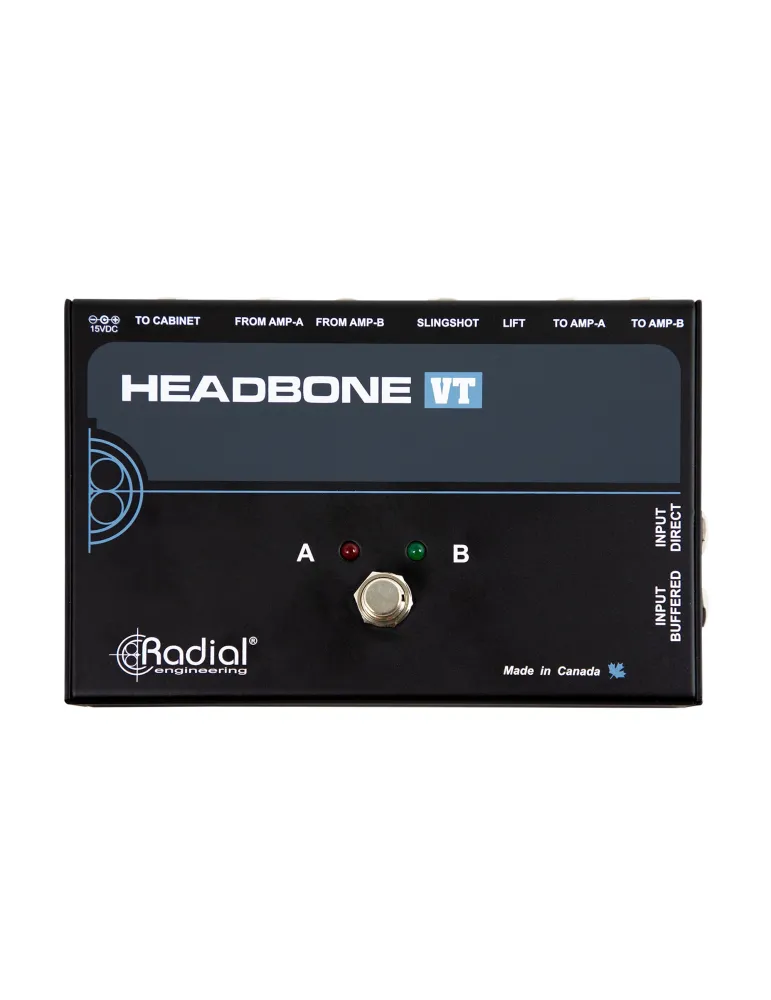

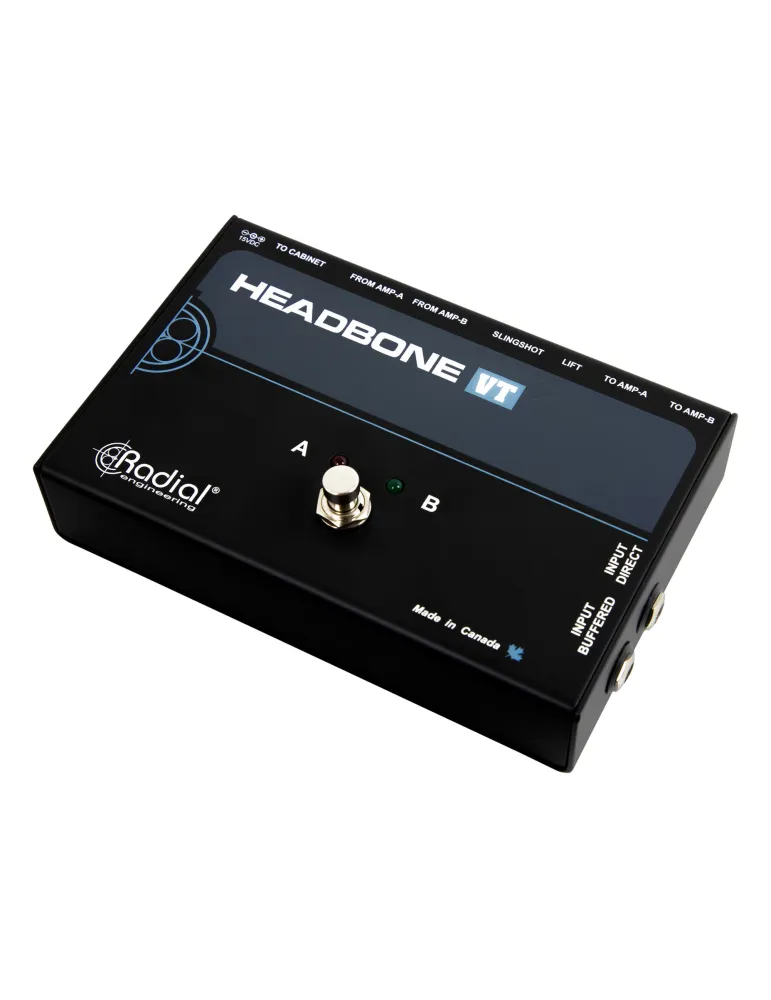

TONEBONE HEADBONE-VT Amps/Speakers - For tube amps
Amplifiers/Speakers - For tube amplifiers

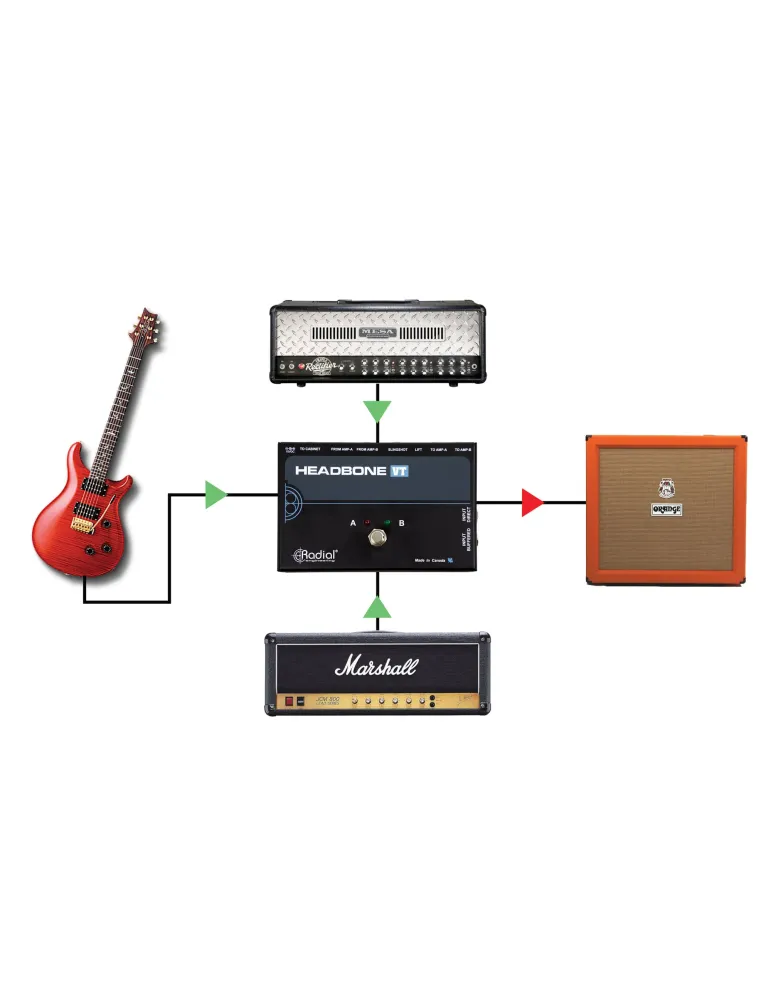

The Headbone gives you a choice of active or passive inputs and uses optocouplers to ensure quiet switching of the guitar signal.For the speaker signal, a series of sealed relays switch the amp outputs.Switching between guitar and amp signals in this way ensures quiet and reliable switching while preserving the natural sound of the guitar and amp.The Headbone controls the transition between amps to ensure that the appropriate impedances are always maintained by connecting the standy amp to a resistor.If a power supply is disconnected, SafeMode automatically returns to Amp-1. The Headbone can be switched by the sturdy built-in switch or by the Slingshot control. The Headbone extends your sound range and reduces the amount of material needed for a gig.Three models are available: Headbone VT for tube amps, Headbone SS for transistor amps and Headbone TS for both tube and transistor amps.
- Category: Selector
- Technology: Analog
- Format: Pedal
- Inputs : Jack Slingshot, 4 x jack
- Outputs: 3 x jack
- Display: Led
- Power supply: DC 15 V
- Switch: Output selector
- Dimensions (mm) : 175 x 108 x 54
- Weight (kg): 1 kg
- True bypass: No
- Expression pedal: No
- Power supply included: Yes
- Additional specs : - Class A circuit
- Suitable for tube amps
- Audio circuit switching based on optocoupler
- Relays with high efficiency for loudspeakers
- A resistor provides the impedance of the amplifier in standby
- SafeMode power-off protection in case of power failure
- Choice of active or passive inputs
- Slingshot control
- Input impedances : passive = 100 kohms - active = 10 kohms
Specific References
- SRA HEADBONE-VT
- 0676101035397
