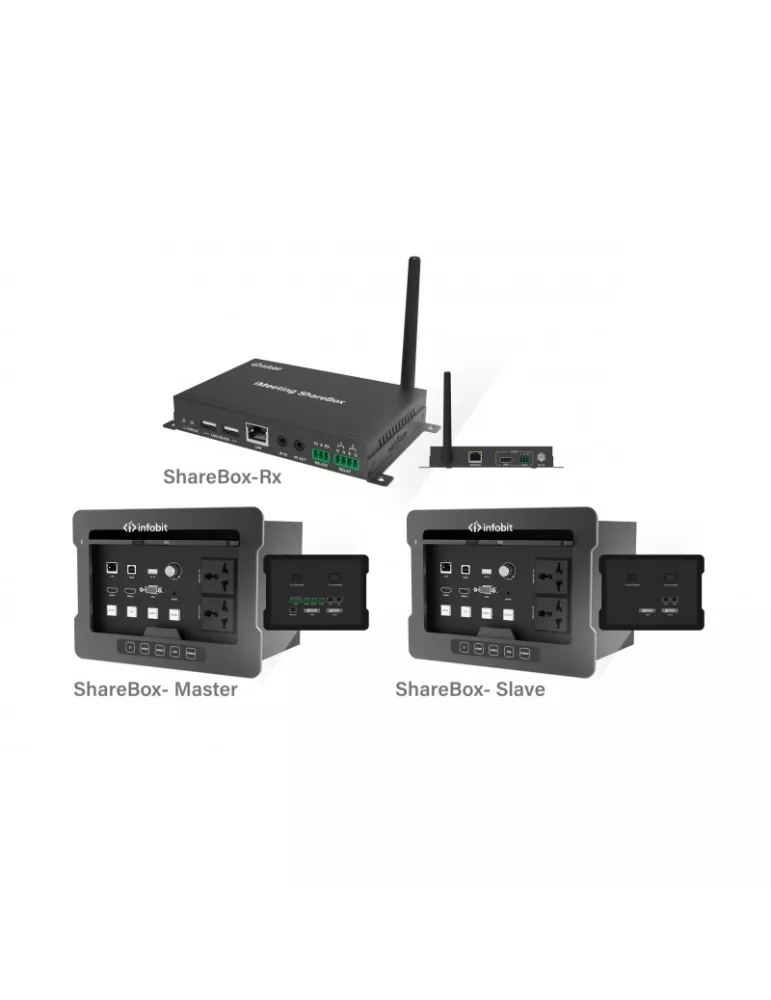

INFOBIT IMSHBOXMASTTR In-wall matrix selector iMeeting ShareBox Master transmitter
iMeeting ShareBox Ø HDMI 1.4b and HDCP 1.4, 10.2Gbps, up to 4K@30Hz 4:4:4 Ø Audio up to 7.1 channels of high-definition audio transmission (LPCM, Dolby TrueHD and DTS-HD Master Audio). Ø Maximum transmission distance via a single CAT6/6a/7 cable is 100m/ 330ft. Ø Supports 2 HDMI, 1 VGA and analog audio inputs, lossless transmission over long distances. Ø Supports network access, USB charging and power supply (works like a power socket). Ø Support for CEC, RS-232, IR, and relay control. Ø Automatic input signal recognition, transparent switching. Ø Supports one-button image freeze. Ø Supports volume control Ø Supports cascading of multiple table-top boxes (Model: ShareBox Slave) for large meeting rooms Ø Integrated H.264 audio codec processing Ø Integrated BYOD wireless presentation, support for iOS, macOS, Android, Windows Ø USB2.0 port for connecting a camera, microphone or whiteboard.
Data sheet
- 2x HDMI In, 1x VGA In, 1x Audio M3, LAN RJ45, USB-B Host, USB-A (5V, 1A), Audio Volume control
- 1-year warranty
- Main ShareBox: 245 x 180 x 166 mm
- Main ShareBox: 3kg
- Infobit
Specific References
- IMSHBOXMASTTR
