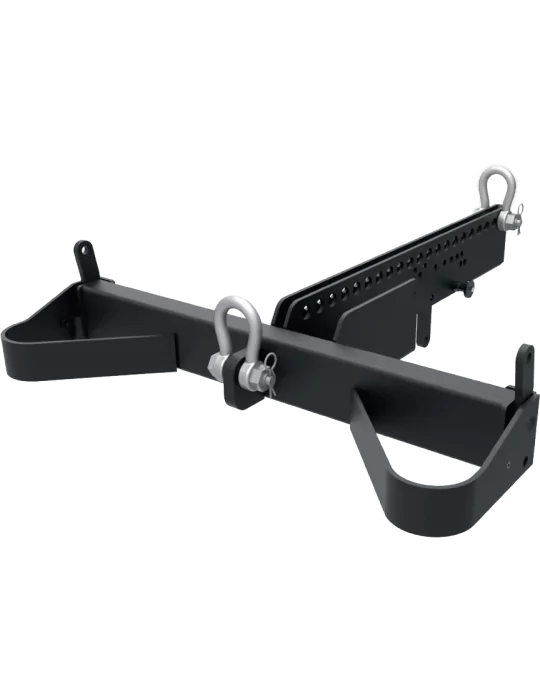

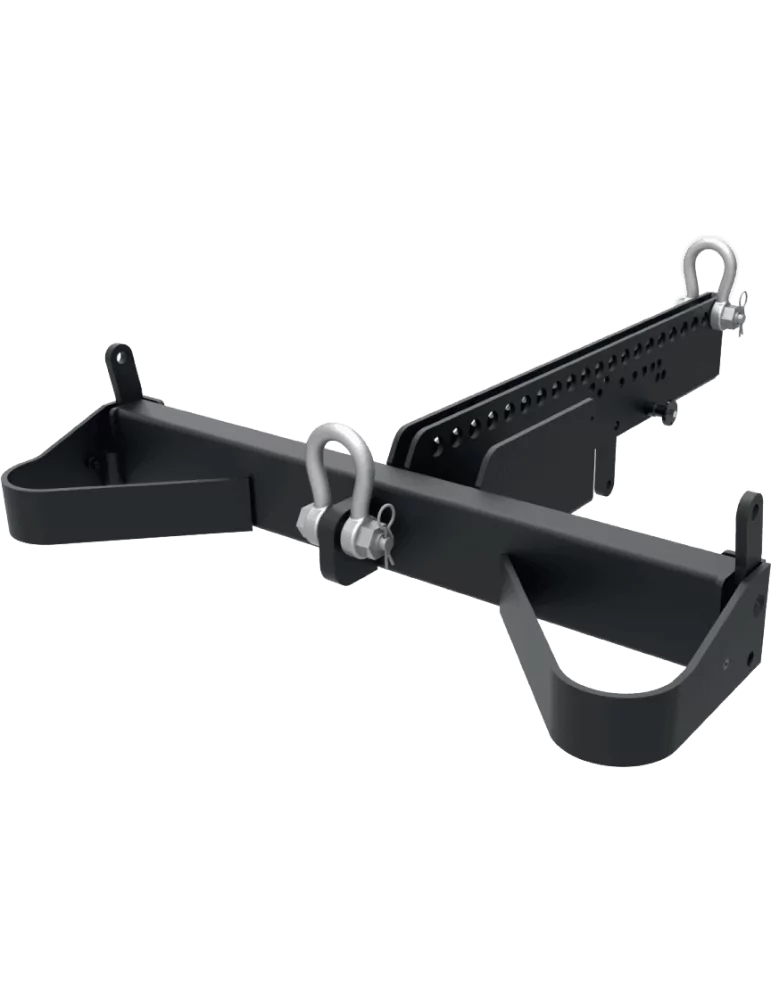

MARTIN AUDIO WPMGRIDT-B WPM - WPM Touring Hanging System black
WPM - WPM Touring hanging system black
23 people are viewing this right now
SMA WPMGRIDT-B
€4,320.00
€3,600.00
Save 16.67%
VAT included
Delivery within 5 to 7 days
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
Description
The Wavefront Precision range becomes a bridge between conventional source line technology and full MLA optimization.
The use of external multichannel processed amplifiers allows to choose the degree of optimization that can be provided to the system:
Without optimization (conventional source line) up to a near MLA optimization, all in a modular way and therefore progressive technically and budgetarily.
To do this, there is a new multichannel amplification platform processed by channel with linear phase filters: the Ikon series available in 4 and 8 channels. Controlled in network by the Vu-Net application, the amps, depending on their number, besides the classic band filtering parameters and protection limitations, will also receive the optimization preset previously elaborated by the Display application.
As a reminder, the Display software allows in turn to precalculate the speaker line angles, then to calculate a custom processing preset based on the desired coverage geometry and the selected optimization criteria:
SPL template, tonal template, avoidance zone(s), rear wave reduction.
These advanced processing options will be more or less attainable depending on the processing resolution available.
Basically, if the minimum number of amps is used, a more restricted optimization possibility will be obtained, comparable to that of a classic source line, with still a slightly more advanced processing zoning.
This system is the basic inveiglement, competitive entry point to the system.
Subsequently, adding processed amplifier channels to this same speaker system will increase the granularity of processing to approach the optimization that the MLA can provide.
The technical and budgetary modularity of the system is therefore total and it is conceivable for a rental service provider to offer his client different degrees of performance for different implementations and therefore different realization budgets.
The WPM takes up the acoustic architecture of the MLAmini:
A 2-way design in 2 x 6.5 inches with curved membranes following the treble waveguide in order to nullify all the diffraction phenomena and maintain a perfect timbral homogeneity in the horizontal plane. The treble section is realized with three 1.4-inch drivers stacked on a piece of aluminum that integrates the three waveguides in a specific phase arrangement.
Extremely versatile, the featherweight WPM is an ideal system for small rooms that require superb fidelity and increased control in a small visual footprint.
12 WPMs per side will still be able to produce live dynamics over a very even 35-40m coverage and therefore a gauge of around 3000 seats.
- Mixer: No
- Amplified: No
- Pan cut: No
- Bluetooth: No
Product Details
Specific References
- SMA WPMGRIDT-B
