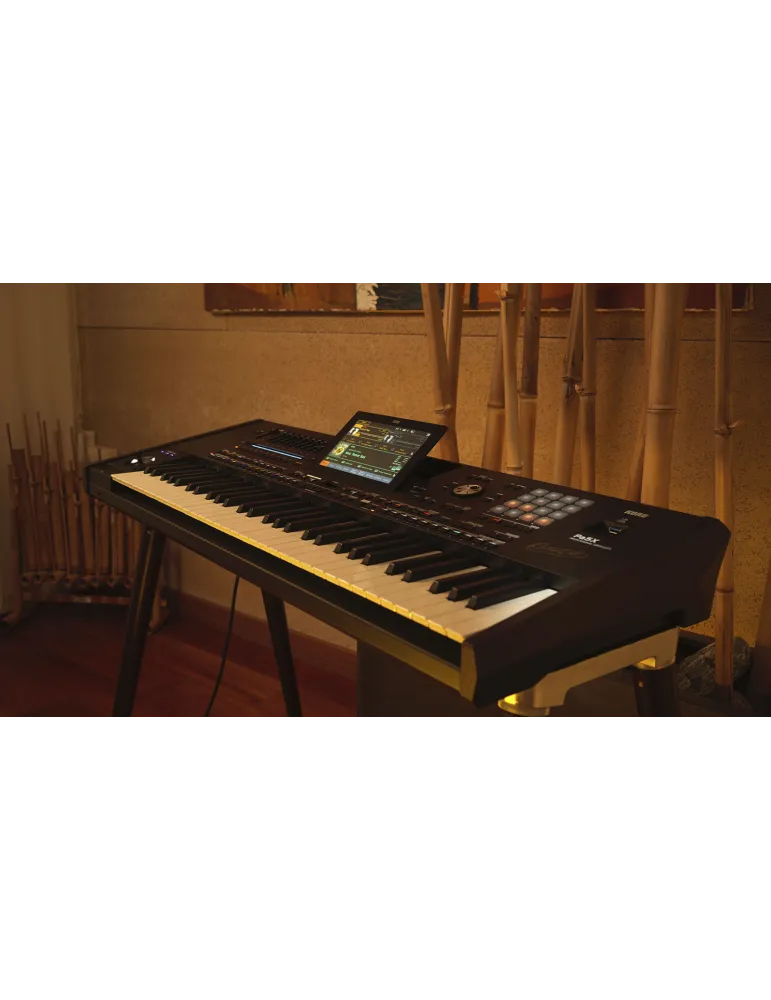

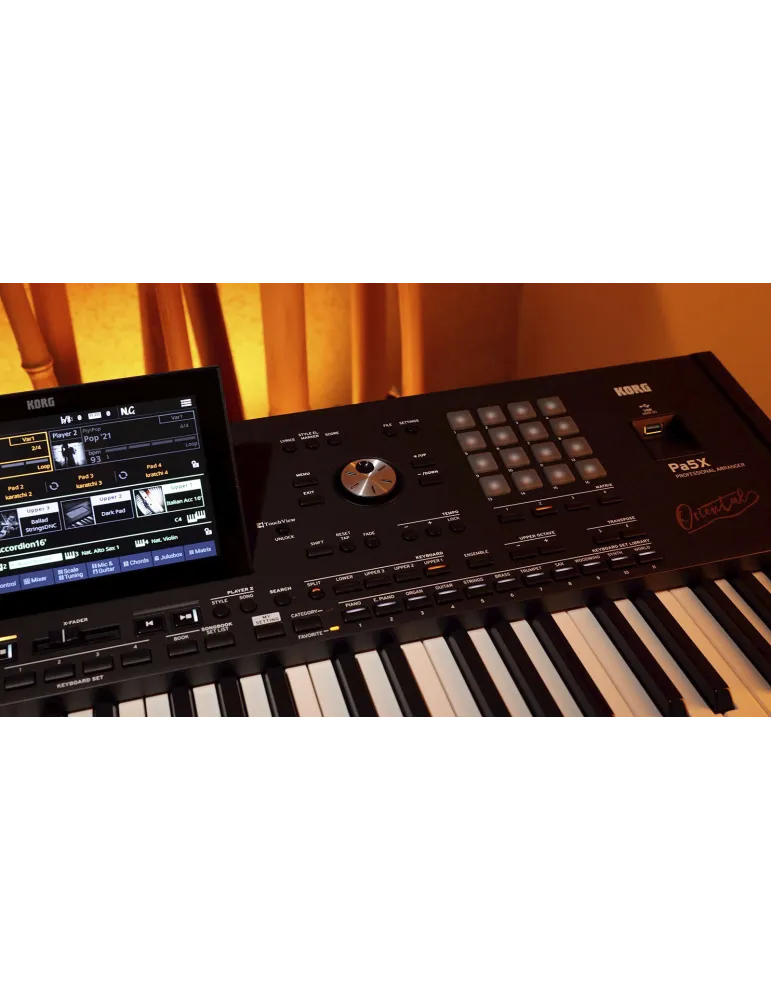

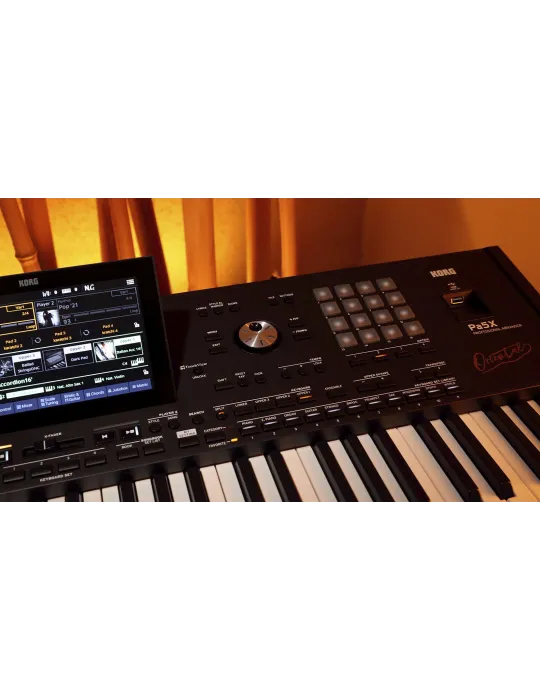

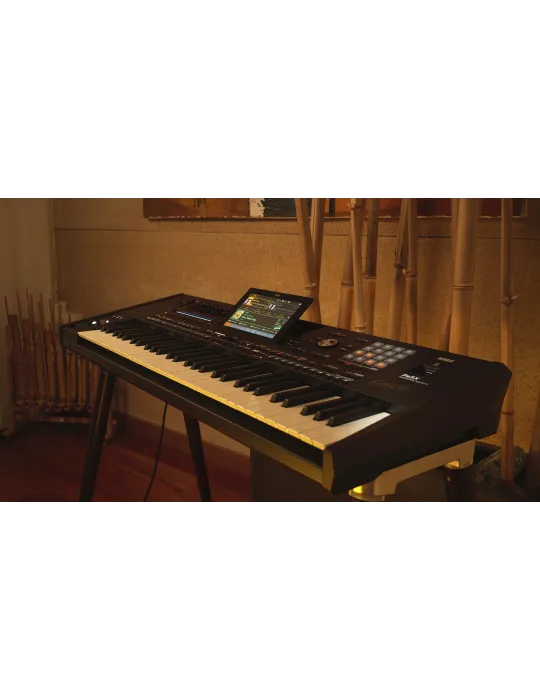

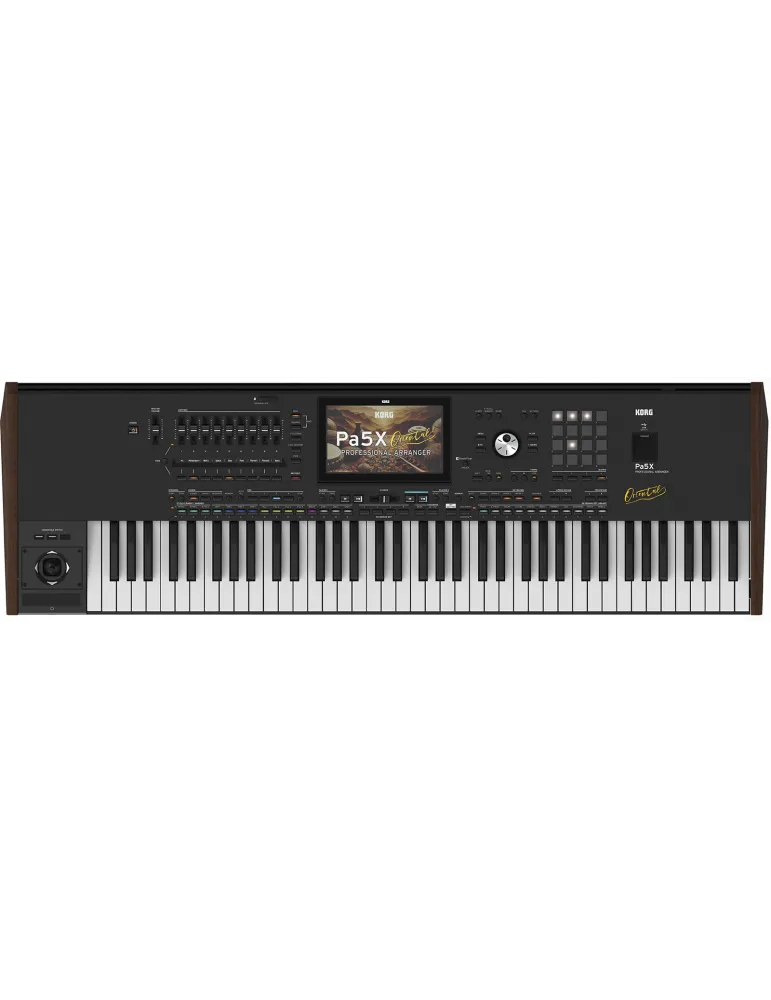

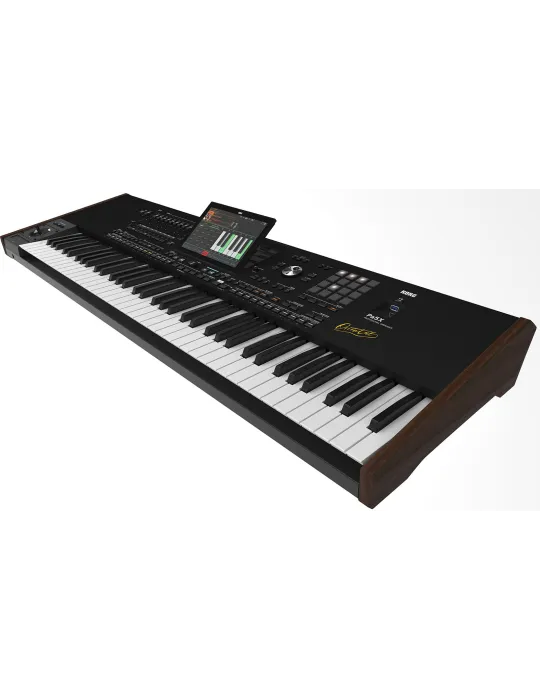

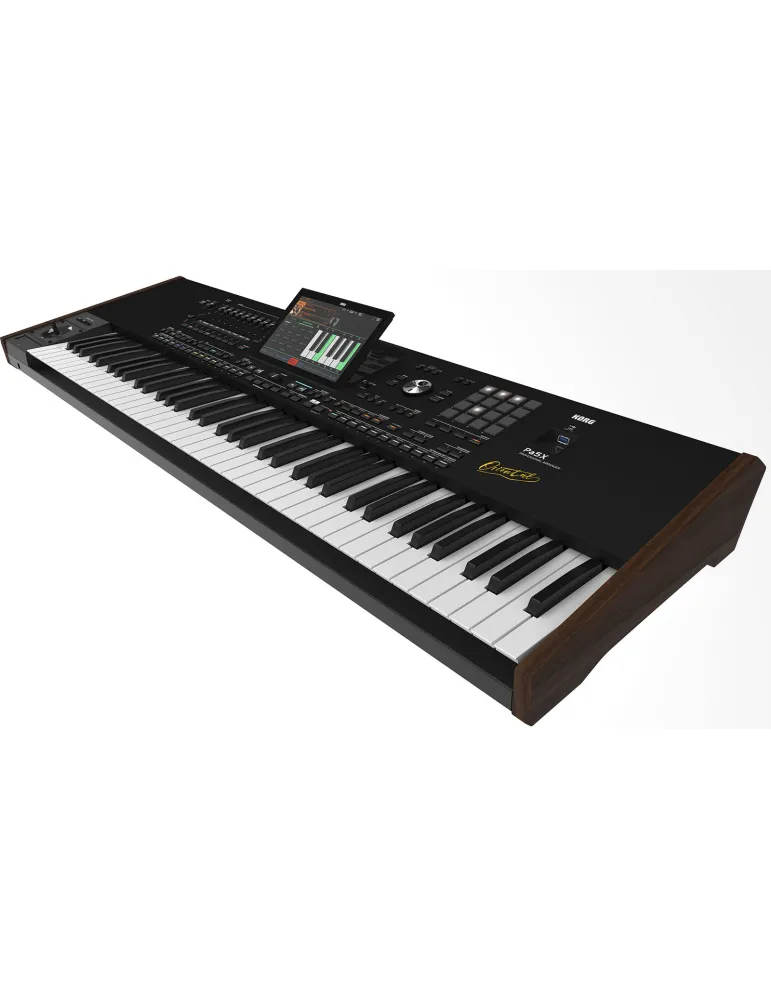

KORG PA5X-OR76 PA5X Oriental 76 keys

- Display: 8 high-definition TFT LCD screens

- Aftertouch: Yes

- Power supply: Mains

- Category: arranger

- Color: Black

- Dimensions (mm): 1223.1 x 374.3 x 126.8

- Sampler: Yes

- Recorder: MP3, Midi file

- Inputs: Expression pedal, Sustain pedal, Midi, Line in, 2 x jack, Audio in, XLR

- Harmonizer: Shift Audio 4 Voices

- Player: MP3, Midi file karaoke, MP3 karaoke, Midi file

- Number of pads: 16

- Number of styles: 940

- Number of keys: 76

- Weight (kg): 17.25 kg

- Max polyphony: 160

- Velocity-sensitive: Yes

- Sequencer: Yes

- Outputs: Midi, Headphone, HDMI, Mono & Stereo Audio, 4 x individual jacks

- Touch: Dynamic with aftertouch

- Transposition: Yes

- Save type: USB Key & Hard Drive, SSD Hard Drive

- Synthesis type: PCM

- Additional specs:

- New dual sequencer for styles, MIDI Files and MP3s.

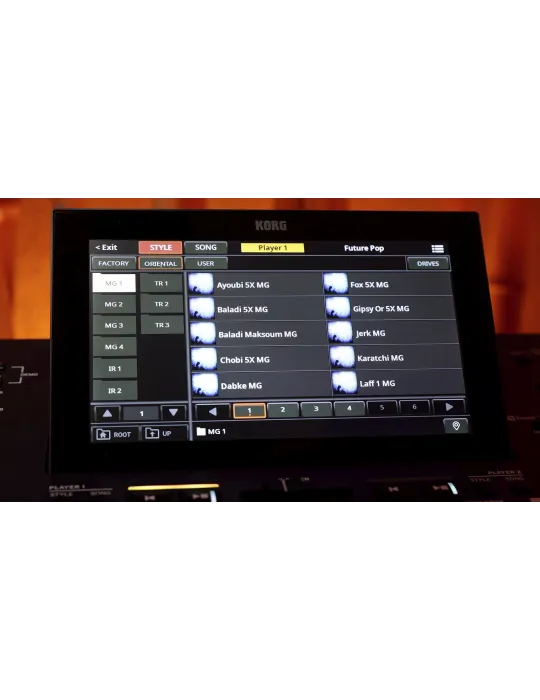

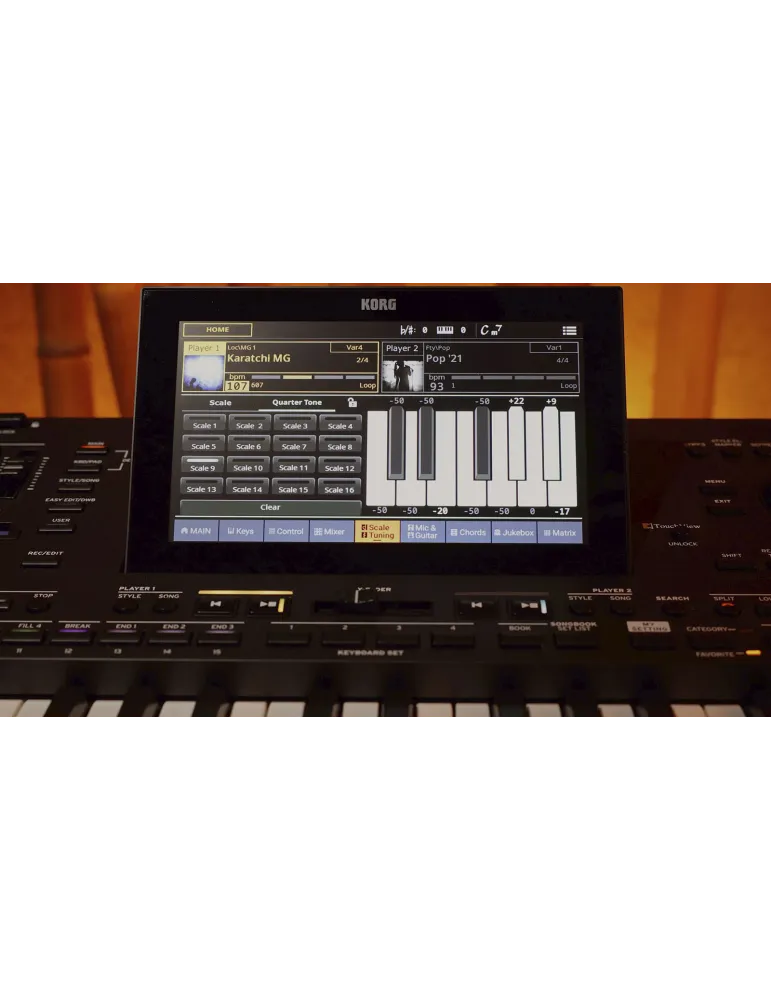

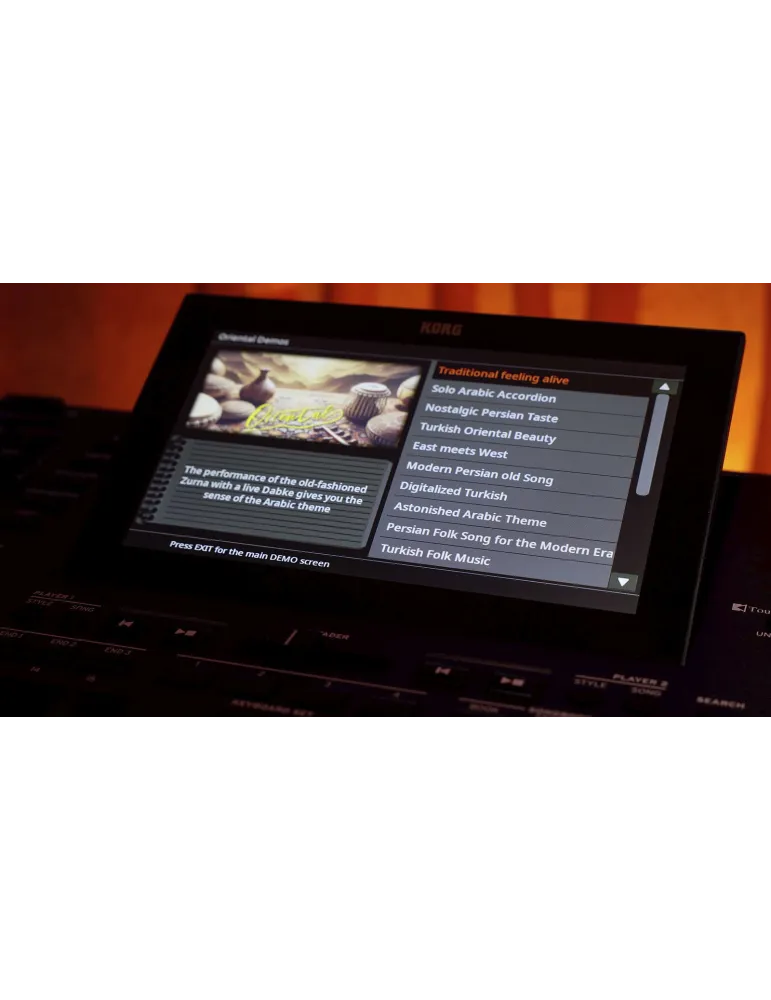

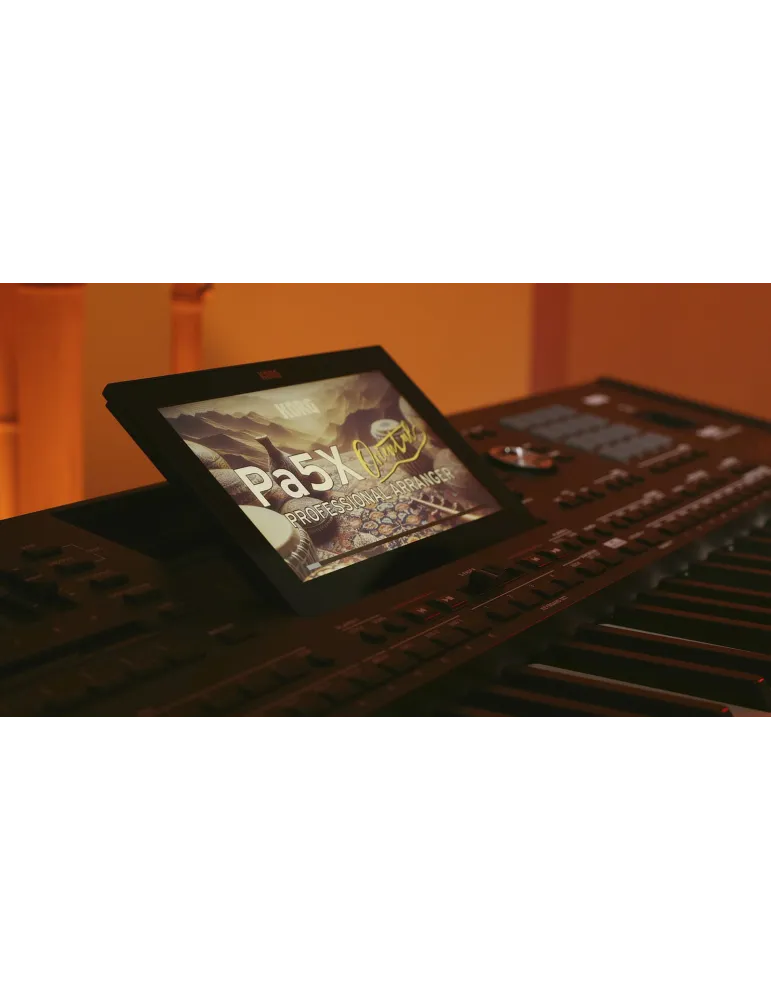

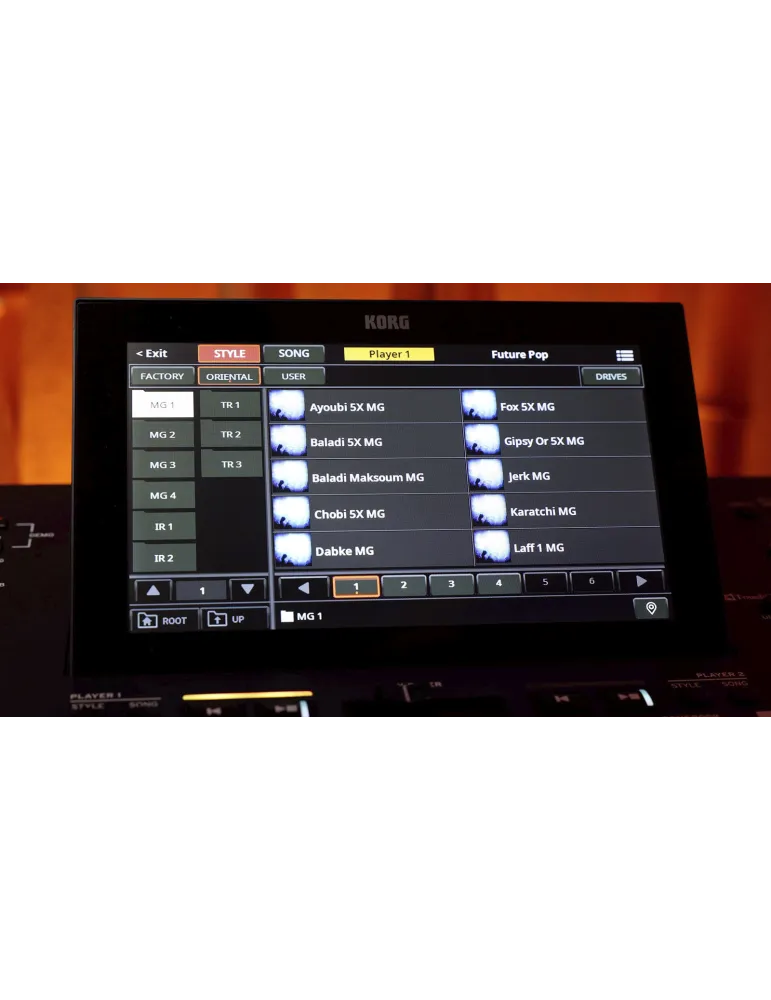

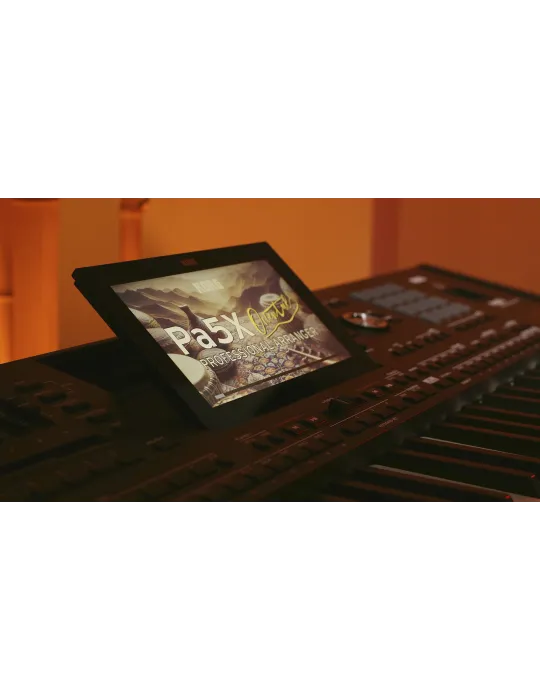

- High-resolution 8-inch graphic display (tilting touchscreen) with new graphical user interface.

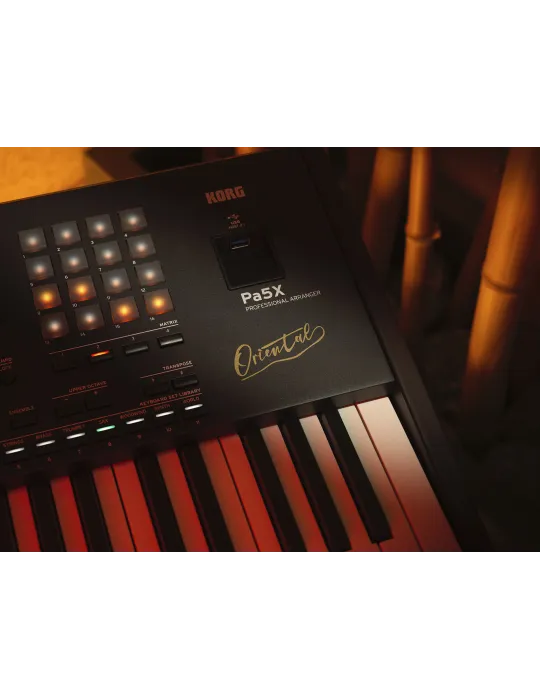

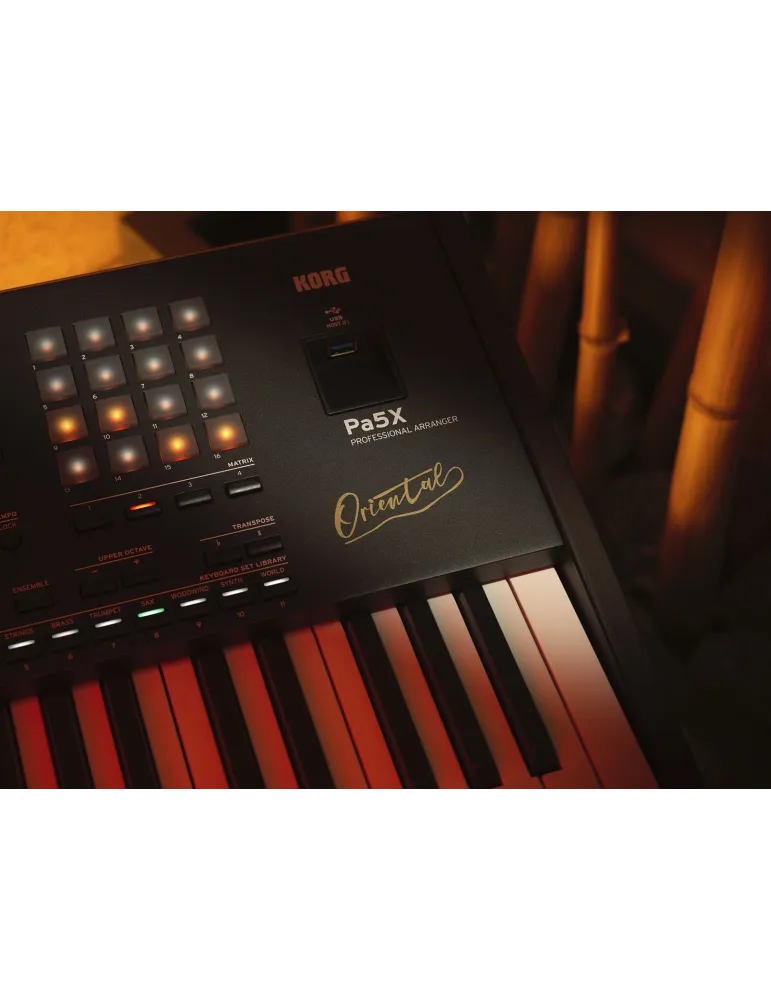

- New Matrix section with 16 pads with powerful functionality that can be used to play pads or mute/unmute tracks and much more...

- 76 keys (semi-weighted), with velocity and aftertouch.

- Maximum polyphony: 160 voices (up to 24 stereo oscillators).

- New recorded PCM bank + tones including data from SV-2 and Kronos/Nautilus.

- 3 real-time sound controllers for DNC technology.

- Both sequencers can simultaneously play 20 insert effects and 6 master effects.

- Smooth Sound Transition (SST) for styles, songs and KBD sets.

- Master EQ with Finalizer for styles and songs.

- 16-pad matrix (with 4 configurations)

- Mixing section with programmable digital band display and 9 assignable switches

- 4-voice "Shift Audio" vocal processor (including doubler + autopitch)

- Over 2,600 sounds, over 940 styles and over 400 musical configurations of KBD Sets

- Chord sequencer with library

- Round-Robin drums performance technology for authentic-sounding drum rhythms.

- User PCM RAM for sampling: 8GB compressed (4GB linear)

- PCM RAM for localization: 4GB compressed (2GB linear)

- Optional PaAS amplifier

- Separate guitar input (with dedicated gain controls and up to 4 insert effects)

- 6 audio outputs ( left & right + additional 1-4).

- HDMI output (800x600 resolution)

- Microphone input with 48 V phantom power supply.

- Stereo input (mono L & R, 6.3 mm)

- 2 inputs for assignable pedals +1 sustain pedal input

- 1 input for headphones (stereo6.3mm).

- 3 MIDI sockets (in/out/thru)

- 3 USB connectors (Host3.0) + 1 USB Device

- 1 micro SD connector for user storage.

- Dimensions: (W x D x H) : Pa5X-76: 1,233.1 x 374.3 x 126.8 mm

- Weight: Pa5X-OR76: 17.25 kg

- Optional accessories: PaAS (Amplification system), ST-SV1 (Stand), Pedals: EXP-2, XVP-20, DS-1H, PS-1, PS-3.
