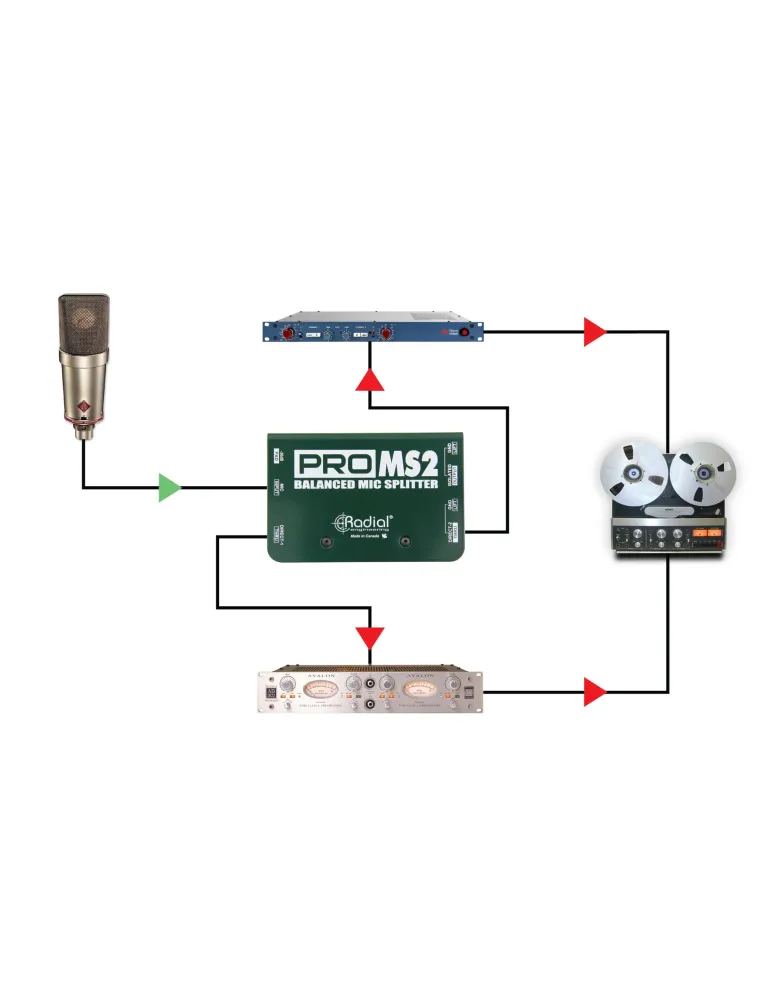

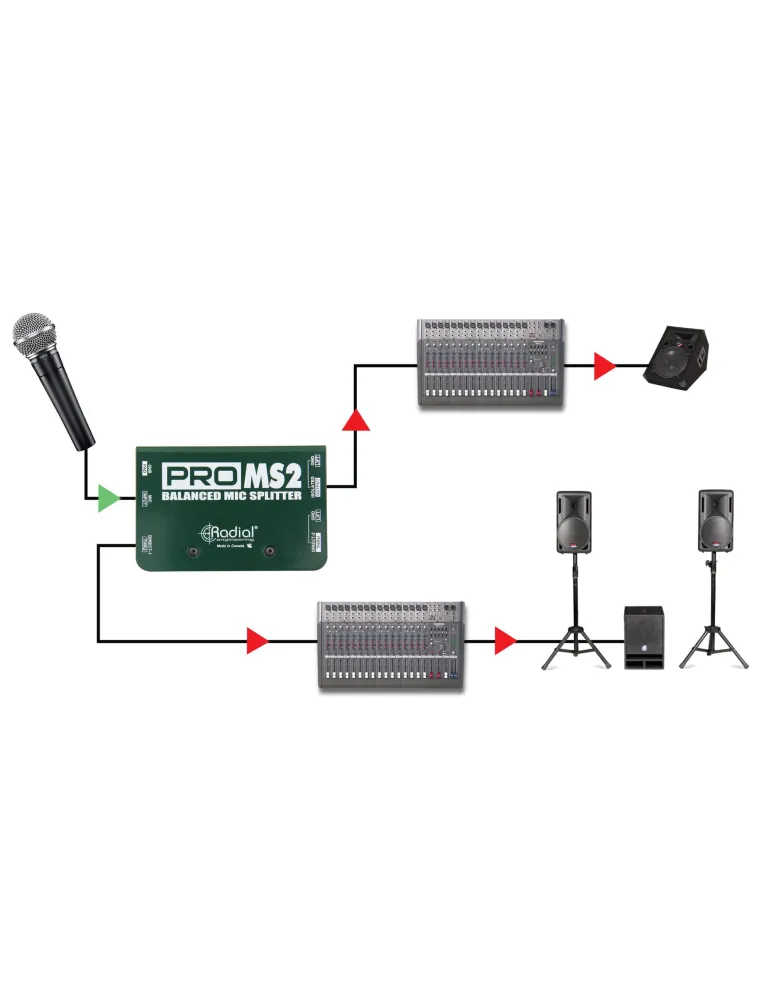

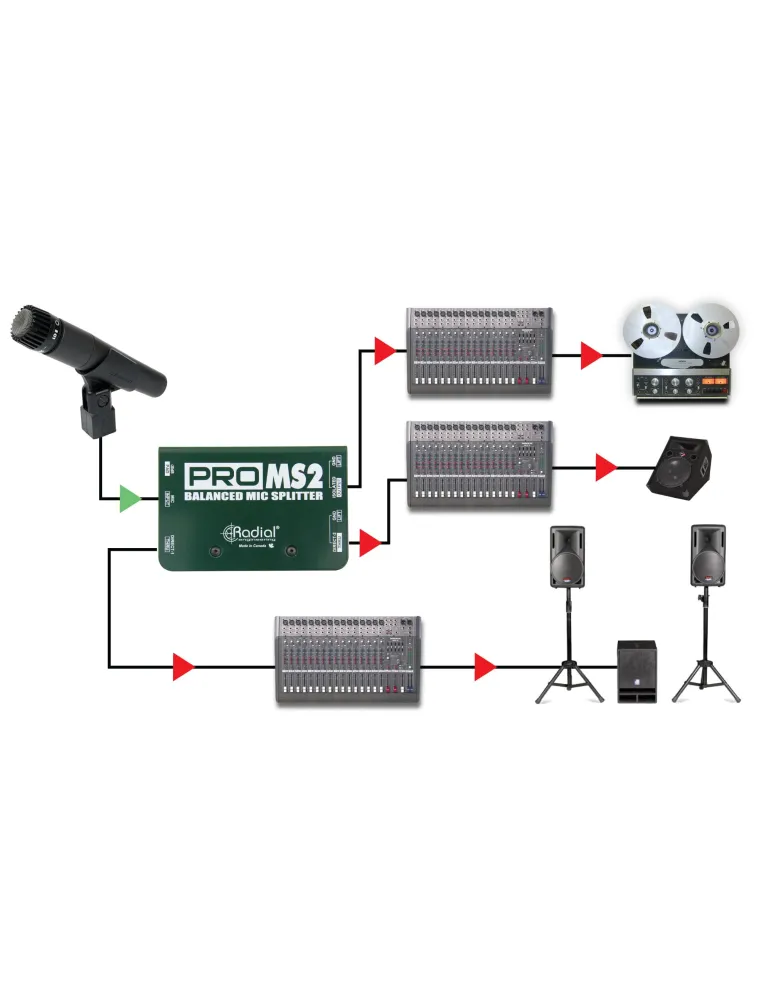

Inside the ProMS2, an Eclipse ET-MS10 transformer is responsible for splitting the signals. This model features a nickel laminated core that provides a wide frequency response and exceptional signal handling, with virtually zero distortion at all frequencies.With over 115dB of common mode noise rejection, you can be assured that buzz caused by ground loops and mains noise will be kept to a minimum. The transformer is doubly protected against stray magnetic fields, firstly by a dedicated metal shell and secondly by the robust steel outer casing. This is complemented by RF filtering and 100% discrete circuitry. As with all Radial products, the ruggedness of the enclosure and connectors is legion. The design of these enclosures offers the unique advantage of allowing up to 8 units to be rack mounted with a Radial J-Rak. Application wise, the ProMS2 splitter allows splitting of a signal in the studio to drive multiple preamps, send a stage mic signal to multiple mixing consoles, or even split the signal from a 'live' setup to feed a broadcast stream, without the slightest sonic degradation...The ProMS2 Radial is a great tool that solves a lot of day-to-day issues for multiplying mic DI signals with ease.
- THD: 0.001% @1 kHz / +4 dBu
- Category: direct box
- Digital conversion: no
- Inputs: XLR
- Outputs: 2 x XLR
- Adjustments: -30 dB attenuator, ground switch
- Power supply: Passive
- Frequency response: 20 Hz - 20 kHz
- Dimensions (mm): 84 x 127 x 48
- Weight (kg): 720 g
- Lights: No
- Built-in preamp: No
- Max input level (dBu): 26
- No. of channels: 1
- Additional specs: - Technology: passive
- Transformer: Eclipse ET-DB2
- Dynamic range: 128 dB
- Input impedance: 2.5 kΩ (unbalanced)
- Output impedance: 140 Ω (balanced)
- Very robust construction: 1.55 mm steel chassis
