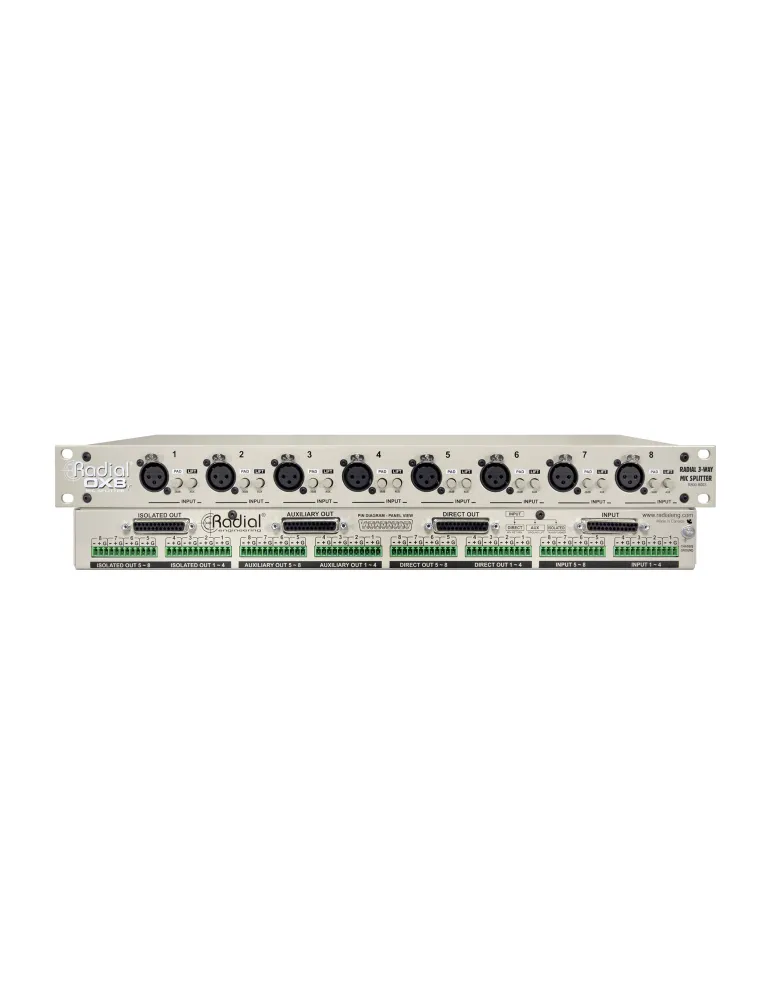

RADIAL ENGINEERING OX8J Racks - 8 Channel Microphone Splitter-Jensen
Racks - Splitter microphone 8 channels-Jensen
6 people are viewing this right now
SRA OX8J
€2,666.40
€2,222.00
Save 16.67%
VAT included
Delivery within 5 to 7 days
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
Description

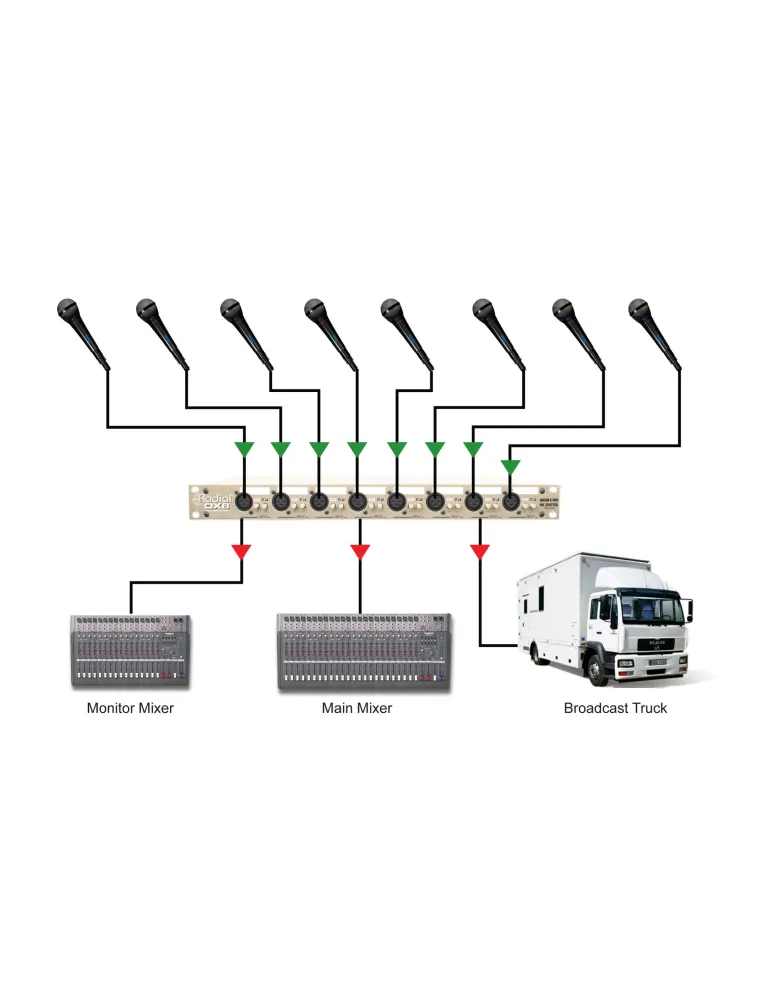

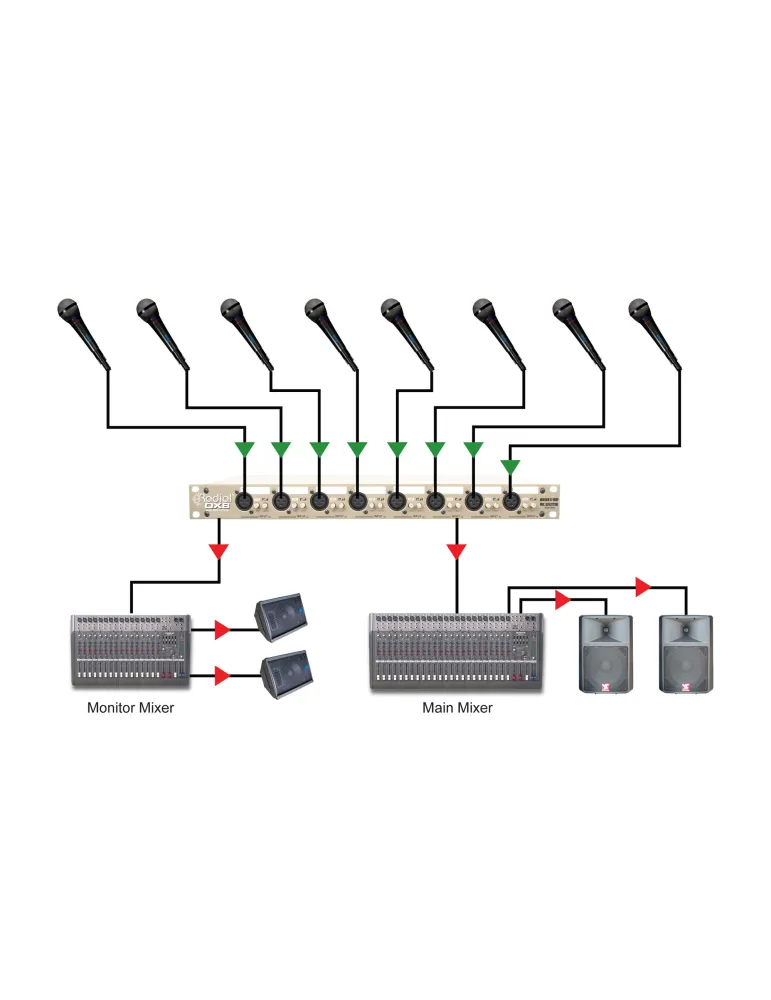

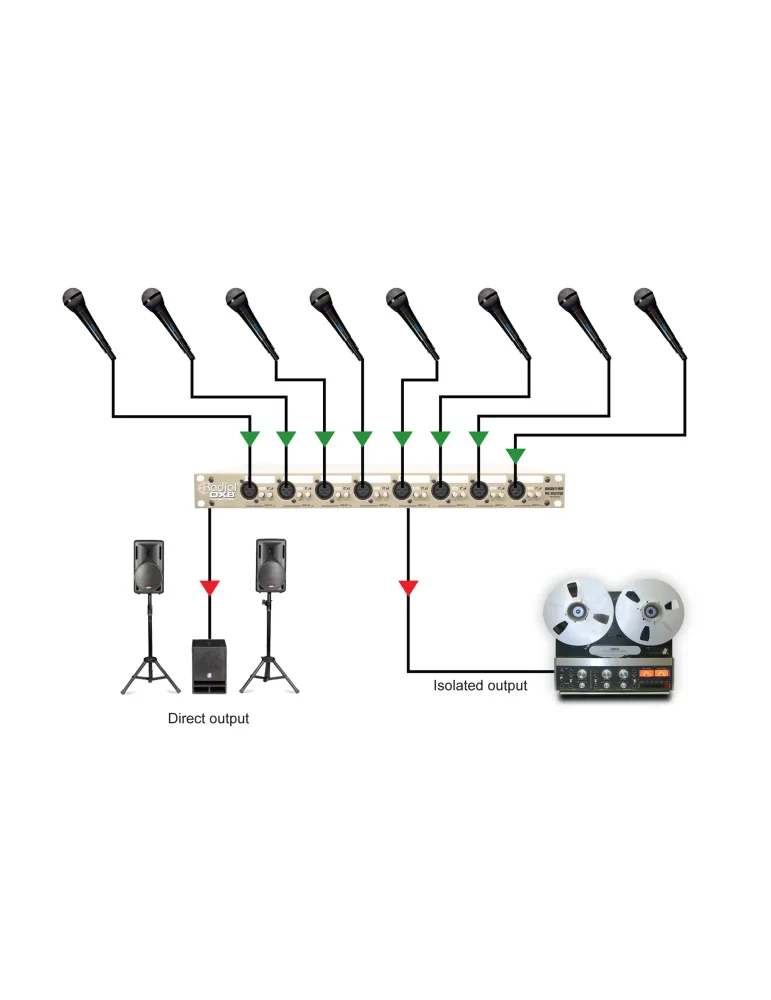

There are 3 different outputs for each channel: a direct output (with phantom power transmission) for the mixer, another direct output with a ground switch for the monitors and an isolated output via transformer for the recorder. It is ideal for live use or for fixed installations where mic or line signals need to be sent to multiple systems simultaneously.
- THD: 0.003% @ 1kHz
- Category: splitter
- Digital conversion: no
- Inputs: XLR, euroblock phoenix, Sub-D 25
- Outputs: euroblock phoenix, Sub-D 25
- Settings: -36 dB attenuator, ground switch
- Power supply: Passive
- Frequency response: 20 Hz - 20 kHz
- Dimensions (mm): 482 x 152 x 44
- Weight (kg): 3.40 kg
- Lights: No
- Built-in preamp: No
- Max input level (dBu): 2
- No. of channels: 8
- Additional specs: - Technology: passive
- Splitter type: 1 input / 3 outputs
- Sub-D 25 configuration: Tascam analog
- Transformers: Jensen JT-MB-CPC
- Dynamic range: 140 dB
- Input impedance: 150 Ω balanced
- Output impedance: 150 Ω balanced
- Very robust construction: 1.55 mm steel chassis
