This process allows you to take a pre-recorded track, send it back to a guitar or bass amplifier and re-record the take in a more conventional way using mics.The benefits are huge: instead of worrying about the sound of the track, you can focus your attention on getting the best musical performance. Once the magic is captured, you can feed the signal back into the guitar amp.So you can move the mics around as you wish so that the pickup is optimized, try out different amplifiers or apply effects.

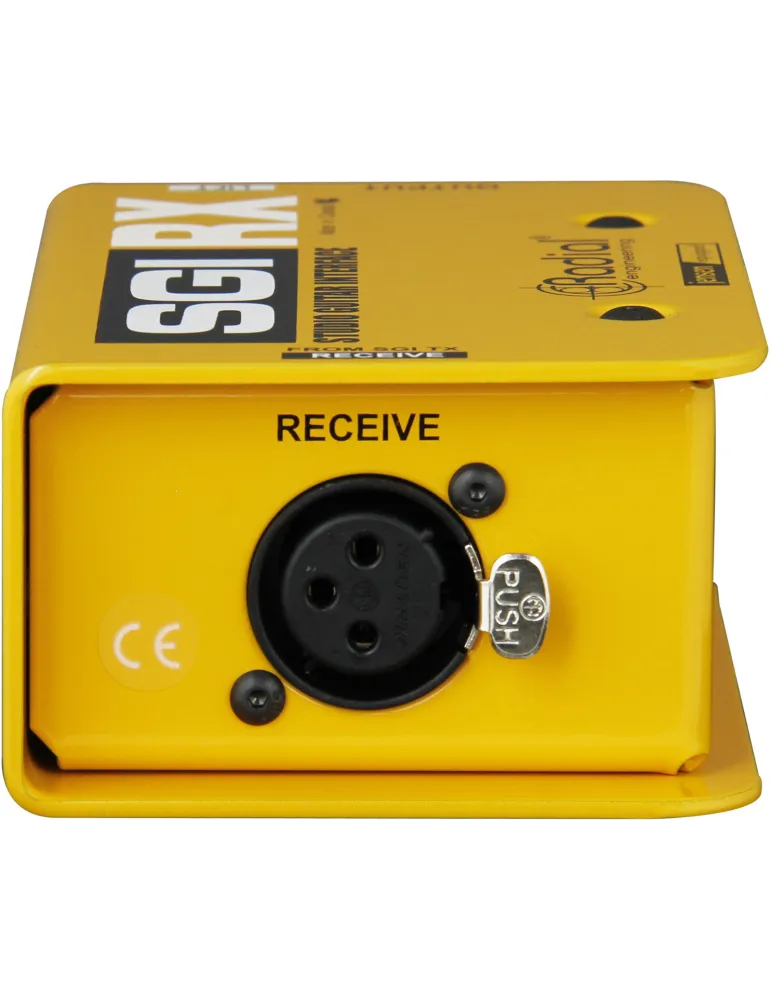

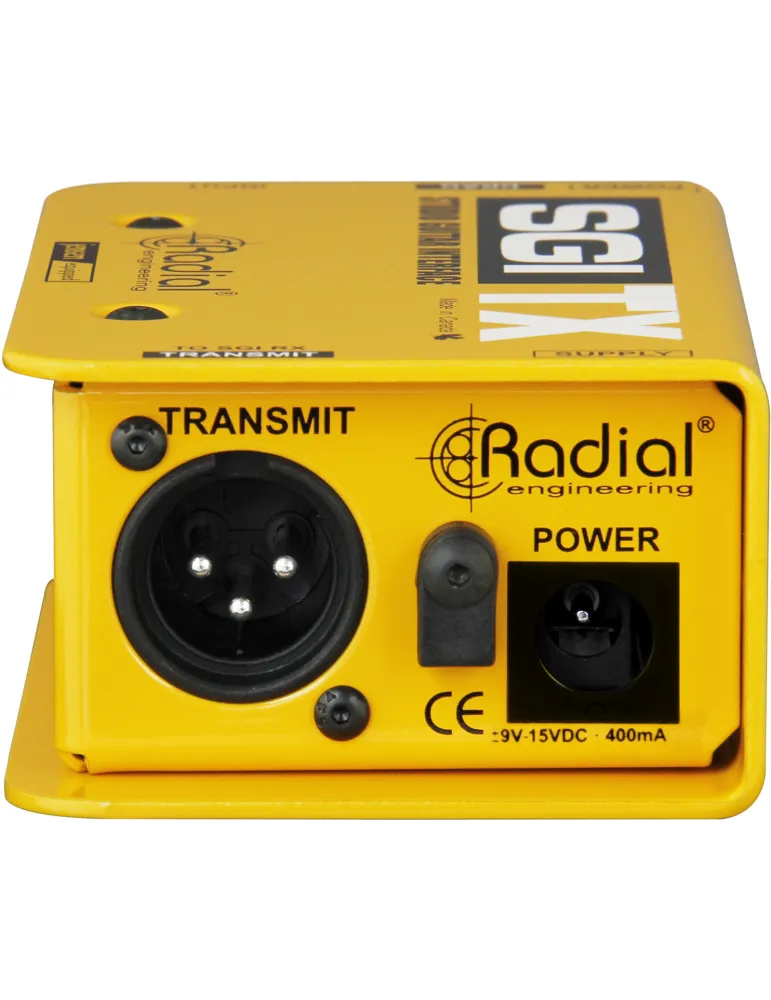

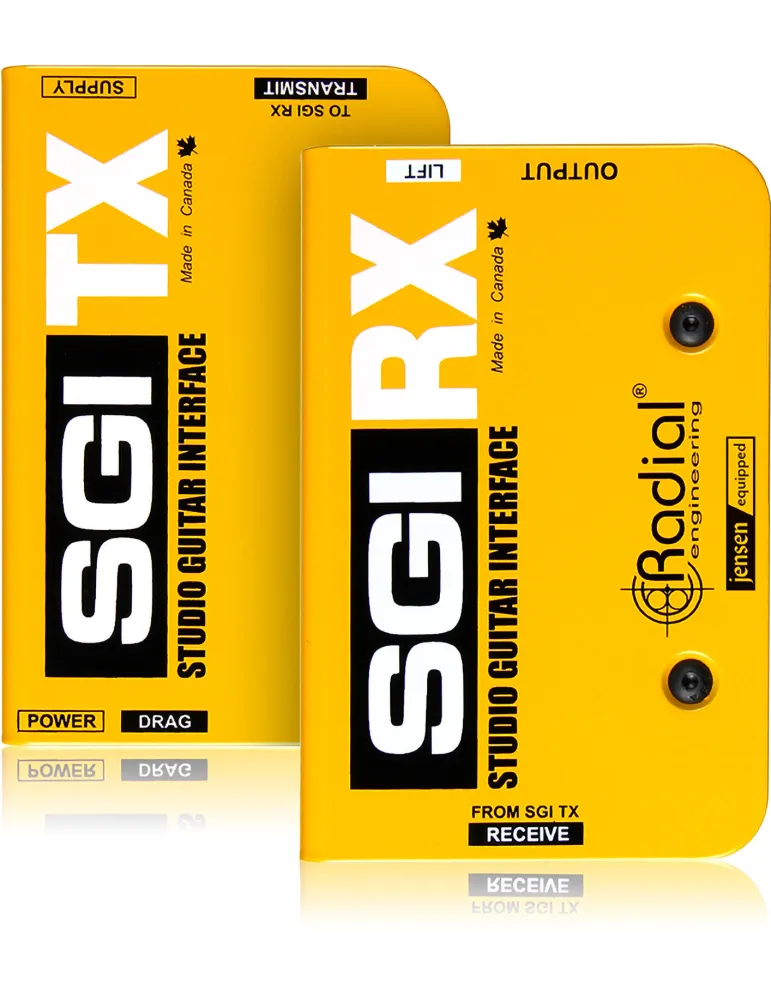

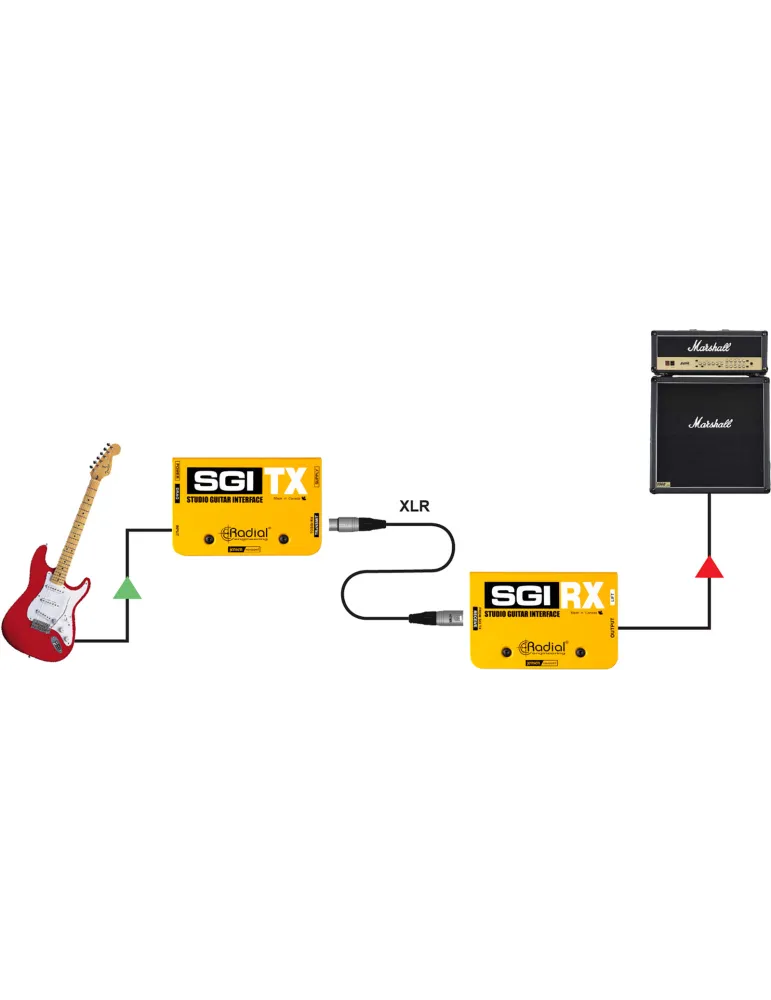

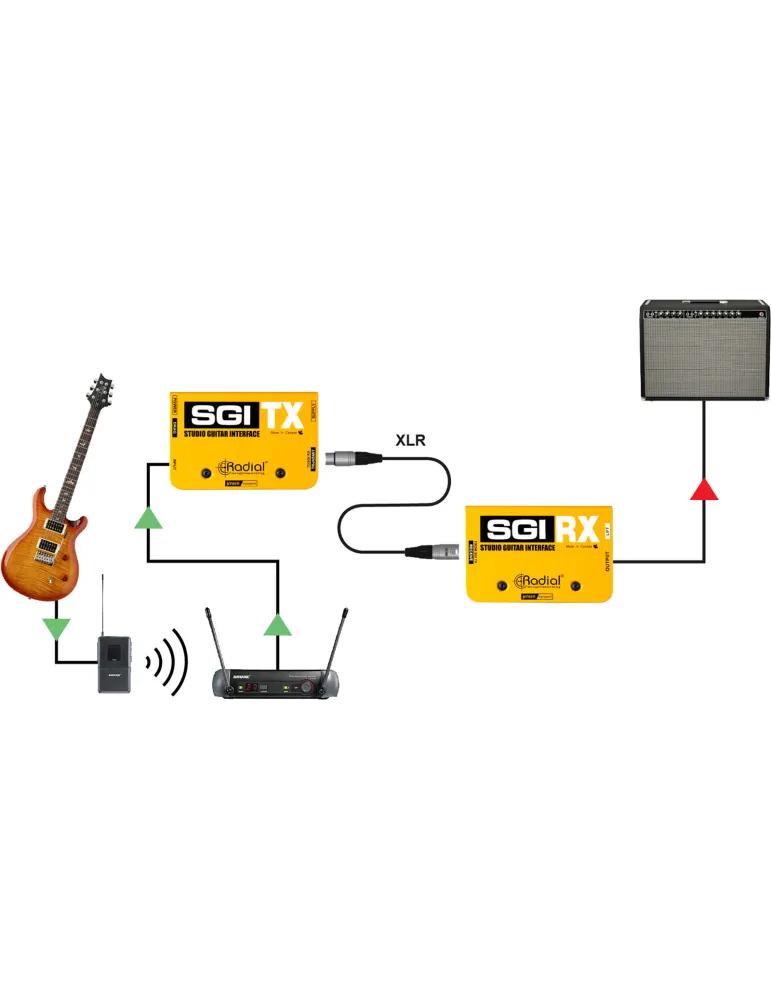

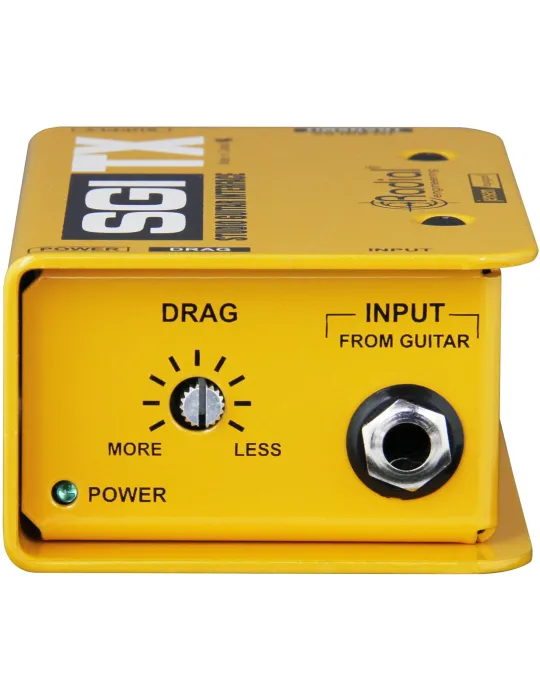

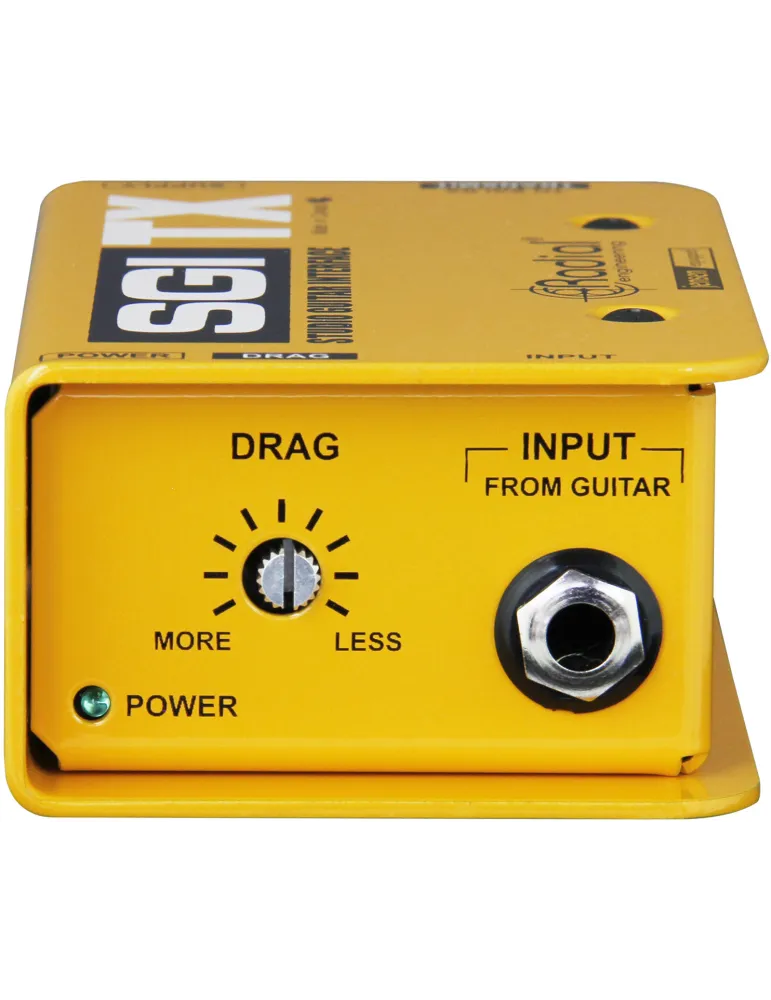

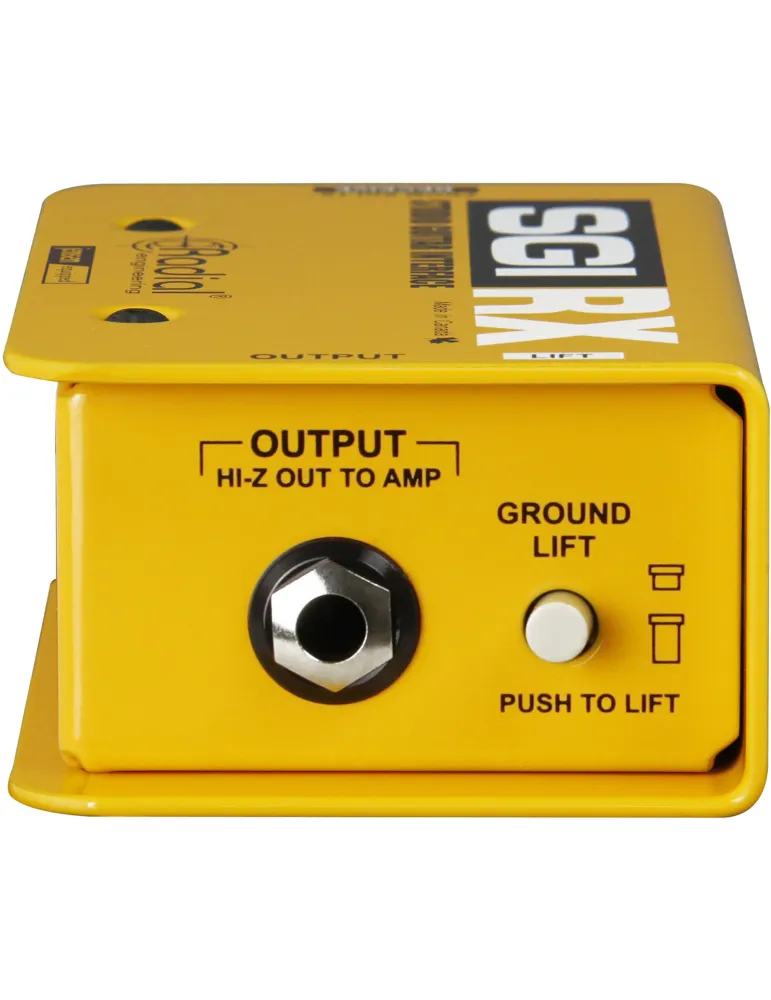

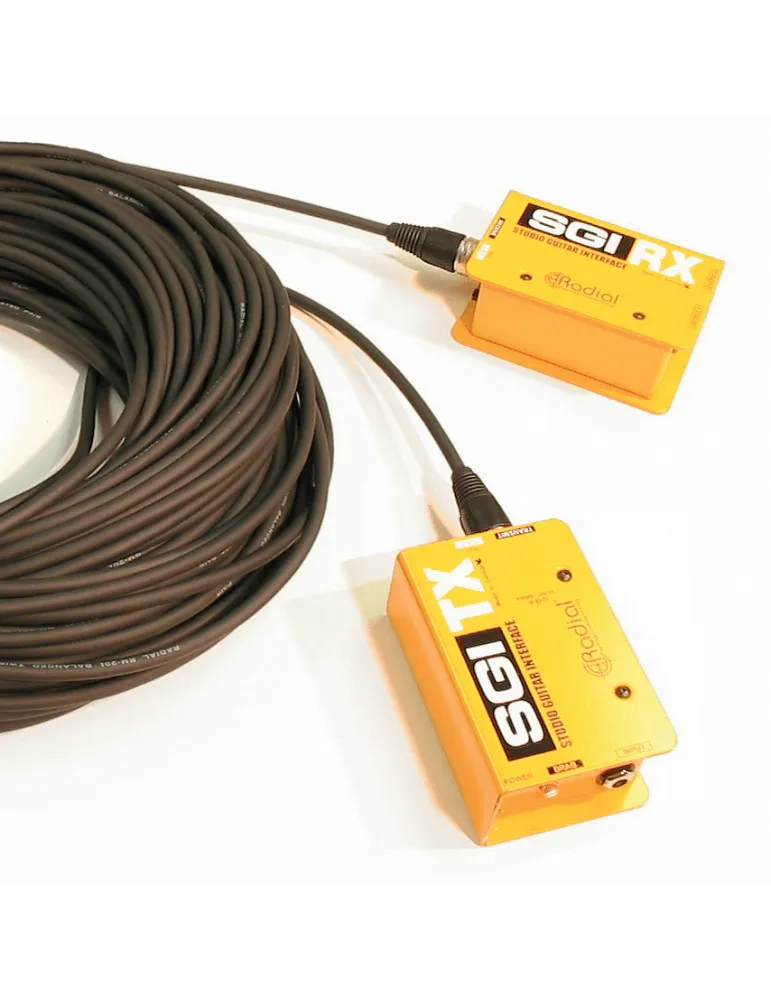

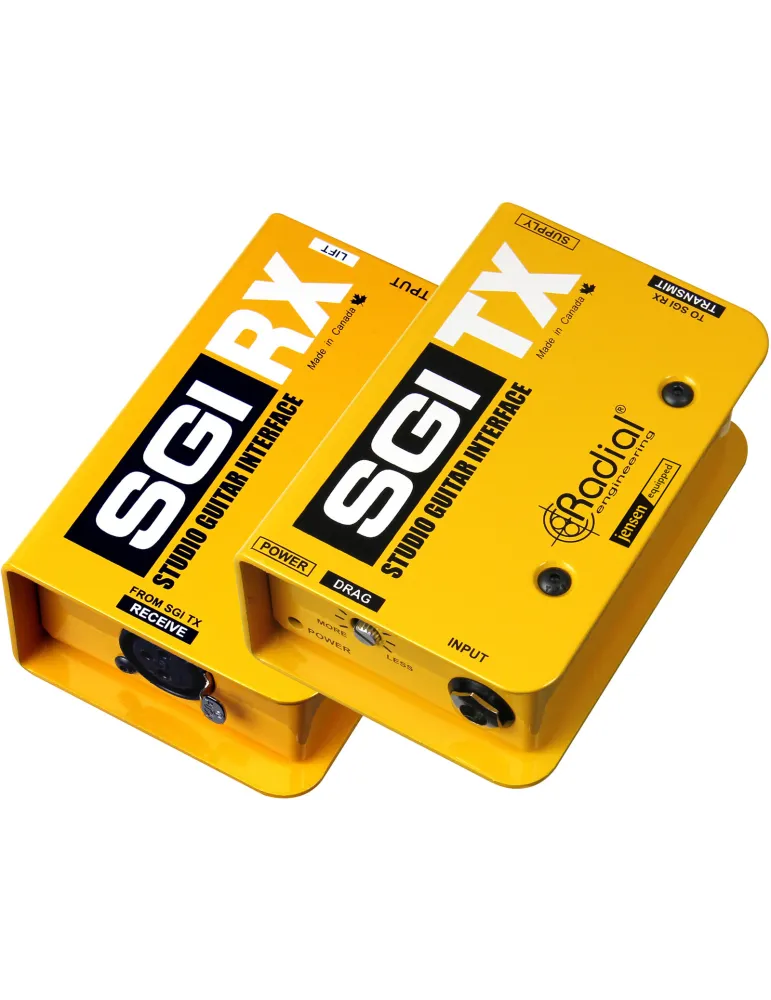

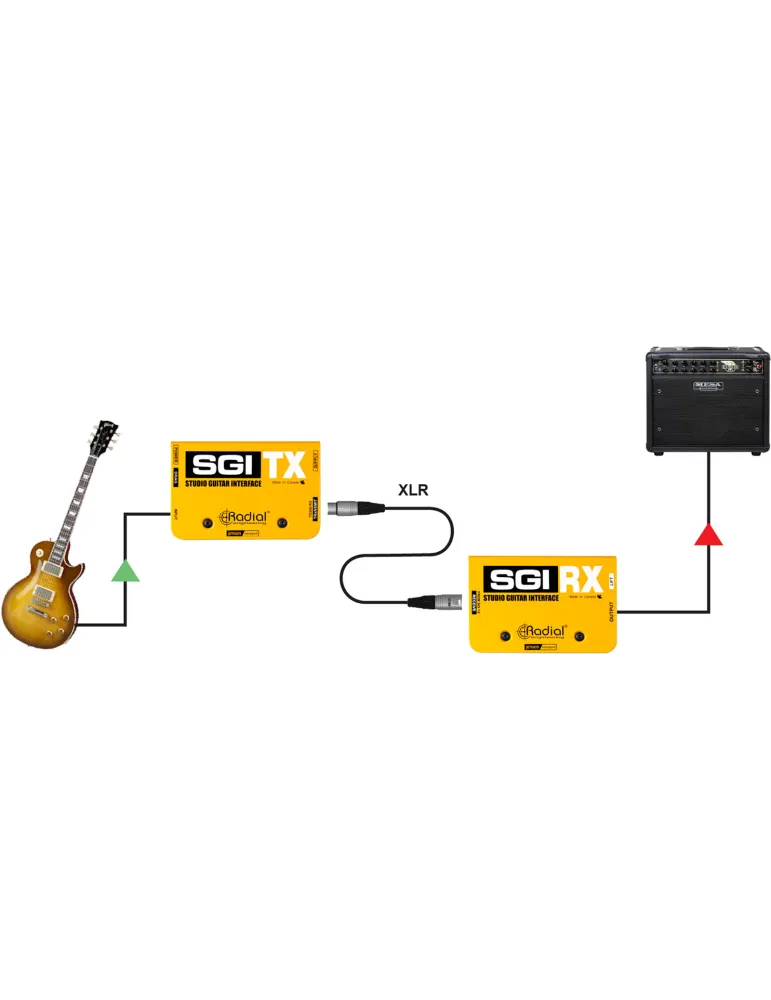

The Radial SGI consists of a pair of modules, a transmitter (SGI-TX) and a receiver (SGI-RX) that allows a guitar to be remotely located up to 100m from the amplifier.The SGI is a unity gain device using a 100% discrete class A circuit for fantastic sound and a transformer to eliminate ground loops.In the studio, the SGI allows the guitarist to play in the control room to benefit from studio monitoring.In the live environment, the SGI allows the amp to be remotely located so that it doesn't interfere with the front of house sound or the monitors.The guitar is plugged into the SGI-TX which takes care of the impedance and level conversion, as well as the balancing of the signal. The output is similar to that of a DI, allowing it to be connected to multi-pair stage or studio systems. At the end of the run, the SGI-RX converts the signal back to a high impedance guitar signal to feed an amp or pedalboard.Applications:Connecting to an amp up to 100m awayStudioStage
- THD: 0.005% @ 1 kHz
- Display: LED
- Signal to Noise Ratio: 102 dB
- Category: signal expander
- Digital conversion: no
- Inputs: XLR
- Outputs: XLR
- Settings: Impedance correction, ground switch
- Power supply: DC 15 V
- Frequency response: 20 Hz - 18 kHz
- Dimensions (mm): 70 x 108 x 44
- Weight (kg): 1.36 kg
- Lights: No
- Built-in preamp: Yes
- Max input level (dBu): 10
- No. of channels: 1
- Additional specs: - Technology: 100% discrete class A circuit, with transformer isolation
- Dynamic range: 112 dB
- Input impedance: variable from 10 kΩ to 1 MΩ
- Output impedance: 4.5 kΩ
- Very robust construction: 1.55 mm steel chassis
