This system offers exceptional flexibility with 6 modules equipped with parallel XLR outputs, and isolated mic or line level outputs. Each module is equipped with a ground switch eliminating interference.
The combination of the different modules offers exceptional flexibility of use, far superior to the usual multipairs, while taking advantage of the simplicity of a network cable transmission.
- THD: 0.0005% @ 1 kHz
- Category: analog multipair
- Digital conversion: no
- Inputs: 4 x XLR
- Outputs: 2 x etherCon, 4 x XLR
- Settings: Ground switch
- Power supply: Passive
- Frequency response: 7 Hz - 20 kHz
- Dimensions (mm): 203 x 115 x 51
- Weight (kg): 1.18 kg
- Lights: No
- Built-in preamp: No
- Max input level (dBu): 35
- No. of channels: 4
- Additional specs: - 4 channel modular audio splitter
- Transmission of analog or digital AES signal via shielded cat5 cable
- 4 XLR inputs and 4 XLR thruputs
- Imperative use of shielded cat5 or better cable
Specific References
check_circle
check_circle

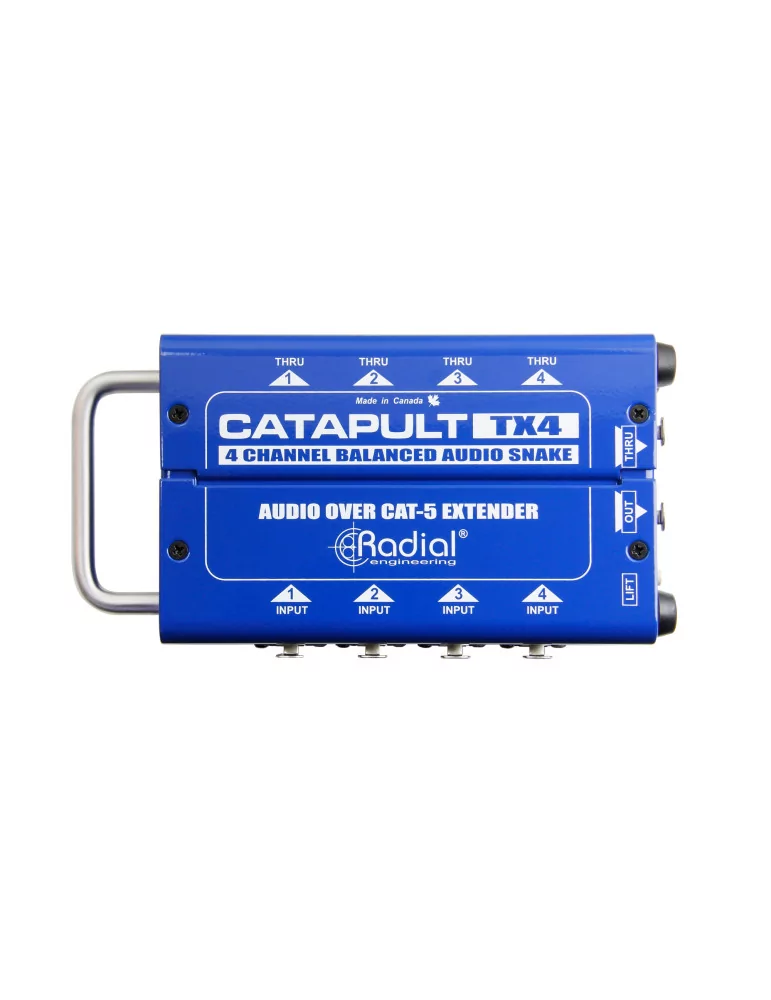

RADIAL ENGINEERING CATAPULT-TX4 Snakes - Transmitter Module
