They can also offer a linear FM source by taking advantage of the analog rendering of NCOs or digital wavetables, thereby allowing recursive loop cross-modulation.
The Peak further features a multi-function analog filter resonating for each voice with 3 points of distortion - pre-filter, post-filter and global - in an analog signal chain. It is sensitive to the polyphonic aftertouch, which multiplies the possibilities of expression of the machine. Reverb, delay and chorus effects round out the arsenal, not to mention the built-in arpeggiator.
The modulation system features a 16-slot matrix and 16 direct assignments accessible in the main controls so as to facilitate intuitive patch design and sound editing. 3 ADSR envelopes and 2 Lfo are available for each voice but also more complex or secondary assignments through an immediately available menu. In addition, 2 animated buttons allow the musician to instantly edit patches.
The Peak connects to modular systems via a CV modulation input and features DIN (5-pin) format Midi inputs/outputs for connecting other Midi devices. In addition, it can be connected to a Mac or PC to save an unlimited number of patches using Components software.
- Display: LCD
- Category: Hybrid Synth
- Synthesis Type: Digital Oscillator
- LFO: 2
- Filters: OTA 24 dB
- Inputs: USB, Expression Pedal, Midi, CV in
- Outputs: USB, Midi, Headphones, Audio, CV out
- Software supplied: Novation Components
- Enclosure: ADSR
- Dimensions (mm): 464 x 233 x 70.5
- Weight (kg): 4.90 kg
- Velocity sensitive: No
- Aftertouch: Yes
- Sequencer: No
- Arpeggiator: Yes
- Transpose: Yes
- Sampler: No
- User memories: 512
- No. of effects: 3
- Max polyphony: 8
- Additional specs: - 42 control buttons
- 8 x 35mm faders
- 1 volume
- 2 encoders
- 46 function buttons
- 2 animated buttons + hold
- Display oLed
- Kensington security
- Power button

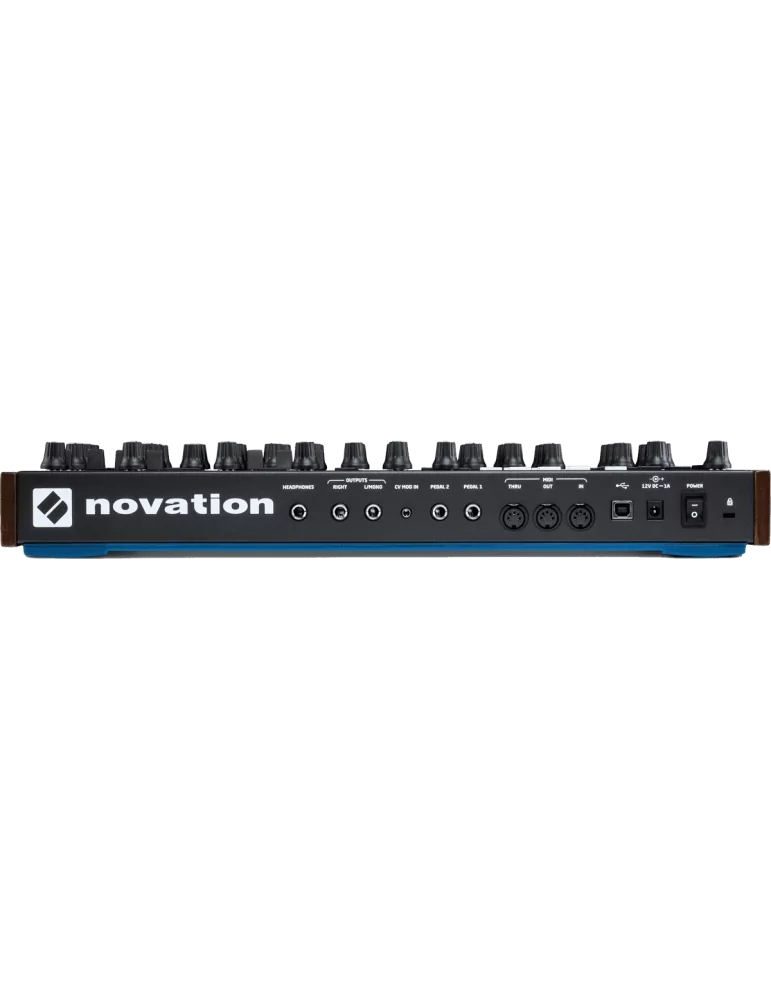

- Power connector
- USB port
- Midi in/out/thru
- 2 jack 3,5 mm jacks for external control
- 3.5 mm jack for CV in
- 6,35 mm x 2 for LR outputs
- Jack 6,35 mm jack for headphone output
- Metal chassis with wooden sides
Synthesis engine
- 8-voice polyphony
- Monotimbral
Per voice
- 3 oscillators
- 1 noise generator
- 1 ring modulator
- 2 Lfo
- 1 amplification envelope and 2 modulation envelopes
- 1 filter
Waveforms: sine, tri, sawtooth, square/pulse + 17 wavetables of 5 waveforms per row
Filter
- 1x OTA (transconductance op-amp) filter per voice
- 12 and 24 dB slope per octave
- Low-pass/band-pass/high-pass
- Pre-filter overdrive
- Post-filter distortion
Modulation
- 16 modulation slots per patch
- Each slot has 2 sources to 1 destination
- 17 modulation sources
- 37 modulation destinations
Effects
- Analog distortion
- Chorus - 3 types
- Delay with "delay sync"
- Reverb - 3 types
Miscellaneous
- Arpeggiator with "key latch" 33 patterns
- Patches: Up to 512 internally (comes with 256 factory patches)
- Glide
Specific References
check_circle
check_circle

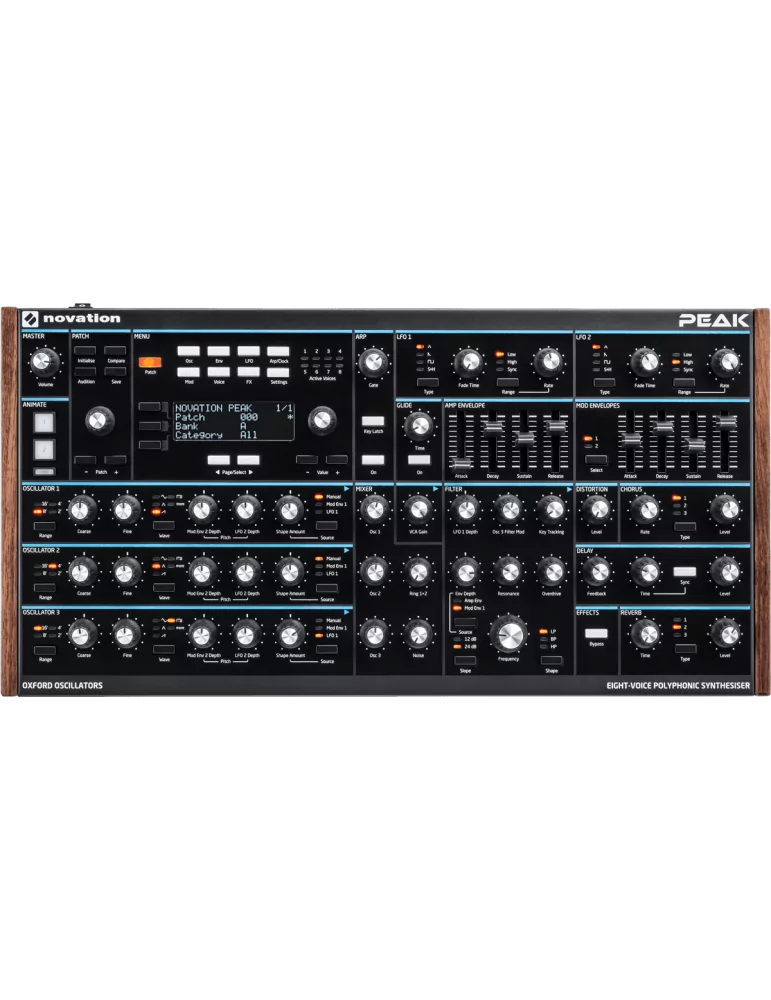

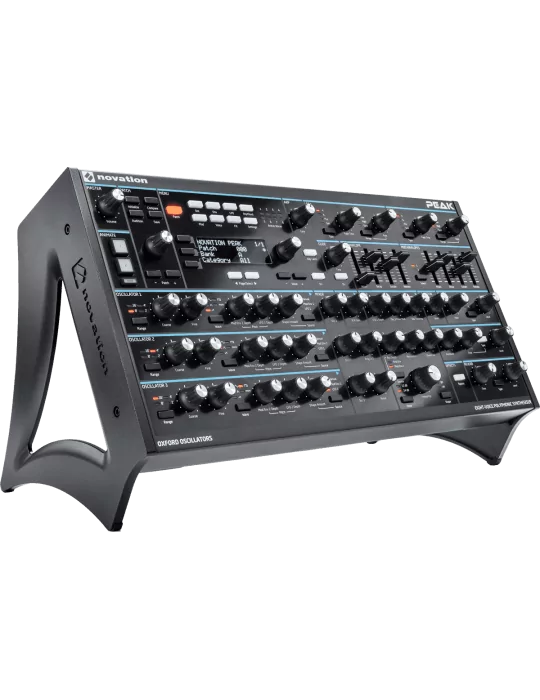

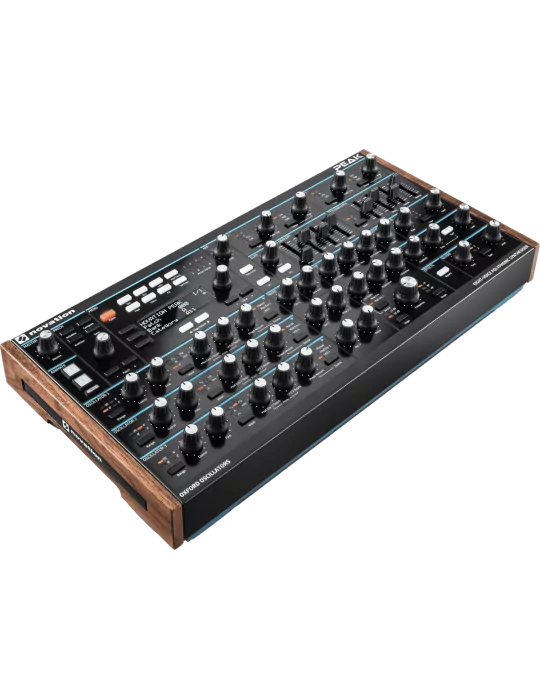

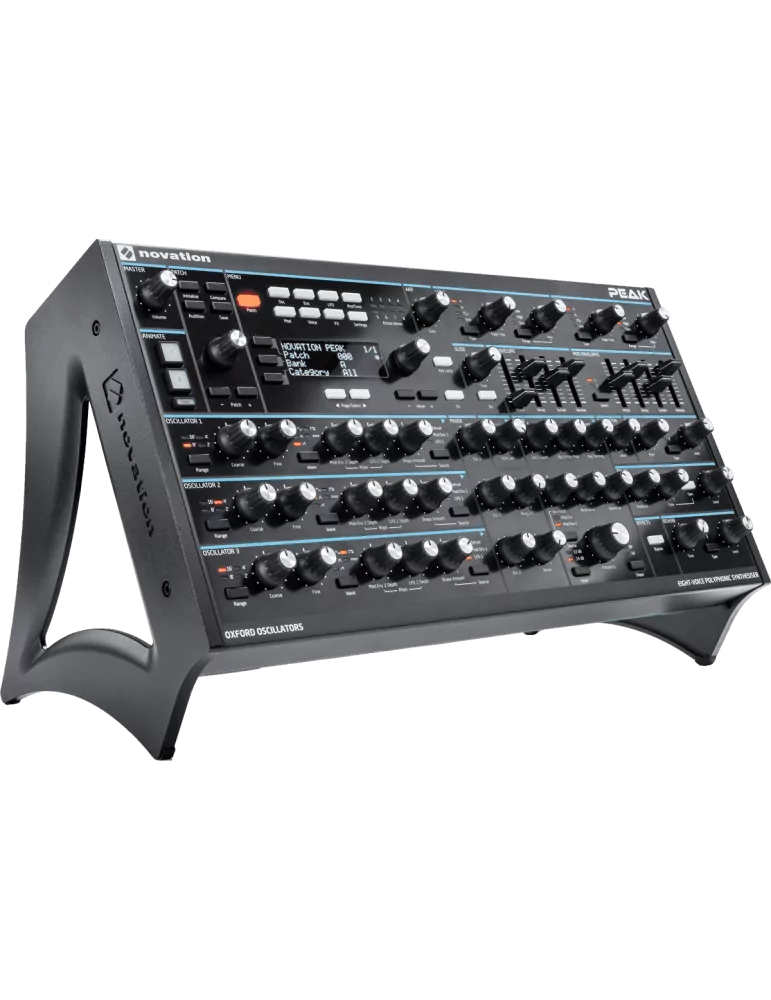

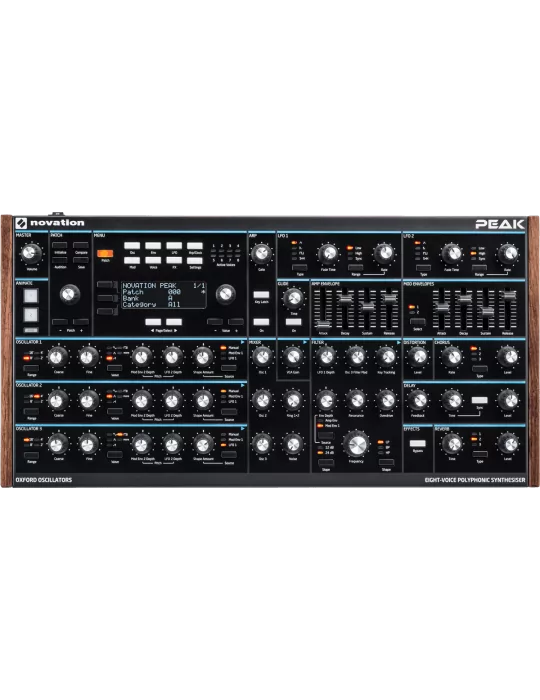

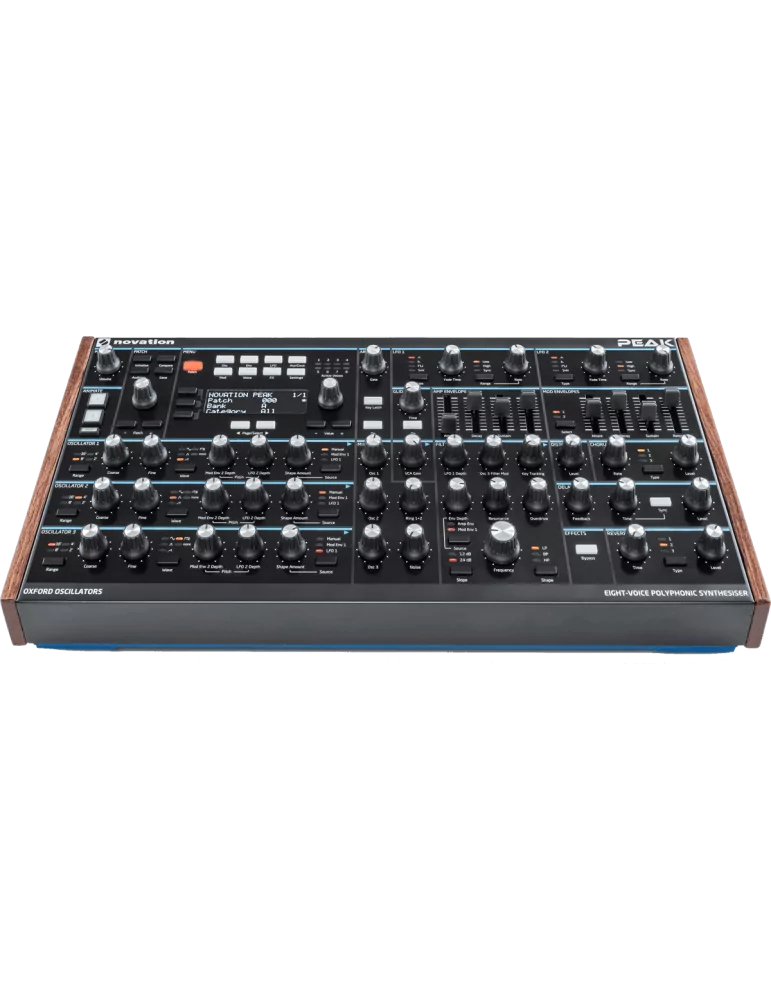

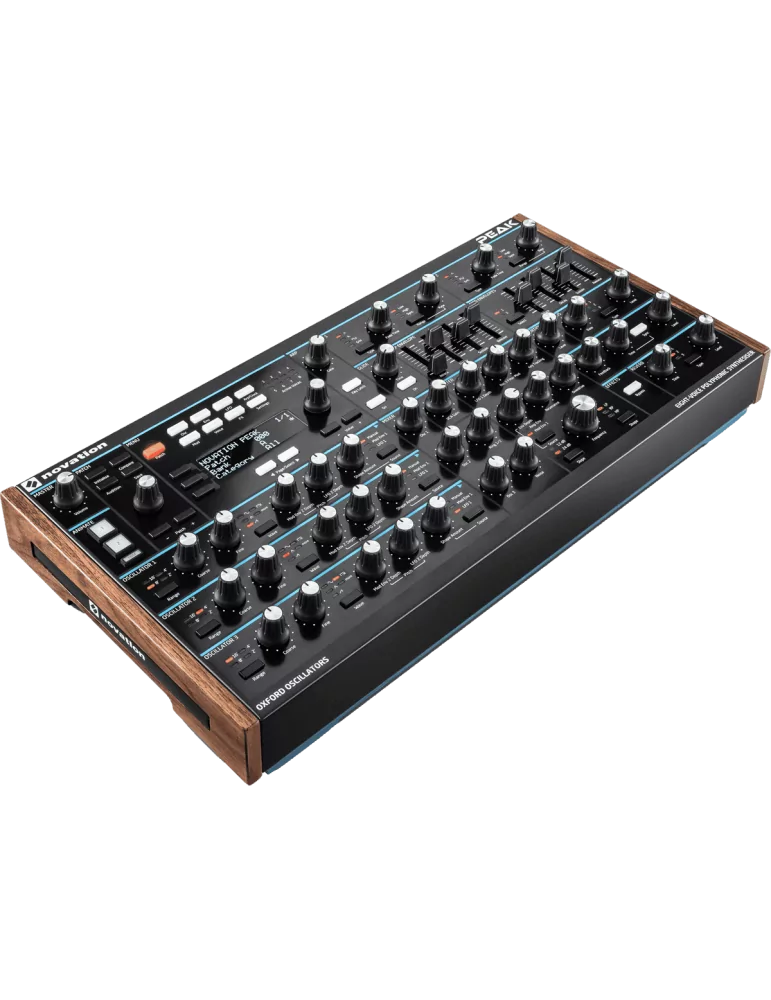

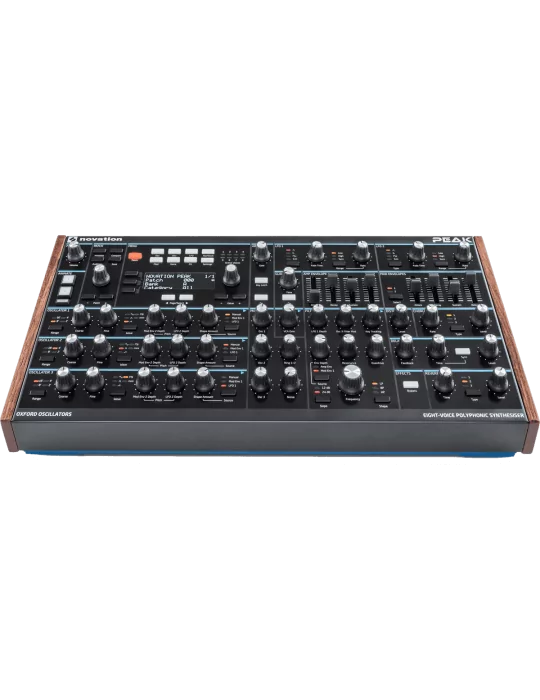

NOVATION PEAK Hybrid poly 8 voices
