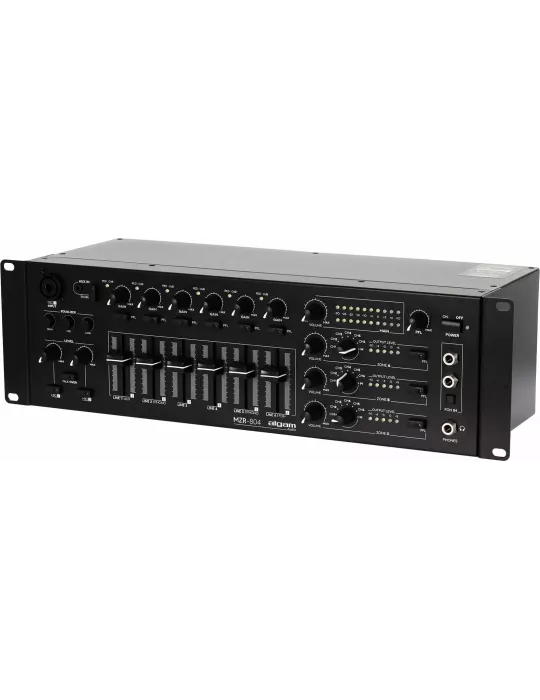

ALGAM AUDIO MZR-804 Zoning mixers - 6 + 2 inputs, 4 rackable zones
The MZR-804 is a rackmount zone mixer designed to offer flexible and precise sound management in multi-zone installations.
18 people are viewing this right now
SAA MZR-804
€334.80
€279.00
Save 16.67%
VAT included
Delivery within 3 to 4 days
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
Description
With 6 line inputs, including 2 switchable to phono, 4 independent zones, 2 microphone channels with talkover and an emergency broadcast system, it meets the needs of installations in public places, such as shopping malls, bars/restaurants .
Unrivalled versatility for all your audio sources
The MZR-804 is a true Swiss army knife of audio, capable of mixing and broadcasting a wide selection of audio sources at different points in a business, hotel, educational establishment or place of worship.
6 line inputs, 2 of which are phono-switchable, allow the connection of a variety of audio sources, from CD players to vinyl turntables, radio tuners or any other stereo source. Each channel has its own gain potentiometer and dedicated level fader, so you can adjust the level of each input with precision.
The 2 microphone channels, with their global 3-band equalization and dedicated level, are ideal for making announcements in the general broadcast, thanks in particular to the presence of an individually adjustable talkover on the main output and on each of the zones to prioritize the voice. So you can easily reduce the music level on the desired zone to broadcast an important announcement.
To broadcast music from a mixing console or smartphone with ease, the MZR 804 features a TRS jack format FOH input, and a front-panel 3.5 mm AUX input.
4 independent zones, 4 soundscapes
Each zone output of the MZR-804 features a complete signal routing and control interface, allowing you to create distinct soundscapes for each space.
Each zone slice features an XLR and Eurobloc output, 2-band equalization, a 100 Hz high-pass filter and a level limiter to fine-tune audio rendering for many types of environment. For fine control of microphone announcements in each zone, each output has a talkover attenuation setting and a microphone activation button. On the front panel, each zone has volume, source and headphone pre-listening controls.
To soundtrack a space with all sources mixed together, the main output offers a pair of unbalanced Rca and Eurobloc doubled XLR sockets, 3-band EQ, limiter and talkover attenuation control.
A system designed for public spaces
The MZR-804 is equipped with a dedicated emergency input which, when it receives a signal, automatically cuts the current broadcast to give priority to an alert message in the broadcast system. In addition, the Talkover function on the microphones allows you to temporarily interrupt the music or announcements in progress to give priority to a microphone announcement, for example for an urgent communication, or for simple communication without having to intervene on the level of a channel.
Rugged design for professional use
Designed to withstand the rigors of intensive use, the MZR-804 is built with robust materials and boasts a meticulous finish. Its reliable chassis and connectors ensure exceptional longevity, even in the most demanding environments. The rack-mountable format allows easy integration into any audio equipment rack, facilitating its installation in service cabinets or racks.
- Category: mixer/zone
- Color: Black
- Dimensions (mm): 483 x 134 x 184
- Motorized faders: No
- Number of channels: 8
- Weight (kg): 4.20 kg
- Rackable: Yes

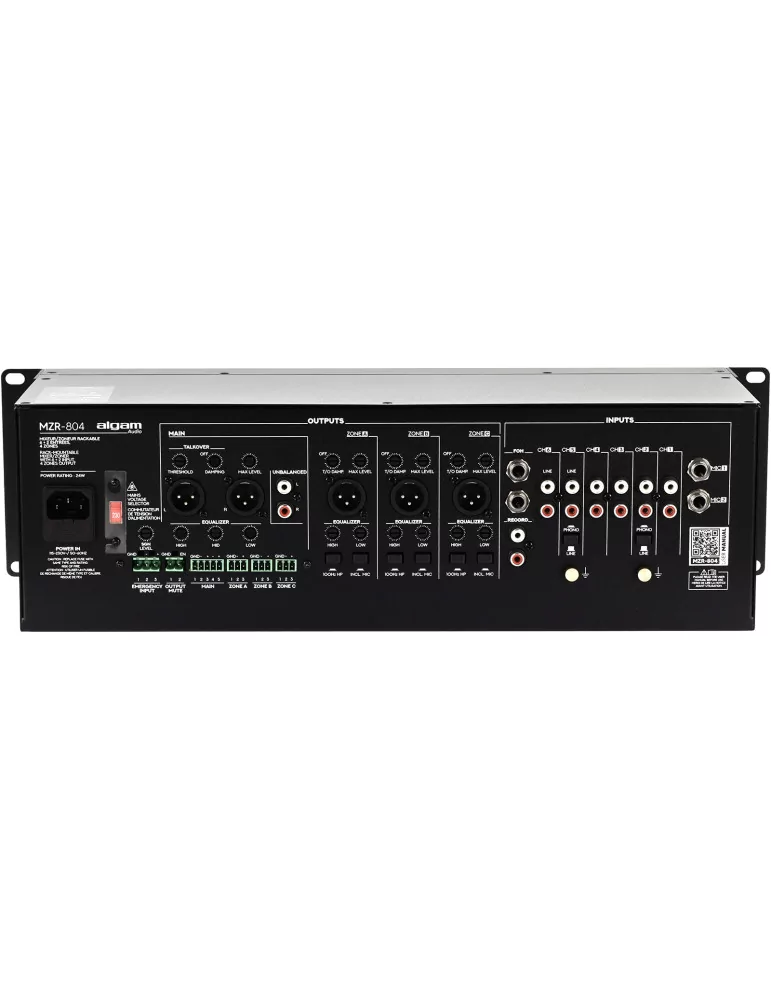

- Additional specs:
- 6 input channels: 4 Rca line level, 2 Rca phono/line
- Input channel settings: gain, PFL, level via faders, phono/line switching (channels 2 and 5)
- 6 front-panel channel level faders
- Stereo TRS jack FOH input: send signal to input 6 if FOH button pressed on front panel
- Mic inputs: 2 TRS jack (rear) and 1 XLR jack combo (front, replaces TRS Mic 1 jack input located on rear)
- Mic channel settings: mic activation, level, 3-band EQ, talkover activation
- Main output: 2 XLR, unbalanced Rca, Eurobloc
- Main output settings: 3-band equalization, talkover threshold and attenuation, output level limiter
- Main output controls: master volume (front panel)
- 3 Zone outputs: 1 XLR and 1 Eurobloc
- Zone output controls: 2-band equalization, talkover threshold and attenuation, output level limiter, 100 Hz high-pass filter, microphone signal inclusion
- Zone output controls: volume, source selector, PFL (front)
- Rca recording output: identical to Main 1, without volume and EQ control
- 6.35 mm jack headphone output with PFL level control
- Emergency input in Euroblock format: disables broadcasting of all sources via the main output when a signal is detected on this input, and broadcasts the emergency message.
- Output Mute: cut the main output by short-circuiting the contacts
- Advanced settings via jumpers on the PCB: mute the microphones on the various zones in the event of a signal on the Emergency input
- Output level indicator on each zone via 5-LED segment
- Main output level indicator via 2-10-LED segment
.
