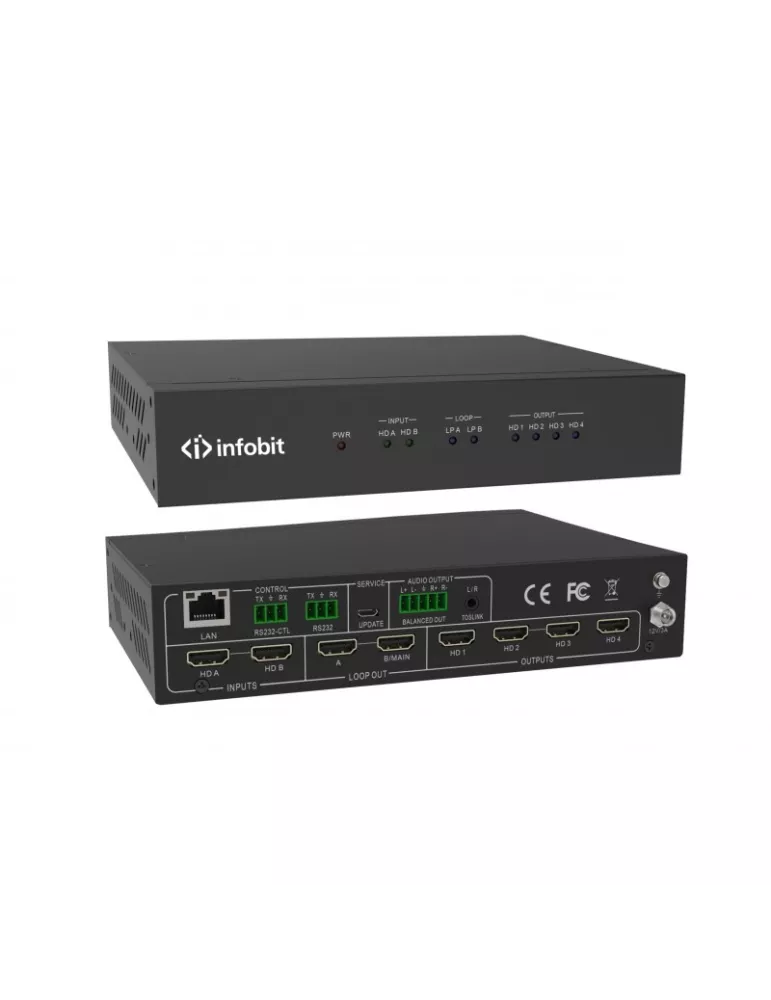

INFOBIT IWALL204 Video Wall Controller iWall 204
The INFOBIT iWall 204 video wall controller offers 2 HDMI inputs and 4 HDMI 4K60 18Gbps outputs. Compatible with HDMI 2.0 and HDCP 2.2, it handles multi-resolution video output up to 3840x2160 @ 60Hz. Featuring PIP function, it allows 180º rotation and Bezel compensation in two modes. Controllable via RS-232, TCP/IP and CEC.
3 people are viewing this right now
INFIWALL204
€1,329.88
€1,289.75
Save 3.02%
VAT included
Delivery within 5 to 7 days
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
Description
The product in question is the INFOBIT iWall 204 video wall controller.
It features two HDMI inputs and four 4K60 18Gbps HDMI outputs, guaranteeing excellent image quality. What's more, it's compatible with HDMI 2.0 and HDCP 2.2, ensuring extensive compatibility with a variety of equipment.
The multi-resolution video output can reach up to 3840x2160 @ 60Hz, offering an impressive visual experience. What's more, it's equipped with a two-channel HDMI loop for added flexibility.
The iWall 204 also features Bezel compensation with two modes, allowing you to adjust the image to your preferences. Its 180º rotation capability offers additional viewing options.
One of the outstanding features of this video wall controller is its PIP (Picture in Picture) function, which allows multiple images to be displayed at once.
For easy, convenient control, the iWall 204 can be operated via RS-232 and TCP/IP. In addition, it offers CEC control with a display that can be manipulated by PC Tool or commands.
In short, the INFOBIT iWall 204 is a versatile, high-performance video wall controller that will meet all your visualization needs.
Product Details
Data sheet
- 1920 x 1080 Full HD
-
Control: 1x LAN RJ45, 2x RS232
INPUTS: 2x HDMI
INPUTS: 2x HDMI
INPUTS: 2x HDMI
INPUTS: 2x HDMI
INPUTS: 2x HDMI
INPUTS: 2x HDMI
OUTPUTS: 4x HDMI, 2x HDMI loop, 2x Stereo Audio (3-pin phoenix port), 1x Audio L/R 3.5 mm
OUTPUTS: 4x HDMI, 2x HDMI loop, 2x Stereo Audio (3-pin phoenix port), 1x Audio L/R 3.5 mm
OUTPUTS: 4x HDMI, 2x HDMI loop, 2x Stereo Audio (3-pin phoenix port), 1x Audio L/R 3.5 mm
OUTPUTS: 4x HDMI, 2x HDMI loop, 2x Stereo Audio (3-pin phoenix port), 1x Audio L/R 3.5 mm
OUTPUTS: 4x HDMI, 2x HDMI loop, 2x Stereo Audio (3-pin phoenix port), 1x Audio L/R 3.5 mm
OUTPUTS: 4x HDMI, 2x HDMI loop, 2x Stereo Audio (3-pin phoenix port), 1x Audio L/R 3.5 mm - 218 mm (W) × 146 mm (D) × 43 mm (H)
- 2kg
- 12V/3A, 25W max.
- Infobit
Specific References
- IWALL204
