SHURE BLX14RE-PGA98H-M17 Complete rackable - PGA98H Instrument - M17 Band
Complete rackable - Instrument PGA98H - M17 Band
The sets with BLX4 or BLX88 receiver are characterized by their easy and quick implementation due to their integrated antennas. The BLX4R rackmount receivers with detachable antennas allow the use of antenna offsets and antenna distributors and are suitable for economical fixed installation.
Whatever the environment, the QuickScan function will find the best possible frequency ensuring stable transmission.
Whatever your use, among the 35 complete packages available, you will surely find one that suits you and at an attractive price.
Single complete system for brass, woodwinds, accordions and percussion.

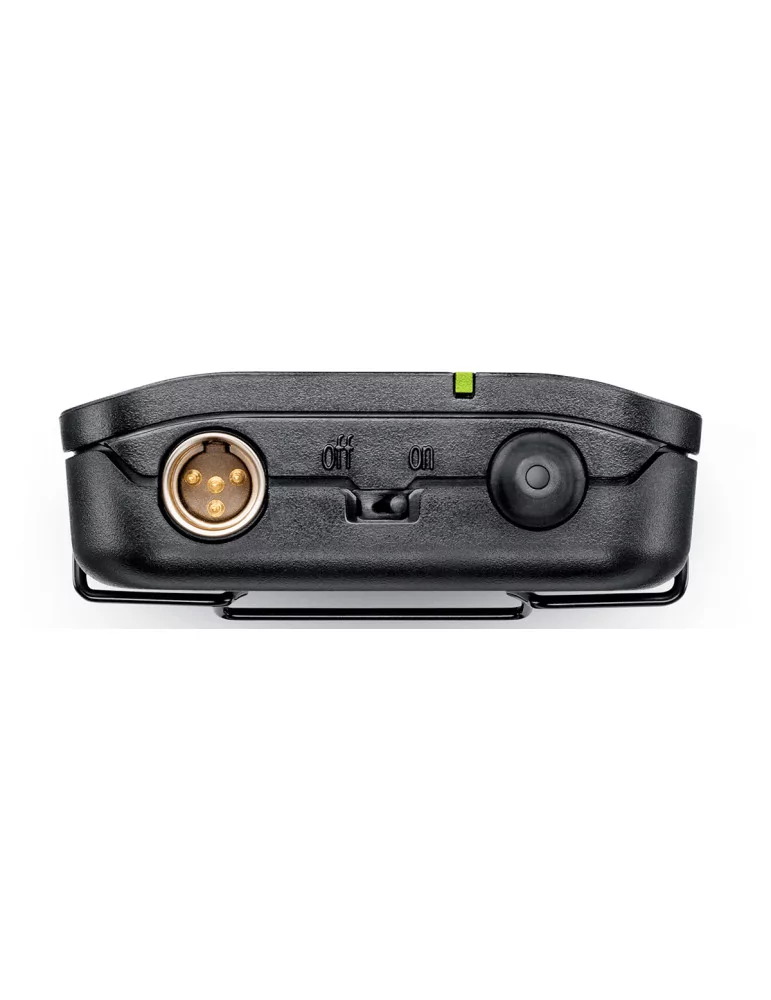

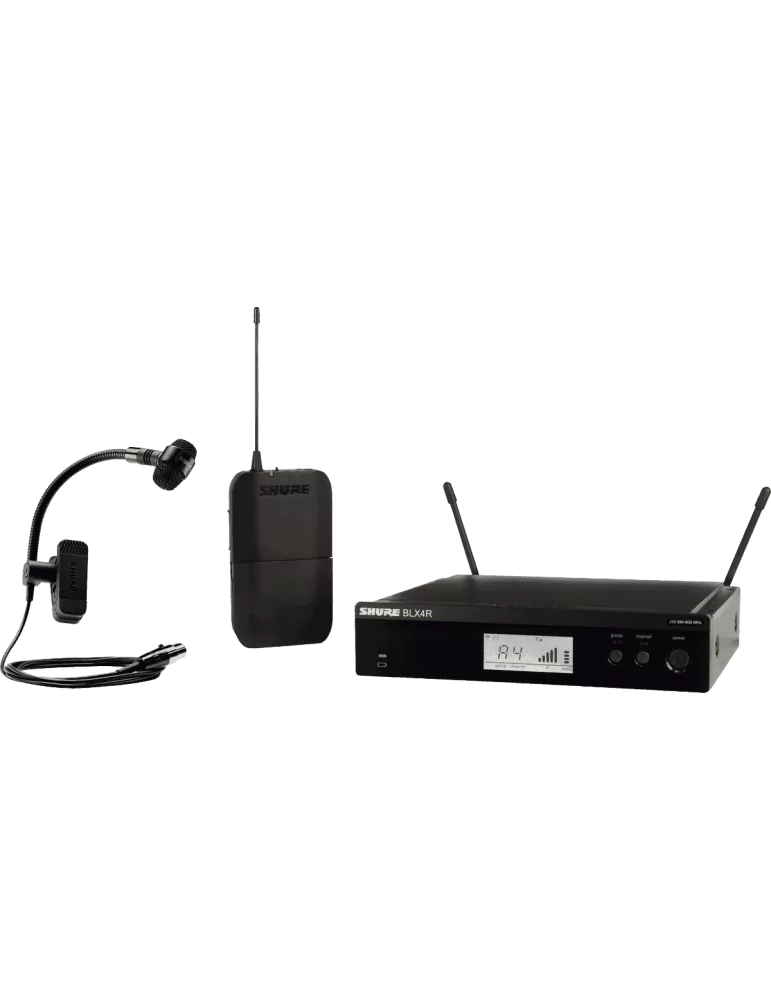

Composed of a BLX4RE receiver with single / double rack mounting kit and front panel antenna carryover, a BLX1 beltpack transmitter and a PGA98H-TQG cardioid condenser microphone with built-in clip.
- Capsule: static
- Directivity: cardioid
- Battery life: 14 hours max.
- Category: full instrument system
- Transmitter sync: QuickScan
- Frequency band: M17 - 662 to 686 MHz
- Transmission: analogue
- Power supply: Transmitter: 2 AA alkaline batteries, Receiver: AC
- Frequency response: 50 Hz - 15 kHz
- Accessories included: windshield
- Frequency scanner: Yes
- Transmitter encryption: No
- Transmitter screen display: No
- Interchangeable capsule: No
- Removable antenna: Yes
- Indicative range: 100 m
- Transmitter power: 10 mW
- Max number of simultaneous systems: 12
- Complementary specs: - Molded ABS plastic transmitter
- Molded ABS and metal receiver

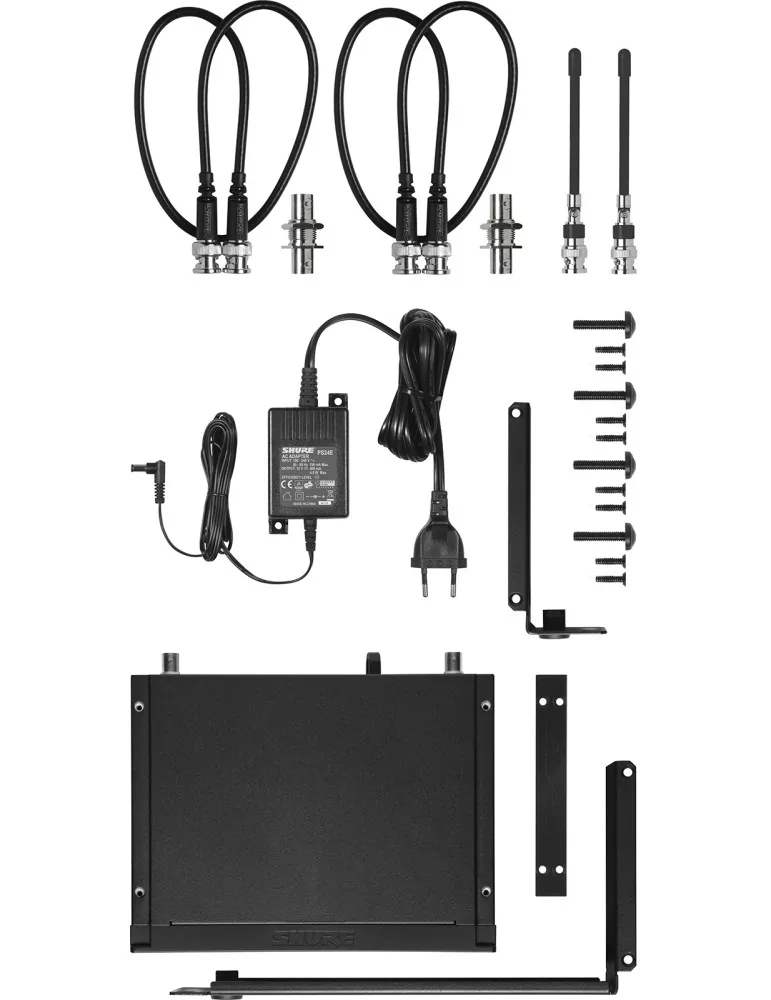

- Single and dual rack mounting kit included
- Adjustable audio output level

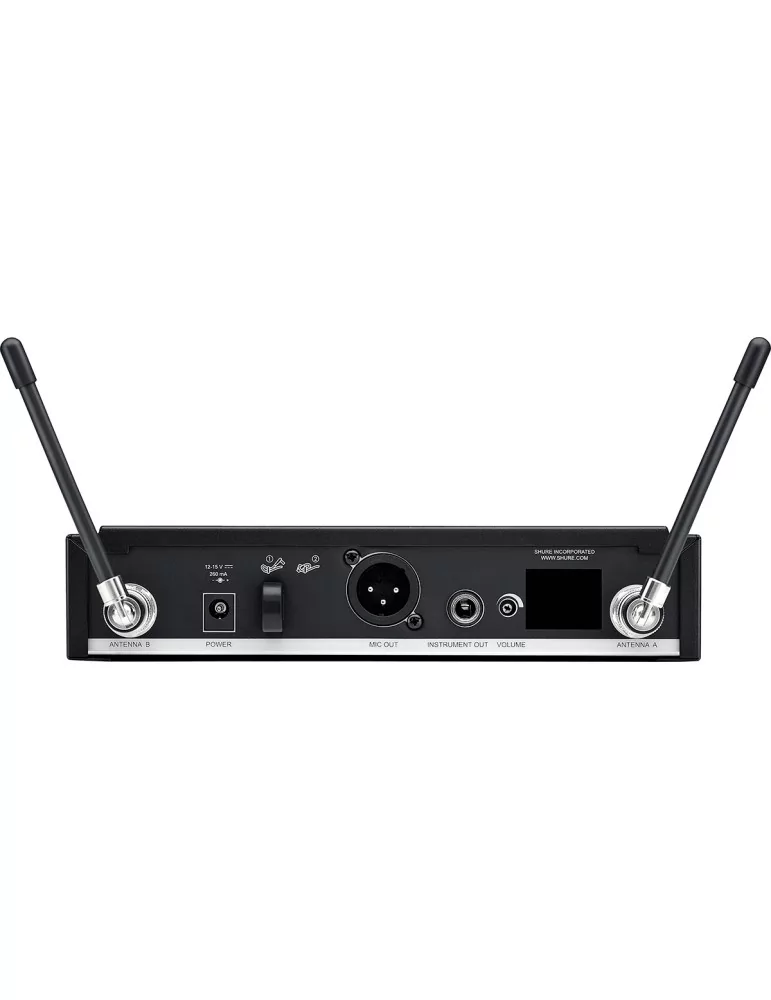

- Detachable ¼ wave antennas
- Backlit Lcd display on receiver with detailed display of RF and audio levels

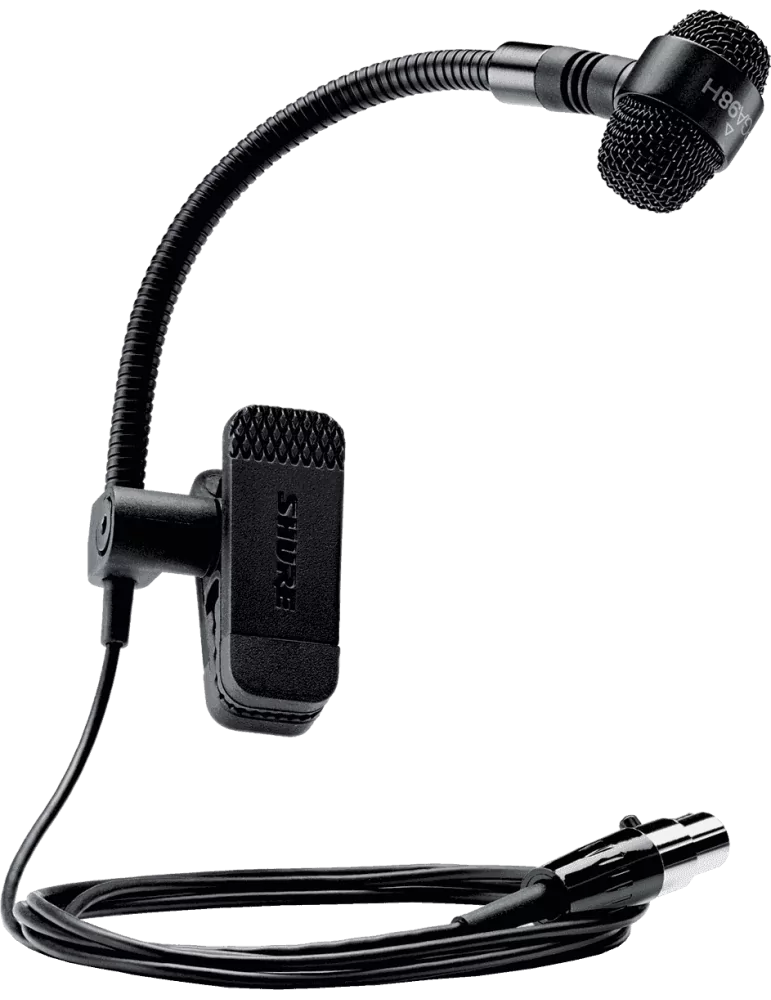

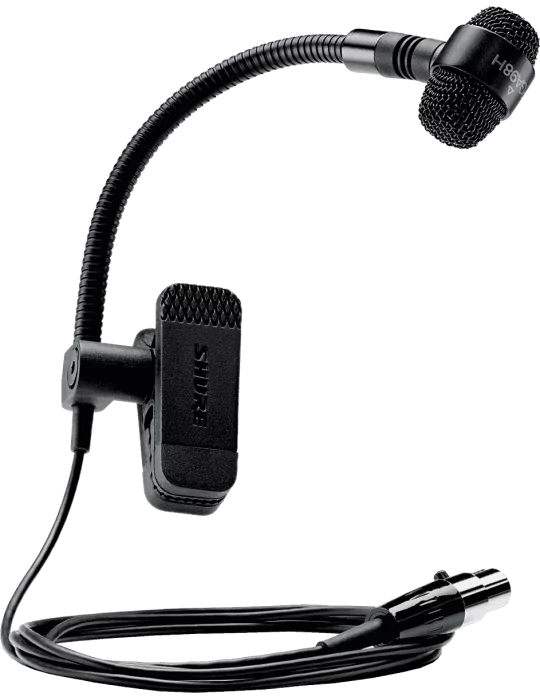

- PGA98H-C instrument microphone
Specific References
- SSP BLX14RE-PGA98H-M17
- 0042406505055
