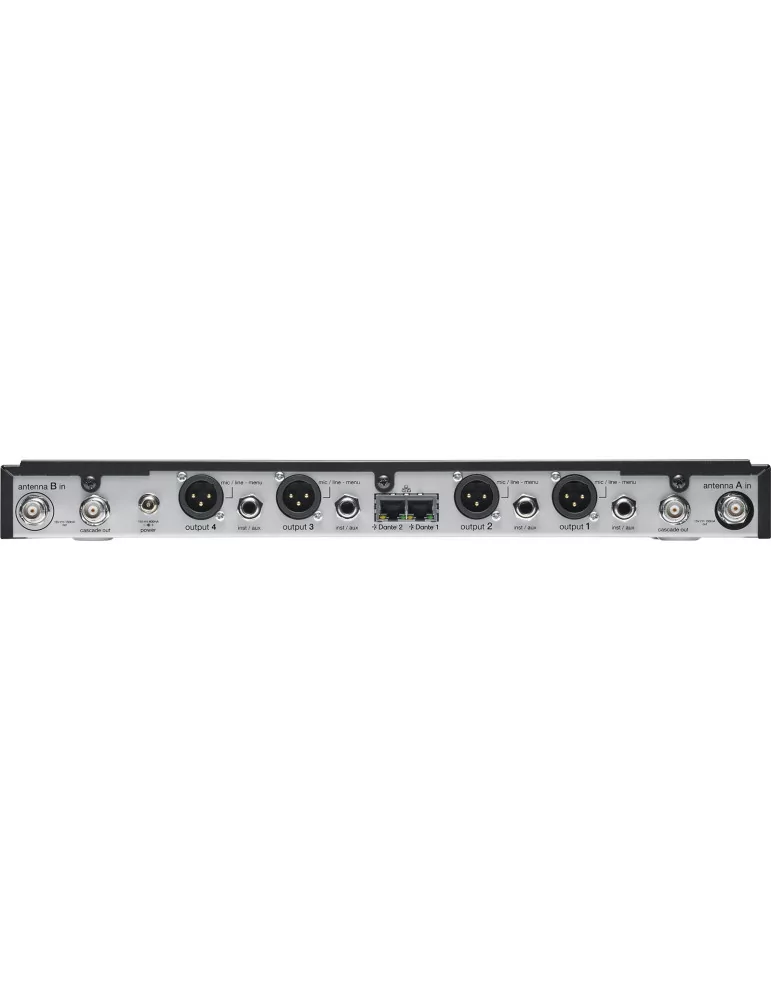

SHURE SLXD4QDAN+E-S50 Receiver - Quad Dante Receiver - S50 Band - 823-832 MHz
Combining ease of setup and use, the SLX-D series features Shure's latest technological advances in digital wireless transmission.
Whether it’s a conference room, house of worship, or performance venue, SLX-D delivers exceptional audio quality and robust, stable RF performance, ensuring worry-free operation for any event.
The system is offered with single or dual receiver in a wide range of ready-to-use configurations. The various transmitters can be powered by AA batteries or with an optional Shure SB903 lithium‑ion rechargeable battery for lower operating costs.
The SLX-D series is of course compatible with Shure’s full range of existing accessories and antennas.
Outstanding audio quality
- 24-bit / 48 kHz for a precise, dynamic signal
- Flat frequency response from 20 Hz to 20 kHz
- Dynamic range greater than 120 dB
Stable, robust RF transmission
- 44 MHz RF bandwidth
- 32 compatible frequencies per band
- 12 compatible frequencies per 8 MHz TV channel
- Frequency scanner
Quality and peace of mind
- Setup assistant for easy deployment
- Ethernet port for group scan, configuring multiple receivers, firmware updates, and control via external controller
- Up to 8 hours of runtime with the optional SB903 battery
- Choice between the SBC10-203-E single charger and the SBC203-E dual docking charger
- Rackmount kit included with the single receiver
Available in the following frequency bands:
- G59: 470 to 514 MHz
- H56: 518 to 562 MHz
- J53: 562 to 606 MHz
- K59: 606 to 650 MHz
- L56: 650 to 694 MHz
- Four channels in a 1U rack
- Dante Audio networking, carried over a single Ethernet cable
- Wide tuning range of 138 MHz
- 32 channels available per frequency band
- Transparent 24-bit digital audio
- Extended frequency range from 20 Hz to 20 kHz (will depend on the microphone)
- 118 dB dynamic range
- Audio summing to adapt receiver outputs to the mixer’s available channels (4, 3, 2, or 1)
- The RF cascade function allows creation of an 8-channel system by linking two SLXD4QDAN+ units; no additional accessories required
- Bias voltage power management
- Digital predictive switching diversity
- Easy pairing of transmitters and receivers via scan and IR sync
- 4 XLR outputs, 4 1/4'' outputs, and 2 local Ethernet connections
- Compatible with Shure Wireless Workbench® control software
- Rugged metal construction
- Included accessories: 1/4-wave antennas, front-mounted antenna pass-through, rack ears
- Power supply: External power supply
- Capsule: N/A
- Category: Wireless microphone receiver
- Dimensions (mm): 42 x 393 x 152
- Directivity: N/A
- Max number of simultaneous systems: 32
- Weight: 1.75 kg
- Frequency response: 20 Hz – 20 kHz
- Transmission: Digital
Specific References
- SSX SLXD4QDAN+E-S50
- 0042406871389
