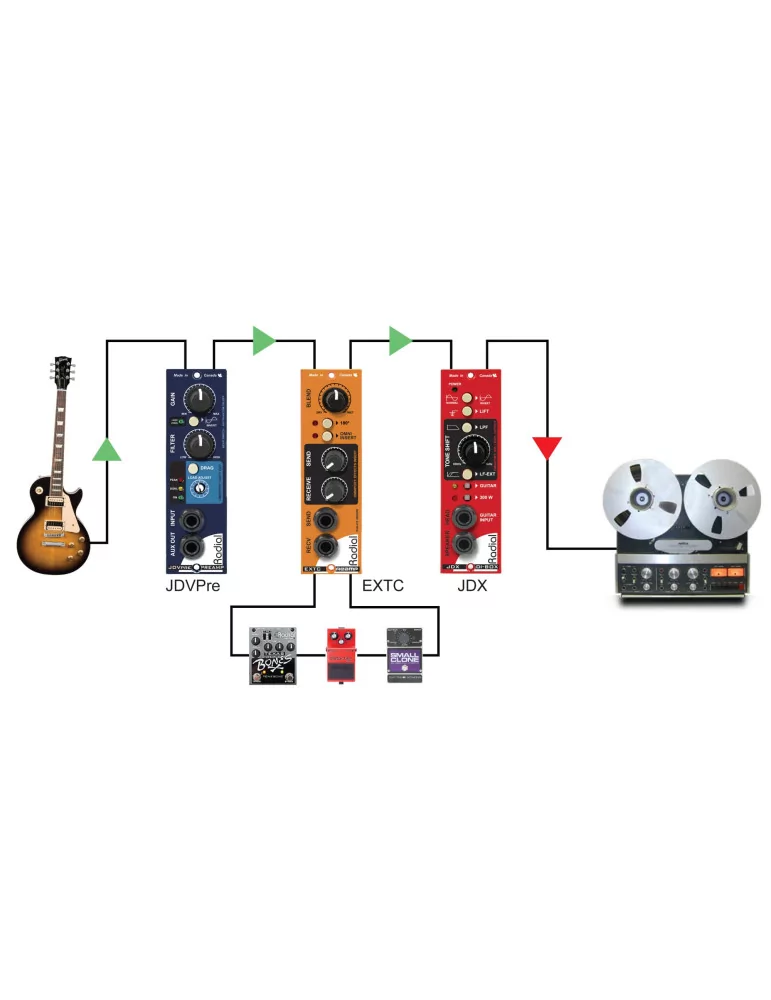

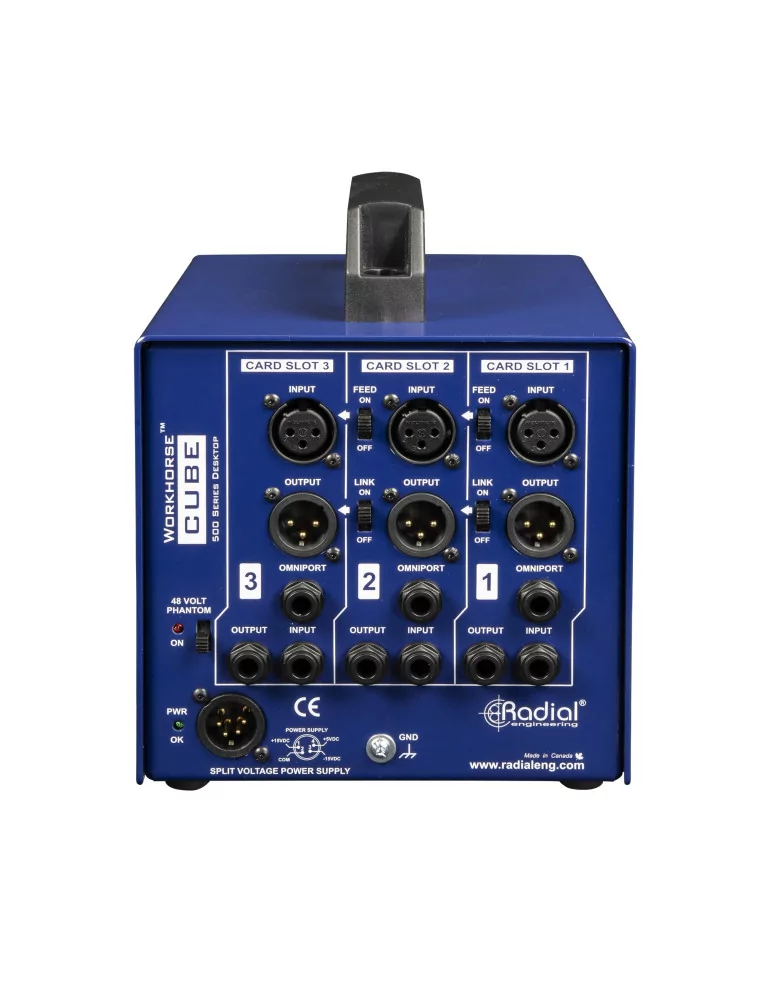

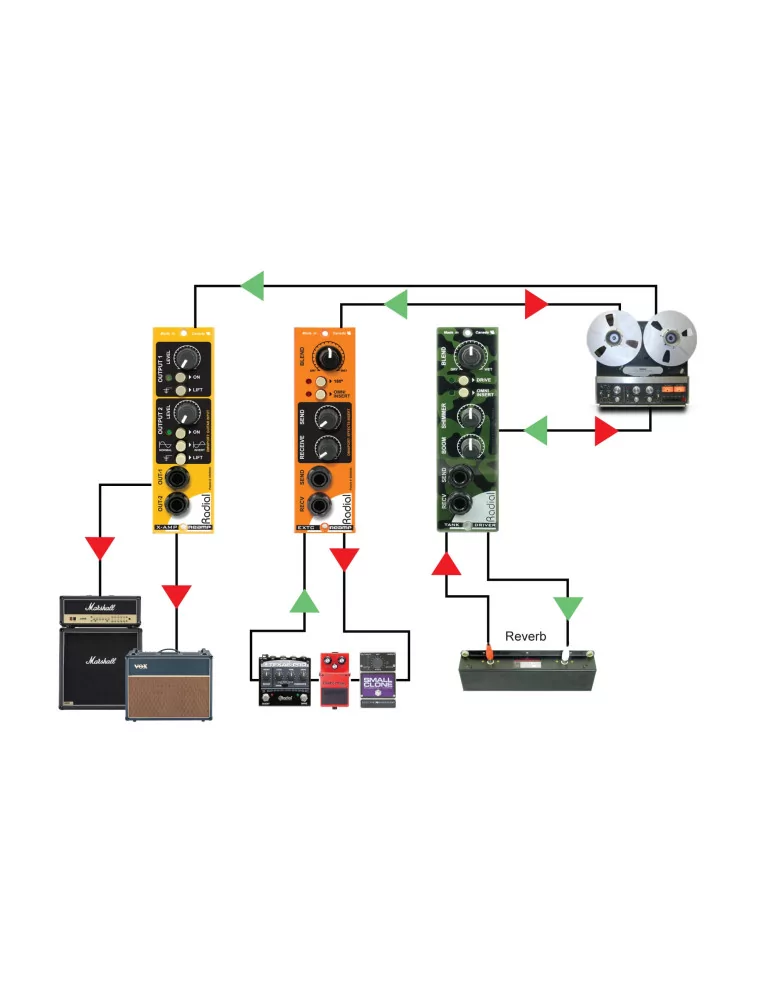

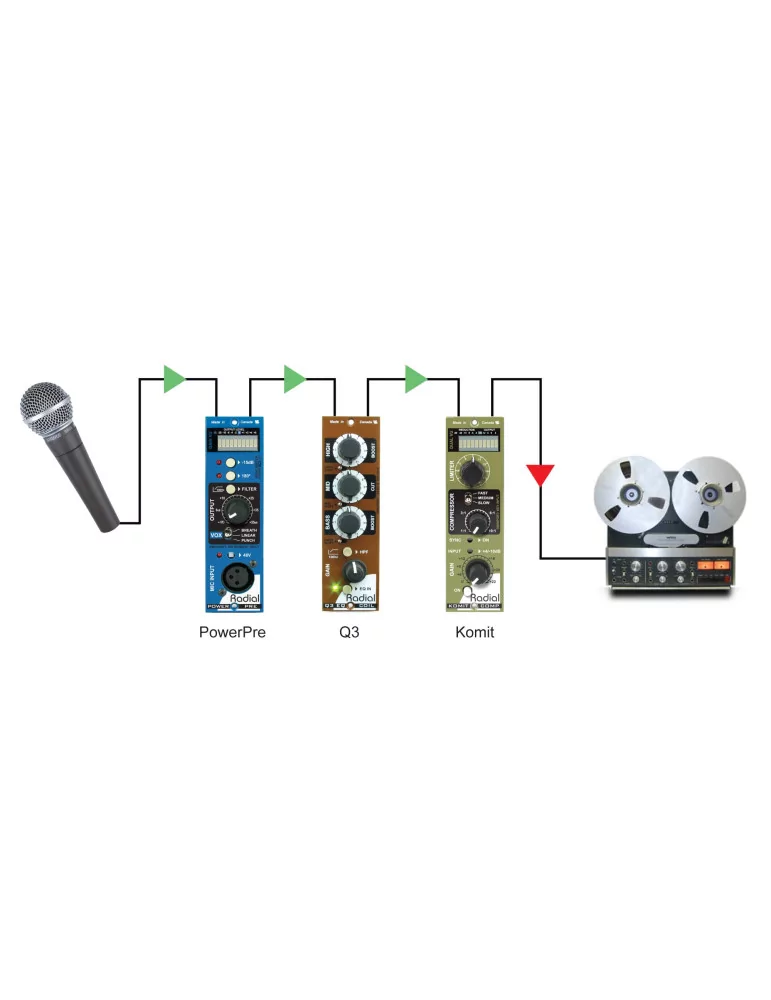

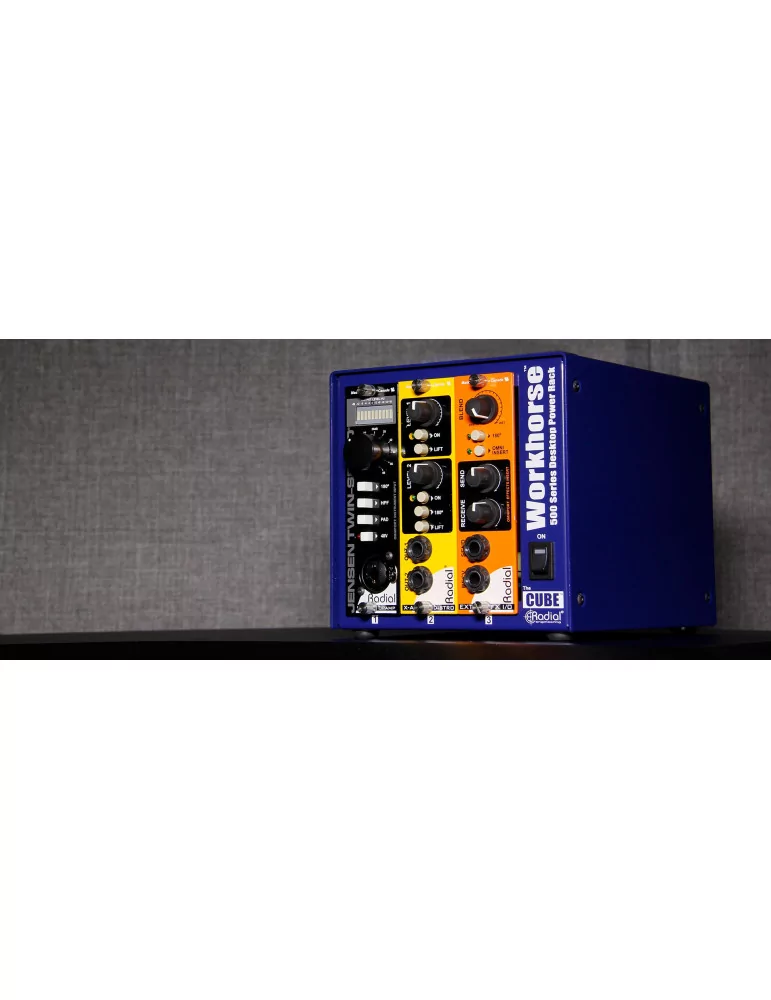

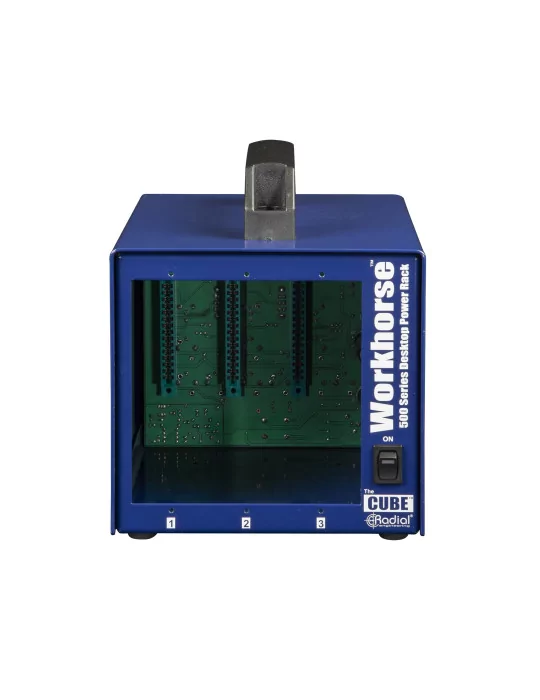

The Cube can also be flush mounted on a work surface using the mounting flange option. In keeping with the criteria set by Workhorse Radial, the Cube is 100% compatible with conventional API modules, while being optimized for a growing Radial range of preamps, processors and routing devices.The basic construction starts with a 14-gauge steel frame and 15-pin gold-plated dual-contact EDAC connectors for optimal signal transfer. To maximize headroom, the external power supply delivers 500mA of current for power-hungry modules, plus a separate 48V phantom power supply that delivers 10mA for mic preamps. Rear panel connectivity includes standard XLRs for each module and TRS jack doubling for flexibility and parallel routing. Instead of the traditional 'wired patch' system used by others, The Cube features an innovative 'feed' function that routes modules directly after each other, without the need for a cable. Stereo wiring of 2 modules is also done with a simple switch.The Cube is also equipped with an OMNIPORT jack on each slot.This TRS jack allows each third-party module manufacturer to implement a unique function for a given module, such as a side-chain for a compressor or an instrument input on a preamp.
- Display: LED
- Category: 500 format
- Digital conversion: no
- Ports: API 500
- Inputs: 3 x XLR, 3 x jack
- Outputs: 3 x jack, 3 x XLR
- Frequency response: 20 Hz - 20 kHz
- Dimensions (mm): 190
