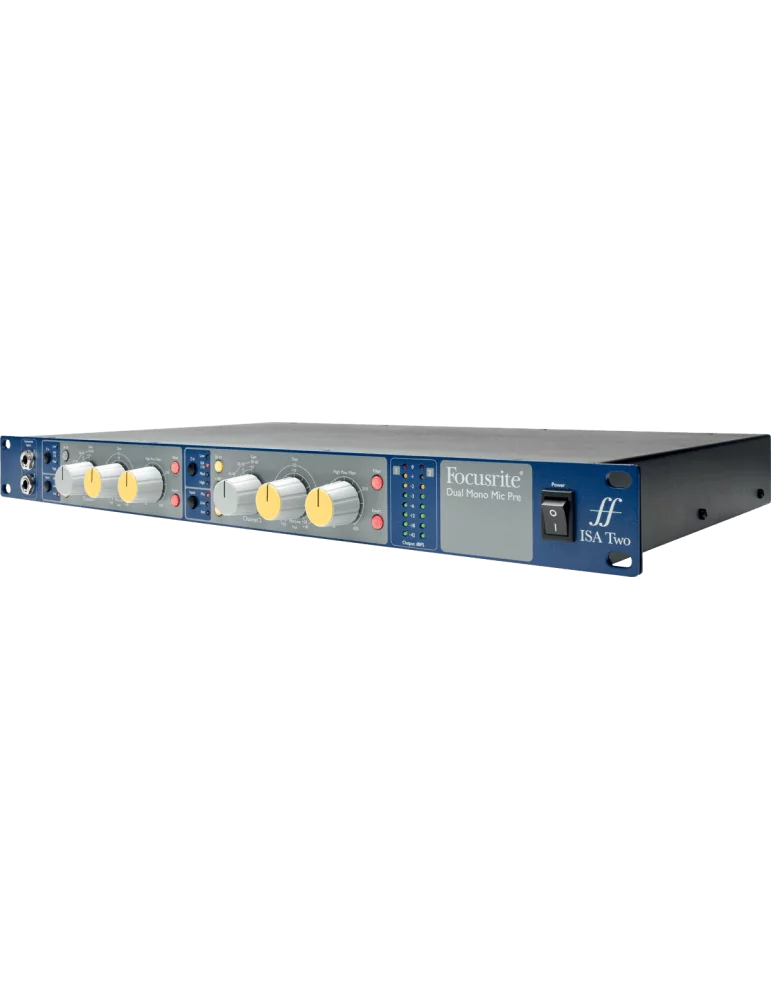

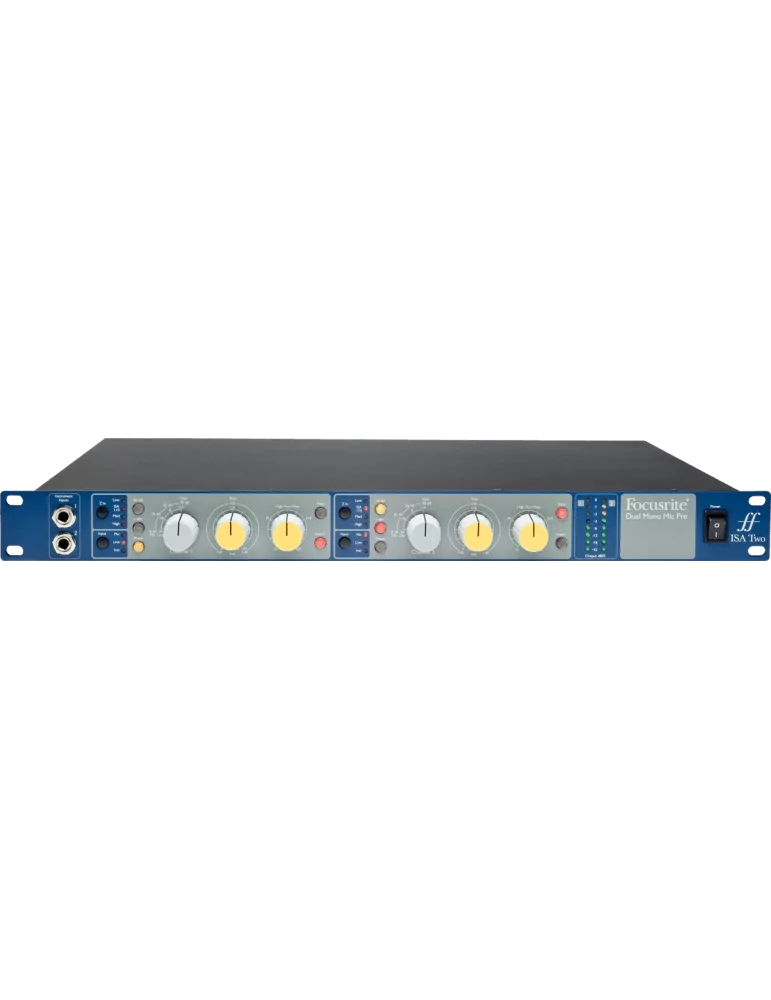

FOCUSRITE PRO ISA-TWO ISA - 2 channels
ISA - 2 channels
But an additional +20 dB of variable gain through the rotary Trim provides a "whopping" 80 dB of headroom. Enough to handle any situation.
Swiss Army Knife.

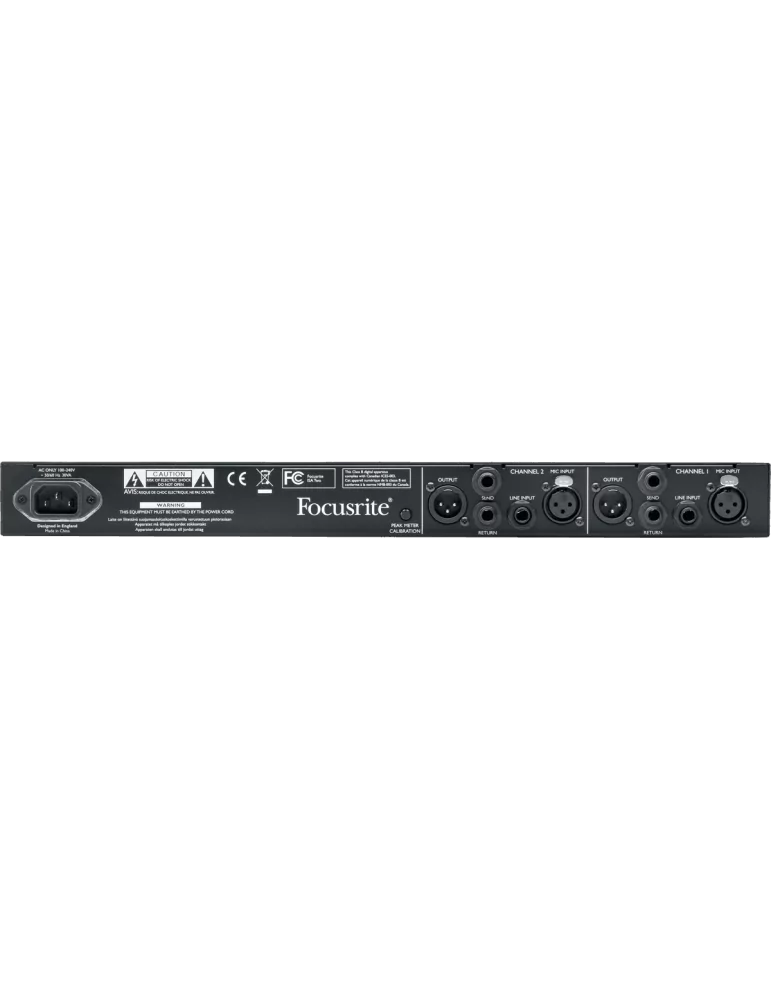

The disengageable "sliding" high-pass filter offers a variable cutoff frequency between 16 and 420 Hz. A pair of 8-segment LED indicators display the peak signal level in dBFS, while a potentiometer - located on the rear panel - allows calibration of the meters to match external AN converters. Switchable insert points on the rear panel allow the use of (line-level) processors such as compressors or equalizers. A real workhorse!
- EQ: high-pass filter
- Vumeter: LED level meter
- Category: mic preamp
- Audio outputs: XLR
- Dimensions (mm): 480 x 280 x 44
- Gain: 80 dB
- Weight (kg): 3.70 kg
- Remote: No
- Lights: No
- Insert: Yes
- Phantom power: Yes
- Impedance selector: Yes
- Phase opposition: Yes
- Compressor: No
- Rack Unit: 1
- No. of Channels: 2
- No. of Mic Inputs: 2
- No. of Instrument Inputs: 2
- Additional Specs: - 2 channel preamp with per channel:
- Line and instrument inputs (located on front panel) balanced 6.35mm jack and XLR mic input (with Lundahl LL1538 transformer)
- Step gain control potentiometer (10dB), trim potentiometer
- Power supply. 48 V, phase inverter and variable high-pass filter (18 dB/octave from 16 to 420 Hz)
- Impedance selector (low, ISA 110, med, high)
- 8-segment LED meter (customizable calibration)
- Effects insert 2 x balanced 6.35 mm jack
Specific References
- RFR ISA-TWO
- 0815301005148
