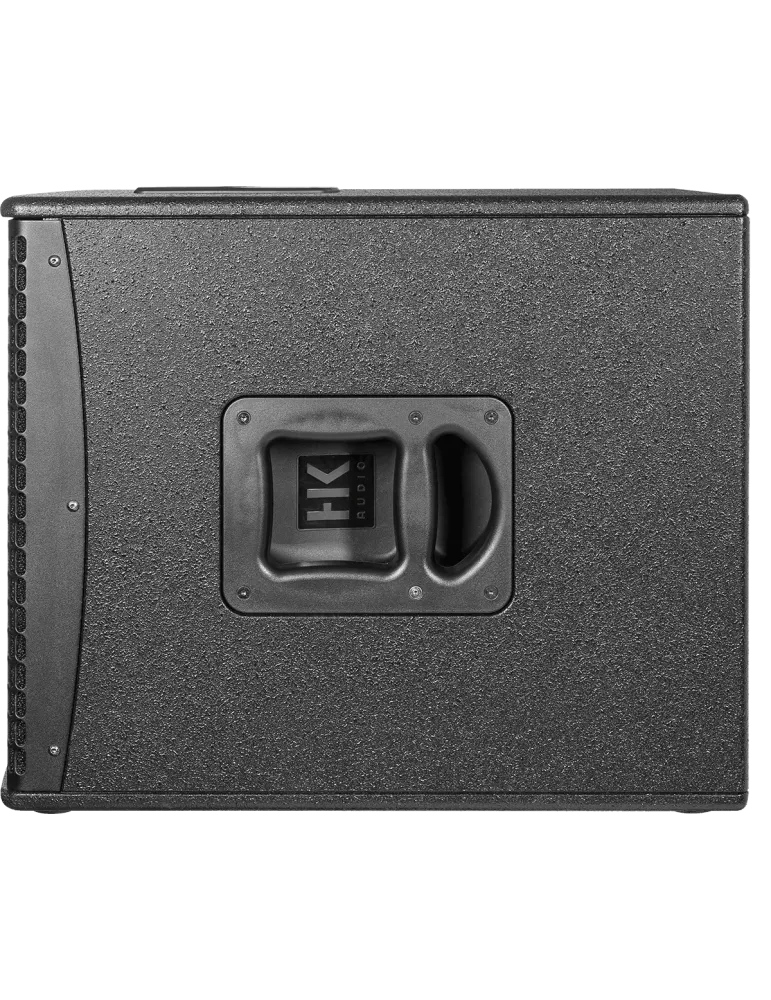

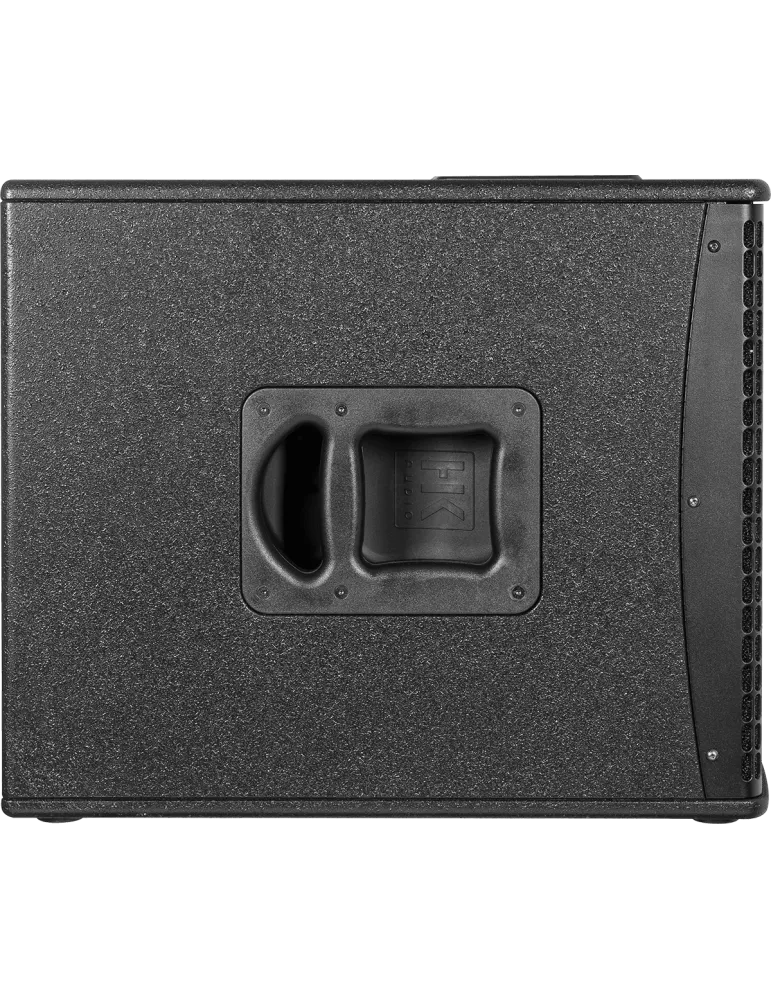

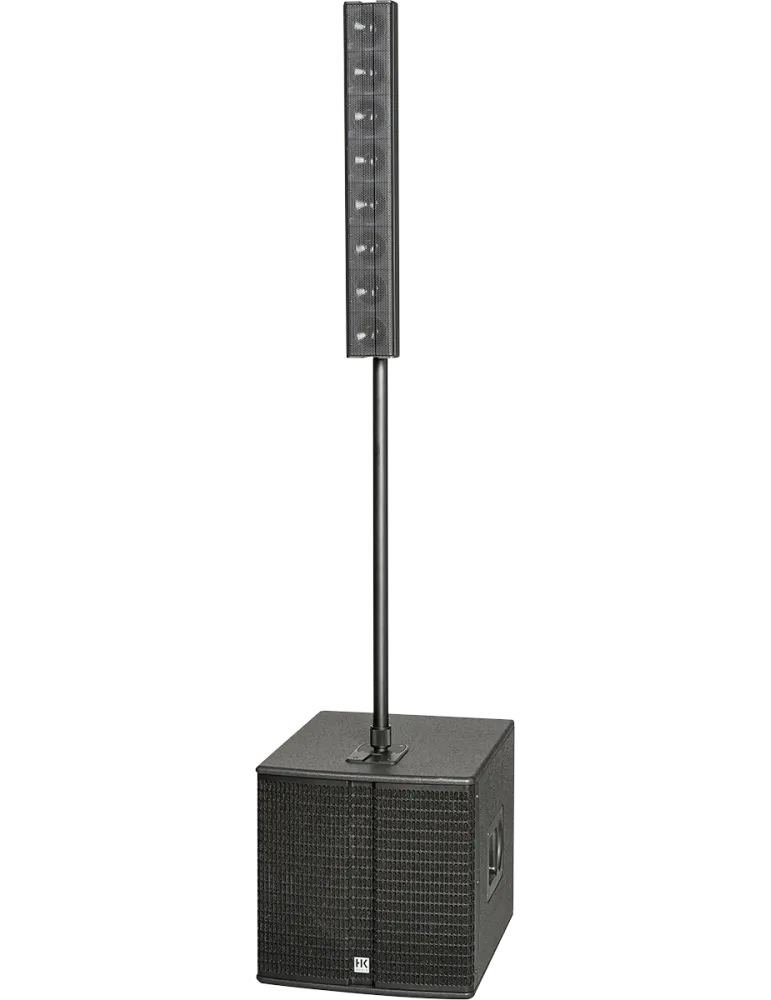

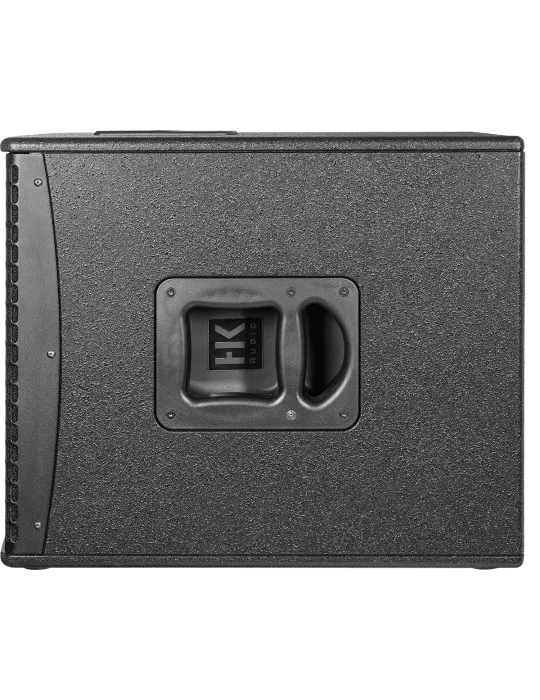

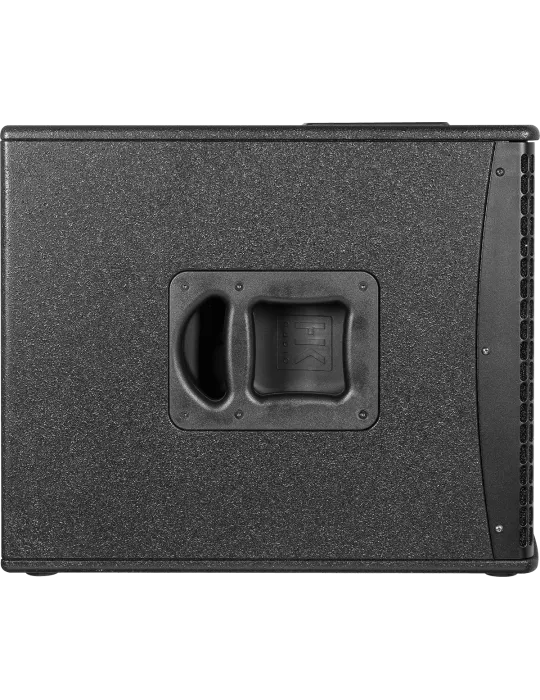

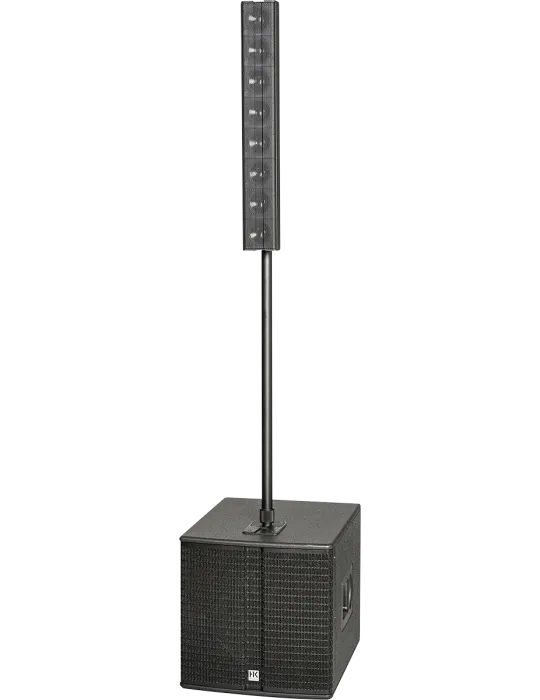

HK AUDIO SMARTBASE15-SI Amplified systems - E115 Sub D + EP 1 + E 835

The new E 115 Sub D subwoofer combines the ease of handling for which the ELEMENTS series is renowned, with the extended dispersion of the column, while featuring full networked control of the integrated DSP platform.

The subwoofer is compatible with all existing ELEMENTS columns, making it suitable for professional sound applications and installations. A wide range of DSP options is available to also control up to three E 835 columns, themselves powered via the subwoofer's integrated power amplifier.

This system is expandable by adding up to two additional E 835 columns and an L Sub 1500 A subwoofer, the latter allowing the kit to operate in cardioid mode.

*: Depending on the application (location, type of music, etc...) the audience capacity may vary.

- Category: Column system

- Color: Black

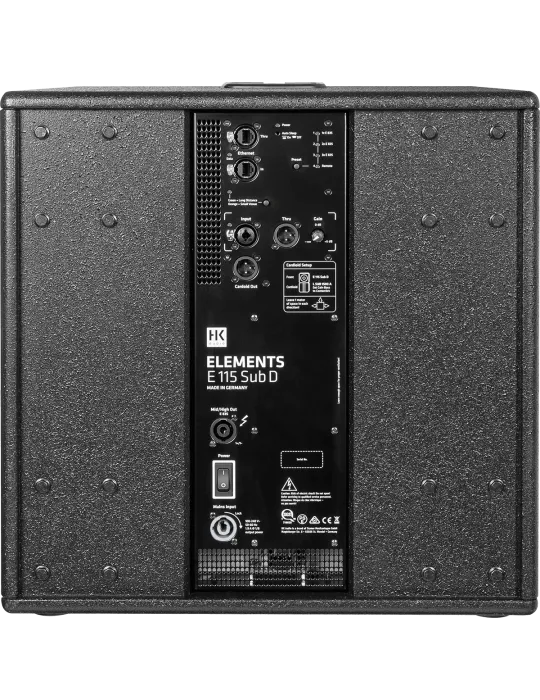

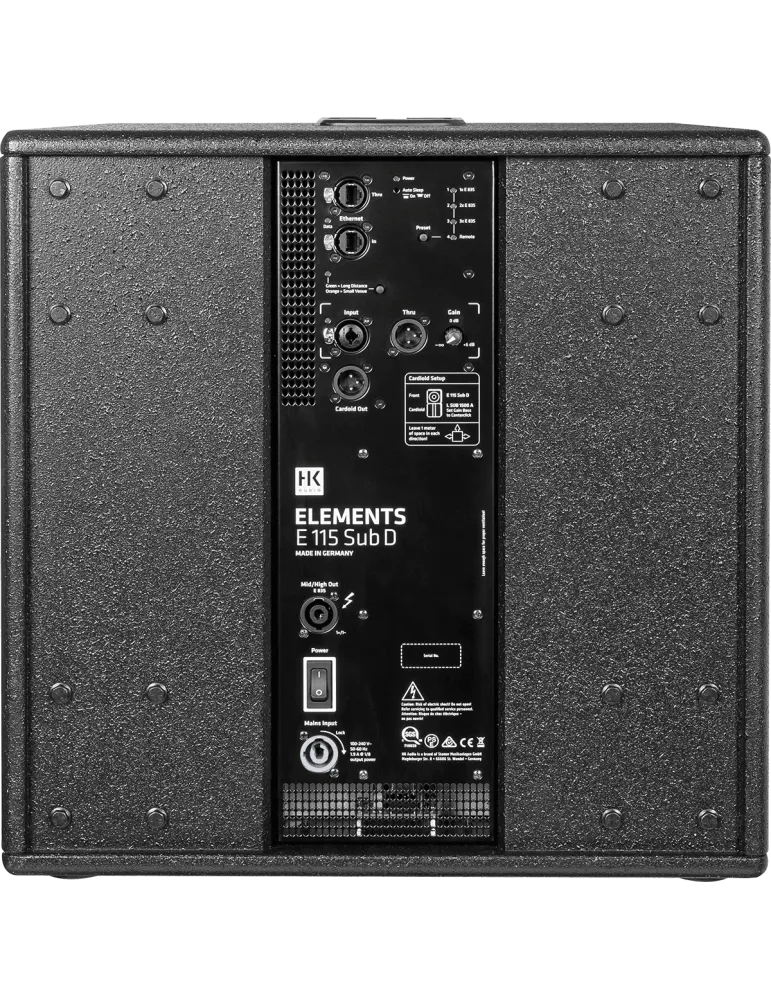

- Inputs: XLR/jack, Ethercon

- Weight (kg): 33 kg

- Sat - Dimensions (mm): 110 x 465 x 120

- Sat - Speakers: 3.5"

- Sat - Weight: 2.35 kg

- Sat - Frequency response: 140 Hz - 20 kHz

- Outputs: Speakon, e-Connect, Link XLR

- Sub - Dimensions (mm): 485 x 485 x 595

- Sub - Speakers: 15"

- Sub - Weight: 29.60 kg

- Sub - SPL max: 128 dB

- Type: Active

- Additional specs:

- Frequency response -10 dB: 44 Hz - 20 kHz

- Bass amplifier power: 1500 W

- Column amplifier power: 900 W

- Amplification type: Class D

- Max. number. of columns: 3

- Filter presets: 1× E 835, 2× E 835, 3× E 835, Remote

- Network port: Ethercon RJ45, 1× In, 1× Thru

- Management software: DSP CONTROL (Windows, Mac OS)

- Power supply: 1× Powercon NAC3

- Column construction: aluminum

- Subwoofer construction: MDF
