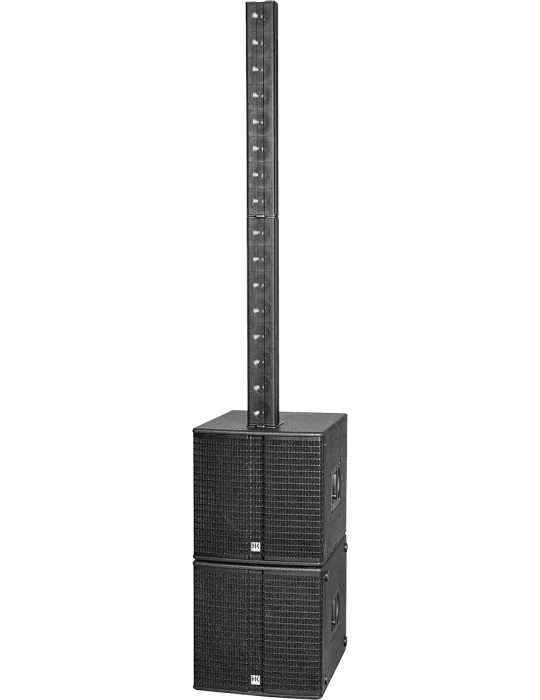

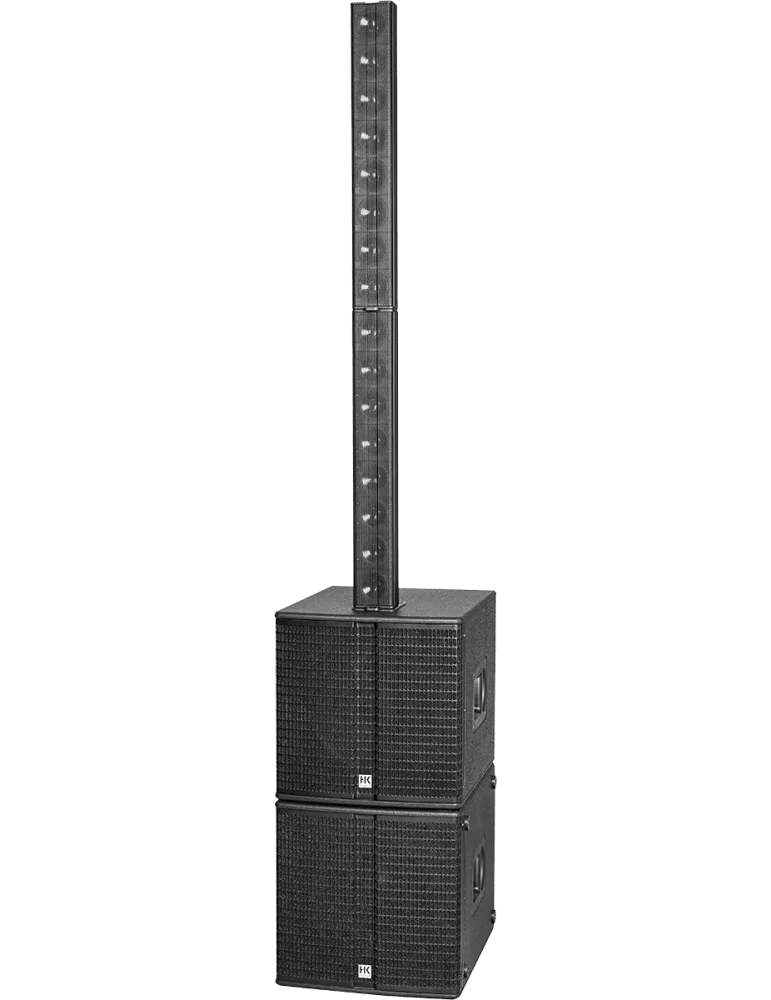

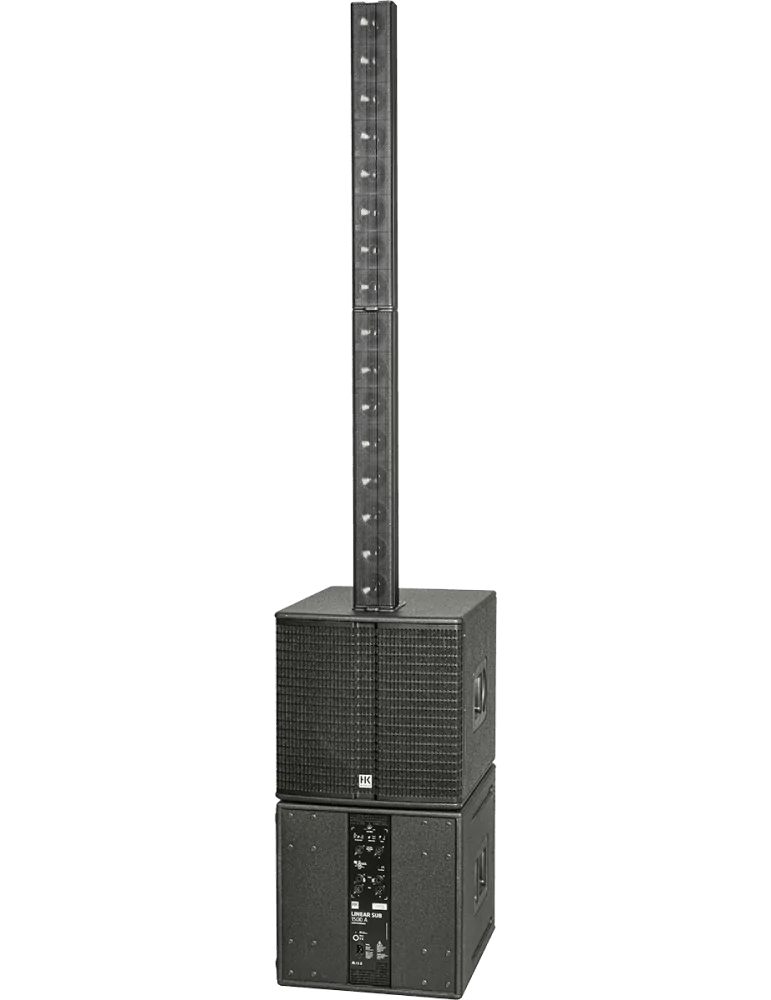

HK AUDIO BIGBASE15-SI Single systems - E115 Sub D + L Sub 1500 A + 2x E835

The new E 115 Sub D subwoofer combines the ease of handling for which the ELEMENTS series is renowned, with the extended dispersion of the column, while featuring full networked control of the integrated DSP platform.

The subwoofer is compatible with all existing ELEMENTS columns, making it suitable for professional sound applications and installations. A wide range of DSP options is available to also control up to three E 835 columns, themselves powered via the subwoofer's integrated power amplifier.

The included L Sub 1500 A subwoofer allows system operation in cardioid mode.

* : Depending on the application (location, type of music, etc...) audience capacity may vary.

- Category: Column system

- Color: Black

- Inputs: XLR/jack, Ethercon

- Weight (kg): 68.40 kg

- Sat - Dimensions (mm): 110 x 465 x 120

- Sat - Speakers: 3.5"

- Sat - Weight: 2.35 kg

- Sat - Frequency response: 140 Hz - 20 kHz

- Outputs: Speakon, e-Connect, Link XLR

- Sub - Dimensions (mm): 485 x 485 x 595

- Sub - Speakers: 15"

- Sub - Weight: 29.60 kg

- Sub - SPL max: 128 dB

- Type: Amplified

- Complementary specs:

- Frequency response -10 dB: 44 Hz - 20 kHz

- Bass amplifier power E 115 Sub D: 1500 W

- Column amplifier power E 115 Sub D: 900 W

- Amplifier power L Sub 1500 A: 1200 W (peak)

- Amplification type: Class D

- Max. number. of columns: 3

- Filter presets: 1× E 835, 2× E 835, 3× E 835, Remote

- Network port: Ethercon RJ45, 1× In, 1× Thru

- Management software: DSP CONTROL (Windows, Mac OS)

- Column construction: aluminum

- Subwoofers construction: MDF
