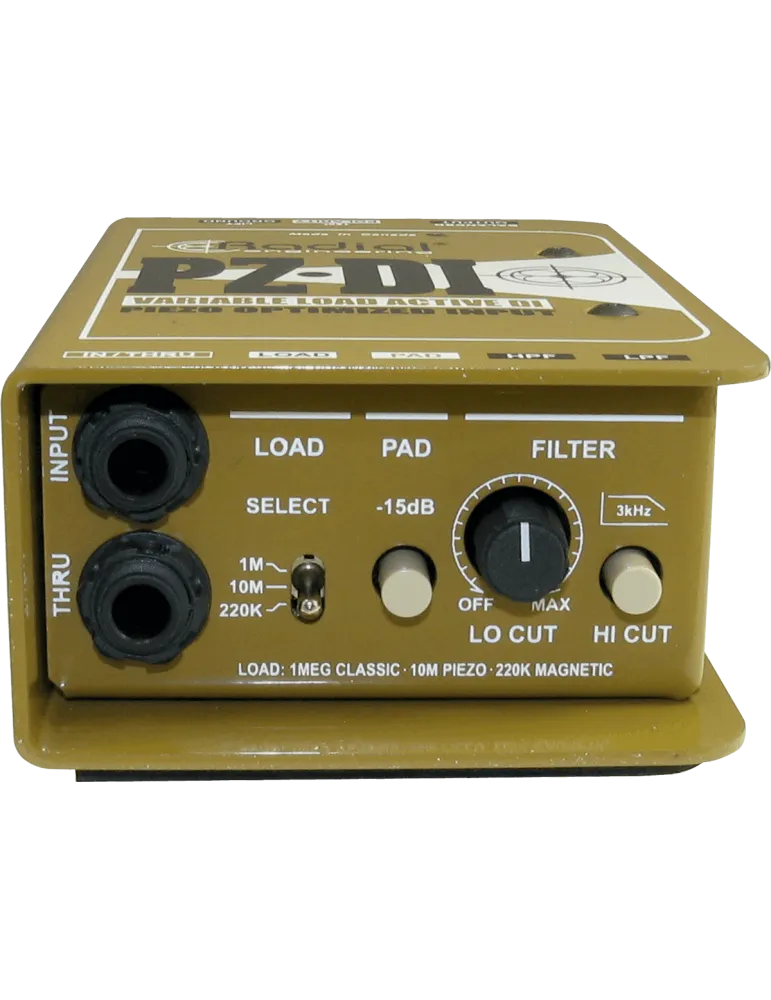

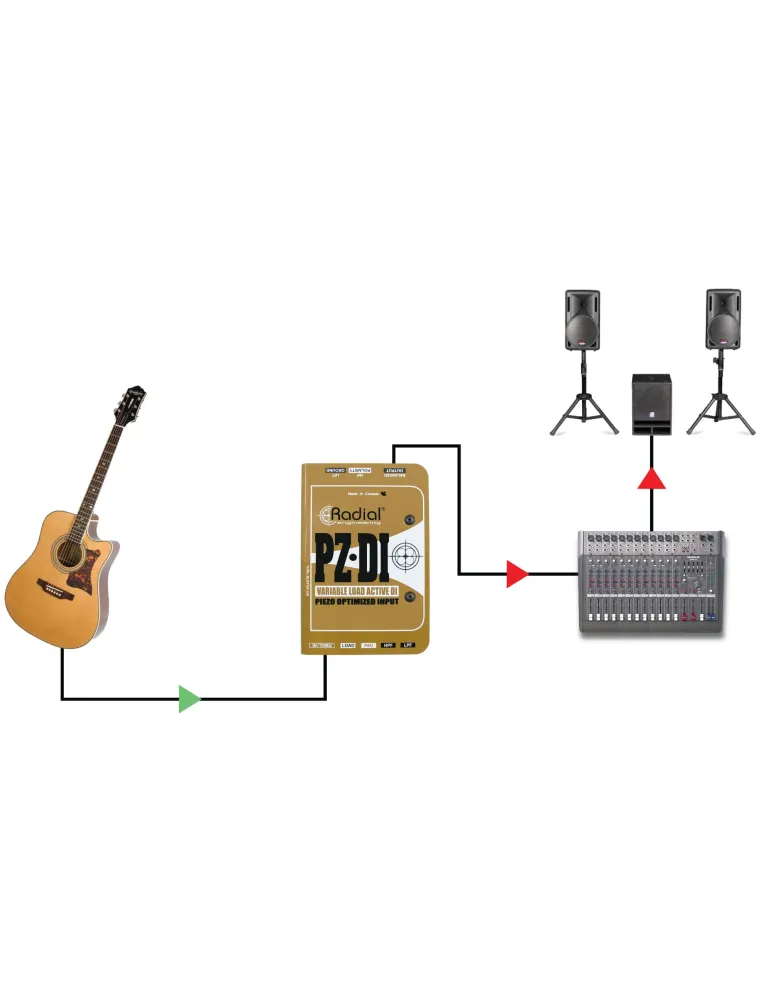

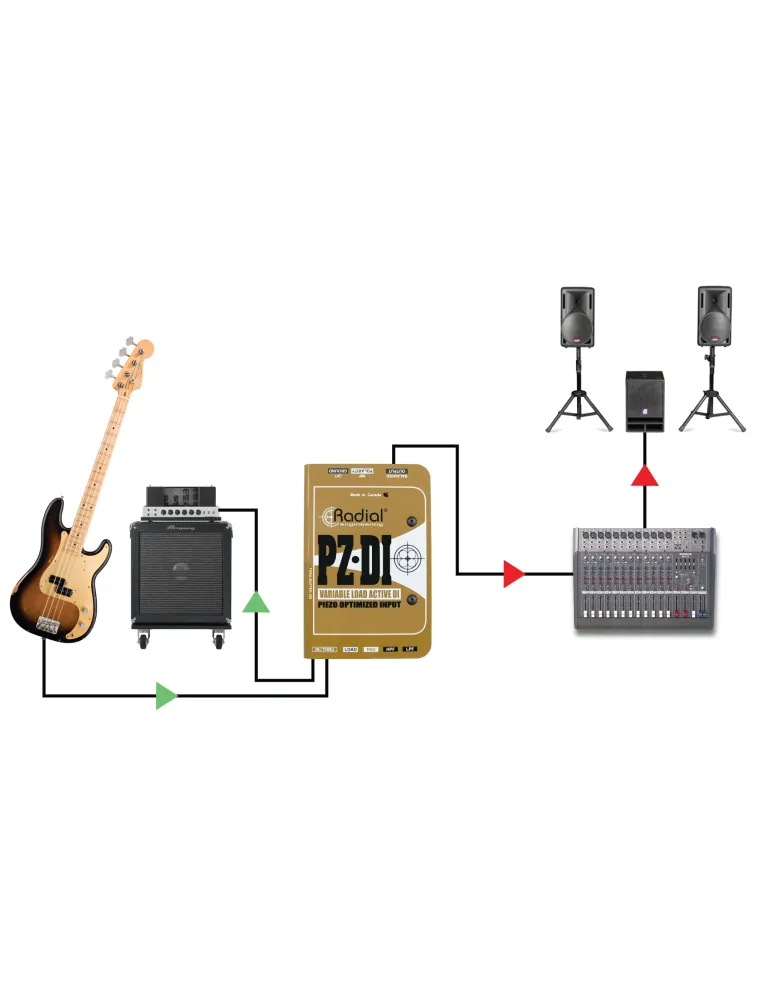

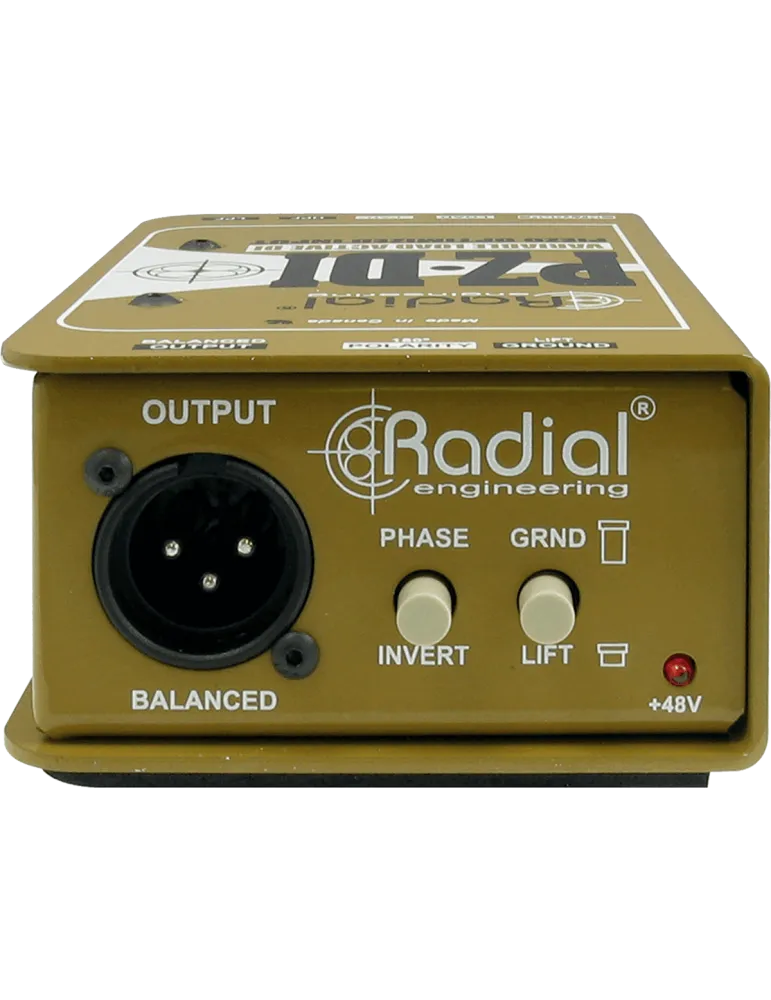

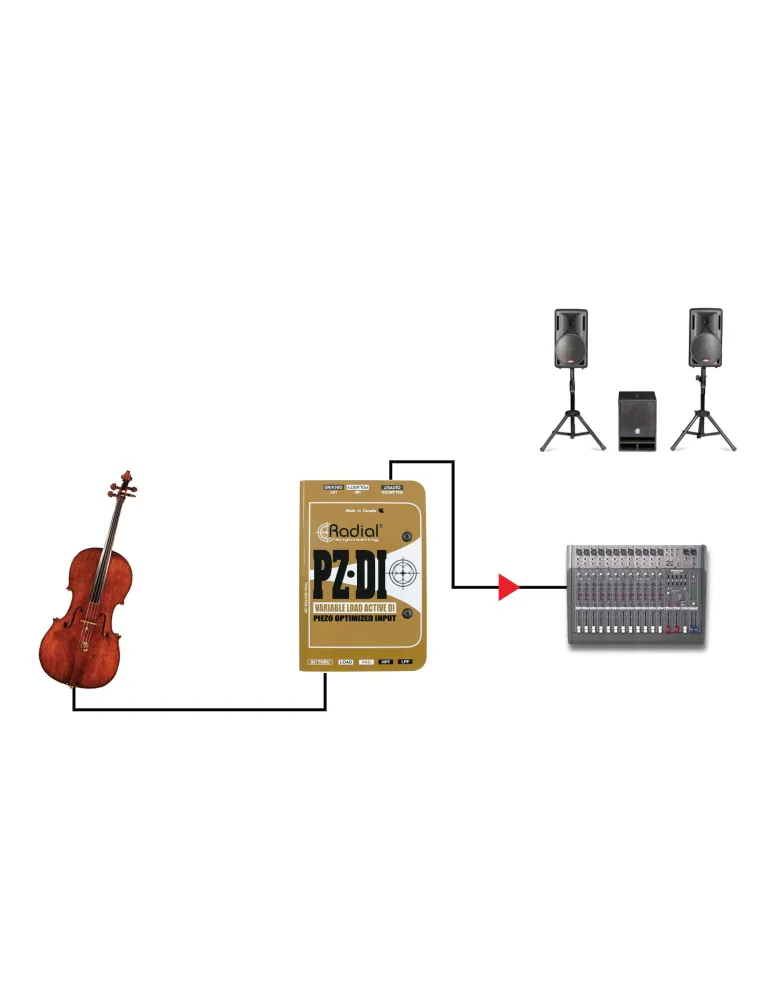

The 3 position impedance switch is the focal point of the PZ-DI: The 1 meg ohm position provides the classic impedance available on most active DI boxes, the 220k ohm setting heats up the signal to suit a magnetic pickup, much as if the instrument were connected to a tube amp.The 10 meg ohm setting is used to compensate for the screechy sound that usually emanates from piezo-equipped instruments.in addition, a variable high-pass filter allows you to 'sculpt' the instrument by gently attenuating low frequencies, eliminating any unwanted resonance. You can, for example, keep the low end of the spectrum on a cello, but have this filter work to better suit a violin. On active instruments, such as acoustic guitars with a preamp, you can engage this filter for a smoother, more natural sound.To optimize signal handling and reduce distortion, the PZ-DI incorporates an innovative DC power supply that converts phantom power to provide more headroom. This provides a comfortable dynamic range for acoustic instruments. For high level sources, such as active bass or digital keyboards, simply activate the -15dB pad. The Radial PZ-DI also features a 180° polarity inverter and a ground lift.
- THD: 0.02%
- Display: LED
- Category: direct box
- Digital conversion: no
- Inputs: jack
- Outputs: jack, XLR
- Settings: Low-pass filters, -15 dB attenuator, high-pass filter, impedance selector
- Power supply: Phantom power
- Frequency response: 20 Hz - 20 kHz
- Dimensions (mm): 84 x 127 x 48
- Weight (kg): 544 kg
- Lights: No
- Built-in preamp: No
- Max input level (dBu): 10
- No. of channels: 1
- Additional specs: - Technology: active
- Transformer: Low noise FET analog circuit
- Dynamic range: 105 dB
- Input impedance: 10 M/1 M/220 kΩ
- Output impedance: 200 Ω
- Very robust construction: 1.55 mm steel chassis
Specific References
check_circle
check_circle

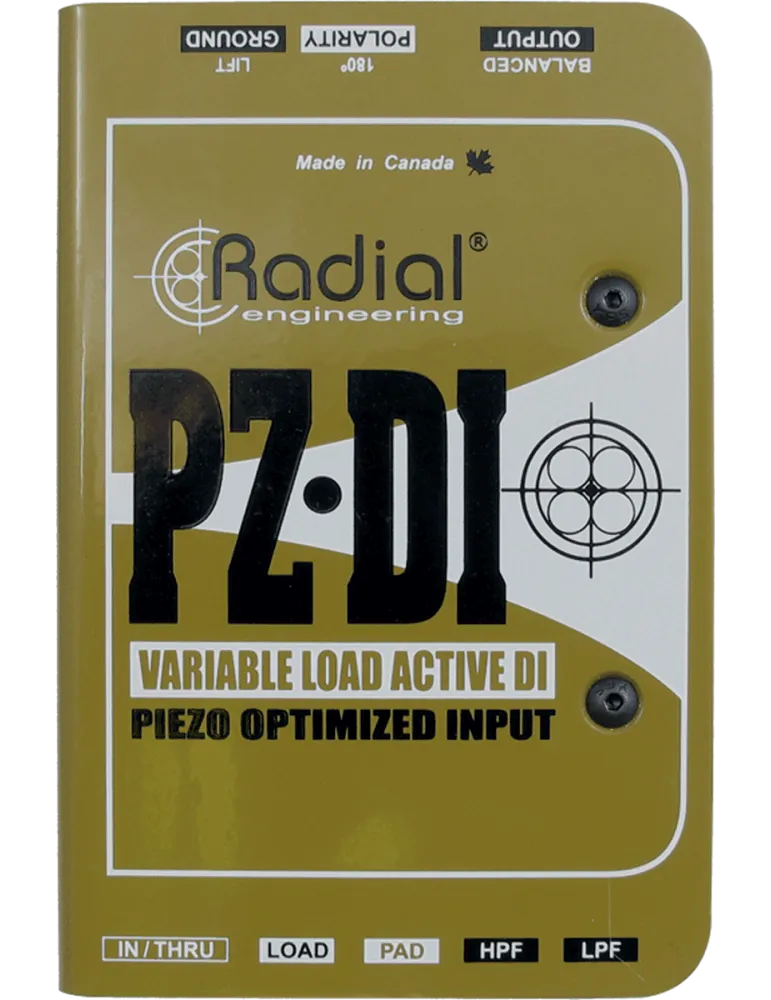

RADIAL ENGINEERING PZ-DI Direct boxes - I.D. for Piezo microphones
