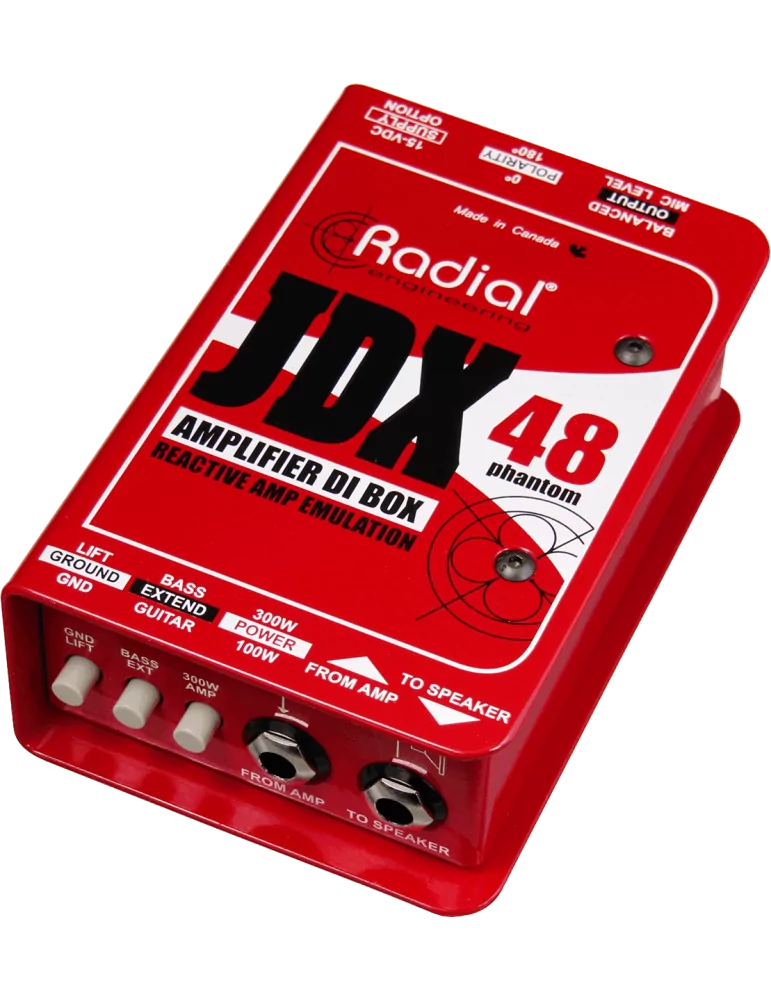

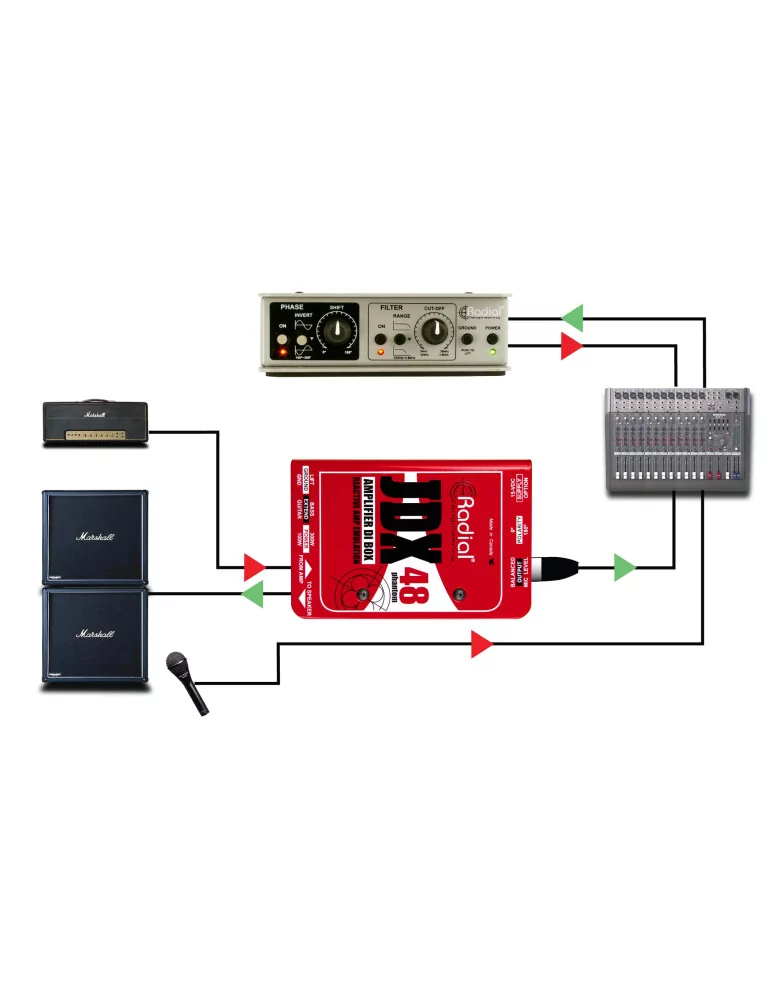

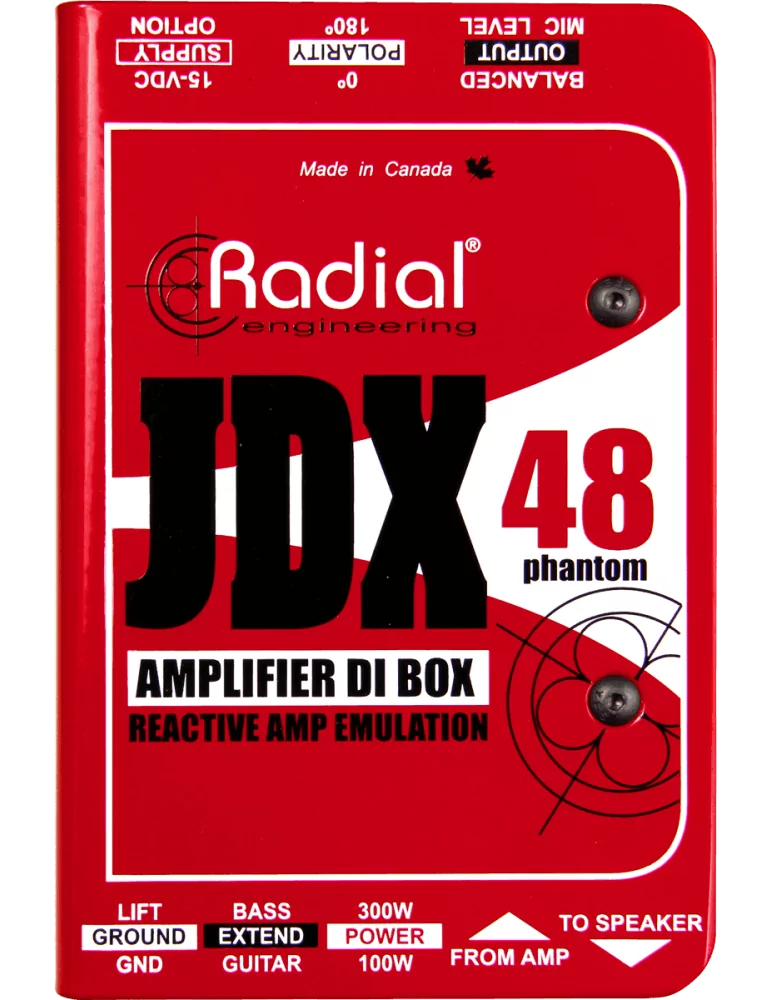

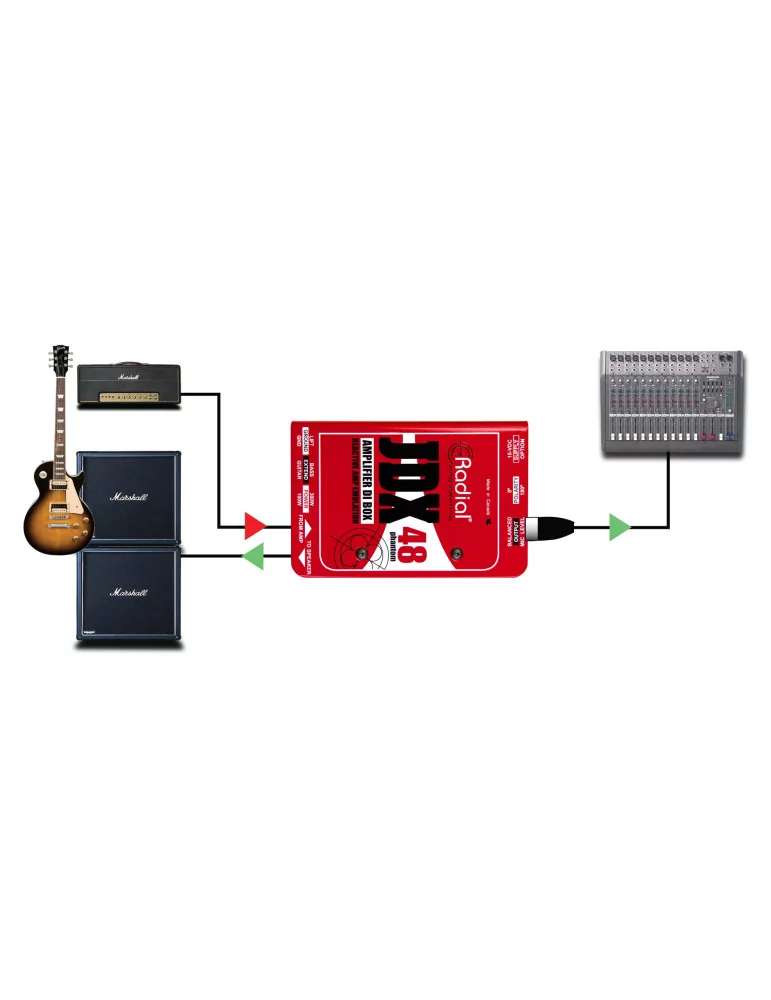

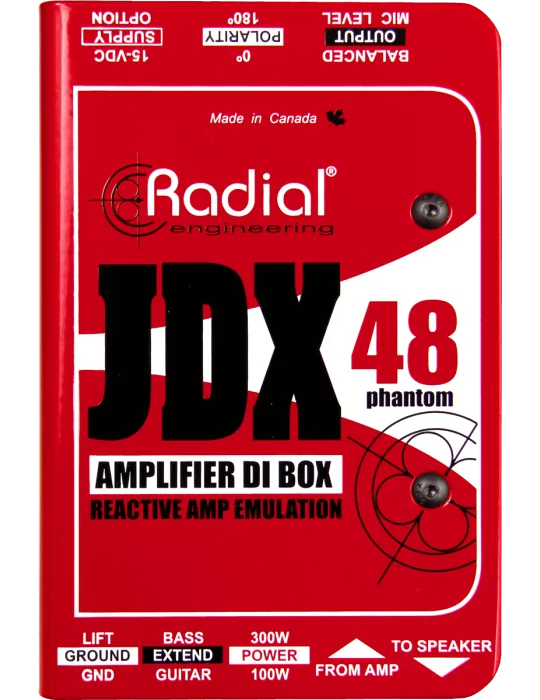

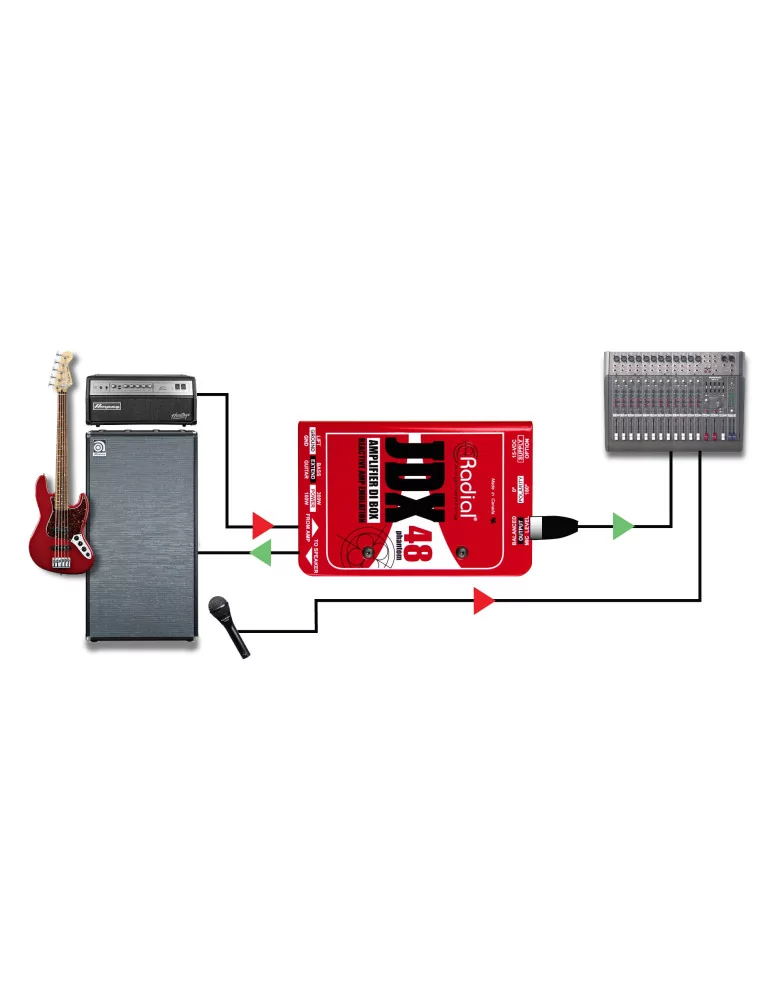

The acoustics of a room change from one date to the next, which tends to exacerbate this phenomenon, and the micing of other instruments can make mixing difficult. The RadialJDX solves these problems by eliminating the need for a microphone. Unlike other similar systems that capture sound from the head only, the RadialJDX is unique in that it reacts to the head AND the speaker to create a more dynamic and realistic sound. The JDX uses a transformer to isolate the amplifier from the PA/recording system to avoid noise caused by ground loops. An active crossover reproduces the response curve of a typical 12" speaker. The JDX uses 100% discrete Class A circuitry for the best possible sonic result.By eliminating the need for a microphone, the Radial JDX allows for a consistent guitar sound from show to show.THE sound has never been easier to achieve!
- THD: < 0.015%
- Category: direct box
- Digital conversion: no
- Inputs: jack

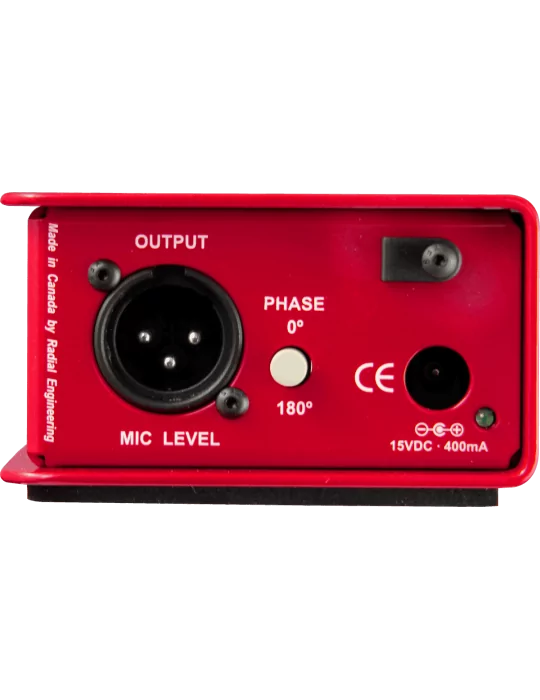

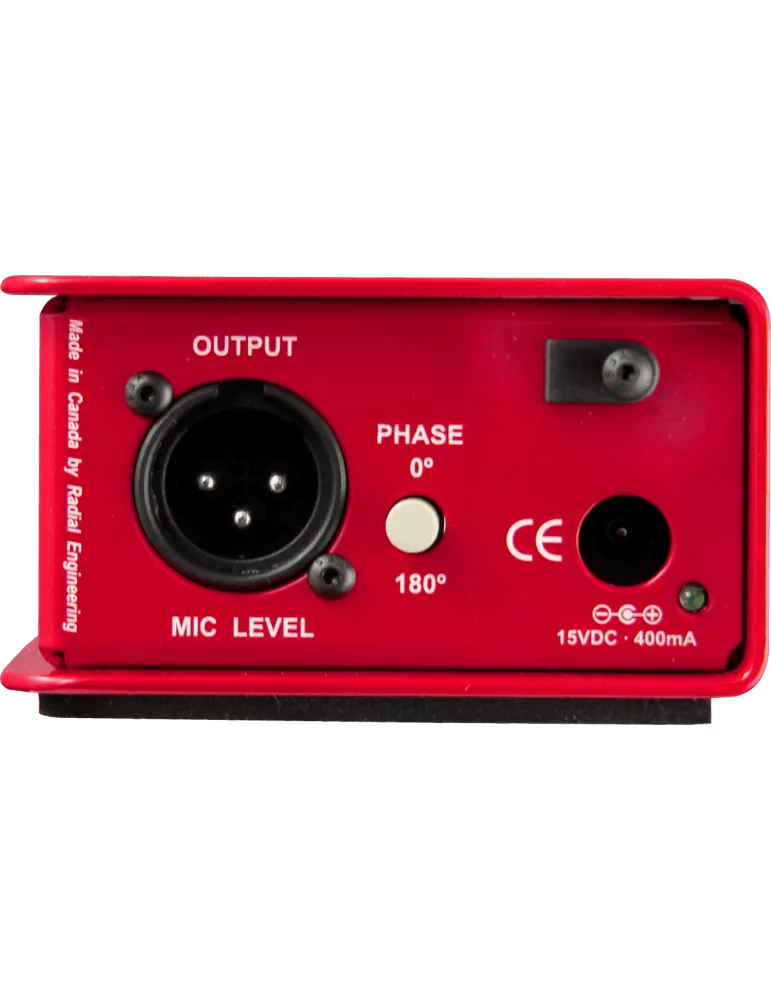

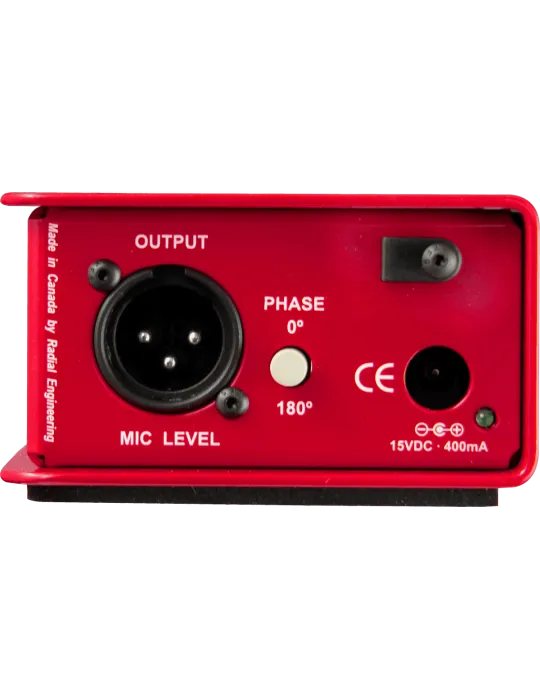

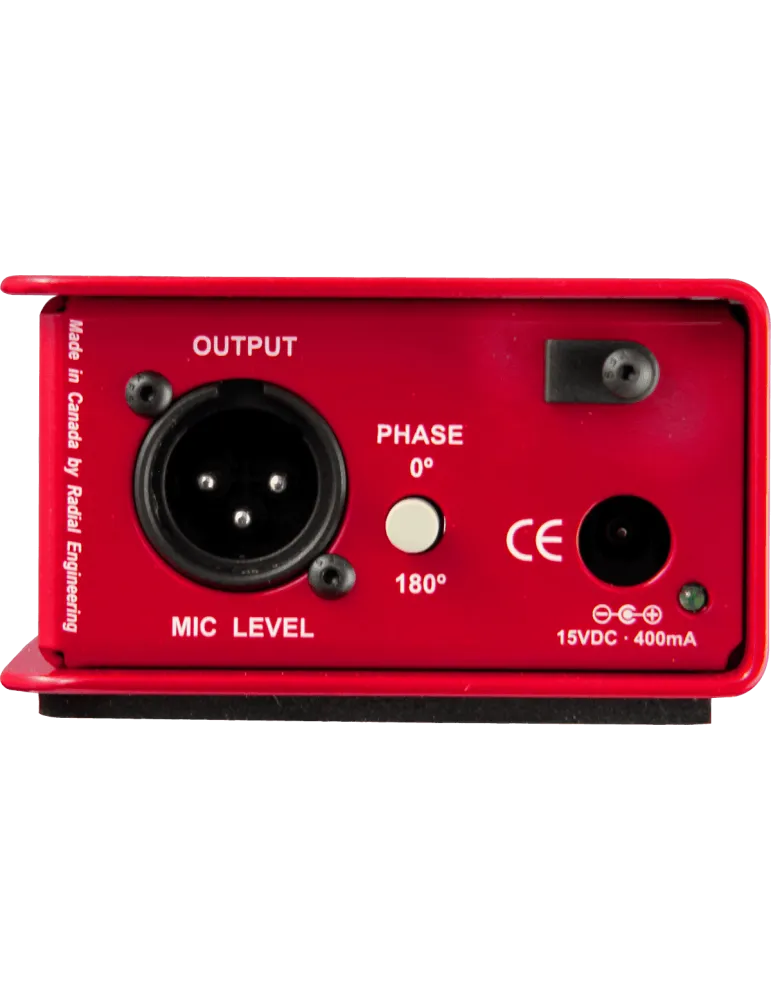

- Outputs: jack, XLR

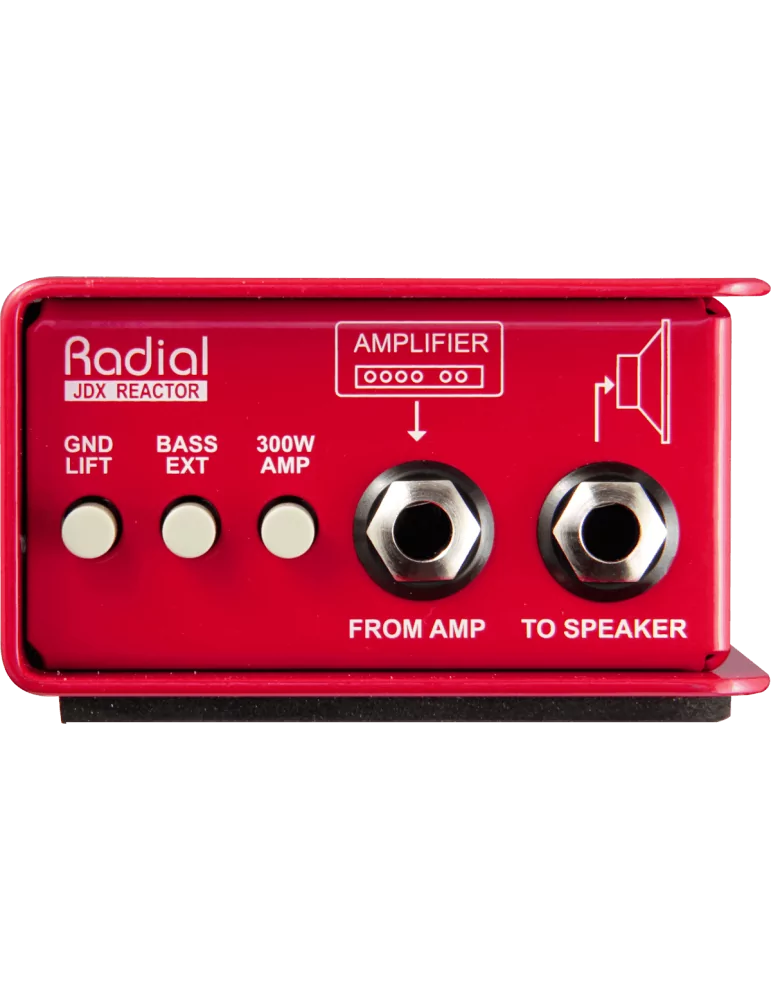

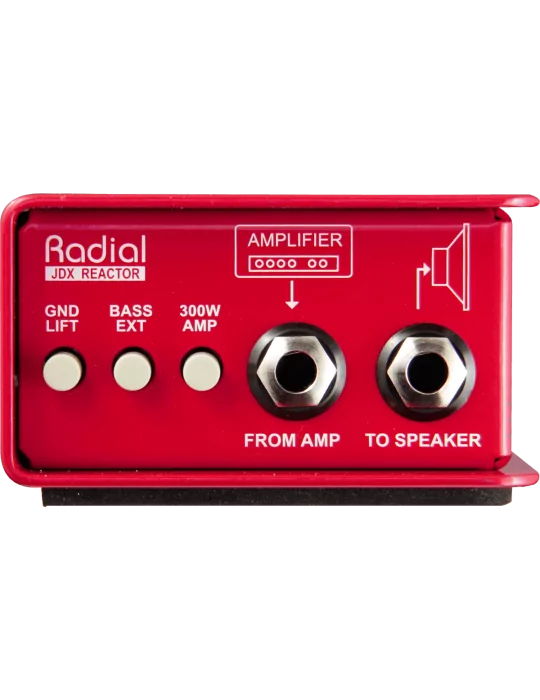

- Settings: Extended bass, ground switch, phase reverse, high power mode
- Power supply: DC 15 V, Phantom power
- Frequency response: 10 Hz - 20 kHz
- Dimensions (mm): 127 x 159 x 51
- Weight (kg): 1.28 kg
- Lights: No
- Built-in preamp: No
- No. of channels: 1
- Additional specs: - Technology: class A
- Dynamic range: 114 dB
- Maximum input level: 120 watts @ 8 Ω
- Maximum output level: 14 dBu
- Input thermal limit: 49 volts AC
- Input impedance: 15 kΩ
- Output impedance: 2 kΩ (balanced)
- Very robust construction: 1.55 mm steel chassis
Specific References
check_circle
check_circle

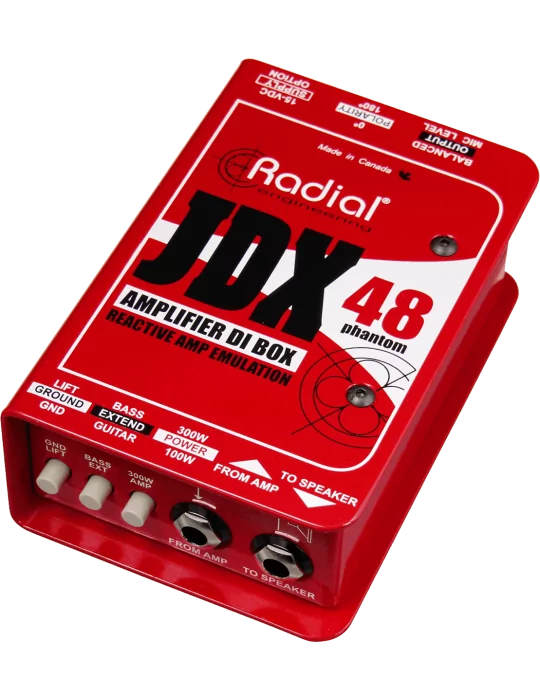

RADIAL ENGINEERING JDX Direct boxes - Active I.D. / HP simulator
