This process allows you to take a pre-recorded track, send it back to a guitar or bass amplifier and re-record the take in a more conventional way using mics.The benefits are huge: instead of worrying about the sound of the track, you can focus your attention on getting the best musical performance. Once the magic is captured, you can re-inject the signal into the guitar amp.So you can move the pickups around as you please so that the pickup is optimized, try out different amplifiers or apply effects.

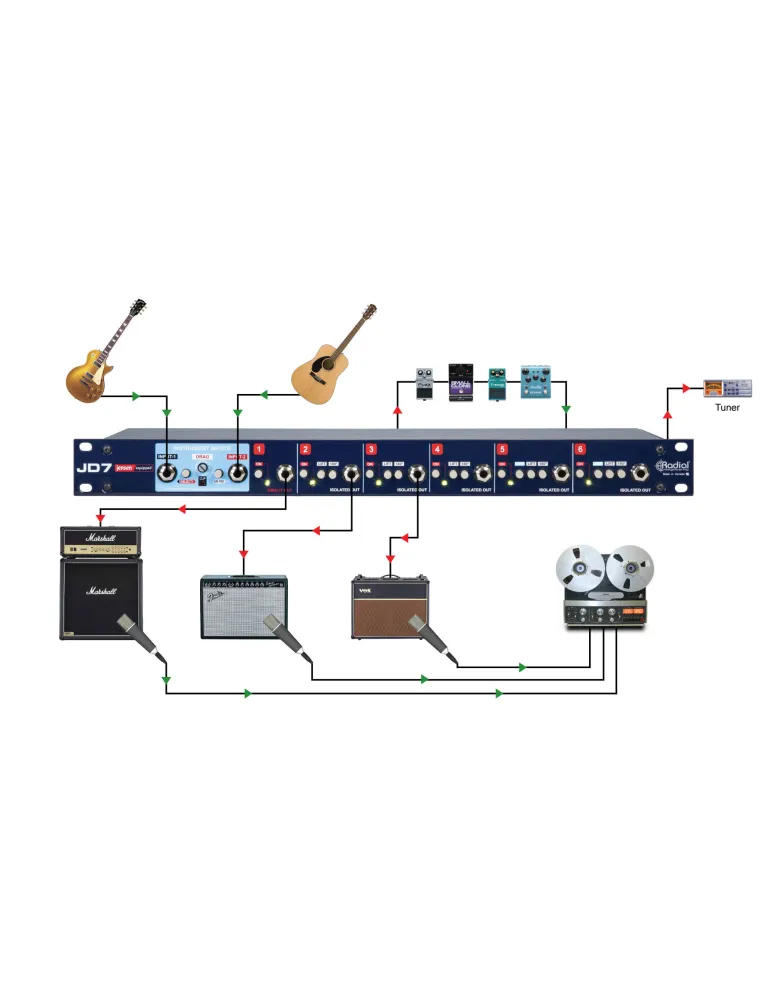

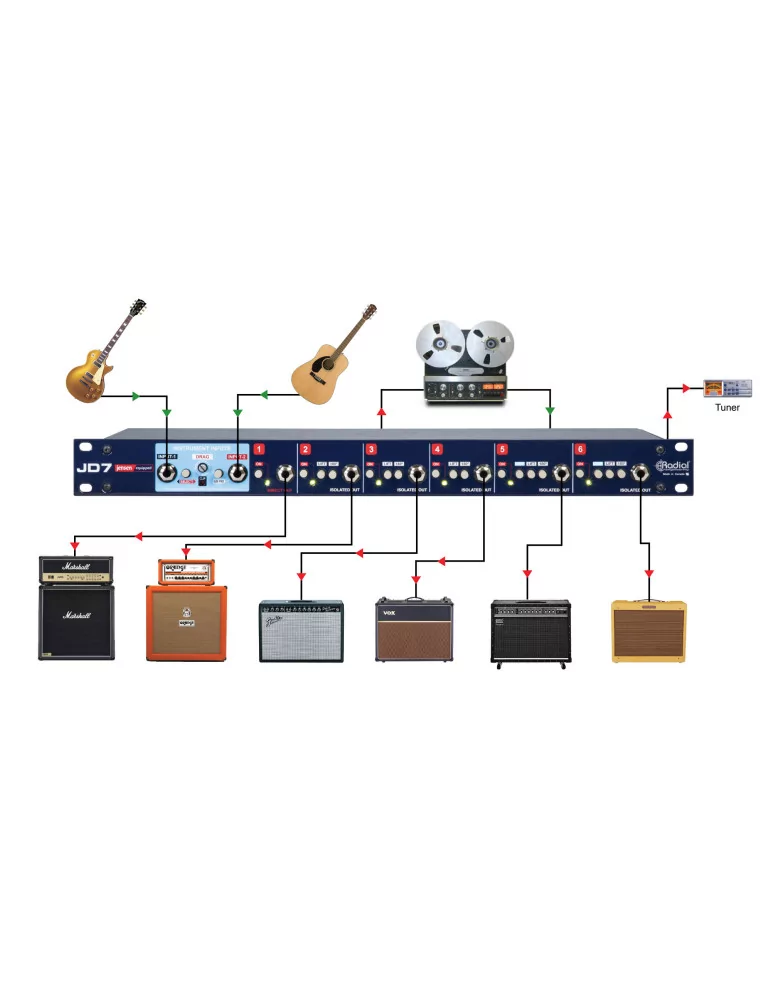

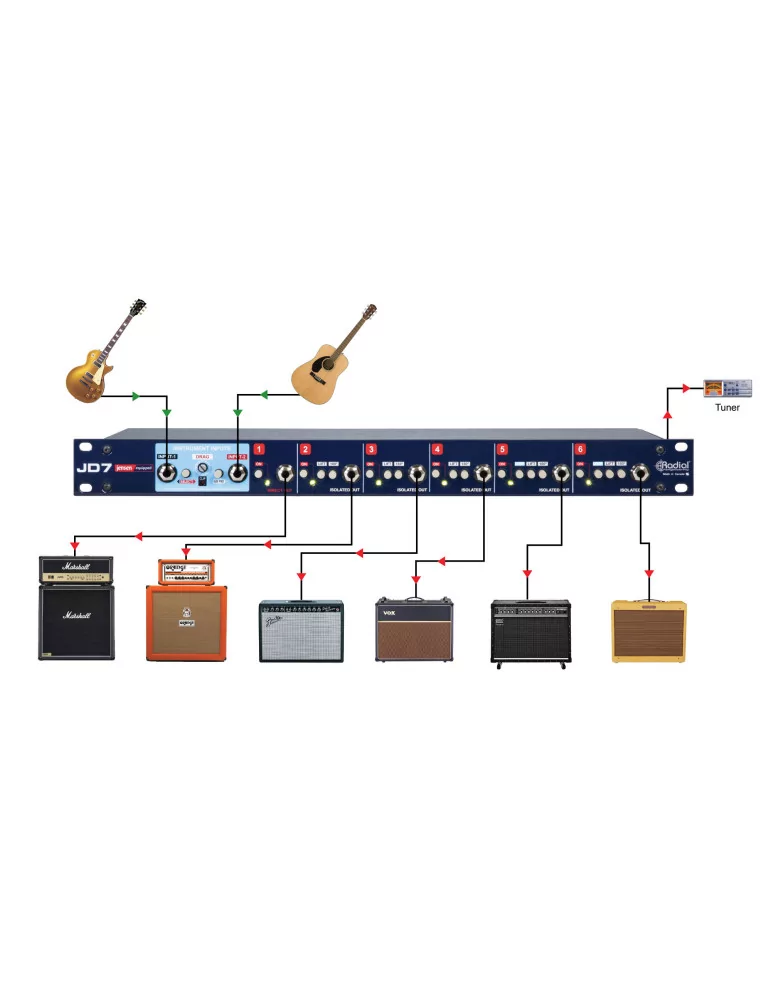

The Radial JD7 Injector is a guitar signal distribution system that allows you to play 7 amps simultaneously with the same guitar.The JD7 is optimized to maintain the natural sound of the guitar while eliminating noise generated by ground loops.The JD7 achieves exceptional sonic performance by combining a 100% discrete active circuit (no op amps) with a passive circuit based on Jensen transformers. The sound of the guitar, usually altered when connected to an active system, is preserved thanks to the drag control. For studio use, the JD7 is fully equipped with balanced connectors for reamping. This allows you to record a dry guitar track, without amps or effects, and then play it back into a set of amps and pedals to find the exact sound you want after you've finished recording.The Radial JD7 is a highly creative tool that allows you to combine and mix the sound of different amps and effects sets at once to create new sounds.Applications:Allows you to play 7 different amps with 1 guitarWork with guitars, basses, keyboardsWork both live and in the studio
- THD: <0.05%
- Display: LED
- Category: direct box
- Digital conversion: no
- Inputs: XLR, jack
- Outputs: jack, XLR
- Adjustments: -8 dB attenuator, impedance correction, effect loop switch, ground switch, phase inverter, input selector
- Power supply: DC 15 V
- Frequency response: 20 Hz - 20 kHz
- Dimensions (mm): 445 x 152 x 44
- Weight (kg): 3.40 kg
- Lights: No
- Built-in preamp: No
- Max input level (dBu): 23
- Rack unit: 1
- No. of channels: 7
- Additional specs: - Circuit: 100% discrete class A for the best possible sound
- Transformers: Jensen
- Reamper: integrated
- Integrated DI (on Jensen transformer)
- Inputs: 2 selectable instrument jacks (+ 8dB pad on input 2), 1 XLR (line level)
- Outputs: 2 coupled direct instrument outputs (class A circuit), 5 isolated outputs (Jensen transformer), 1 DI output (mic level)
- Effects loops: 2 separate effects loops on channels 5 and 6
