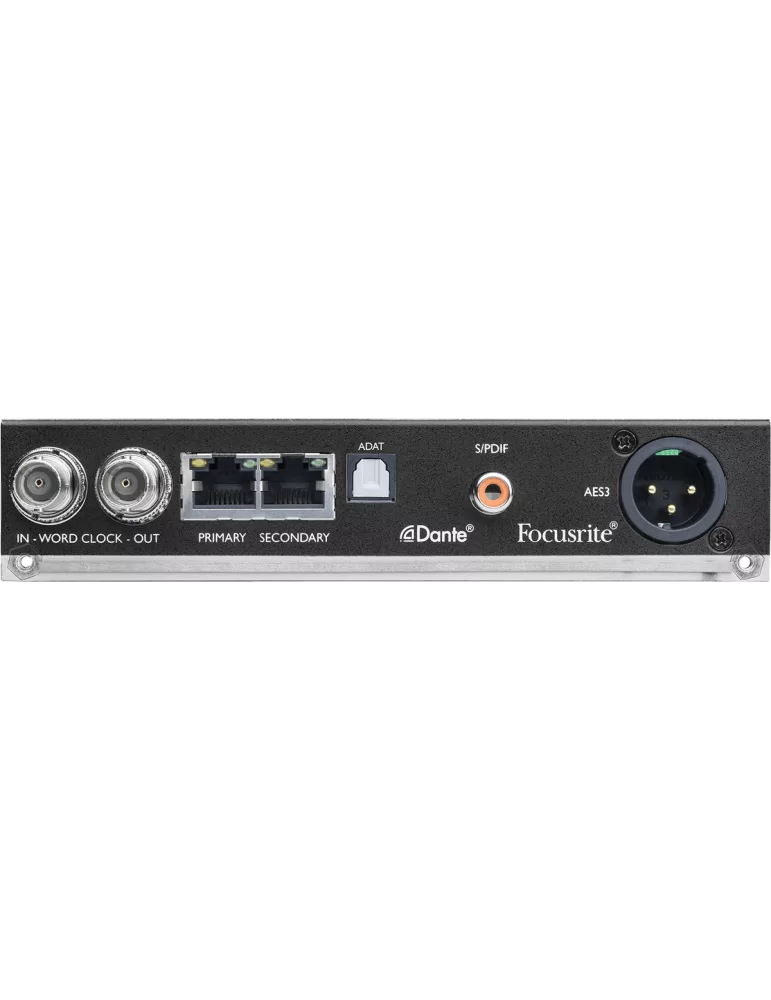

FOCUSRITE PRO ISA-ADN2 ISA - ISA One 2 Channel ADAT/Dante AN Card
ISA - 2-channel ADAT/Dante ISA One AN card
15 people are viewing this right now
RFR ISA-ADN2
€598.80
€499.00
Save 16.67%
VAT included
Delivery within 3 to 4 days
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
Description
This provides the ability to synchronize the Dante network with the "Master" clock or external equipment with the Dante network.
Al Dante.
The ISA ADN2's Dante outputs provide the ISA One mic/DI preamp with network access to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-compatible devices. Level ballistics and settings are accessible via RedNet Control, routing is configured using the Dante Controller app.
Focusrite warranty.
And as with all Focusrite Pro products, wherever you are in the UK, you can count on a three-year warranty if any Focusrite Pro hardware proves faulty, it is routinely replaced.
- Type: option card
- Category: other
- Additional specs: AUDIO PERFORMANCE
- 0DBFS reference level: 22dBu
- Frequency response: 20Hz - 20kHz ±0.1dB
- THD+N: -105dB (0.0006%), 20Hz - 20kHz; -1dBFS at input
- Signal to noise ratio: -121dBu
- Dynamic range: 121dB, 20Hz - 20kHz
DIGITAL
- Supported frequencies: 44.1/48/88.2/96/176.4/192 kHz (-4%/-0.1%/+0.1%/+4.167%) in 24 bit
- Clock sources: Internal or Word Clock
CROSSTALK (input to input): < -100dB; 20Hz - 20kHz (channel @ -20dBFS)
DANTE : 2x channels, on 2x RJ45 ports (Primary & Secondary)
AES3: 2x AES3 channels, output on 1x male XLR connector
ADAT
- 2x channels, output: 1x TOSLINK
- Channel assignment @ 44.1 KHz, 48 KHz, Port 1 = channels 1-2
- Channel assignment @ 88.2 KHz, 96 KHz: SMUX I, Port 1 = channels 1-2
- Channel assignment @ 176.4 KHz, 192 KHz : SMUX II, Port 1 = channels 1-2
S/PDIF
2x S/PDIF channels, output : 1x RCA phono
WORD CLOCK
- Input : 1x BNC 75O port (Switchable termination)
- Output : 1x BNC 75O port.
Product Details
Specific References
- RFR ISA-ADN2
- 0815301001263
