FOCUSRITE PRO ISA-ADN8 ISA - ADAT/Dante 428/828 Mk2 8 Channel AN Card
ISA - 8-channel AN card ADAT/Dante 428/828 Mk2
20 people are viewing this right now
RFR ISA-ADN8
€838.80
€699.00
Save 16.67%
VAT included
Delivery within 3 to 4 days
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
Description
This provides the ability to synchronize the Dante network with the "Master" clock or external equipment with the Dante network.
The journey to Dante.

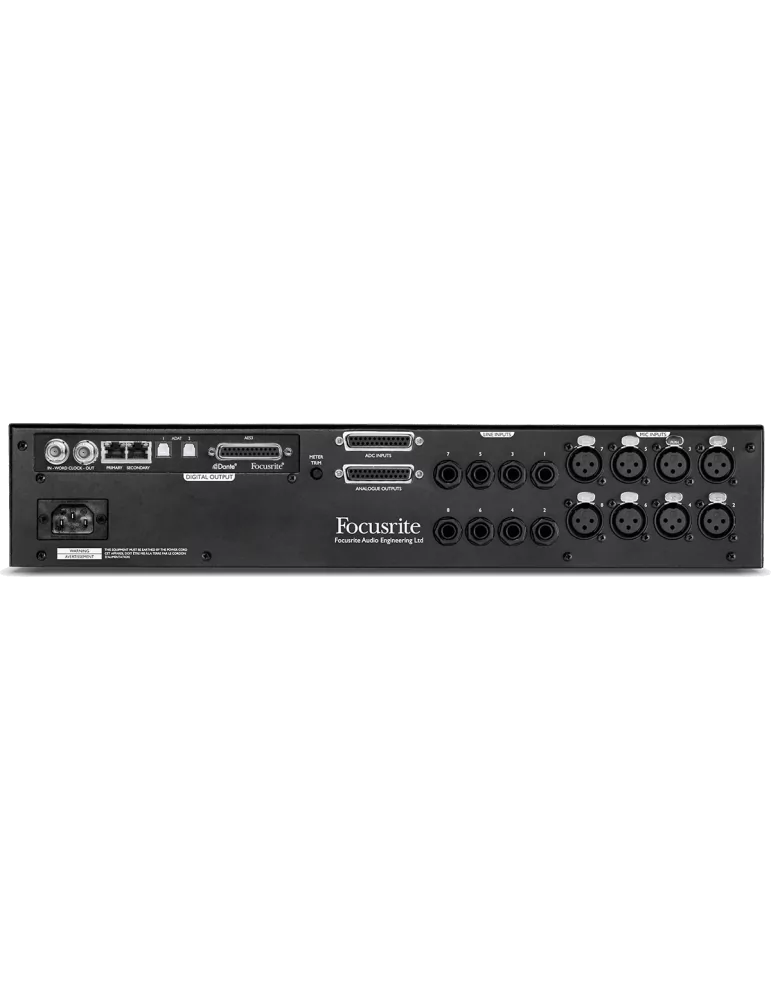

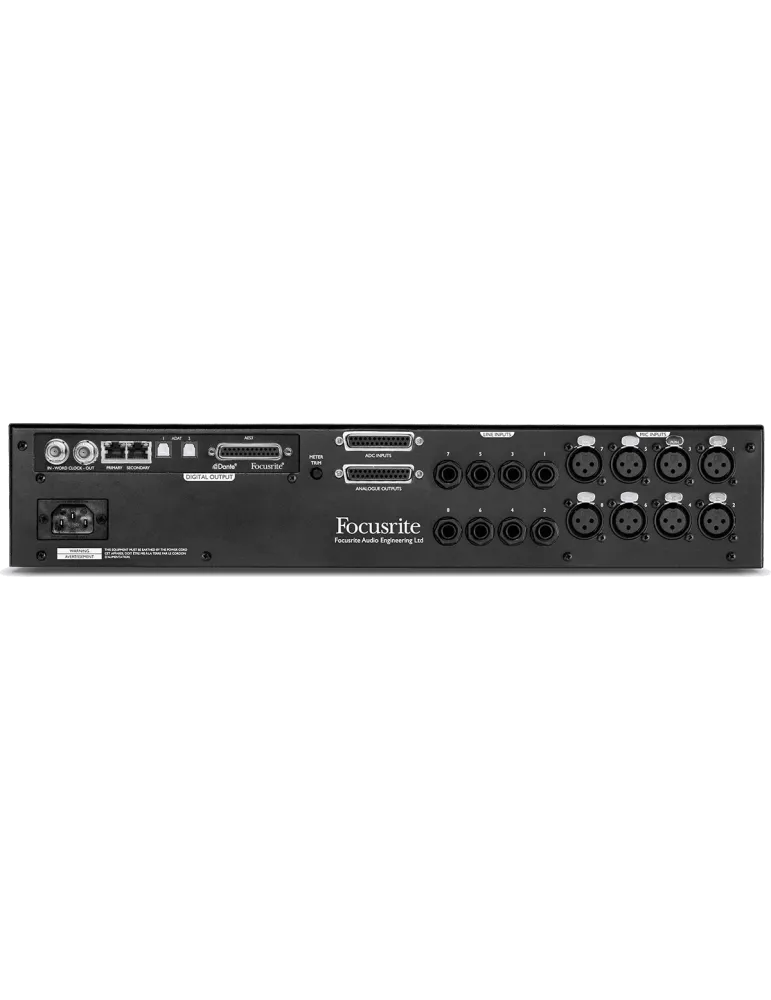

The ISA ADN8 Dante outputs provide the ISA 428 MkII and ISA 828 MkII with network access to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-compatible devices. Level ballistics and settings are accessible via RedNet Control, routing is configured using the Dante Controller application.
Premium warranty.
And as with all Focusrite Pro products, no matter where you are in the world, you can count on a three-year warranty if any Focusrite Pro hardware proves to be defective, it is always replaced.
- Type: option card
- Category: other
- Additional specs: AUDIO PERFORMANCE
- 0DBFS reference level: 22dBu
- Frequency response: 20Hz - 20kHz ±0.1dB
- THD+N: -105dB (0.0006%), 20Hz - 20kHz; -1dBFS at input
- Signal to noise ratio: -121dBu
- Dynamic range: 121dB, 20Hz - 20kHz
DIGITAL
- Supported frequencies: 44.1/48/88.2/96/176.4/192 kHz (-4%/-0.1%/+0.1%/+4.167%) in 24 bit
- Clock sources: Internal or Word Clock
CROSSTALK (input to input): < -100dB; 20Hz - 20kHz (channel @ -20dBFS)

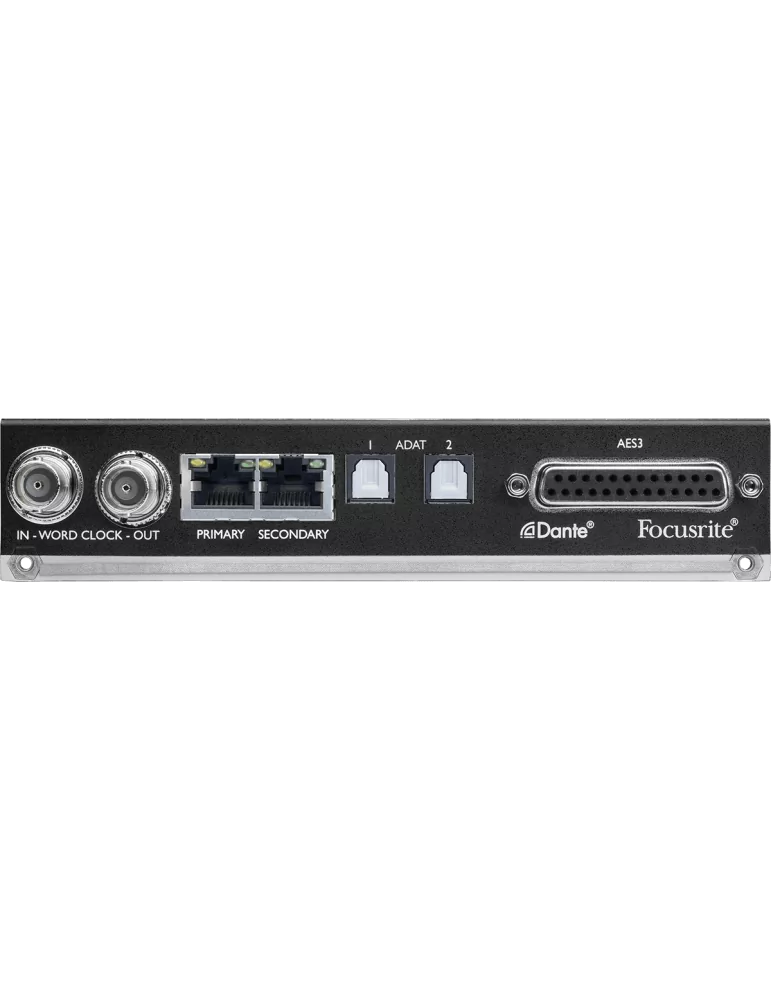

DANTE: 8x channels, on 2x RJ45 ports (Primary & Secondary)
ADAT 8x channels, output : 2x TOSLINK
AES3: 8x AES3 channels, output on 1x DB-25 connector (AES59 Combined I/O in Tascam format)
ADAT
- 8x ADAT channels
-Output: 2x TOSLINK
-Channel assignment @ 44.1 KHz, 48 KHz : Port 1 = Channels 1-8 , Port 2 = Channels 1-8
- Channel assignment @ 88.2 KHz, 96 KHz: SMUX I: Port 1 = Channels 1-4, Port 2 = Channels 5-8
- Channel assignment @ 176.4 KHz, 192 KHz : SMUX II : Port 1 = channels 1-2 , Port 2 = channels 3-4
WORD CLOCK
- Input : 1x BNC 75O port (Switchable termination)
- Output : 1x BNC 75O port
- Dimensions : 33.2mm x 158.5mm x 202.4mm
- Weight: 0.59kg.
