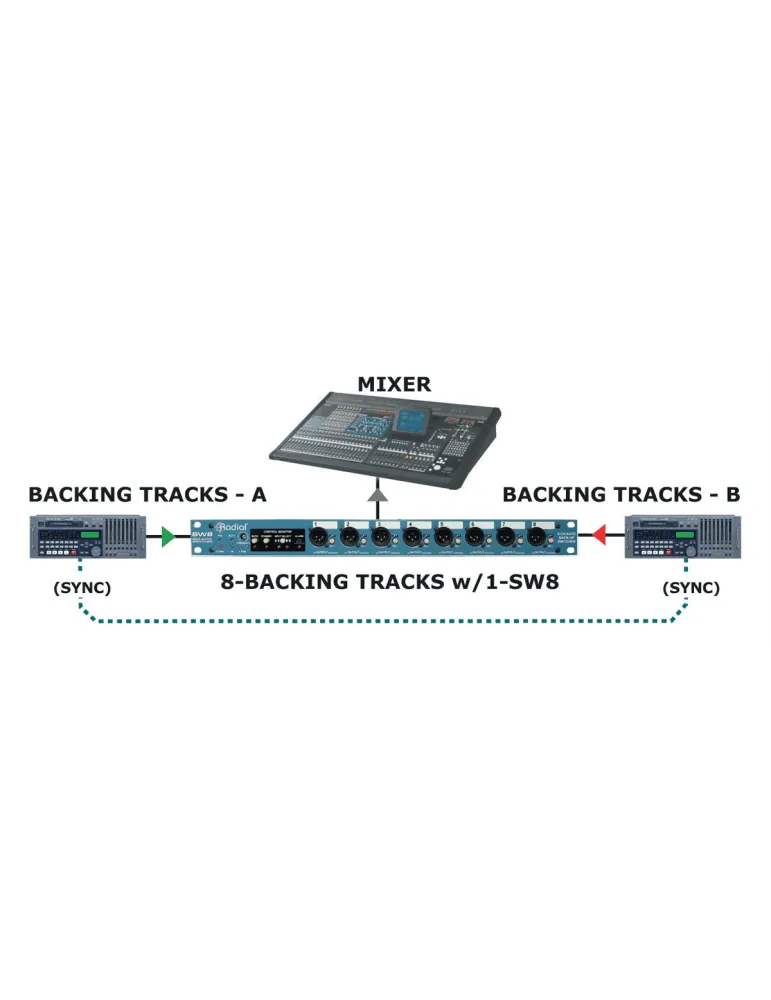

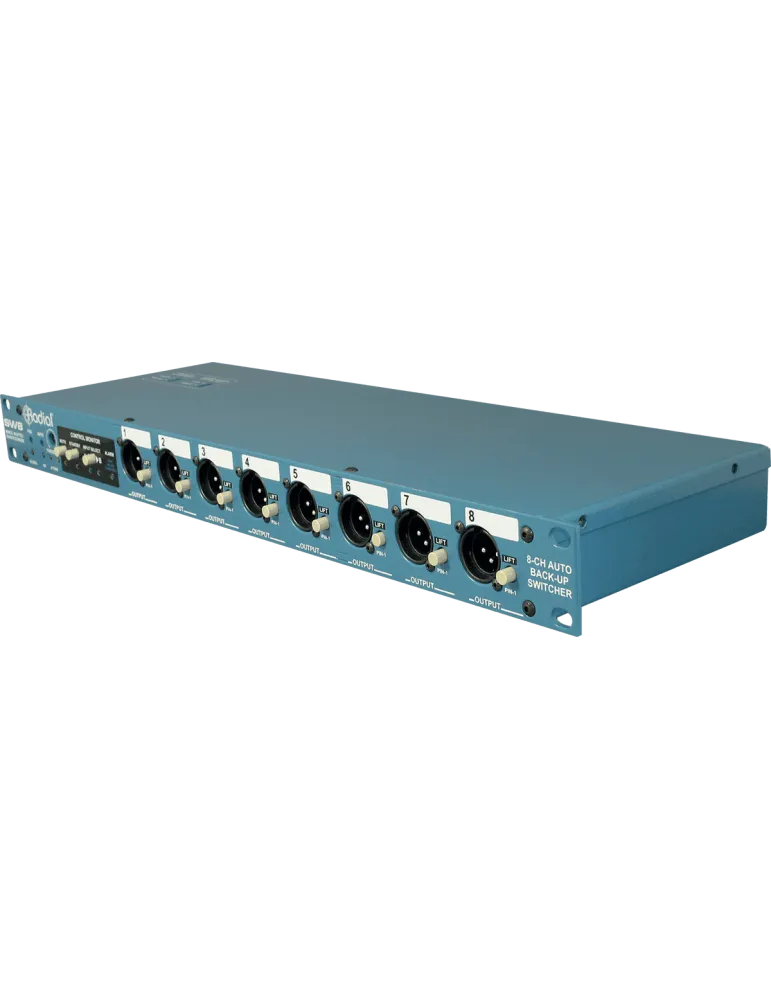

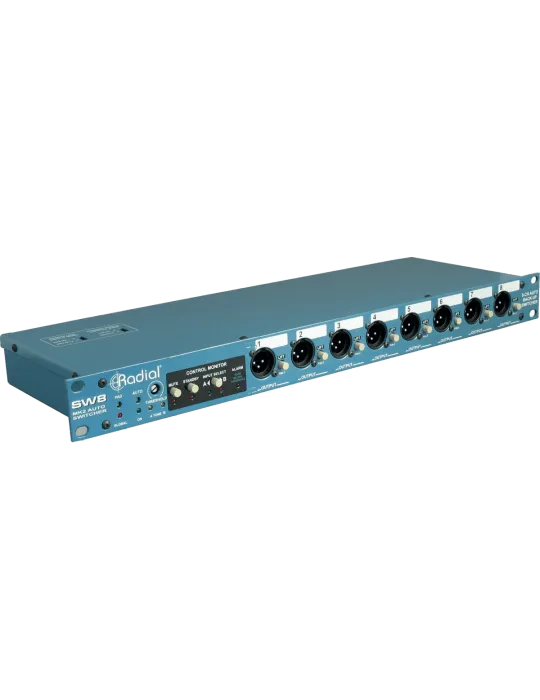

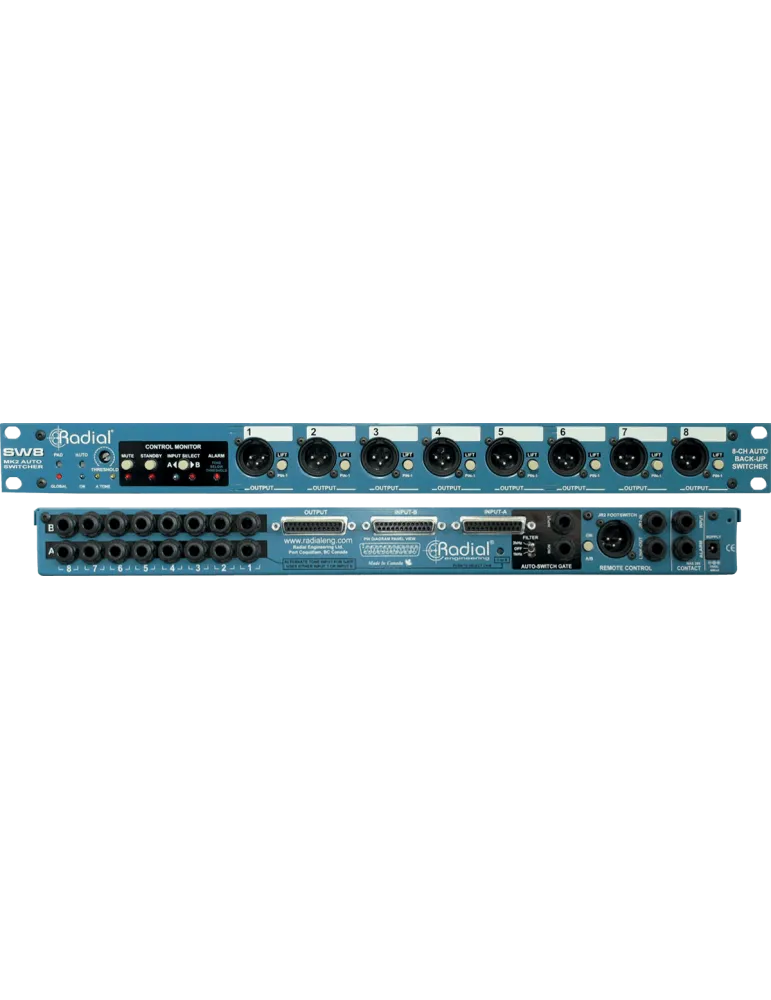

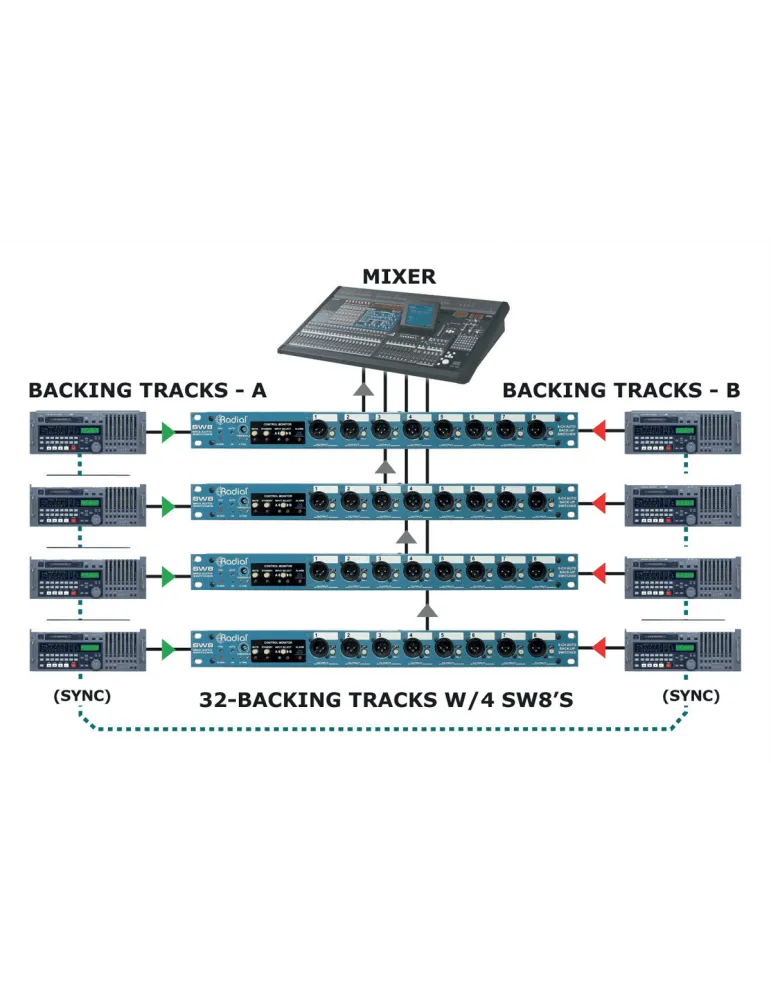

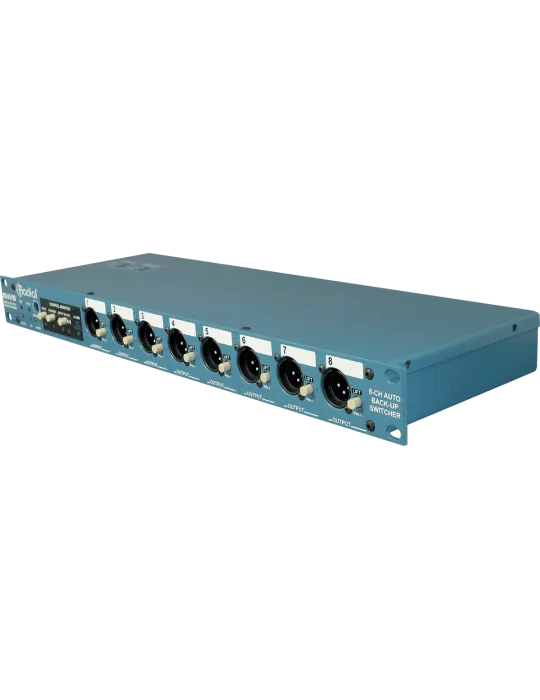

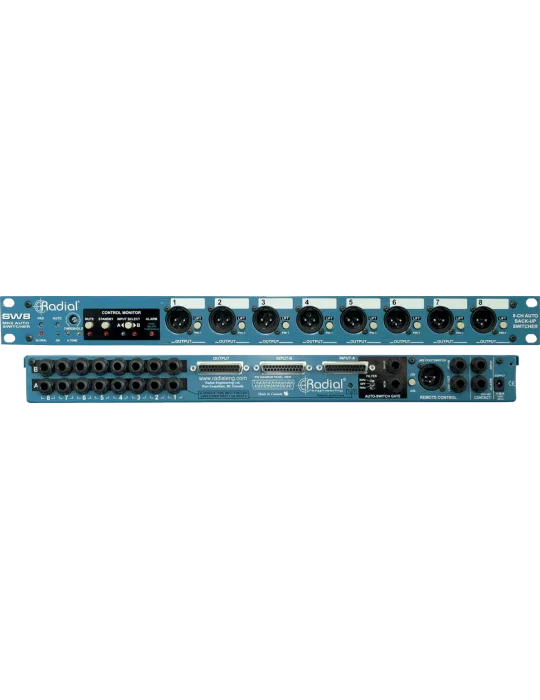

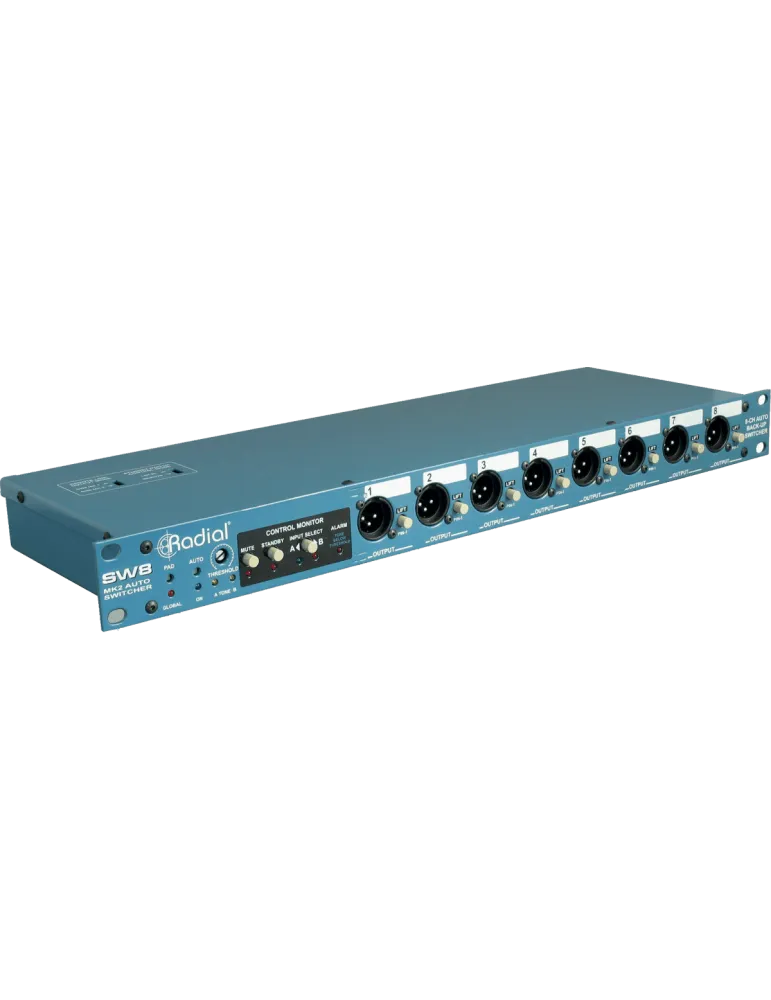

Designed primarily for concerts and shows where playbacks are used for orchestrations, sound effects tapes, the SW8 can detect a device malfunction and automatically switch to a second "backup" machine to ensure a seamless performance.Using the SW8 is easy! Connect your two synchronized playback systems and record a sine wave on channel 1. If the tone disappears, the SW8 front panel will alert you with a red LED that a problem has occurred. If you wish, SW8 will sound an alarm, mute the signal or automatically switch to your second machine. For larger systems, the SW8 can be cascaded by linking multiple machines together with the help of a single instrument cable.19" rack mount standard, the Radial SW8 auto-switcher is equipped with an impressive assortment of connectors, TRS or D-Sub 25 jacks on the inputs and XLR or D-Sub 25 on the outputs to meet any technical challenge.Since its release, the Radial SW8 has earned a serious reputation. Since its release, the Radial SW8 has earned a solid reputation, and has been used by international artists such as the Eagles, Rush, Rihanna, Maroon 5 and Cirque Du Soleil. Although a mature tool, numerous user requests have led Radial to enhance some of the SW8's features to make it the ultimate switcher! - Ability to manually 'mute' the main outputs for easier on-the-fly control and greatly improved visual comfort (addition of LEDs) - Standby function allows the system to be put on standby, handy for managing artist interventions between songs - 'Global mute' mutes all outputs for easy control of the system Global mute mutes all outputs to allow the opportunity to monitor playbacks or prepare input points - 2 signal status LEDs for playbacks A and B - Footswitch or desktop options with dedicated LED indicators On both channels, a series of filters have been added to help limit switching noise and interference for all types of sources. Gate level controls have been relocated to the front panel.
- THD: 0.002% @ 1 kHz
- Category: switch
- Digital conversion: no
- Inputs: jack, D-sub 25
- Outputs: jack, D-sub 25, XLR
- Settings: -20 dB global attenuator, auto toggle, ground switch, mute, input selector, noise gate threshold, standby
- Power supply: DC 15 V
- Frequency response: 20 Hz - 20 kHz
- Dimensions (mm): 445 x 152 x 45
- Weight (kg): 4.20 kg
- Lights: No
- Built-in preamp: No
- Max input level (dBu): 26
- No. of channels: 8

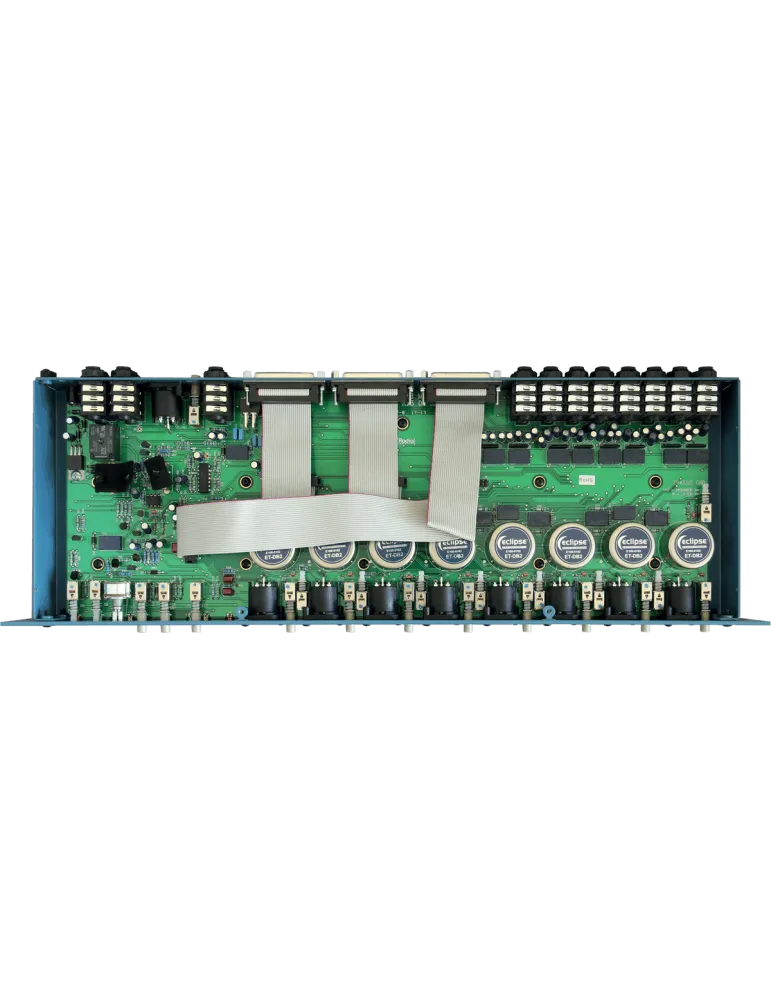

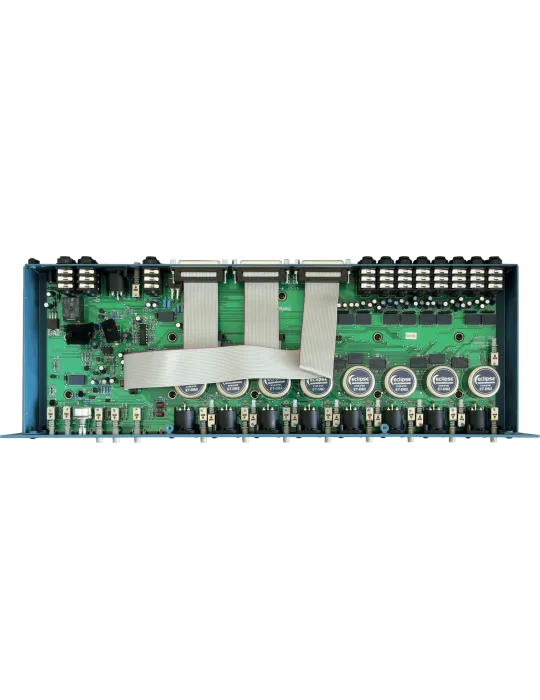

- Additional specs: - Technology: passive signal path with active relay switching
- Transformers: Eclipse ET-DB2
- Dynamic range: > 120 dB
- Input impedance: 140 Ω balanced
- Output impedance: 150 Ω balanced
- Very robust construction: 1.55 mm steel chassis
