SHURE ULXD4QE-G56 Receiver - Quad Dante Receiver - 470 to 636 MHz
Receiver - Quad Dante Receiver - 470 to 636 MHz
Featuring highly robust digital wireless transmission technology, the Shure ULX-D series delivers exceptional audio and RF performance along with a suite of innovative features. ULX-D systems are available with single, dual, or quad receivers.
1 people are viewing this right now
SSR ULXD4QE-G56
€10,418.40
€8,682.00
Save 16.67%
VAT included
Delivery within 3 to 4 days
Security policy Your personal data is 100% protected
Delivery policy 2 to 3 business days in France, 2 to 5 business days in Europe
Return policy 30 days in case of issues
Description
The range also includes a boundary microphone transmitter with omnidirectional or cardioid polar pattern, and a tabletop base transmitter compatible with Microflex modular goosenecks.
The ULX-D digital wireless system range is designed for the most demanding live events and fixed installations.
Key features of the ULX-D system
Digital audio
24-bit / 48 kHz digital audio processing, with a 20 Hz to 20 kHz frequency response and more than 120 dB of dynamic range, delivers incredibly faithful and accurate reproduction of sound sources.
RF performance
The RF signal stability and exceptional spectral efficiency of the ULX-D range allow the use of up to 560 compatible frequencies on one band in High Density mode.
Signal encryption
256-bit signal encryption ensures privacy—for all installations where confidentiality is essential.
Network control
Networking multiple receivers via Ethernet enables the use of Wireless Workbench 6 software, frequency coordination via the Axient Spectrum Manager, system control with an external controller, and Dante™ digital audio networking (except single-channel receiver). Remote monitoring and control from an iOS or Android device with the ShurePlus™ Channel app.
Power
ULX-D transmitters can be powered by two AA batteries or by a Shure SB900B rechargeable lithium-ion battery, which displays remaining runtime in hours and minutes with an accuracy of ±15 minutes.
The ULX-D series is available in VHF and UHF in the following bands: V51 (174–216 MHz), G51 (470–534 MHz), H51 (534–598 MHz), K51 (606–670 MHz), and now wideband G56 (470–636 MHz).

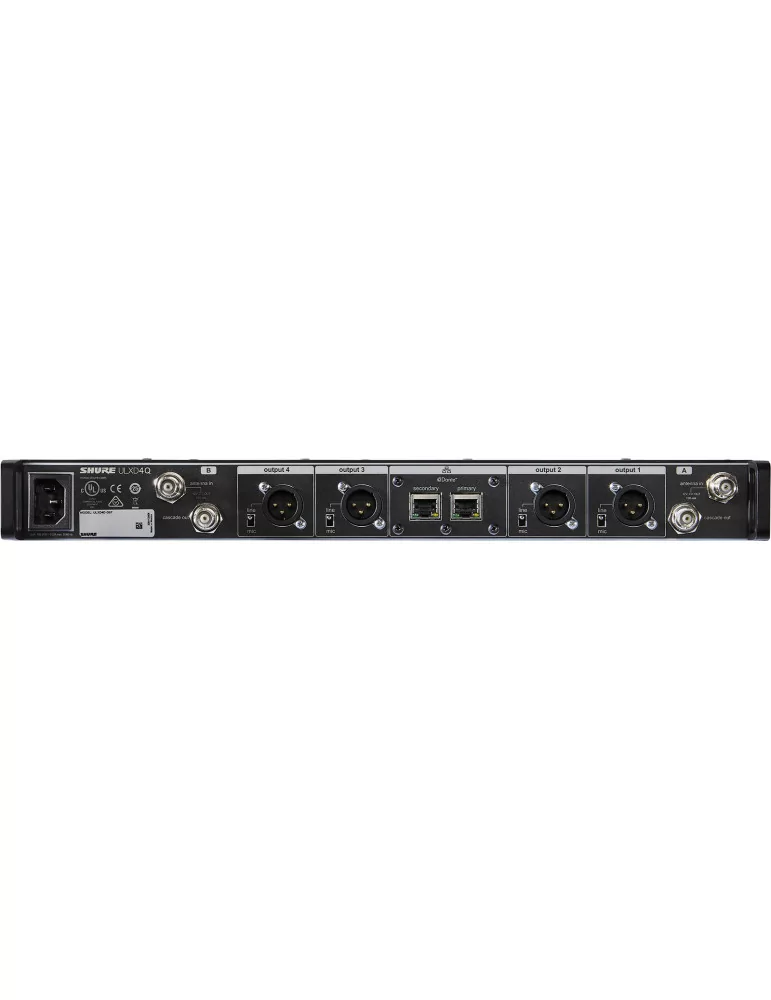

Four-channel Dante digital receiver in a metal 1U / 19" rackmount chassis with internal power supply. It features a backlit LCD shared by the four channels.
Supplied with a front-mount antenna kit, a 90 cm Ethernet cable, and two ½-wave antennas.
- Connectivity: 6.35 mm jack, XLR, RJ45
- Frequency response: 20 Hz – 20 kHz
- Additional specs:
General features
- Up to 72 MHz RF bandwidth
- Up to 70 simultaneous systems per band in Standard mode
- Up to 560 simultaneous systems per band in High Density mode
- Fast frequency scan
- Interference detection and alerts
- IR sync for transmitters
- Audio frequency response: 20 Hz to 20 kHz
- 24-bit / 48 kHz A/D and D/A converters
- Latency: 2.9 ms
- Management via PC or Mac with Wireless Workbench 6 software
- Remote monitoring with the ShurePlus™ Channel iOS app
- Compatible with DTT and 4G
Available frequency bands
G51: 470 to 534 MHz
H51: 534 to 598 MHz
K51: 606 to 670 MHz
G56: 470 to 636 MHz
Additional features of dual and quad receivers
- Frequency Diversity function for ULXD1 bodypack transmitters
- Audio summing function for pre-mixing outputs
- Dante™ / AES67 digital audio networking
- RF cascade outputs – BNC connectors
- RJ45: 2 Ethernet / Dante™ ports, 10/100 Mbps / 1 Gbps
Product Details
Specific References
- SSR ULXD4QE-G56
- 0042406912624
